Please note that this TUYA wifi energy meter will update the Kwh data when disconnected from wifi, other types of Metering circuit breakers will not increase the Kwh when disconnected from wifi.

1. Remote Control ON/OFF by Tuya APP or Smart Life APP at anytime from anywhere

2. Total active energy kWh measure

3. APP can read kWh , R.M.S current , voltage , active power

4.  Timer control function

5. Delay time cut off function

6.  LCD display, Real-time display of Voltage, Current, Active Power, Reactive Power, power factor, frequency, total Energy kWh

7. Power Supply: 85-300V AC 50/60Hz

8. Rated Current: 63A

9. 35mmDin Rail install

10. can use same TUYA APP, compatible with other TUYA products such as WIFI sockets, LED, fans, and so on

11. Active energy accurate isclass 1 , IEC62053-21

Push the button last more than 10s , the WIFI LED will flash quickly, use the APP to operate bear 400V /hour not damaged



Note: This meter Only supports 2.4GWireless Network,  NOT for 5G

NEW function:

1. Positive and negative phase power + historical power
2. Power email export function
3. PV difference power display
4. Electricity bill display
5. Carbon emissions settings
6. Note that there is no temperature display, leakage protection, unbalance protection function, external power failure, the meter will not be switched off for protection
7. Manual button switch control
8. The function of comparing the power with the power of the total meter
9. Power curve display every 15 minutes for 24 hours of the day 1
0. Overvoltage and overcurrent protection settings
11. Operation records and failsafe records

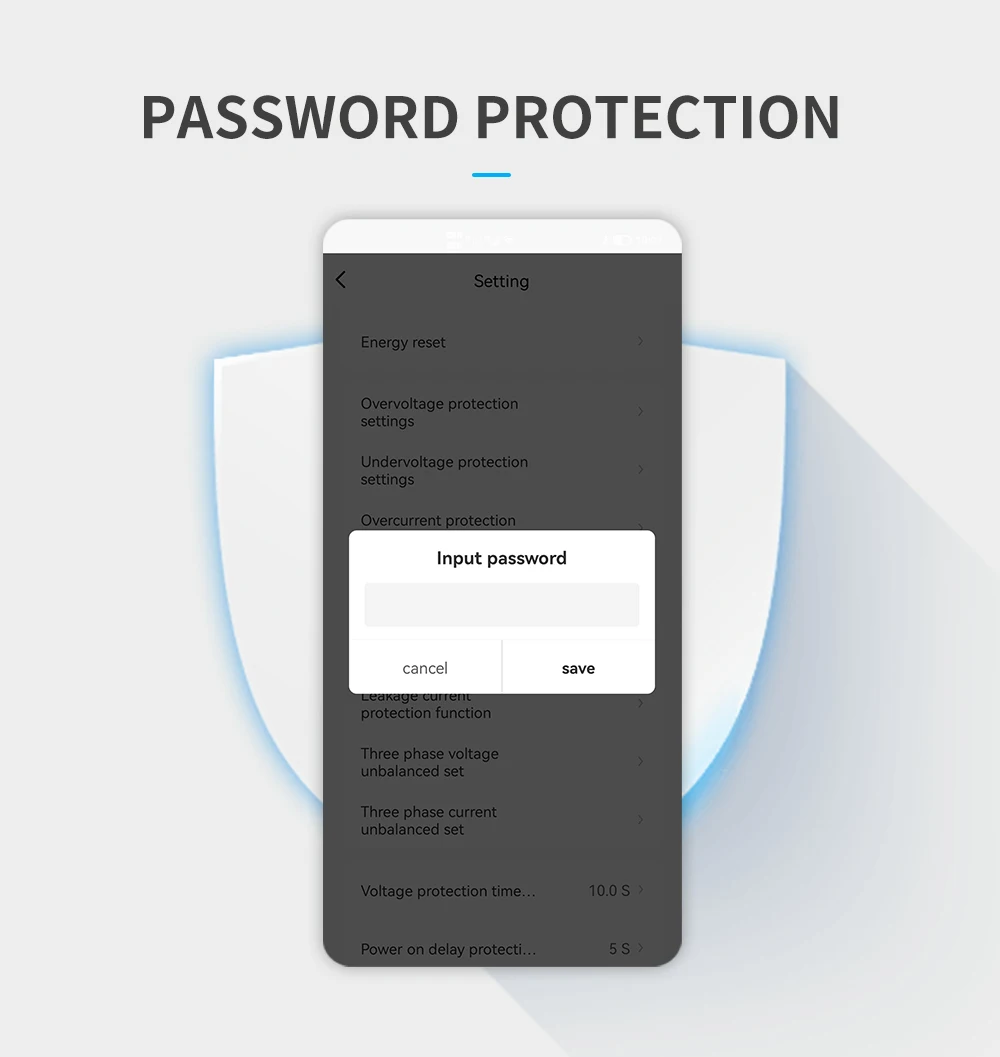

12. Password protected settings



Additional information

Weight 0.0 kg

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Vendor Information

Vendor: Digifolio

Rating: 4.62 rating from 4200 reviews
Company: Digifolio Ltd

Your name: Your email address: Your message:

Original price was: £87.48.Current price is: £43.74. ex. VAT

18mm 63A WIFI smart Bidirectional Energy Meter timer Power Monitor kWh Meter SMARTLIFE with voltage current protection TOMZN
  • 0 Sales
  • 0 Ratings
  • 89 Views
Clear

Specification

Last Update: December 7, 2024
Relased: September 23, 2024
Color 1-63A adjustable
