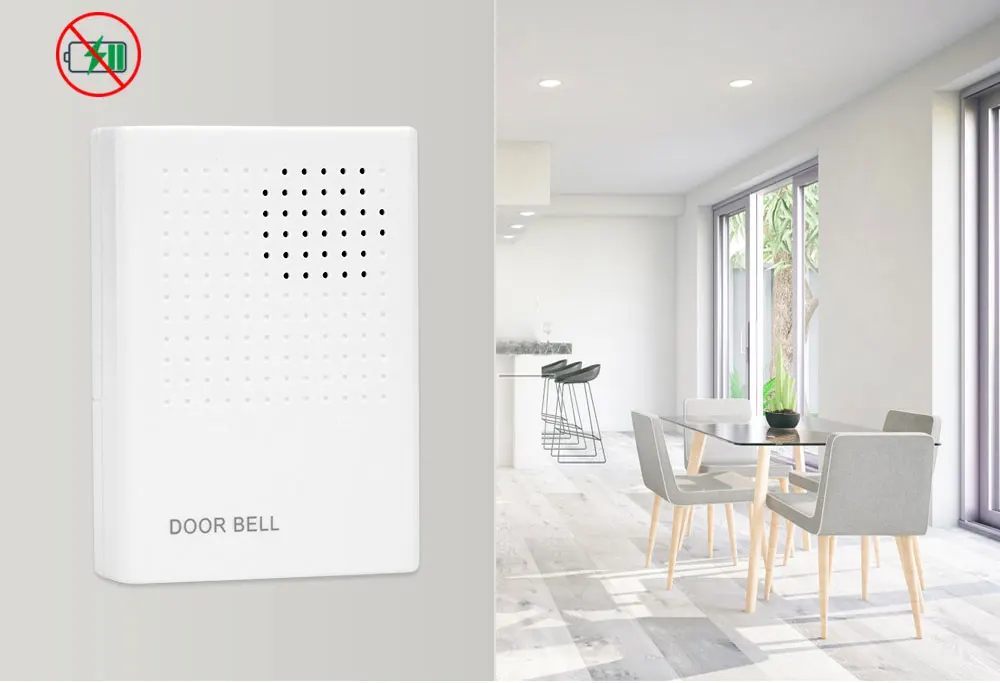

Features:

External wired door bell for security access control.
Featured with soft, loud and clear ding dong playing bell sound.
Connect to DC 12V power directly. Can be used for a long time.
Easy to install, wall-mounted .
Switch is not included. A good replacement for the old and broken one.

Specifications:
Condition: Brand new and high quality
Material: ABS Plastic
Color: As picture shown
Voltage: 12V DC
Operating Current: 20mA
Environment Temperature: -15°-45°
Relative Humidity: 0%RH-90%RH
Installation: Wall-mounted
Ringtone: Ding dong sound
Decibel: 90db

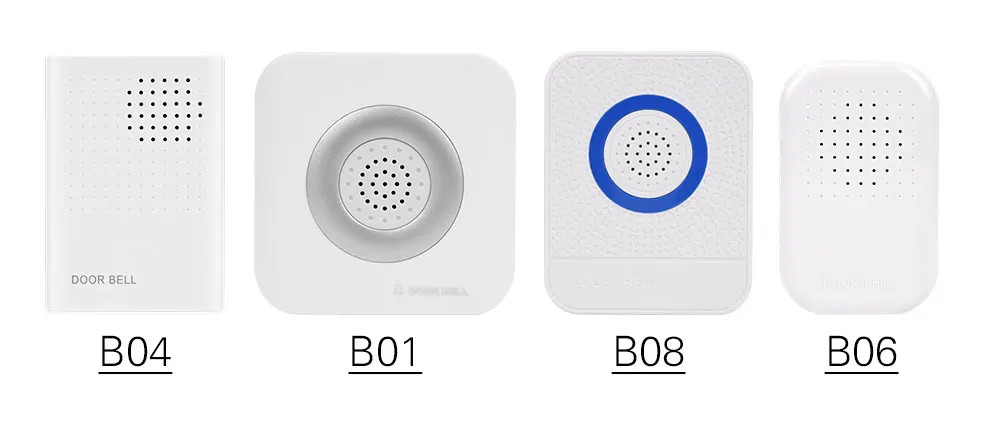

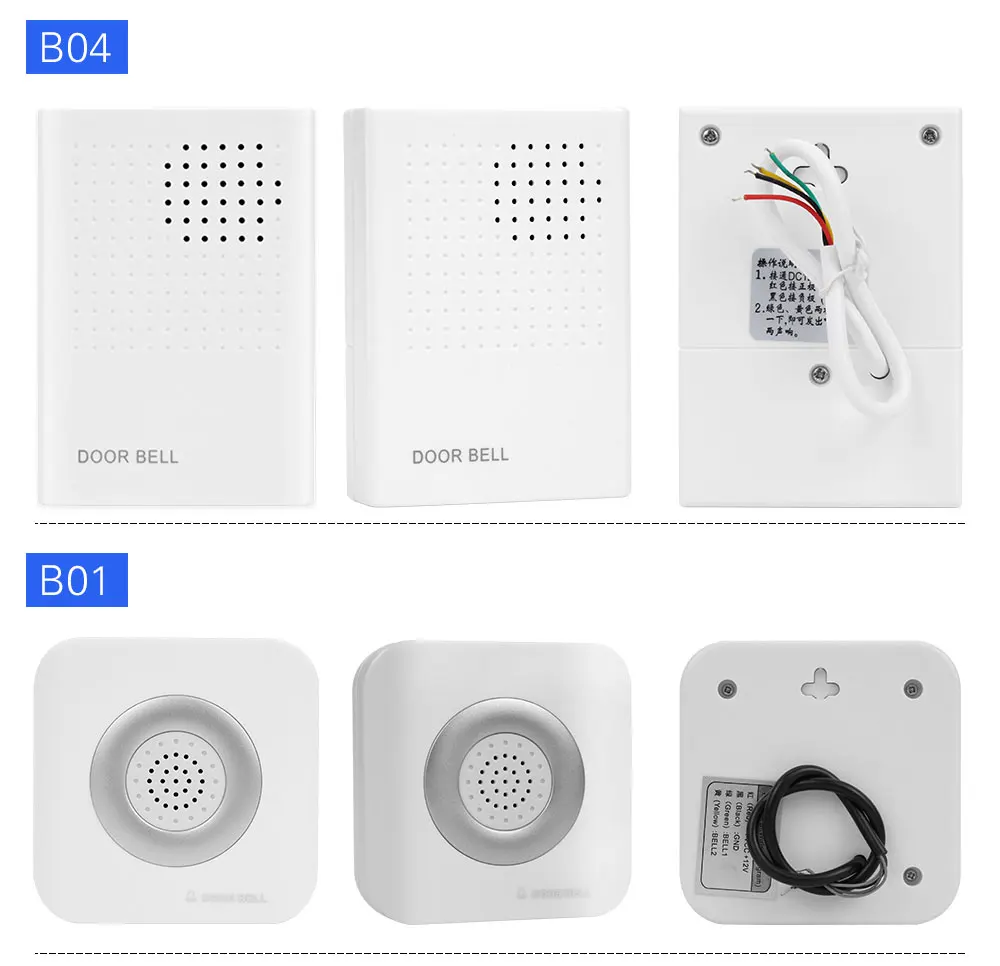

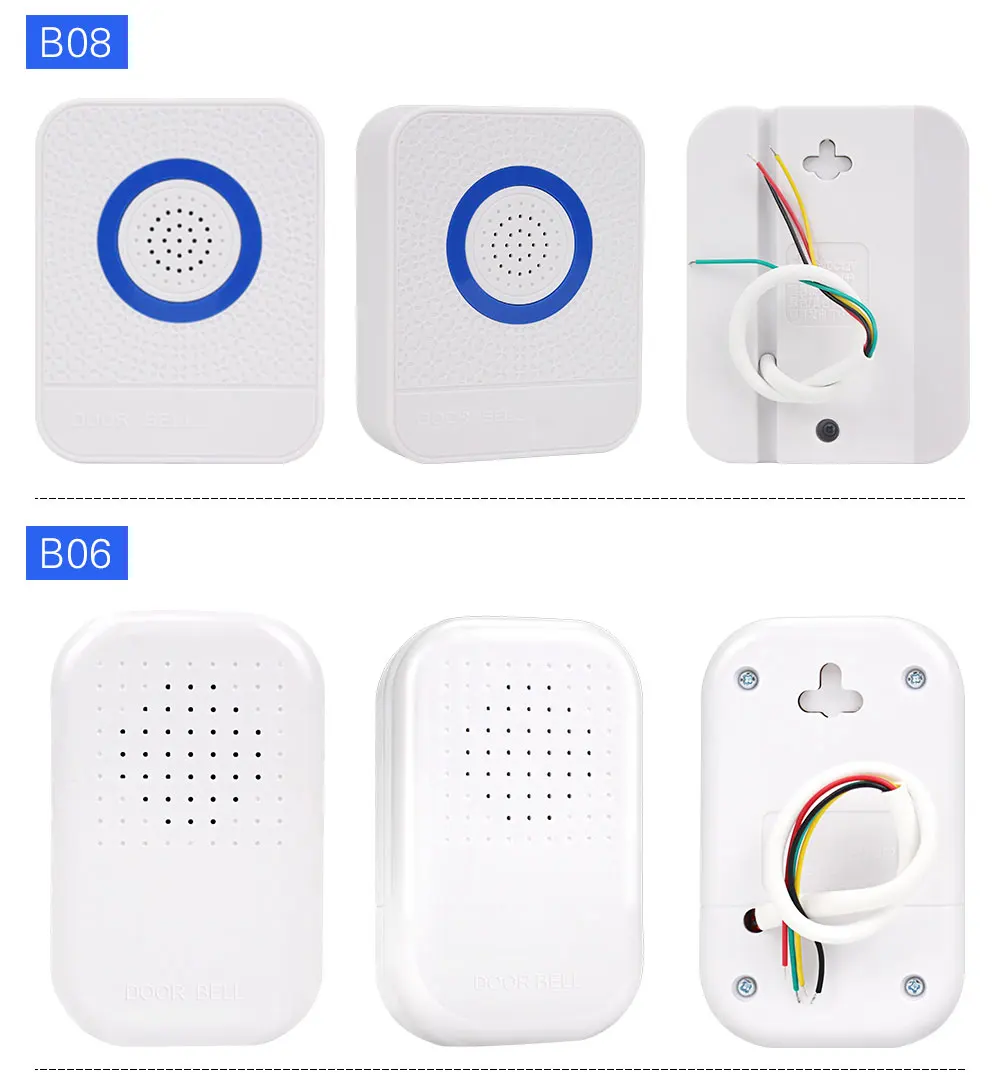

Dimension:
B1 model: 86*86*24mm
B04 model: 88*62*24mm
B06 model: 80*50*20mm
B10 model: 86*67*24mm

Product Details

Selected high quality materials
Using ABS flame retardant material production, fire prevention,
high temperature resistance. Can be used very long time.

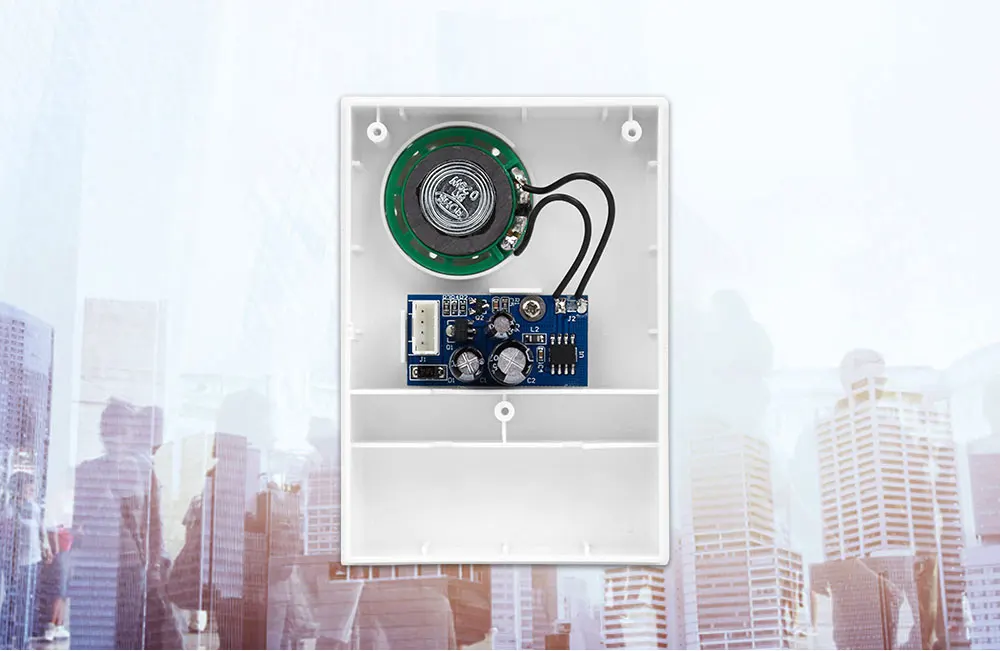

Precision components
After the product is connected to the access control system, press the
doorbell button of the access control to make a pleasant ringtone.


High quality speaker
High loudness 90dB speaker, crisp doorbell, not afraid of the owner can not hear


No battery required
Connect to the DC12V Access control power supply, no need to install battery for doorbell

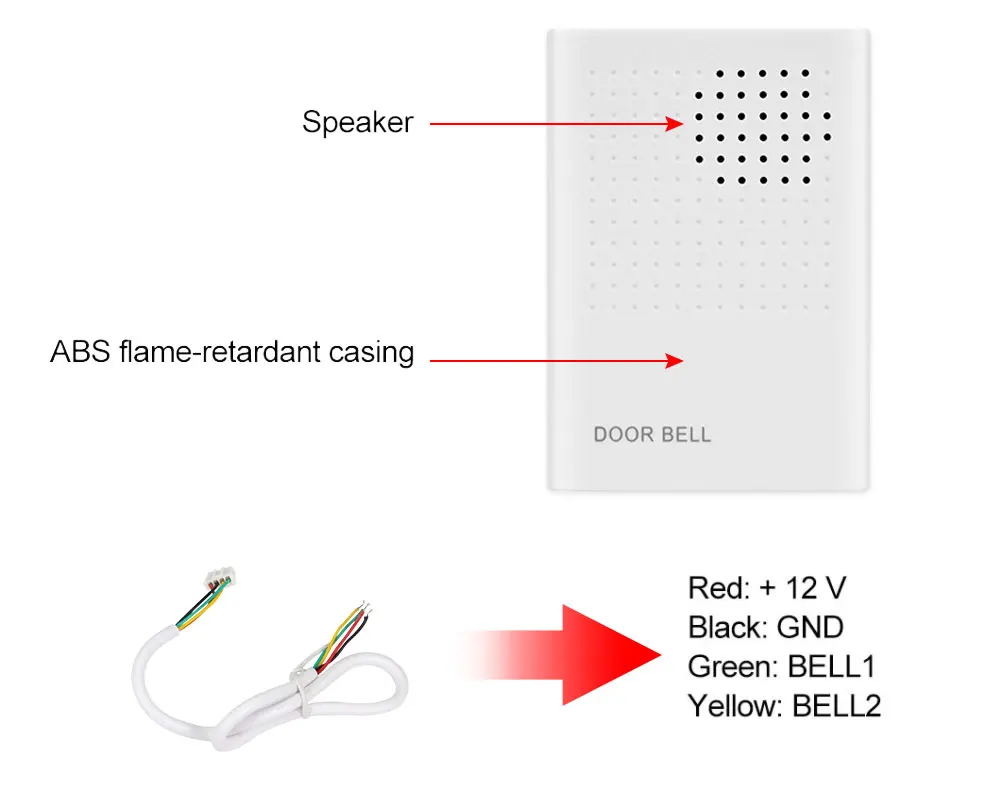

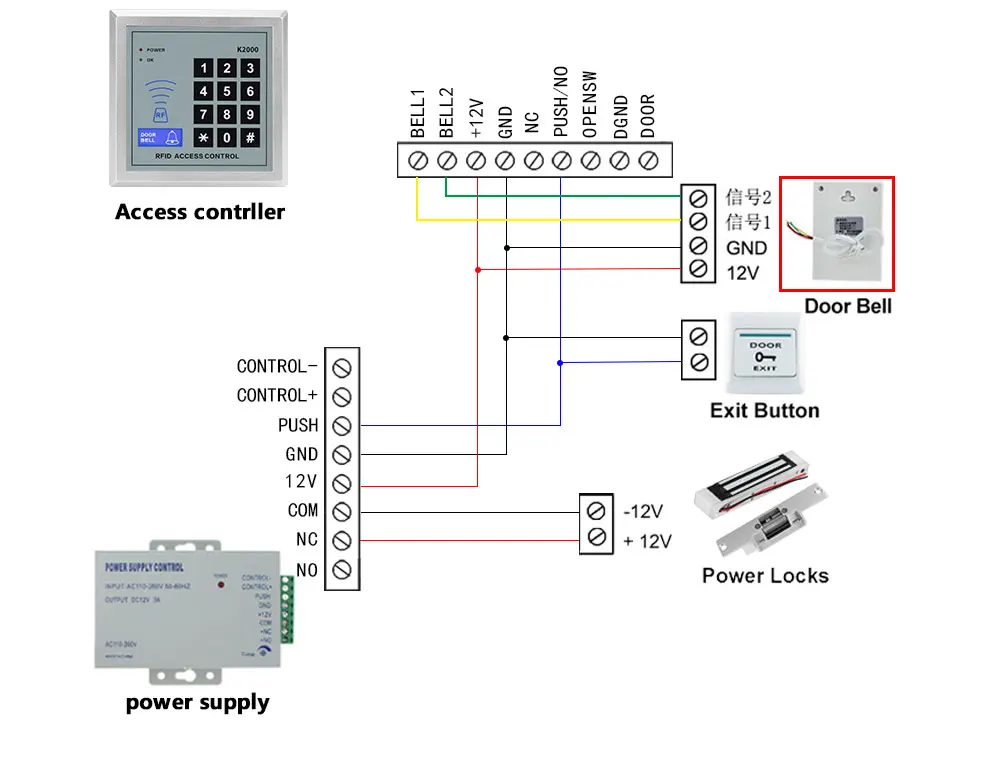

Wiring Diagram

Red: + 12 V
Black: GND
Green: BELL1
Yellow: BELL2

(The access control keypad, power supply, locks, exit button in the picture as below are not included in the package, need to order extra. )



Additional information

Weight 0.0 kg
  • Author’s gravatar
    S***S
    6 months ago

    Very good product quality overall, and fast delivery.

  • Author’s gravatar
    v***s
    6 months ago

    Compliant with the order arrived in 10gg

  • Author’s gravatar
    p***i
    5 months ago

    It’s tiny but pretty I haven’t tried it yet. I arrived very fast

  • Author’s gravatar
    O***t
    5 months ago

    Burst into my house not suitable for 220V power socket

  • Author’s gravatar
    h***r
    4 months ago

    Does not suit me. Poor quality. Toy

  • Author’s gravatar
    w***a
    4 months ago

    ok

  • Author’s gravatar
    T***k
    3 months ago

    not tested

  • Author’s gravatar
    a***r
    3 months ago

    Very beautiful

  • Author’s gravatar
    a***r
    2 months ago

    its OK

  • Author’s gravatar
    K***i
    2 months ago

    It worked well and was quite loud. It can be powered by 12V, but it also works with 5V, e.g. from USB charger.

  • Author’s gravatar
    s***r
    2 months ago

    ok

  • Author’s gravatar
    K***a
    1 month ago

    good!

  • Author’s gravatar
    M***o
    3 weeks ago

    As order. Fast delivery. Recommended seller.

Only logged in customers who have purchased this product may leave a review.

Vendor Information

Vendor: Digifolio

Rating: 4.62 rating from 4200 reviews
Company: Digifolio Ltd

Your name: Your email address: Your message:

£16.32£22.80 ex. VAT

4 Wires Wired White Doorbell DC12V Access Control Door Bell Electronic Dingdong Ringtone Ring Button for Home Security System
  • 0 Sales
  • 12 Ratings
  • 35 Views
Clear

Specification

Last Update: November 5, 2024
Relased: November 2, 2024
Color B01 B04 B06 B10
