Product parameters:
Applicable products: various adjustable fan lights
Wireless control: Zigbee network APP remote control
Working voltage: AC 100-240V, 50 / 60HZ
Load power: 600W (300W for fan and lamp)
Standby power consumption: ≤0.5W
Working life:> = 100000 times
Shell material: PC fireproof material
Glass panel: 4mm tempered glass
Working temperature: 0 ℃ ～ 80 ℃
Relative humidity: 10% ～ 93% (non-condensing)
Control method: touch control, APP control, voice control
Wiring method: zero wire + live wire control
Product size: 120 * 76 * 31.5mm
APP support: Smart Life, tuyaAPP
Main features:
1. Directly configure with Zigbee gateway;
2. Remote control via 3G / 4G on the mobile phone anytime, anywhere, just turn on the GPRS signal;
3. Crystal tempered glass panel, the thickness of the glass panel is up to 4mm, which is more crystal clear and more textured than the ordinary switch panel;
4. LED backlight light prompt can facilitate night identification operation;
5. The operation can be bidirectional feedback, that is, the device’s on, off, and stop status will be displayed in real-time on the APP application side;
6. Multiple sets of timing can be set according to customer preferences, as well as scene control;
7. Support smart life APP, on the APP side, you can choose to share with your family for common use control;
8. Compatible with Amazon ECHO series (Alexa APP) and Google Home (Google Assistant) intelligent voice control.

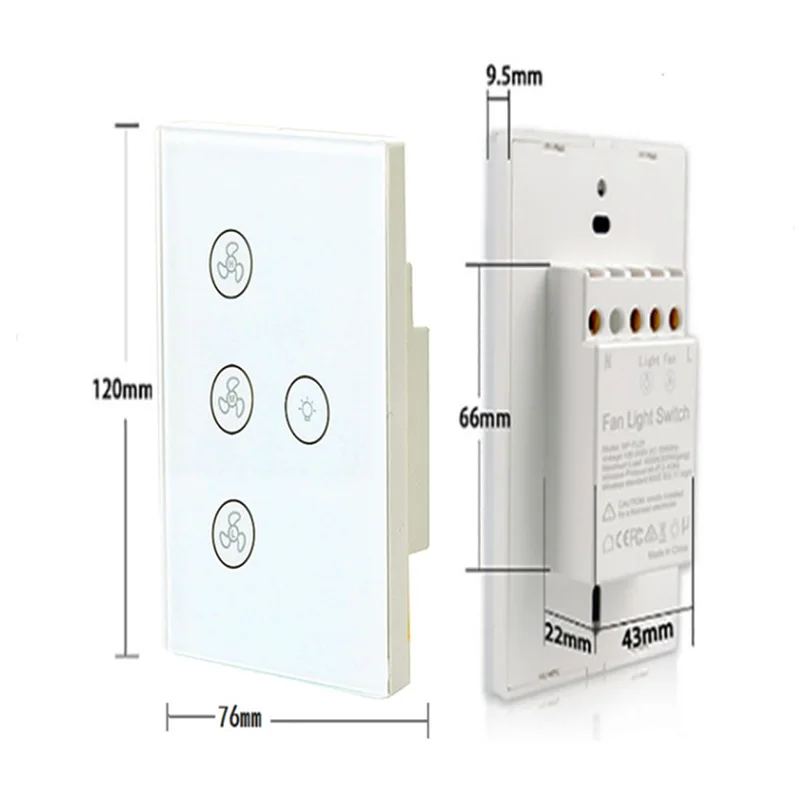

Size: 120 * 76 * 31.5mm
APP remote intelligent control
APP installation and use
1. Download APP (Smart Life), support IOS and Android.
2. Add smart switch and enter WIFI password.
3. Add successfully and start using.
Touch button function operation instructions
Four buttons
Fan H M L (fan high middle low gear)
light switch
Shell using fireproof PC material
Safety and security.
Packaging:
1 x WIFI Fan Switch
2 x Screws
1 x User Manual
 Standby power consumption: ≤0.5W Working life:> = 100000 times Shell material: PC fireproof material Glass panel: 4mm tempered glass Working temperature: 0 ℃ ～ 80 […]){kind=link}
O***a
Not the model I asked for. They sent me the one with 8 speeds and led screen. According to everything else I arrive in time
O***a
Works very well although I had requested the model without a screen
A***s
I haven’t installed
J***s
Very good
R***s
Good product. I tested Sonoff’s ifan04, Tuya WiFi and nothing worked properly with my ceiling fan 110V here in Brazil.
This is running smoothly at all speeds.
I’m using it with zigbee2mqtt. A negative observation, in the z2m he did not recognize the light only the fan.
After using an external converter made available on the GitHub started to recognize the light.
The most negative point is that there is no way to turn off the switch LEDs. If you are bothered by this for example at night, think about buying because it can be a problem.
O***a
Product of excellent quality, works perfectly, great price, fast delivery, recommend the purchase.
O***a
Works, only in the Alexa does not appear the lamp, I found the backligh light very strong in the room is not very good, could have the option to decrease the intensity of the LED, the other version was better, I only changed because it was Wi-Fi and I prefer the ZigBee version, but I do not recommend the product.
B***s
Perfect
J***n
Thanks
J***o
Arrived right
D***a
Does not change the fan speed
K***A
Excellent Product, good finish. I loved it!!!
AliExpress Shopper
Product did not work very well. Does not ascend the lamp when it is with the glass frame
