1) Aqara Smart Wall Switch E1 is newest from Xiaomi Ecological chain, can works with APP xiaomi mi home / aqara home / homekit

2) The wall switch can connect the wire, can control any bulb throught the wire ; while the wireless key cannot wired, only can control other devices by ZigBee 3.0 gateway

3)The E1 wall Switch can works with the zigbee 3.0 gateway (Xiaomi gateway 3 , aqara HUB M1S ,Aqara Hub E1, Aqara Smart Hub M2.)

4) Switching the platform will restore the gateway to factory settings. The network, automation and sub-devices need to be reconnected and set up.

1 ) WIRELESS VERSION

Note: This switch has to work with zigbee Gateway hub to achieve smart remote control function

Features :

Cannot be wired, match with xiaomi or aqara smart bulb or light through ZigBee 3.0

* model ( wireless 1key : WXKG16LM , wireless 2key :WXKG17LM )

* Portable, realize controlling everywhere

* Wireless connection: ZiGBee 3.0

* Built-in CR2032 battery

* support APP : mi home , aqara home , homekit .

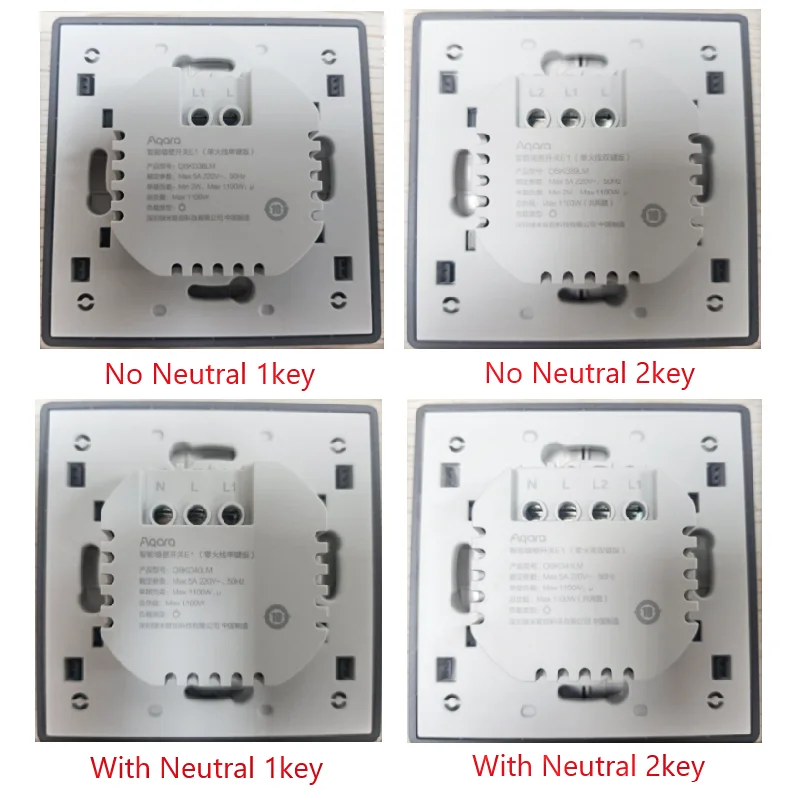

2) Aqara Smart Wall Switch E1 (No Neutral)

Single Rocker ( 1 key )

Model: QBKG38LM

Dimensions: 86 x 86 x 30.15mm

Wireless Connectivity: Zigbee 3.0

Rated Voltage: 220V–, 50Hz

Rated Power: Max 1100W, Min 3W

Operating Temperature:0°C~40°C

Operating Humidity: 5~95% RH. No condensation

Double Rocker (2 keys)

Model: QBKG39LM

Dimensions: 86 x 86 x 30.15mm

Wireless Connectivity: Zigbee 3.0

Rated Voltage: 220V~,50Hz

Rated Power: Max 1100W, Min 3W

Operating Temperature:0°C~40°C

Operating Humidity: 5~95% RH. No condensation

3) Aqara Smart Wall Switch E1 (With Neutral)

Single Rocker ( 1 key )

Dimensions: 86 x 86x 30.15mm

Wireless Connectivity: Zigbee 3.0

Rated Voltage: Max 10A220V~, 50Hz

Rated Power: Max 1100W

Operating Temperature:0″ C~40″ C

Operating Humidity: 5~95% RH. No condensation

Double Rocker (2 keys)

Model: QBKG41LM

Dimensions: 86 x 86 x 30.15mm

Wireless Connectivity: Zigbee 3.0

Rated Voltage: Max 5A 220V~, 50Hz

Rated Power: Max 1100W

Operating Temperature:0″ C~ 40 C

Operating Humidity: 5~95% RH. No condensation

Additional information

Weight 0.0 kg
  • Author’s gravatar
    J***g
    6 months ago

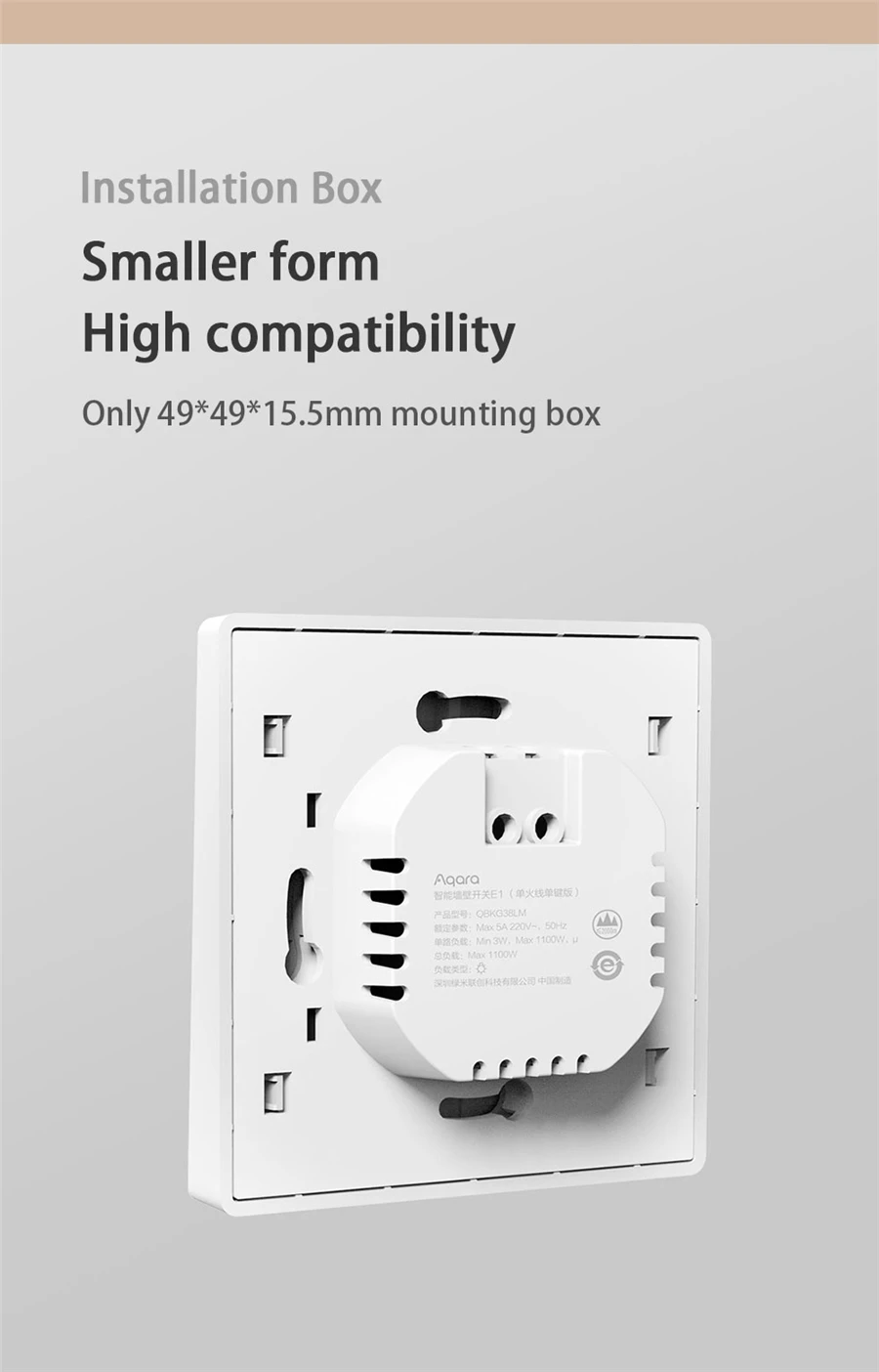

    I bought it because it went into the KR standard switch box. You don’t need a neutral wire, so you can exchange $time with the switch. Usually KR switch box size is about 100x50mm, and this product has a size of 49.5×49.5 inside it barely fit in about mm. The outside size is about 10cm, but if you do it well, you can cover the hole and cover it with something. First of all, I registered well as a Chinese server in the Akara app and use the relay well. But the light connected to the load line should not be a smart light, so it works. When connected to a smart light, the switch is also turned on/off depending on the light on/off.

  • Author’s gravatar
    l***n
    6 months ago

    i have the model with neutral, the qr code says “not working” but in fact it works quite well.
    the product is well built, good quality as i like it.

  • Author’s gravatar
    Г***а
    6 months ago

    Like it very much. The material is beautiful and to look and feel. Works without neutral, without any capacitors and other collective farm. Alice saw him Zigby, no problem. I saw it as two switches, which I combined into one group. Installed in place of the old switch, three minutes. Just love it. I will think about how to replace the rest of the switches in the apartment.

  • Author’s gravatar
    AliExpress Shopper
    5 months ago

    The goods were received on time and the delivery process was not affected. Functionality was not possible to check-not yet established. Best seller recommendations!

  • Author’s gravatar
    c***n
    5 months ago

    Bon Prodit

  • Author’s gravatar
    J***e
    5 months ago

    Works perfectly with ZHA

  • Author’s gravatar
    И***ч
    5 months ago

    The switch is one of the best for the money offered. I use it in zigbee2mqtt, the relay can be disabled and use the key as a smart button, assigning control of other devices or scenarios. It is preferable to use the version with zero, the version without zero seemed that it has a slightly higher delay, I do not know what is connected with, perhaps because it does not work in router mode. Mechanically very pleasant, does not rattle, everything is quiet and tactile pleasant. Design is great, fits most interiors. Wish to the manufacturer to make versions with removable frames for 2-3-4 switches

  • Author’s gravatar
    Б***ч
    4 months ago

    There are never any complaints about aqara products. Quality of materials, network stability and durability.

  • Author’s gravatar
    Ш***ч
    4 months ago

    Works, to the home assistant through z2m cut 2 times adequately.
    Additional power does not require, works flawlessly

  • Author’s gravatar
    Ш***ч
    3 months ago

    Picked up Alice. everything works

  • Author’s gravatar
    Н***ч
    2 months ago

    As always excellent switches. works quietly.

  • Author’s gravatar
    С***ч
    2 months ago

    In general, the switch is not added to the hubm1s in the Russian Empire region.
    But! I have good news, it is added to HomeKit in Ha. Well, the z2m will also go.

  • Author’s gravatar
    AliExpress Shopper
    2 months ago

    Usyo pratsue narmalna. Good yakasz.

  • Author’s gravatar
    В***ч
    1 month ago

    Delivered quickly, the quality is high. Quickly connected to Yandex midi (Zigby)

  • Author’s gravatar
    А***ч
    1 month ago

    Excellent, connected to Alice in 15 seconds
