Fingerprint 5in1 Unlock Wifi Doorbell Video Intercom System For Home Doorphone Tuya Smart 1080P Touch Monitor Security Protect

Notice:

Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect to the Other System, Please Contact Us For Technical Support Before Buying.

5 in 1 Unlock

This device has various unlocking methods. You can unlock by password, monitor, IC card, APP and screen. It is very convenient and flexible.

Fingerprint Unlocking

The outdoor hood is equipped with fingerprint capability and supports up to 200 fingerprints. Unlocking and access more convenient.

Phone unlocking

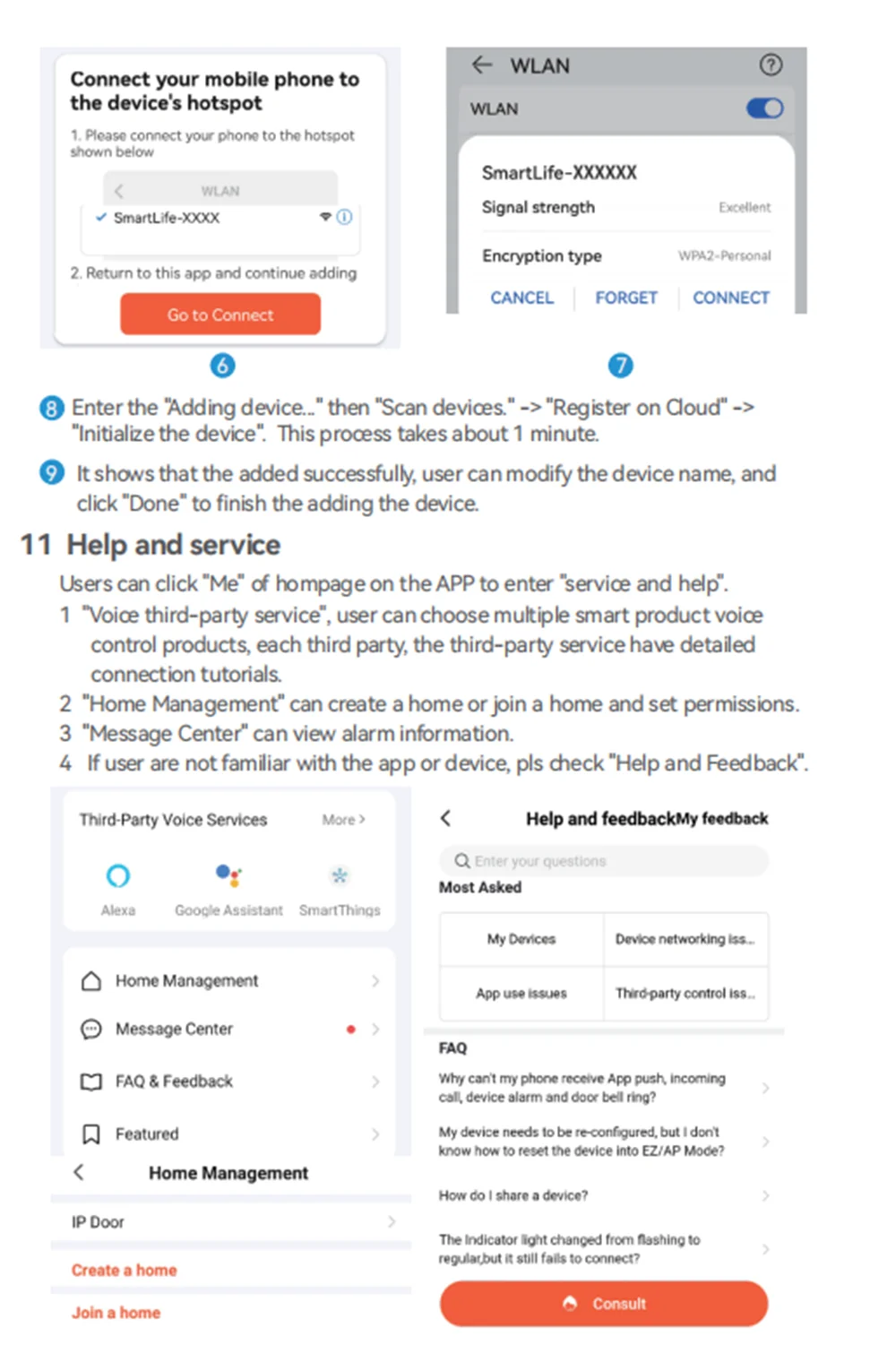

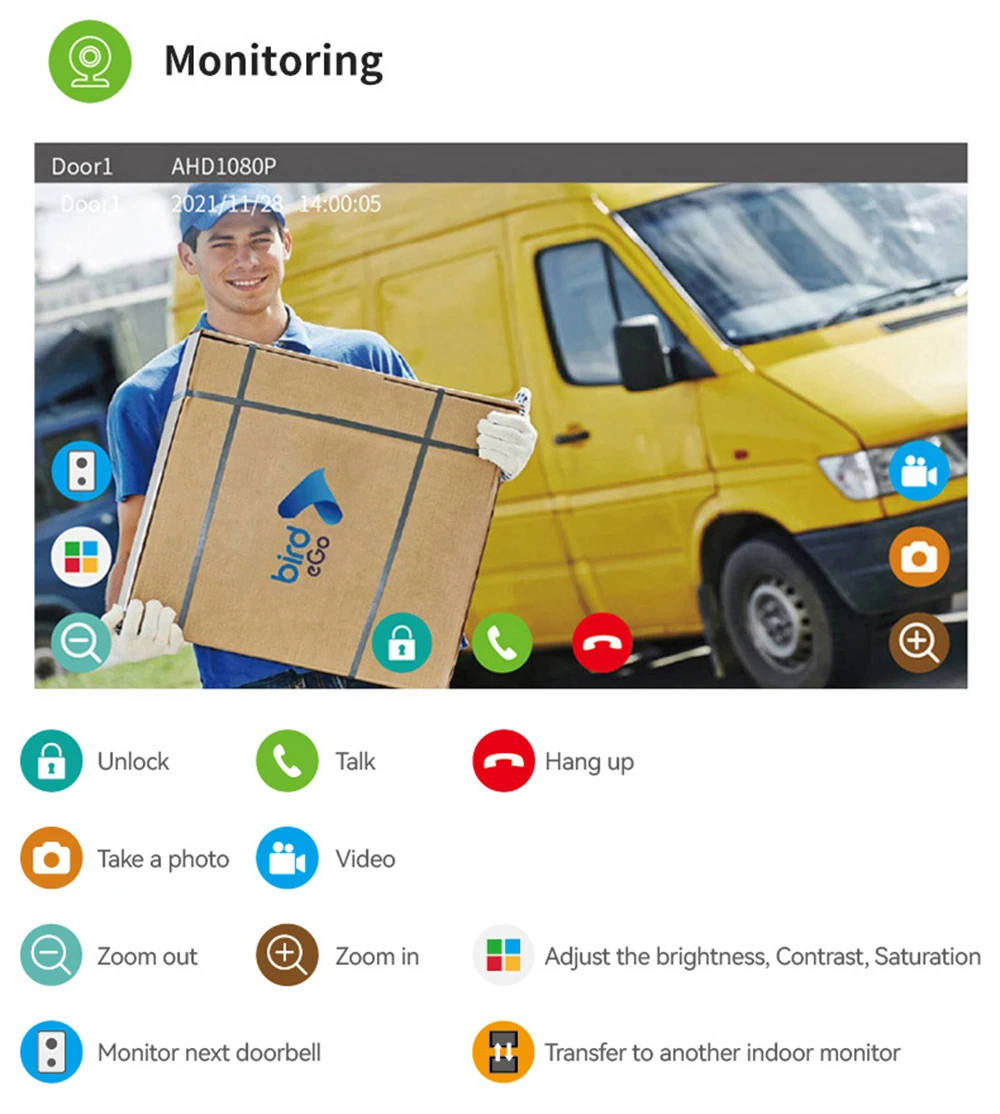

If you forget to bring your key when you go out, you can use your phone to unlock it. With your phone, you can operate all the functions on the screen, making future technology extremely convenient

See More People:

10 inch Black Size

10 inch White Size

15 Language:
It Supports Chinese, English, Russian, German, French, Spanish, Italian, Polish, Portuguese, Turkish, Traditional Chinese, Japanese, Korean, Arabic, Vietnamese.

Express delivery or visitors will not miss:

When someone rings the doorbell, we can hear the doorbell, talk to the guests outside through our phone or screen, and even have a full conversation and unlock with our phone

Automatic recording

When visitors press the doorbell or motion detection is triggered, the doorbell camera will automatically record videos or snapshots and save them to the additional Micro SD card to protect your home every day.

TWO WAY AUDIO

Speak directly to anyone who approaches your front door

AHD 1080P OUTDOORFINGERPRINT DOORBELL

• 1. Waterproof IP65

• 2.View-angle 150 degree

• 3.Night Vision

• 4.Support Connect With Exit button

• 5. Access Control Function Optional.Support RFID and Password Unlockand Fingerprint

Product Features:

• 2.0MP Camera, 148 degrees wide view angle.

• 2-way communication between indoor and outdoor unit. Support 2 way communication between monitors.

• Support iOS & Android smart phone with Tuya Smart APP, When somebody call at outdoor, your monitor and smartphone will ring at the same time.

• Motion Detect, When motion detect is triggered,the camera will recording or capture a picture,even though nobody press the doorbell.

• The indoor unit has an external 32G SD card (supports photo or video).

• Note: 4 wires cable connection doorbell and monitor, The monitor support WIFI network, but the indoor monitor and doorbell is Wired.

• Automatic Recording

• 1080P camera with 148º wide view angle, Visitors at the door can be seen clearly.

• Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card.

Features

• Wide angle camera

• Aluminum Alloy Case;IP65

• IR LED offset lighting can obtain better evening viewing

• Unique waterproof ,dustproof ,anti-thunderstorm design

• Call indoor monitor ,video intercom

• Support connect with Exit button , With IR-CUT

• With password ,fingerprit & IC card unlock function, capacity 200PCS

• Support switch signal from 1080P-720P-CVBS

Specifications

• Model 94218 – AHD1080

• Camera Sensor 1 / 2.7″ CMOS

• Denfinition 1080P

• Lens 3.2mm

• View angle 148°

• LEDs for night LED IR LEDs（120°）

• Power consumption 200mA max.

• Power Supply Supplied from indoor unit

• Operating Temp. -40℃~+50℃

• Installation Surface mount

• Size 137mm*85.5mm*23.5mm

• Accessory Rain Cover

Add fingerprint:

Step 1. Press SET button, please put your finger on the fingerprint module, a long BEEP means successful, please add another finger.

Step 2. Press SET button when you complete the fingerprint addition.

Tips:

The addition time is 20s, after 20s you will hear a long BEEP, if you need to add other fingers, please try step 1 again.

Add IC card:

Step 1. Press SET button, please put the IC card on the recognition module, a long BEEP means successful, please add another IC card.

Step 2. Press SET button when you complete the IC card addition.

Tips:

The addition time is 20s, after 20s you will hear a long BEEP, if you need to add other IC cards, please try step 1 again.

WIRING DIAGRAM

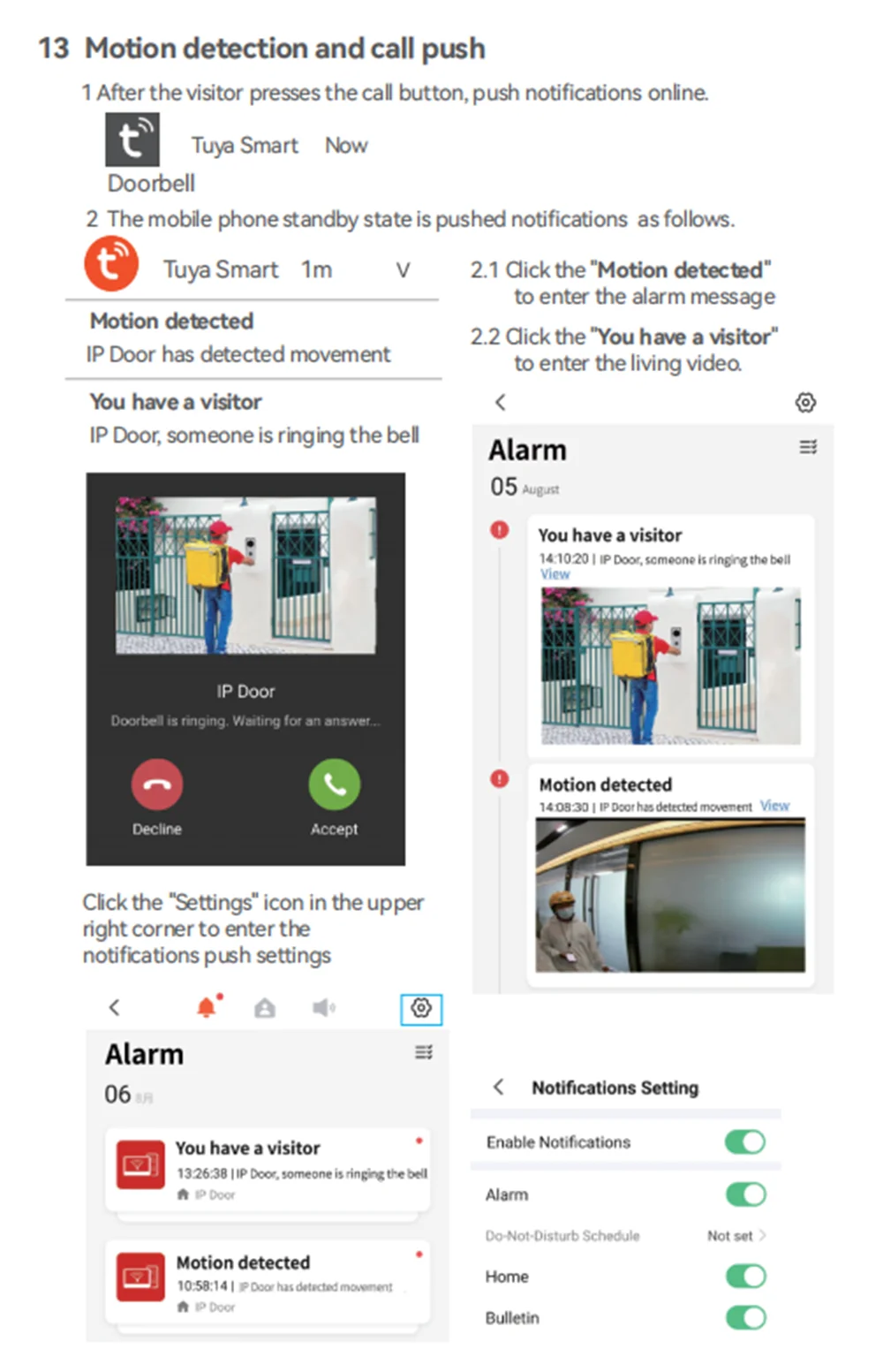

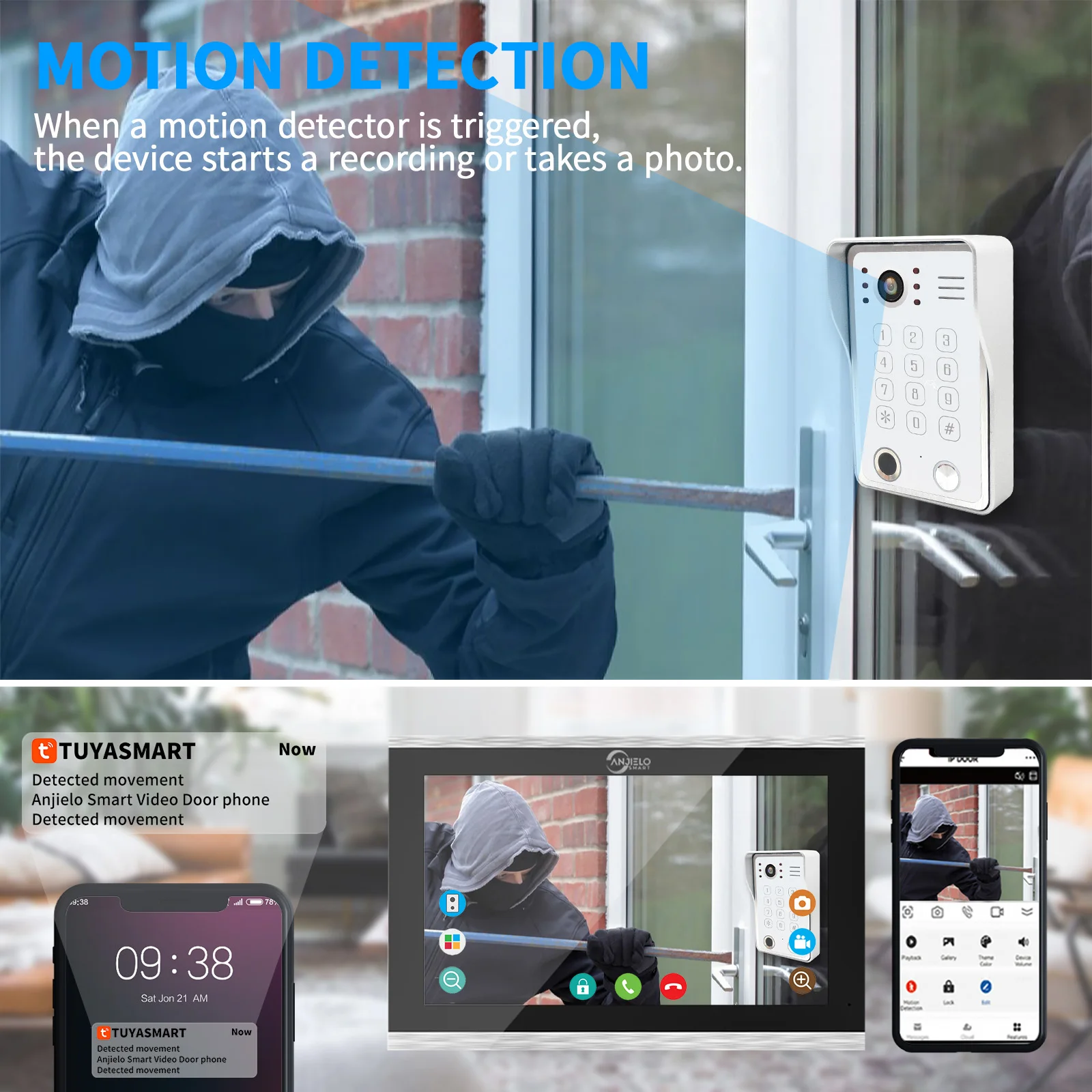

One outdoor station can connect to more than two monitor, you can choose to add monitors accordingly, max support 4 monitor connect. Here is the pairing for your reference:MOTION DETECTION

When a motion detector is triggered,the device starts a recordingor takes a photo
