GIRIER Tuya ZigBee 3.0 Smart Switch Module No Neutral Wire Required Smart Home DIY Light Breaker Work with Alexa Google Home
ITEM DESCRIPTION

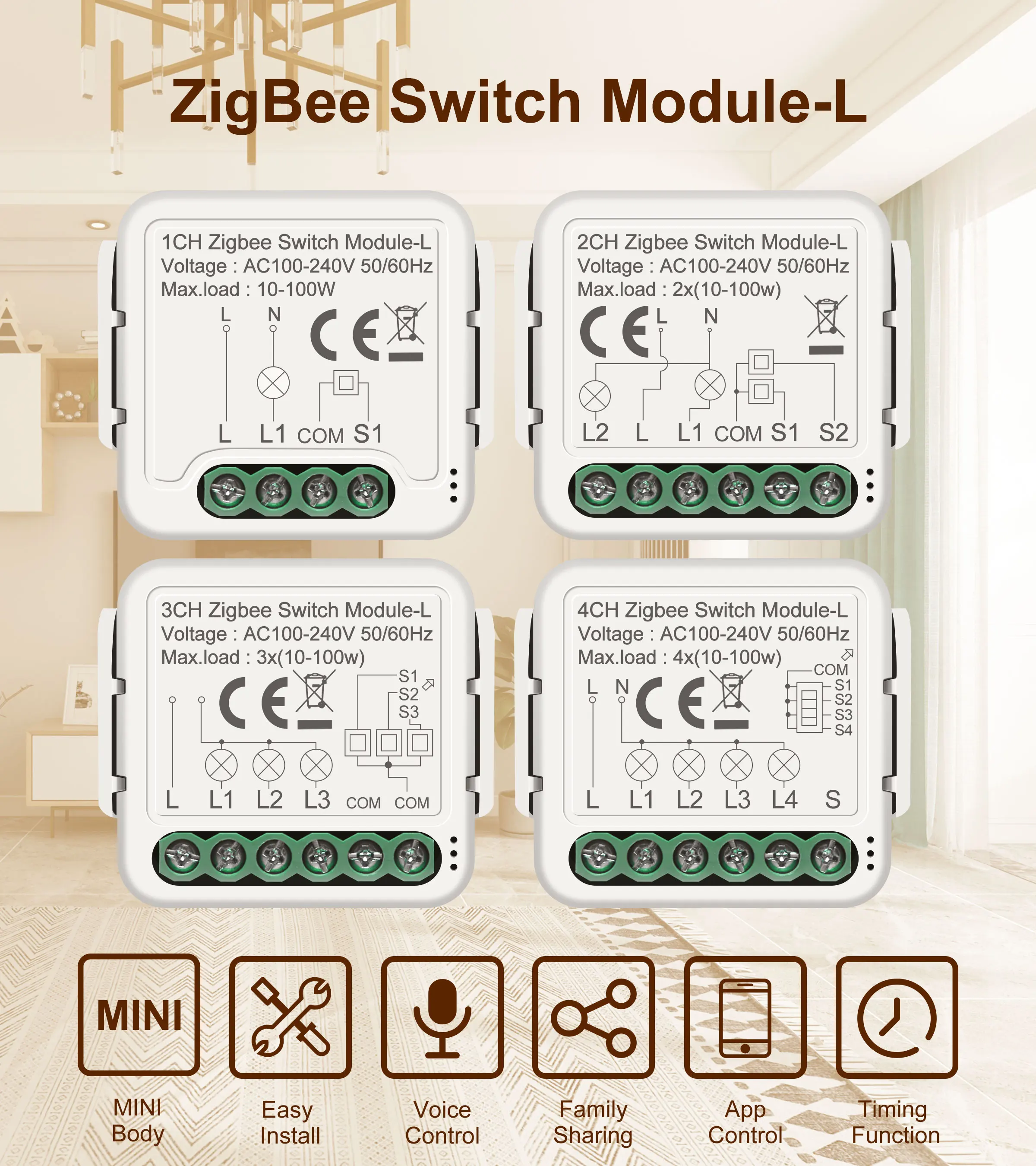

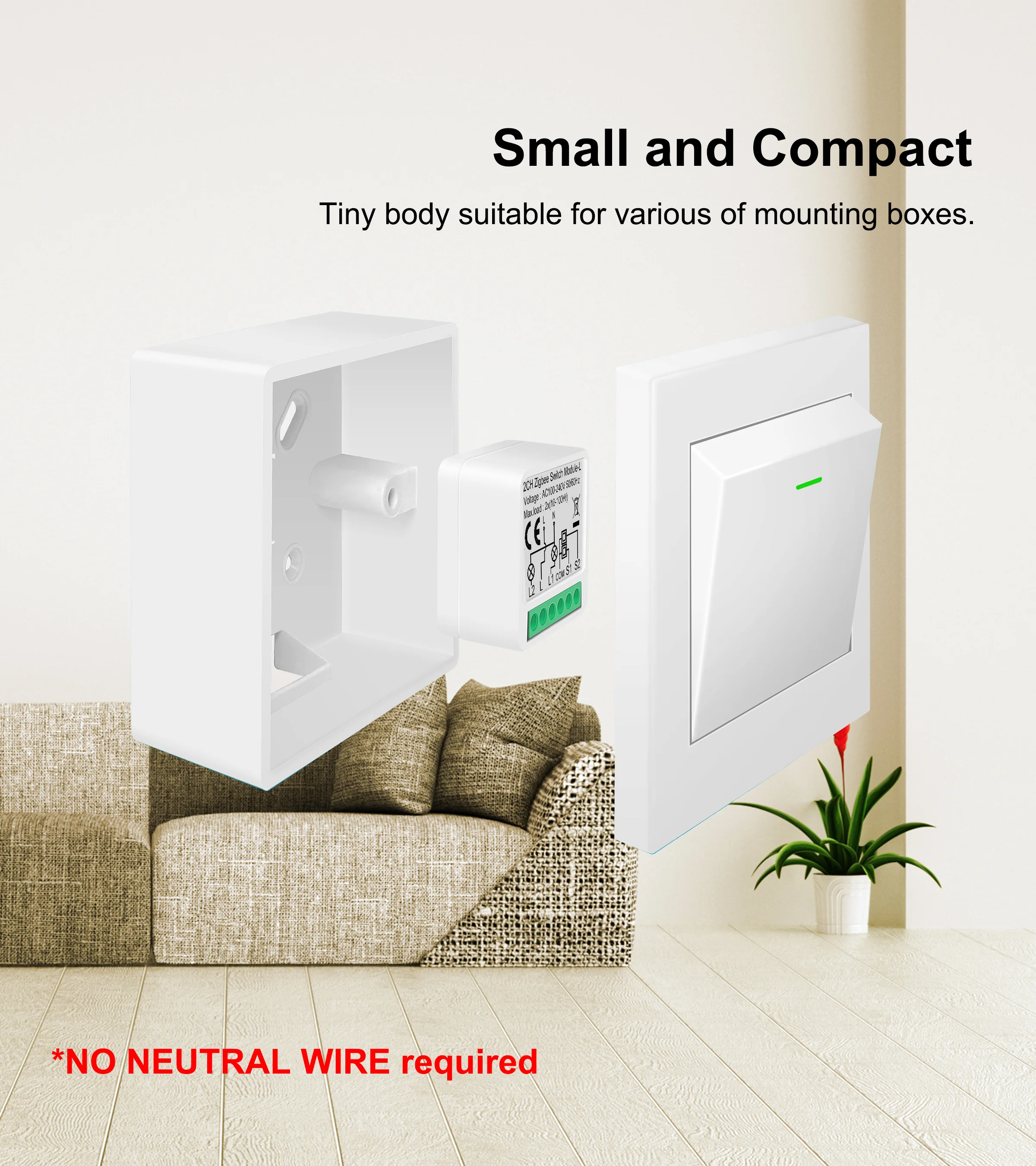

Mini Body

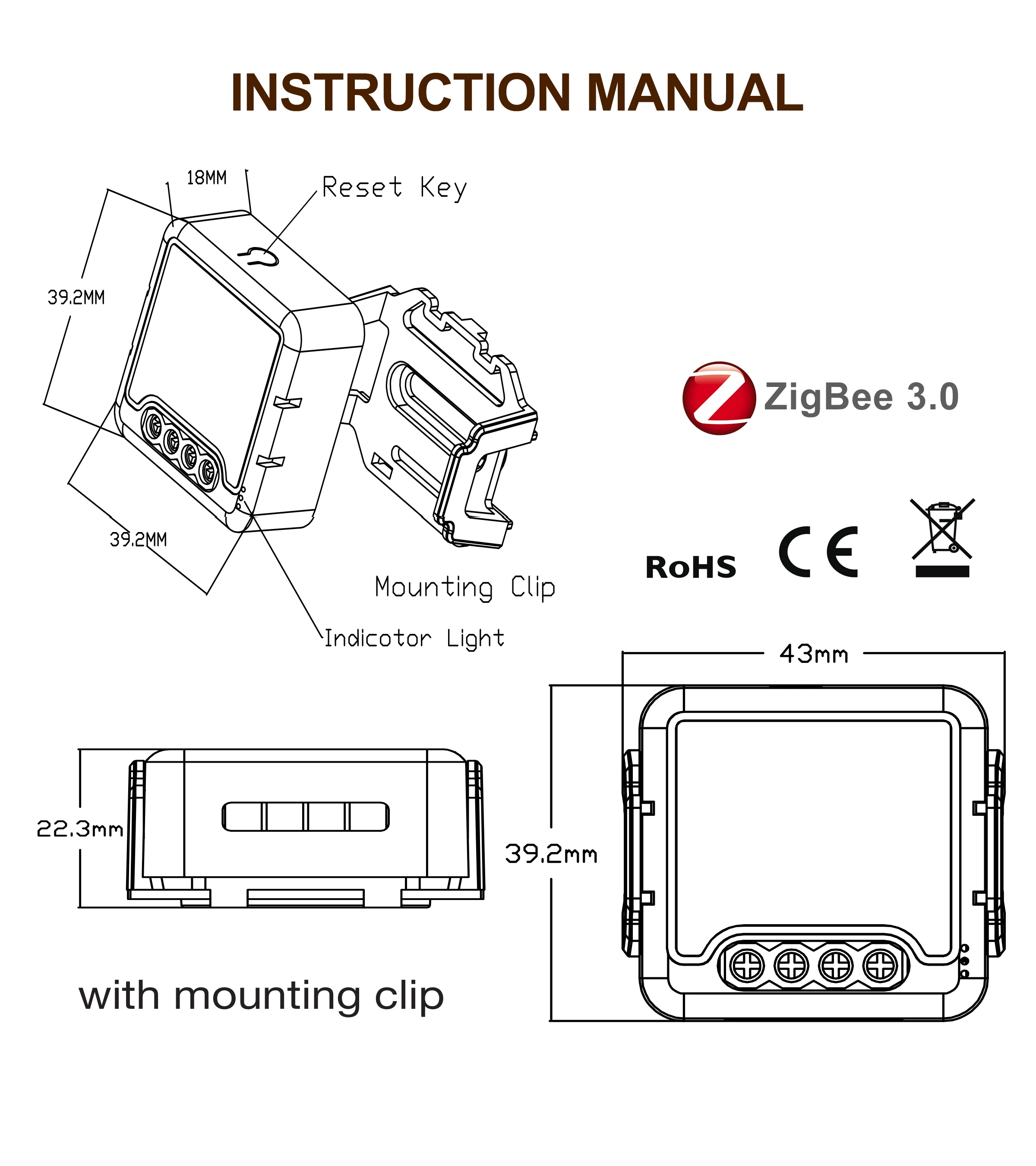

Designed 39.2*39.2*18mm mini body, which is working with most of mounting boxes.
It is not only small, but also powerful. it can be used for most of home appliances and lighting.

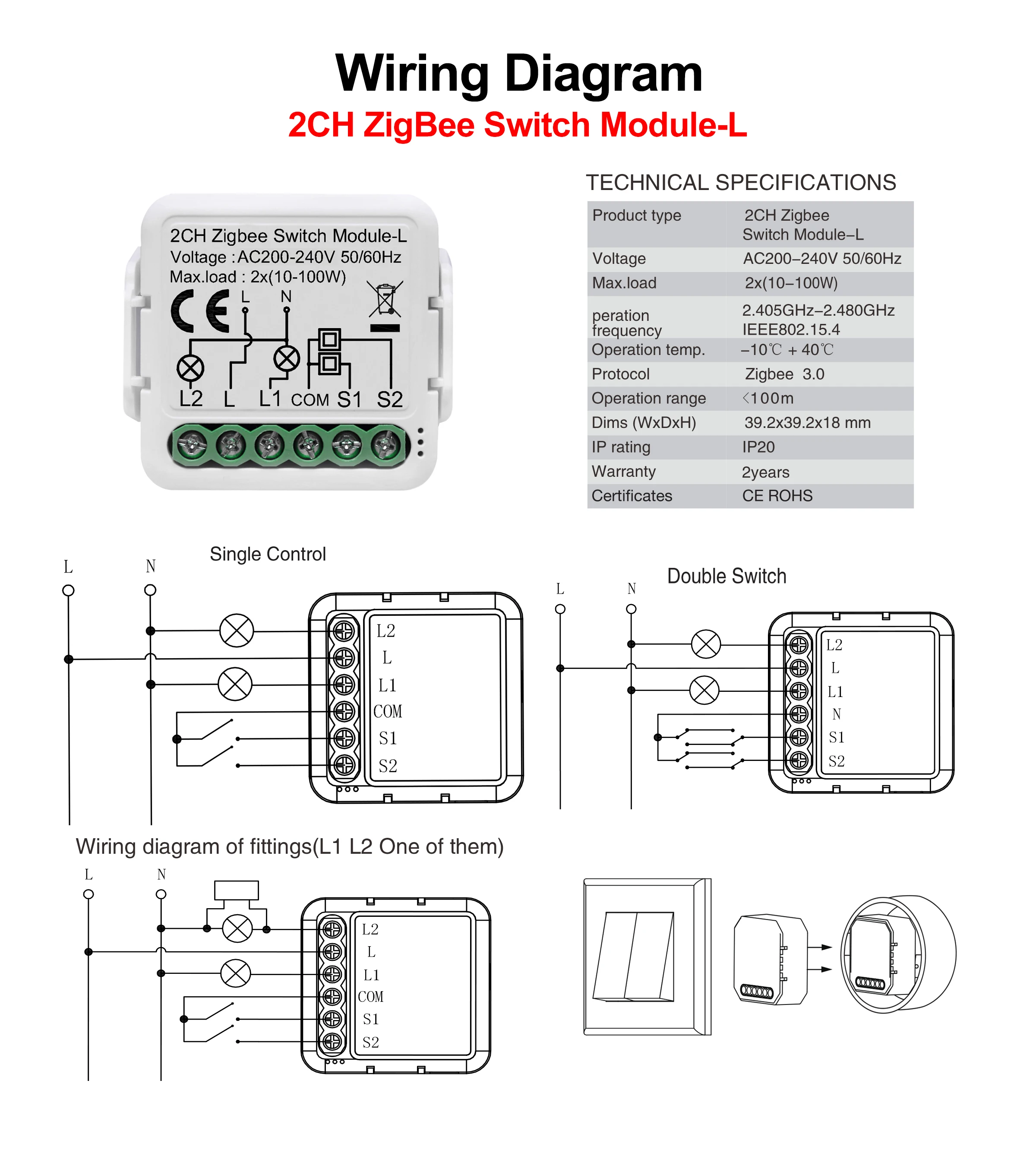

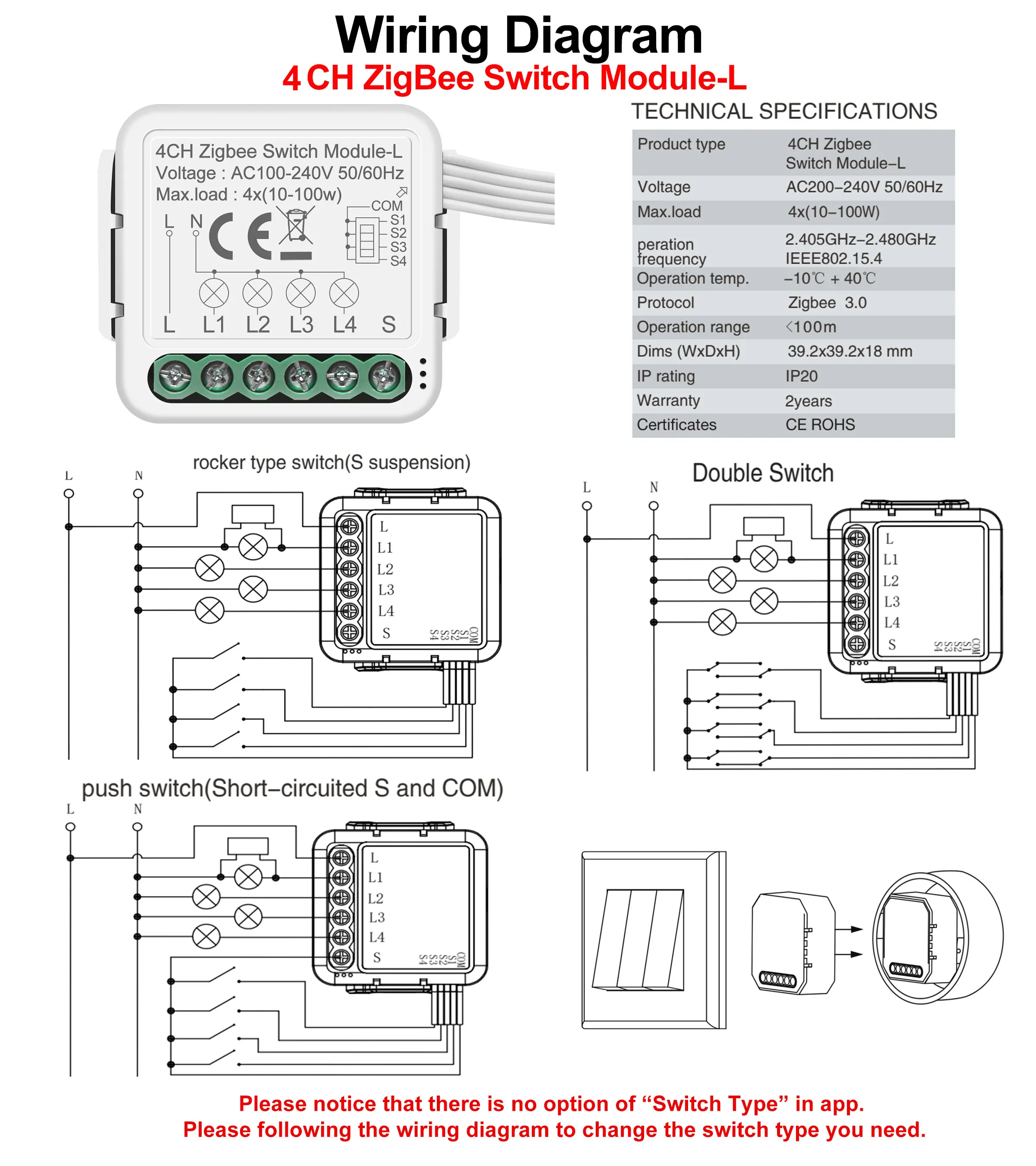

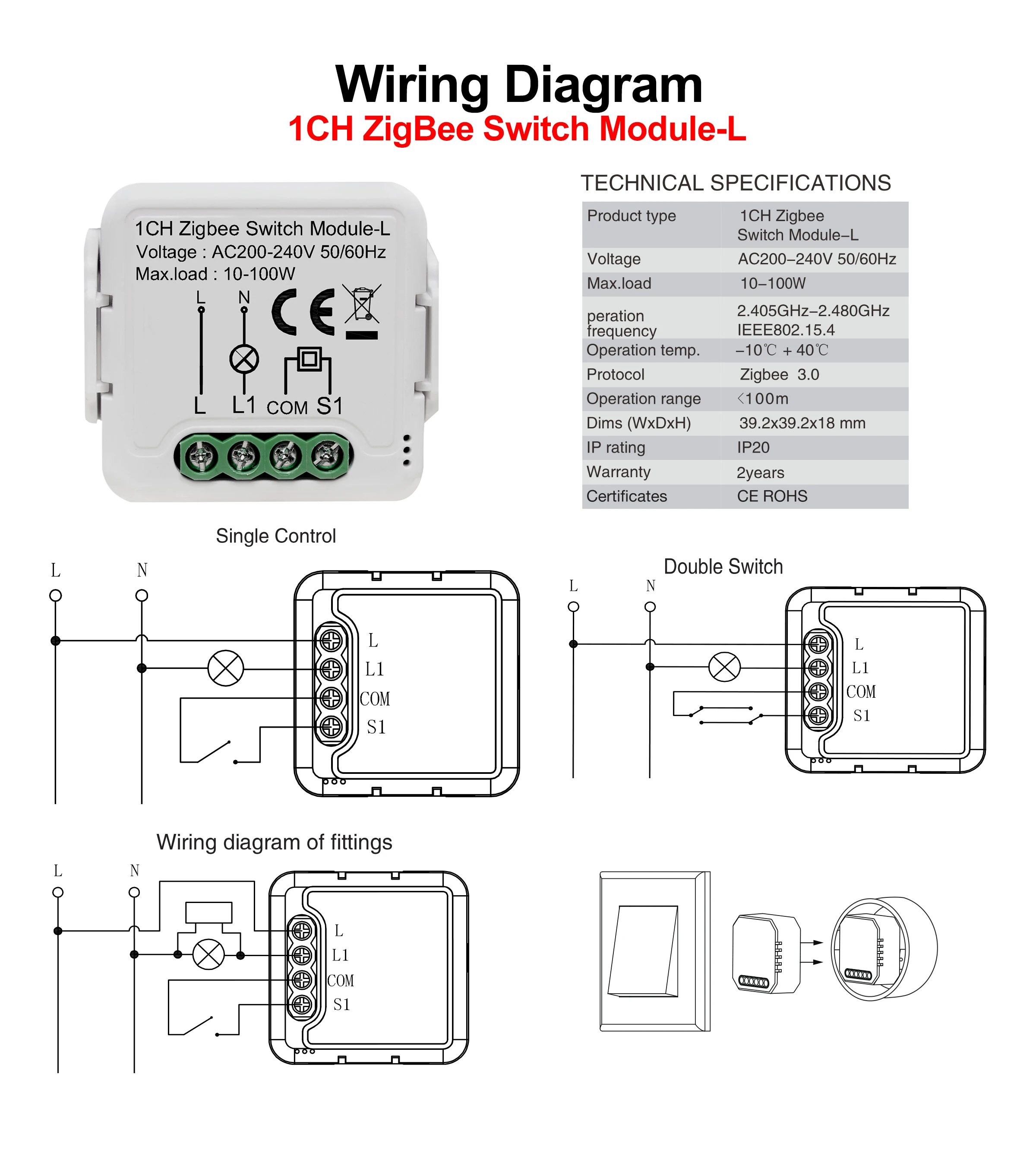

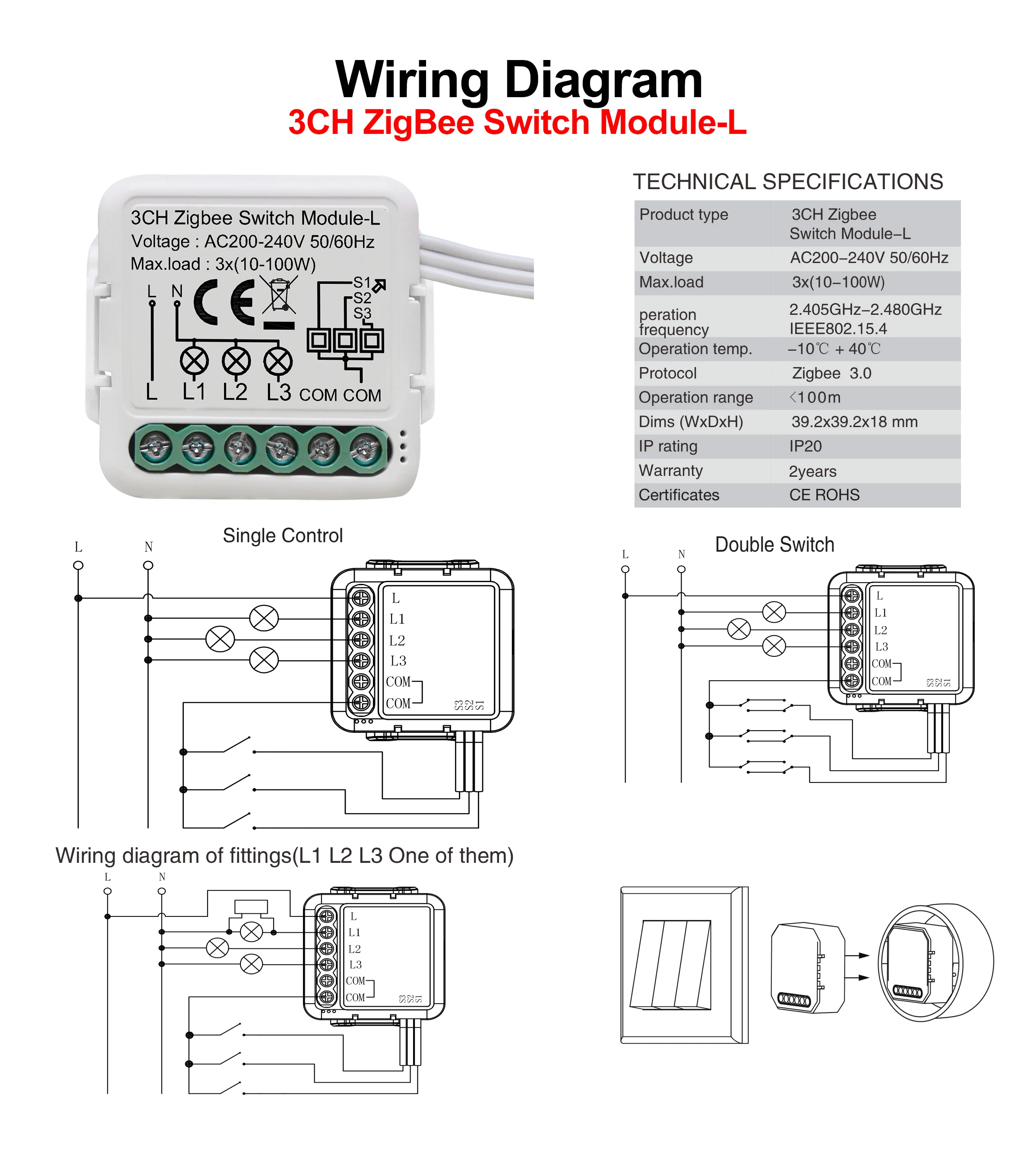

Support Two-way Control
This smart DIY switch could be used for your old 2 way control switch. Especially, you still available to control the old switch manually after isntalled it.
App Remote Control
Remote control lighting or home appliances via Smart Life app from anywhere at anytime.
Voice Control
The ZigBee DIY switch works with Alexa and Google Home Assistant to conveniently control the appliances with simple voice command when you are on go.
Timer Schedule
Create schedules to automatically turn the home appliances or lighting on/off. Helping you saving energy and electric fee.

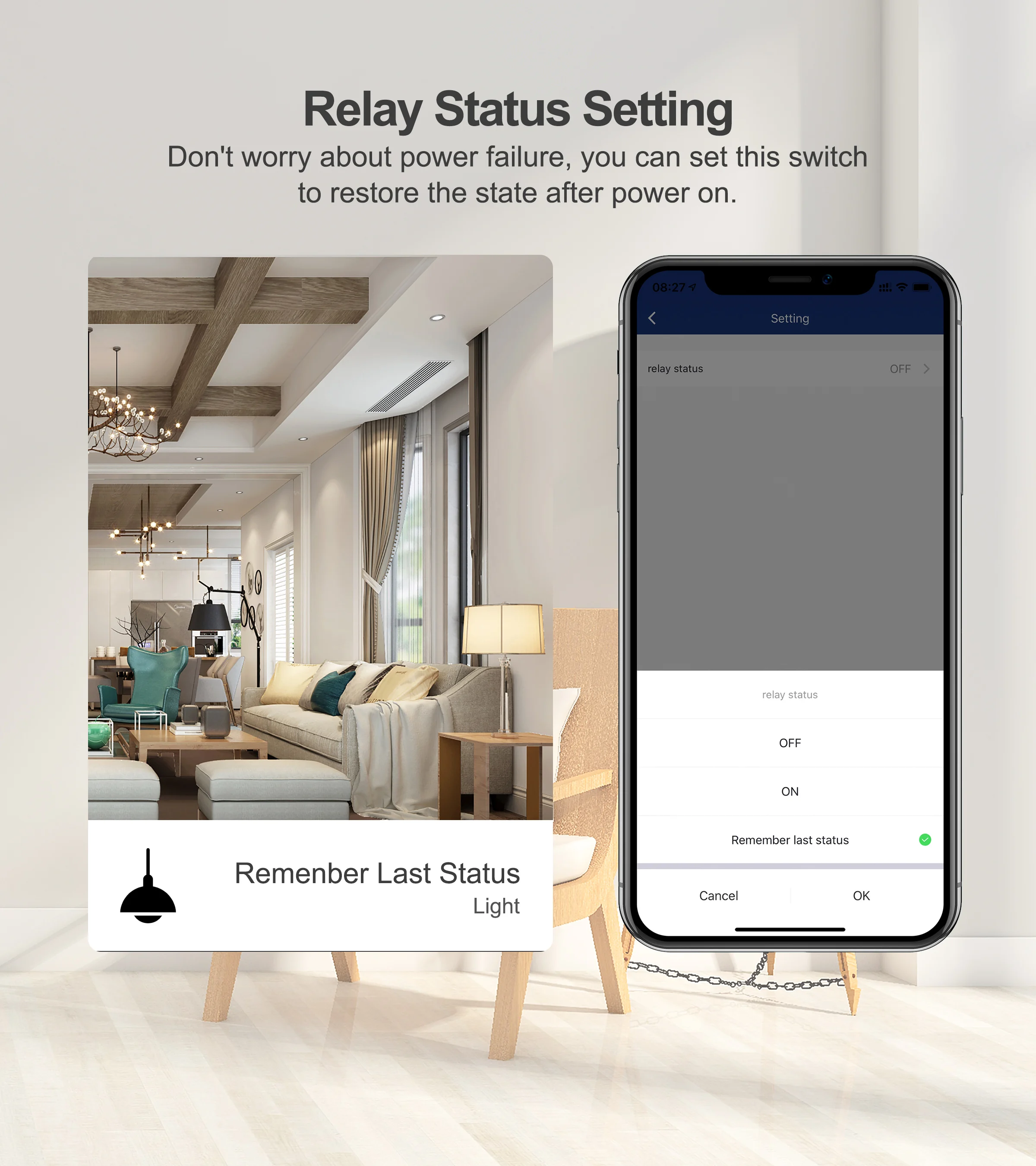

Relay Status Setting
Never worry about power failure, you can set this switch to restore the state after power on.
Group Control
Set all of your smart switches in a group by Smart Life app. Then one-click to turn/off all of your appliances or lighting by smartphone.
Smart Scene
Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.

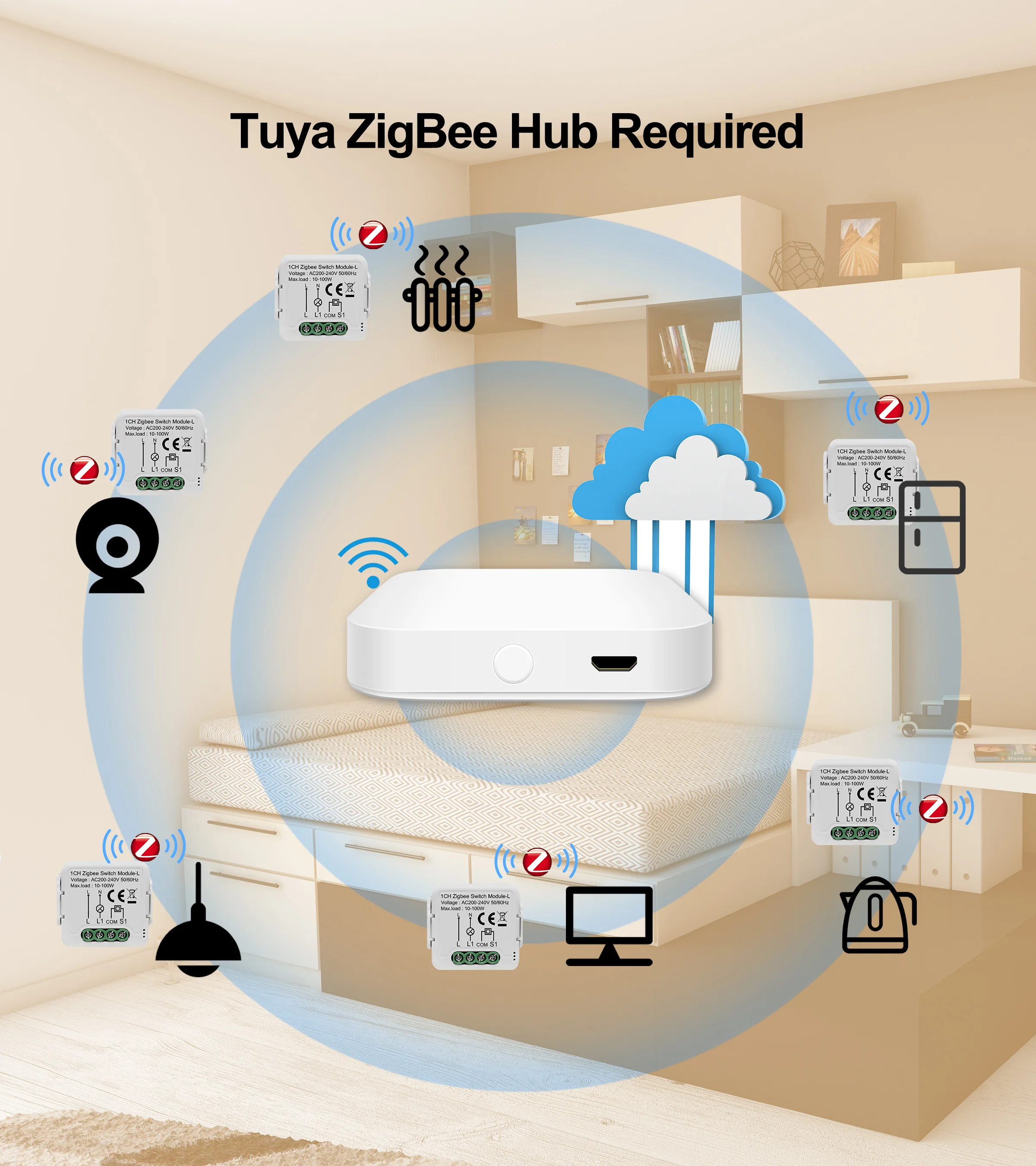

Tuya ZigBee Hub Required
A Tuya ZigBee hub is a must to the ZigBee smart switch for app remote control and voice control. Also, you can link other Tuya ZigBee products with the hub to realize a complete smart home system for your house.
SPECIFICATION
Shell Material: PC/Flammability Rating: V0
Rated Voltage: 200~240V 50/60Hz
Rated Power: 100W/Gang
Size: 39.2*39.2*18mm
Physical Two-way Control: Support
ZigBee Standard: IEEE 802.15.4
Operation Humidity: ≤90%
Operation Temperature: -10~40℃
App: TuyaSmart/Smart Life
Voice Control: Compatible with Alexa, Yandex Alice and Google Home
1. If the lights flickering, please install the capacitor close to L1 bulb. The capacitor is included in package.
2. This smart light switch module doesn't support dimmable bulb, smart bulb and strip lights.
3. It only works with 200-240V.
4.Cannot be triggered properly via press 2 or more buttons on the extra switch at the same time.
K***G
Before installation, but in a small size, the landfill will be good in the outlet.
Н***ч
What can I say for the device, I have an Alice midi, with a built-in ZigBee, the station saw the relay immediately, but did not want to control it, when you press the relay through the application, nothing happened except the sound of the Alisa, but the light turned on from the button on the relay. But the time from the fifth re-pairing with Alice everything started working, the only thing if the lights were turned off and turned on is that the lamps will be on and in the settings of the smart home with Alice there is no adjustment of the relay position when the power is supplied, about which I have already written to the developers, they promise to add this function. Connecting this relay without zero turned out to be all just phase from the wiring to the terminal L, and the other two wires to L1 and L2. Then take three short wiring and connect the switch to the relay, where the phase entered it, connect to the COM terminal on the relay, and the other two in any sequence. If something does not work, try to remove the LED that you have in the switch, but by the way I put the relay in the switch on two buttons
A***b
Excellent switch, does not require neutral wire, the comma resistor also did not connect, everything works perfectly.
J***e
I tried to install it, but it was not possible to install it in the environment of the outlet inside the house.
A***b
Good quality, not the first time I order. Everything works perfectly, it is added to the application without problems, it works without an additional resistor.
A***b
Good quality, I order not the first time, everything is connected the first time and works perfectly without additional resistor.
A***o
Everything works well! There is a slight glitch, if you quickly click the switch (on-off) may not work, you need to charge between clicks 0,5-1 SEC.
In the socket is placed.
I recommend the product and seller.
H***o
It arrived very quickly and although I have not put it into operation it looks very good quality and brand.
М***ч
Great relyuha. Works both through the Tui hub and through the Yandex hub or Midi station.
f***r
Goods as described, safely packed, fast delivery-I recommend the seller!!!
AliExpress Shopper
The product is as described, with Alissa works, I recommend the seller, thank you.
R***i
Very good product, easy and quick to install, has been shipped and arrived on time
B***-
The product is good. Checked, works great. Module and seller recommend.
