Product Application Area
Factory Farm Office Instrument Ventilation Pump Motor Remote control garage door Remote control house door Remote control Lamp Remote control curtains Remote control Gate and other remote control device
Tuya smart Jog Inching/ Self-locking WIFI Wireless Smart Home Switch Remote Control with Amazon Alexa
This product is a wireless switch that supports inching /self-locking mode. Users can add the device to the APP Smart Life in order to remotely control connected home appliances or devices.
In self-locking mode, customers can remotely turn on/off connected devices immediately.
When in inching mode, customers can have two wiring ways to select, and you can set the inching time in APP.

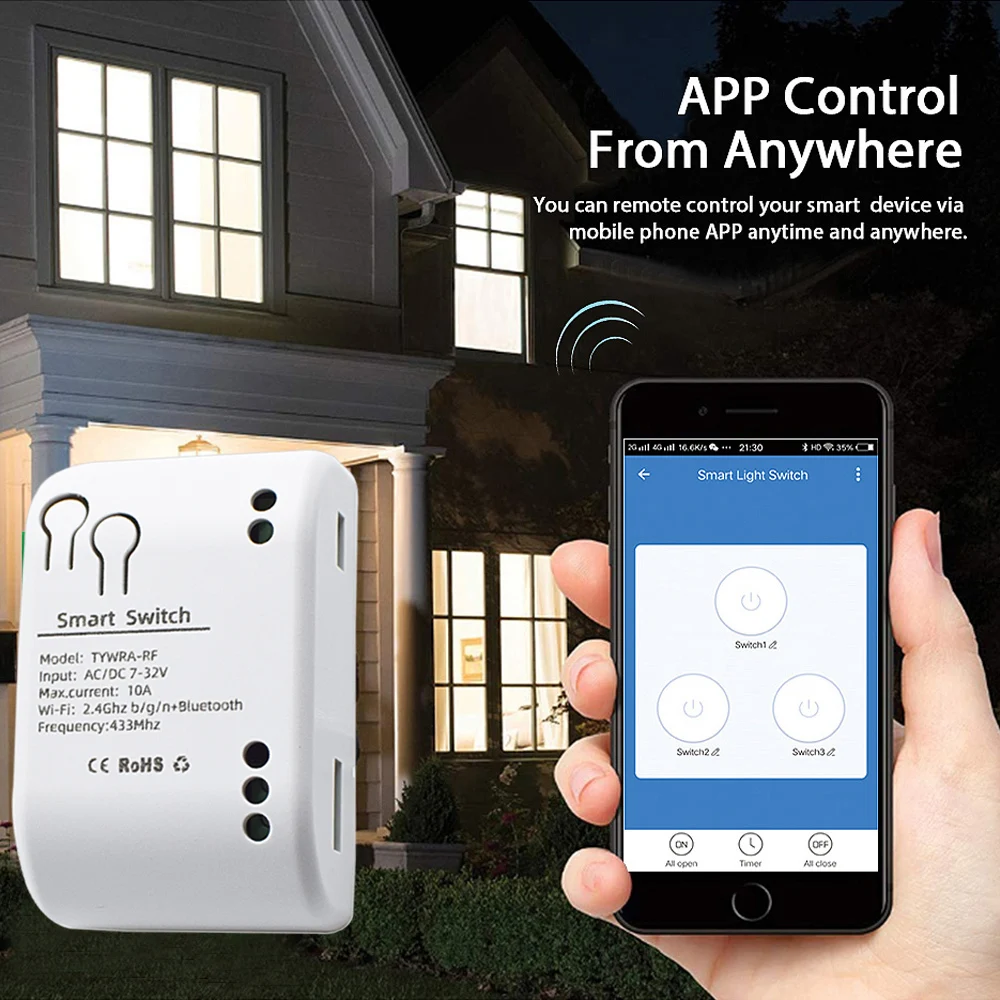

WiFi control model, no need to program. No matter where you are, you only need to download a APP to connect the WiFi and control the cloud.
RF mode, you can control the board with an RF 433 remote controller. Only compatible with 433MHz learning code remote control.
Features:
*Supports WiFi network. Supports numerous WiFi smart switches on one smartphone.
*Supports status tracking: device status timely provided to the Tuya / Smart life.
*Supports remotely turning on or off connected appliances, for example, light, electric kettle, electric rice cooker, electric curtain, etc.
*Supports max 8 enabled scheduled/countdown/loop timers for each device.

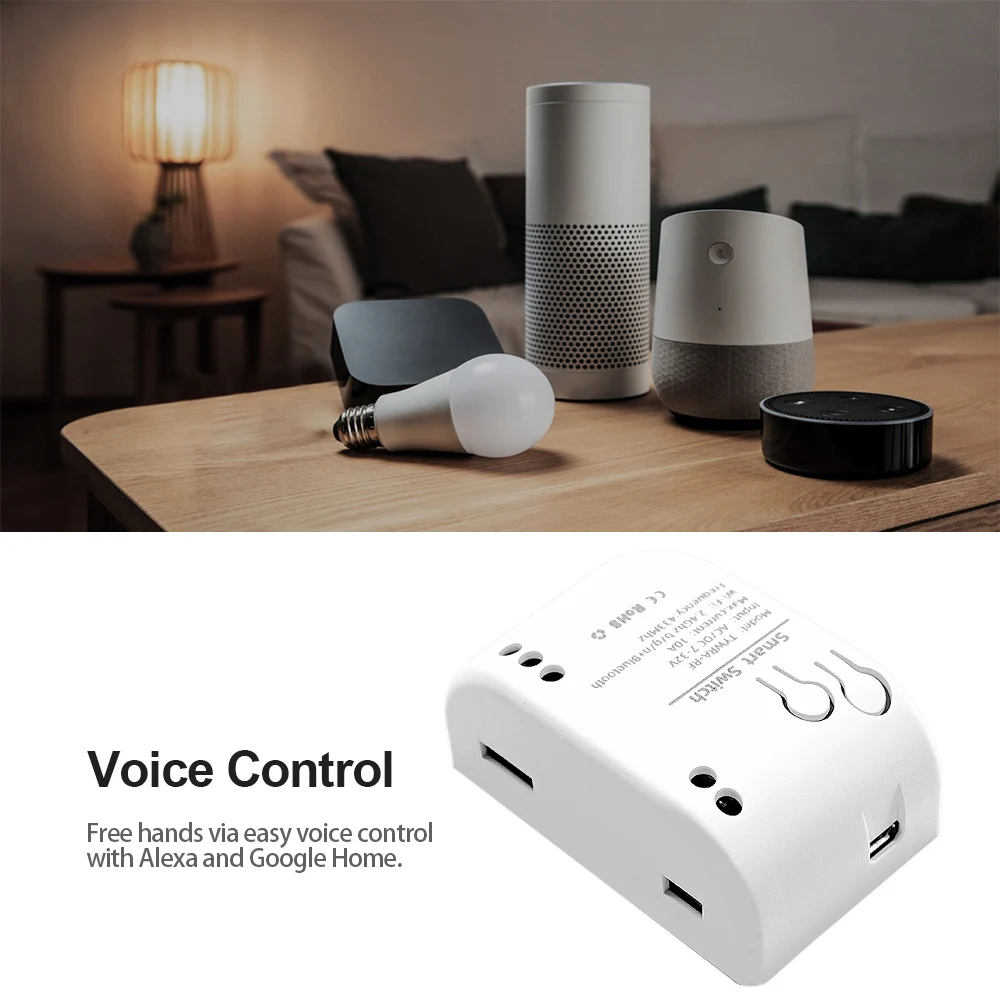

*Voice Control: Compatible with "Amazon" Alexa, for Google Home/Nest.
Supported Functions Include:
*Remote turn on/off.
*Timing schedules.
*Device sharing.
*Group management.
*Works with Amazon Echo, Echo Dot, and Amazon Tap.
*Works with Google Home.
*Compatible with Amazon Alexa.
Specifications:
Supports control of different voltage ranges
USB port power supply is more convenient
Relay lifespan: ≥one million times
Working mode: inching/ self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: Tuya / Smart Life on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot.
Operating temperature: -40 degrees to +70 degrees.
Operating Humidity 40%-80% RH.

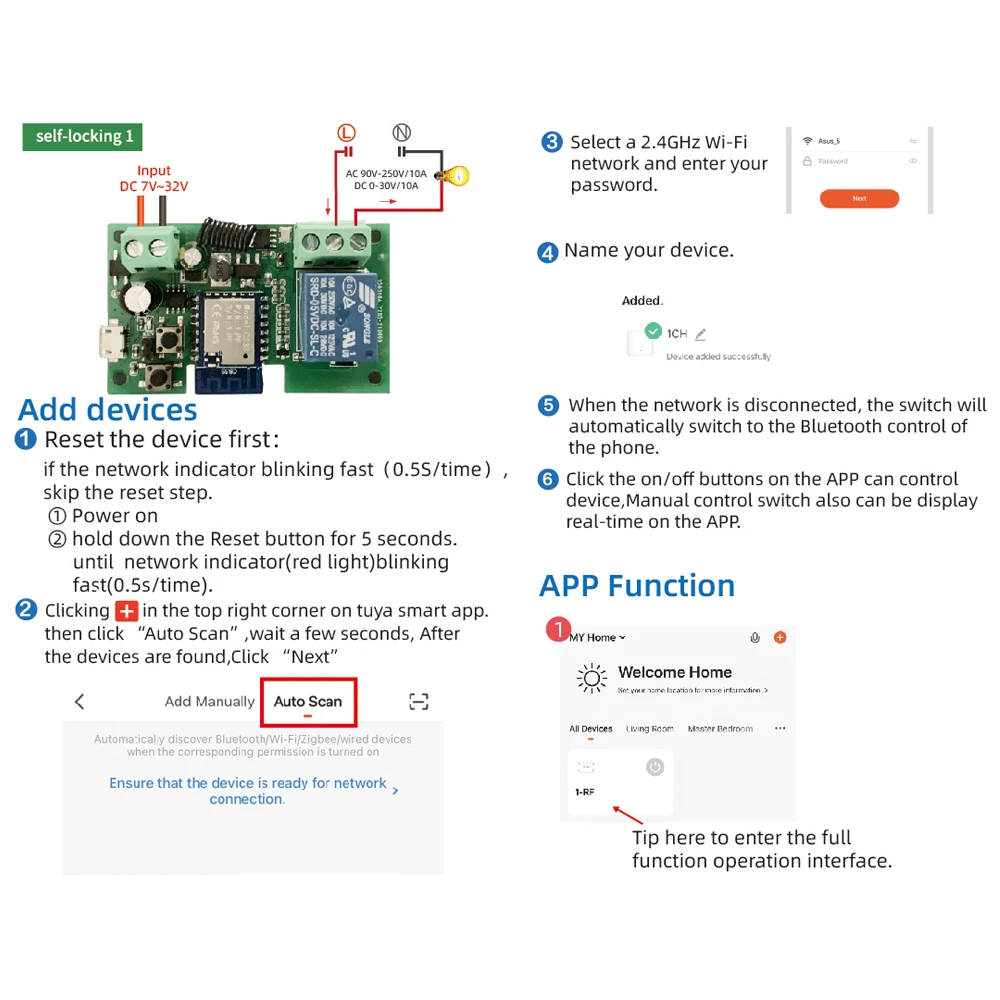

Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately, you can set the inching time in the APP, it has the timing-share function at the same time.
Self-locking when pressing the inching and locking button with the light on. Press the open relay to pull on, and press the close relay to cut off.
launching Switch (Delay time 1s) Application ScenariosWork For Door, Garage, Elevator, Rolling door, Computer, Car, Washing machine, Coffee machine, etc.
Self-locking Switch Application Scenarios
Work For Light, Fan, Refrigerator, AC contactor, Water pump, Humidifier, Security sensor, etc.
Multiple control methods to enjoy a Smart life.
APP Remote control, Voice control, 433 RF Remote Control.

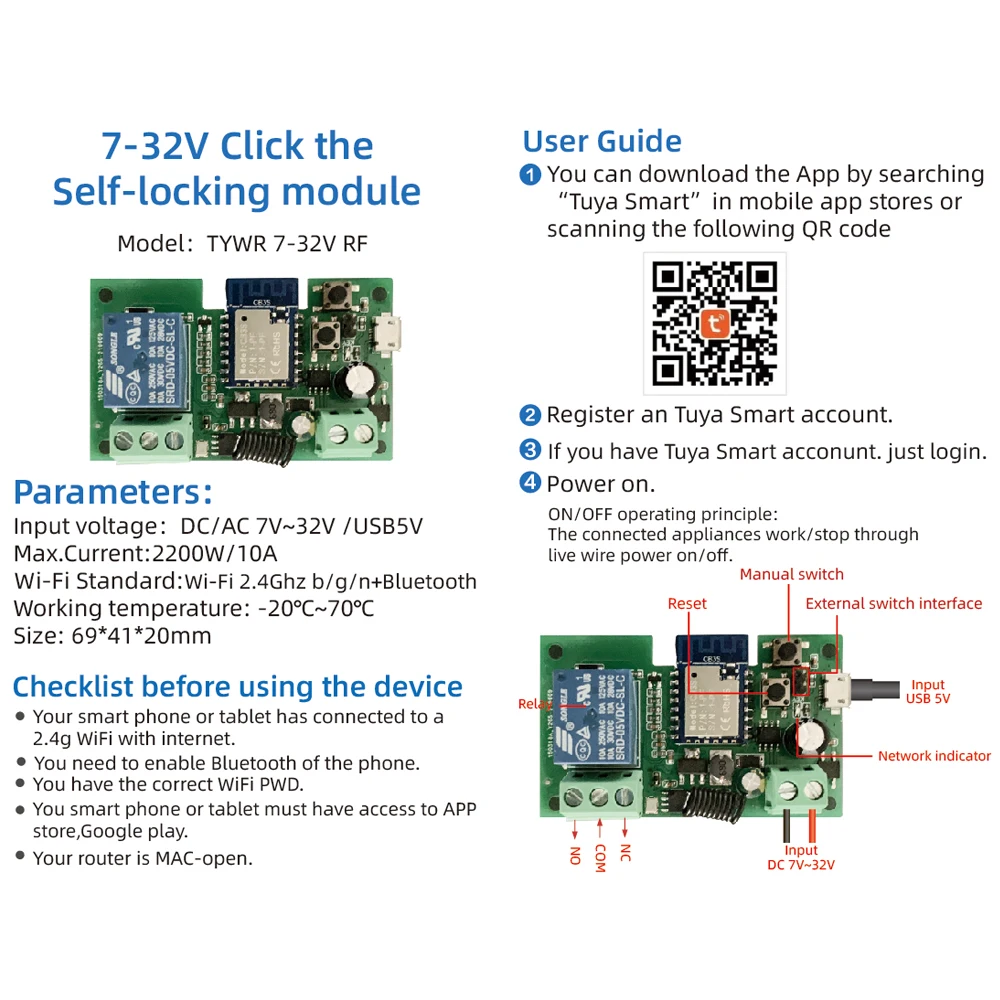

Input voltage: DC/AC 7-32V, Micro USB 5V input.
Max current: 2200W/10A.
WiFi standard: WiFi 2.4 GHz b/n/g.

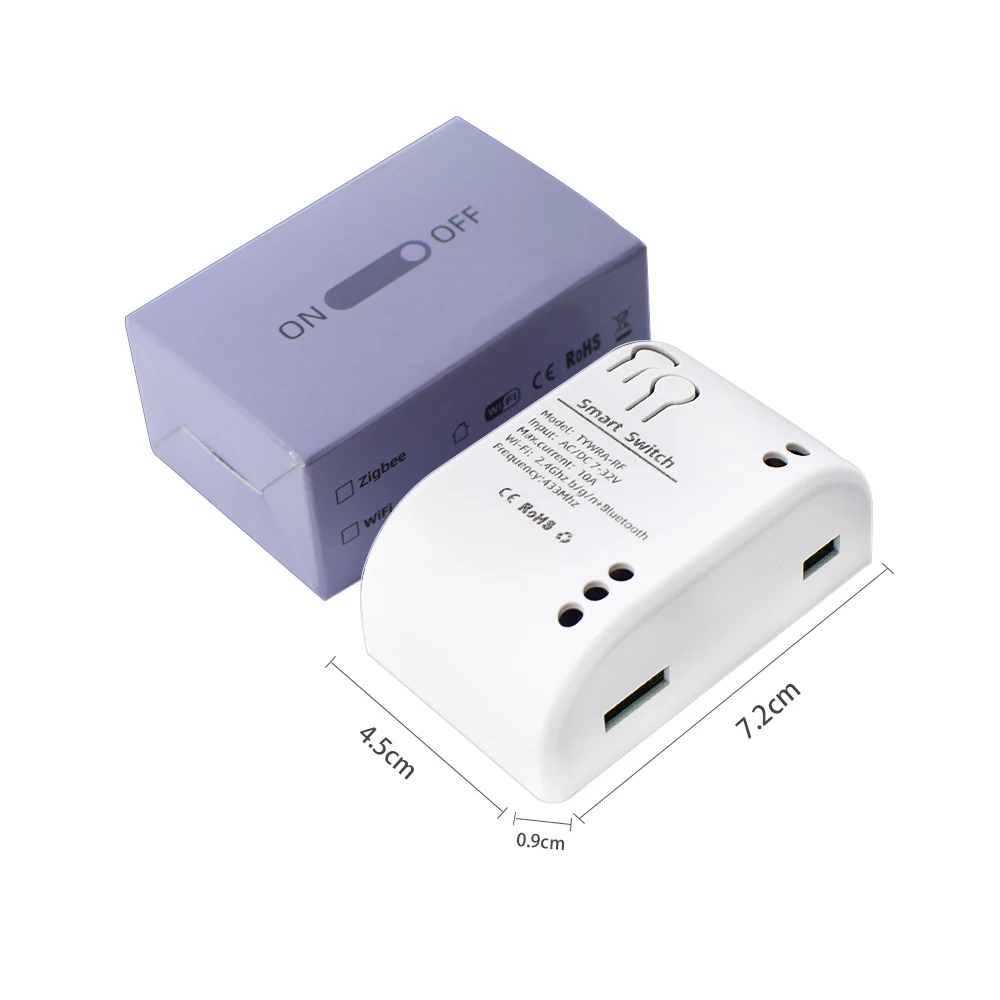

Size: 72*45*30.
The life of the Relay Model is more than 1,000,00.
Input voltage: AC 85V-250V.
Max current: 2200W/10A.
WiFi standard: WiFi 2.4 GHz b/n/g.
Size: 72*45*30.
The life of the Relay Model is more than 1,000,00.

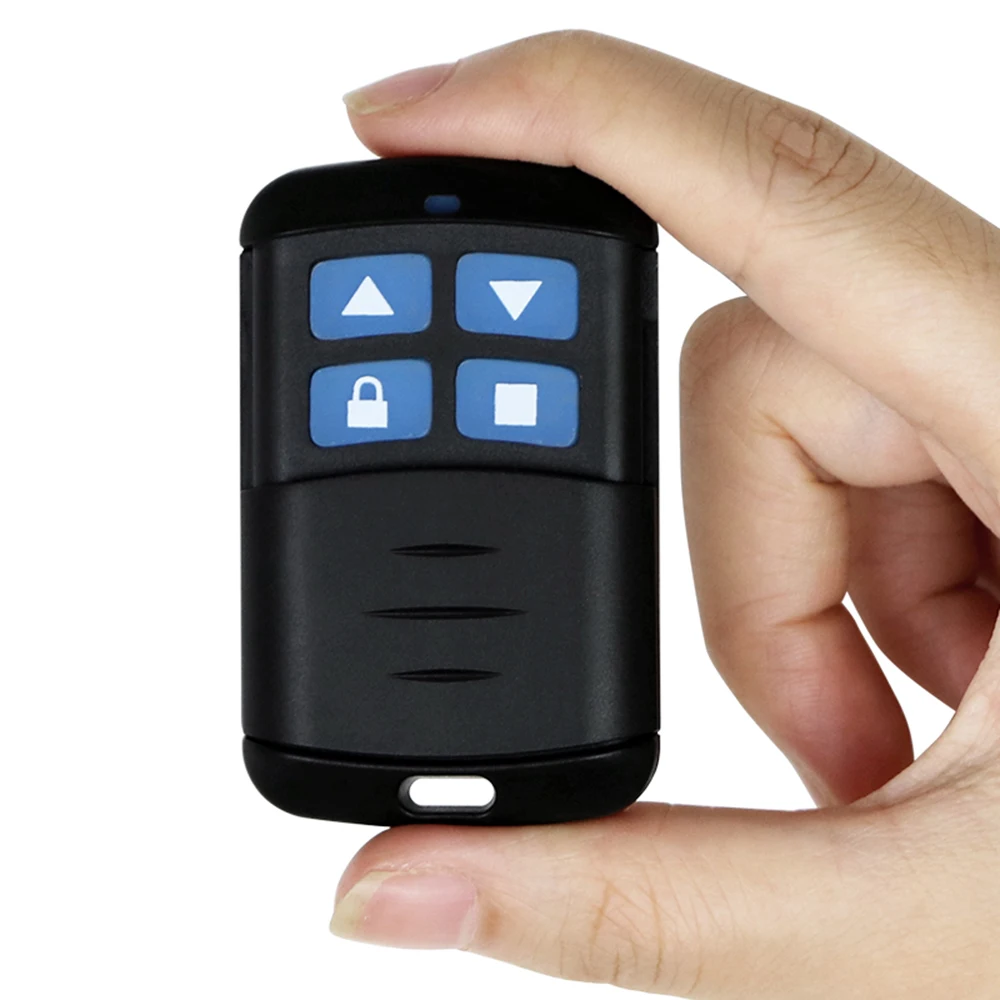

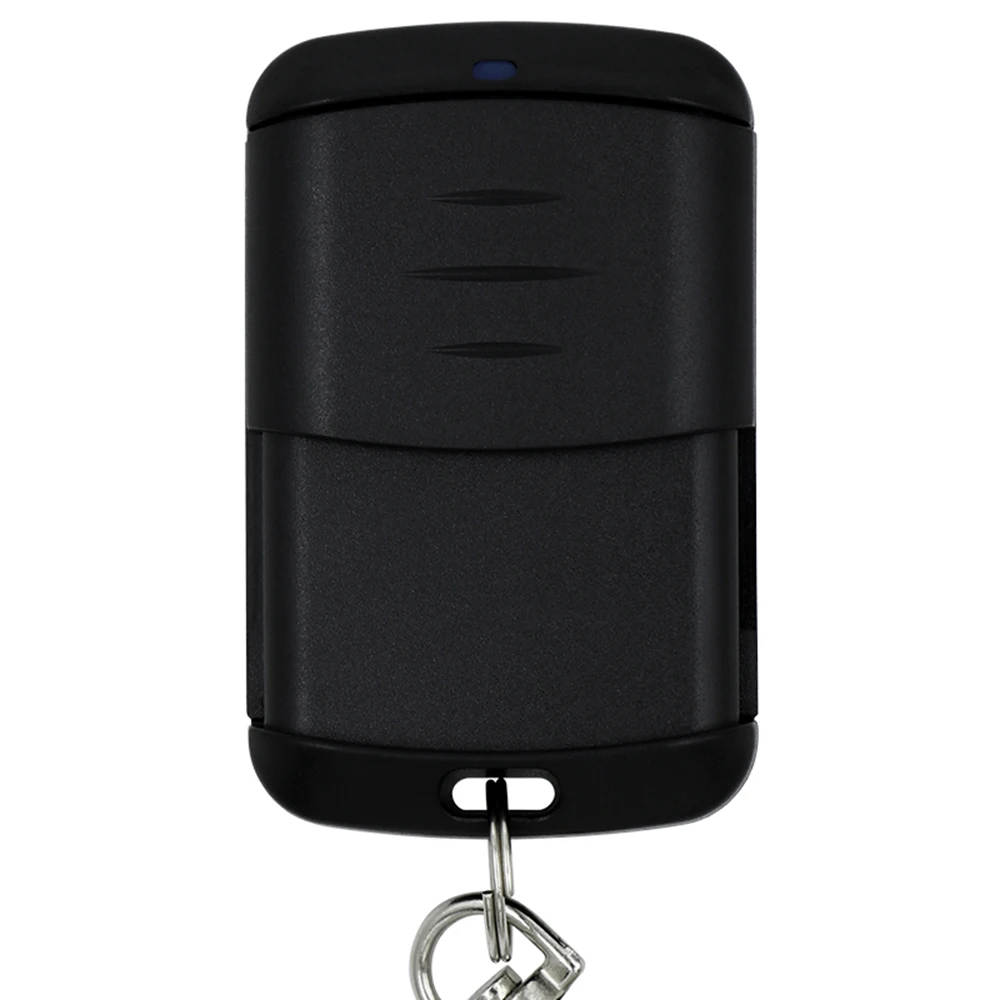

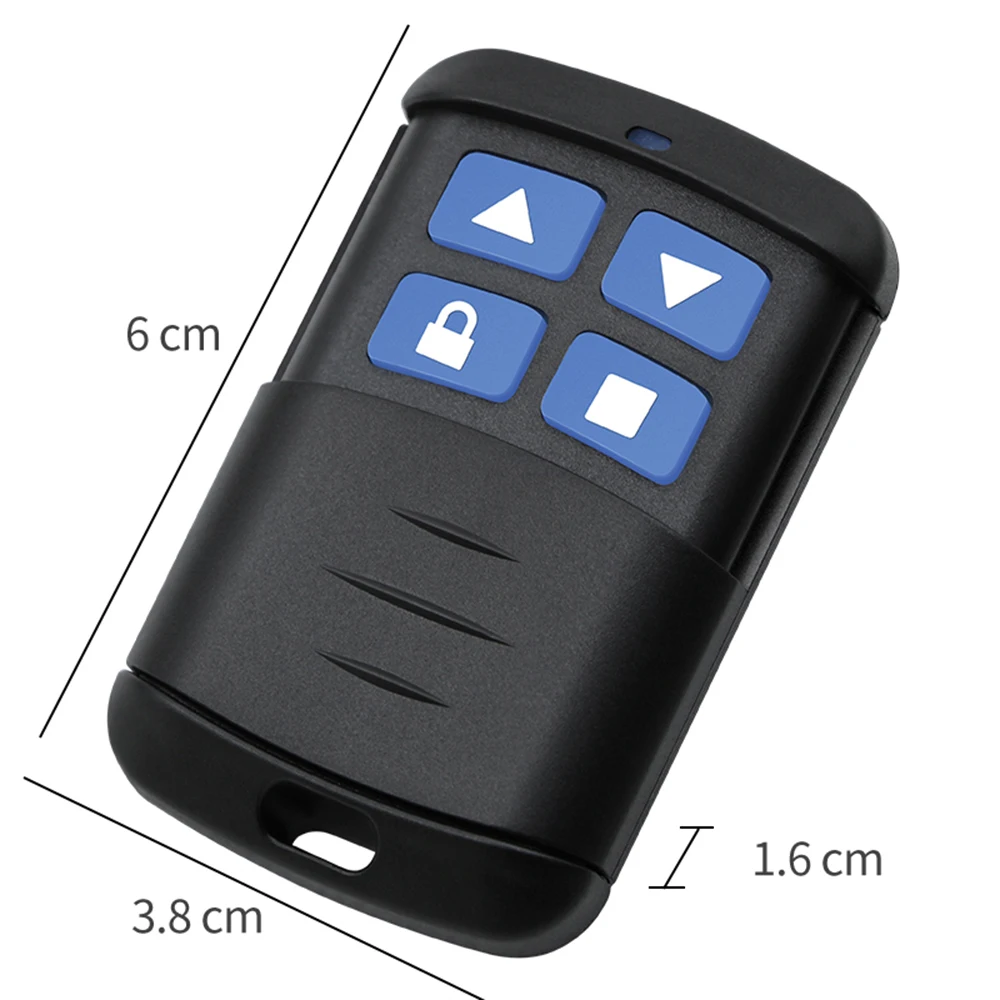

433MHz Remote Control:
Operating voltage: (Without battery),
Transmitting frequency: 433MHz
Encoding Type: Learning code
Transmission distance: 10-100M (Open field)
NOTE: The system can store 20 pcs of remotes, if the remote gets more than 20 Pcs, the initial remote control will be lost.
