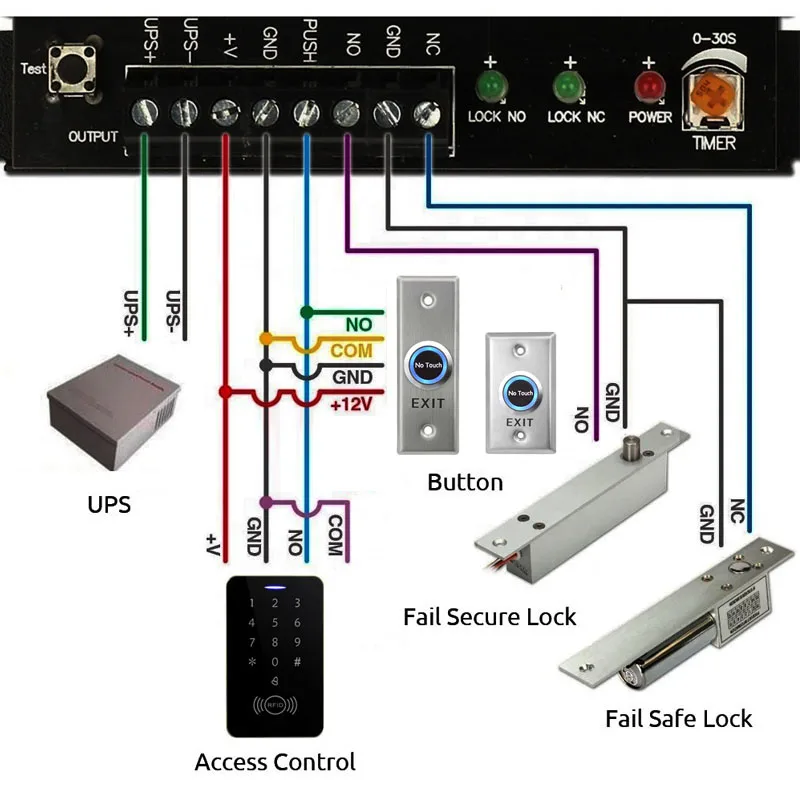

How the Exit Push button works?
When the button is pressed,the inner contactes are combined,forming circuirt connected,causing the power controller to be short-circuited,thereby driving the electric lock to unlock.
after releasing the button,the power supply is energized during the set time to achieve the entire door opening andclosing process
Products Details
Product model: stainless steel infrared sensor switch

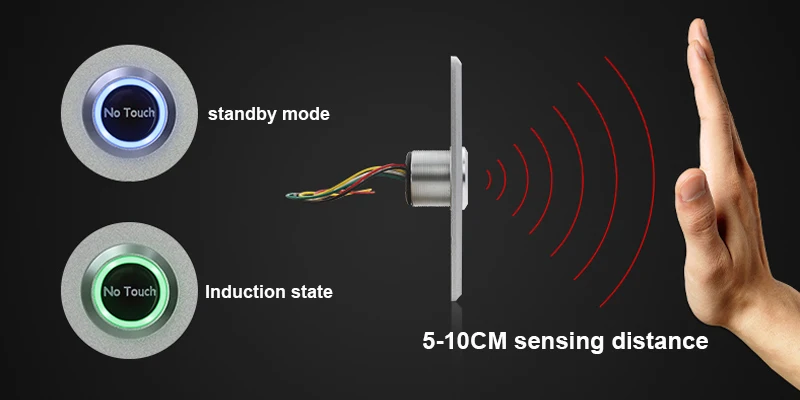

Features: 5- 10cm infrared sensing distance
Product material: stainless steel brushed panel
Output: NO/ NC / COM
LED lights: blue (to be determined )，green (inductive )
Electrical performance: 3A @ 12VDC
Indicating pattern: English text pattern
Weight: 0.15kg
Specification:
1.Metal Panel with Elegant Style
2.1000000 Cycles tests
3.Three Contact Output, Suitable for all kinds of Locks
4.The Best Choice for Access Control
5.One infrared button per box , weight 0.15KG
7.Operating temp :-10~+55°C(14-131F)
8.Operating Humidity :0-95% (non- condensing)

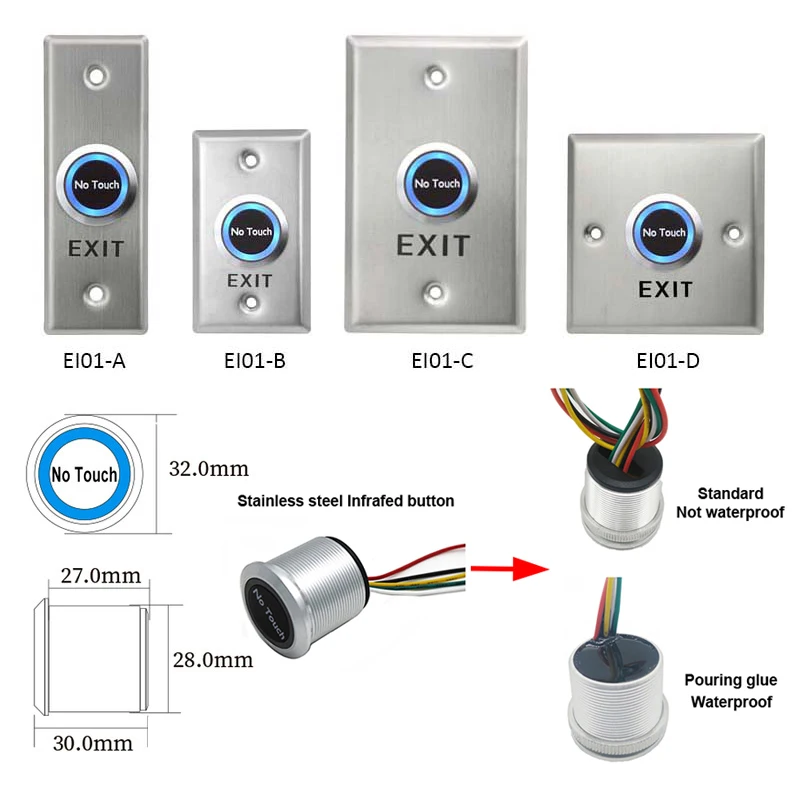

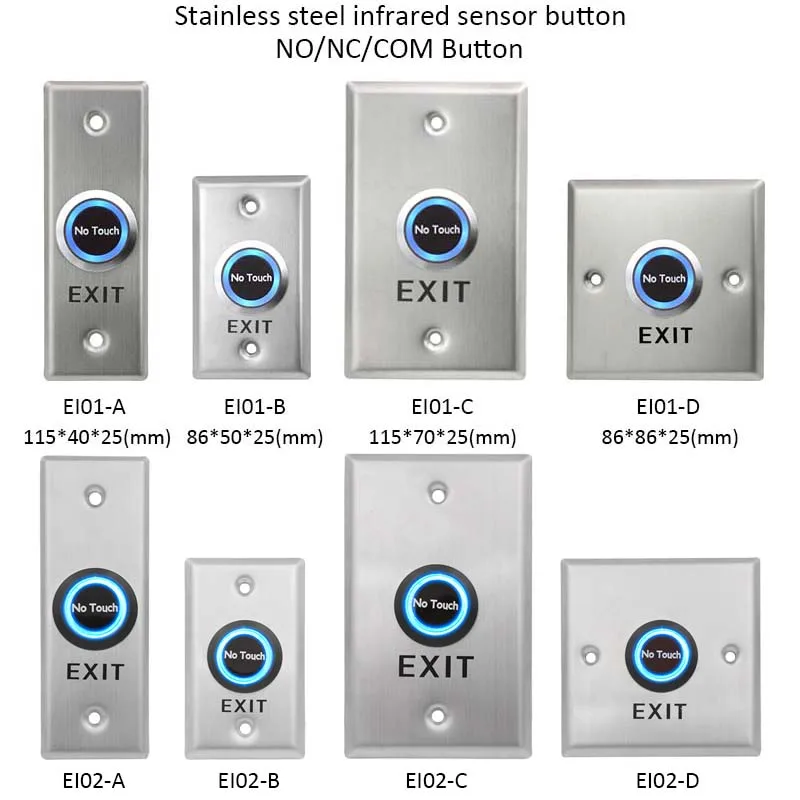

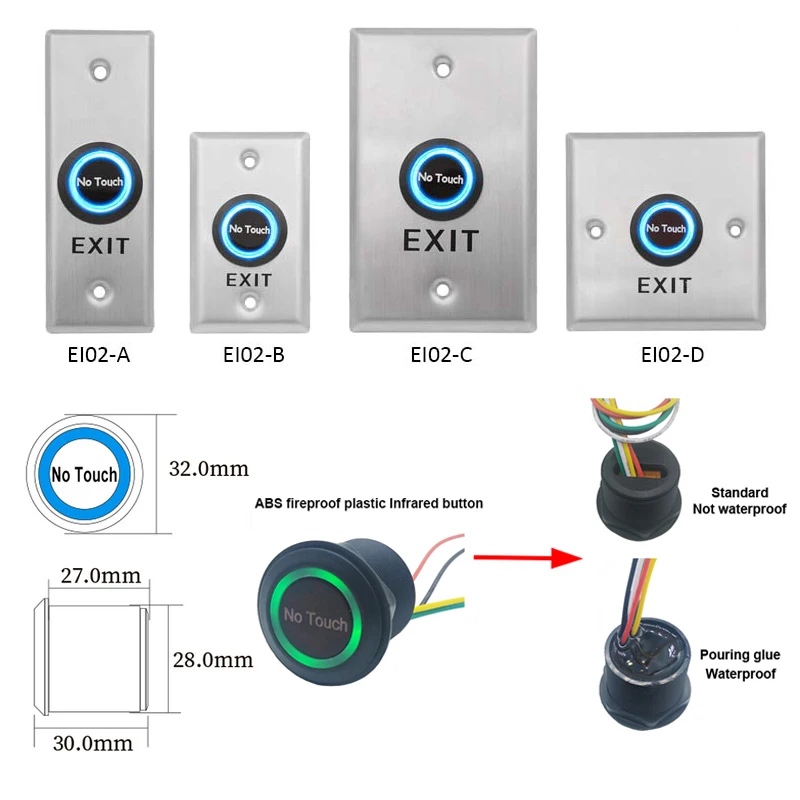

9.Dimensions :115*70×30(mm) / 115*40*30mm/86*50*30mm/86*86*30mm

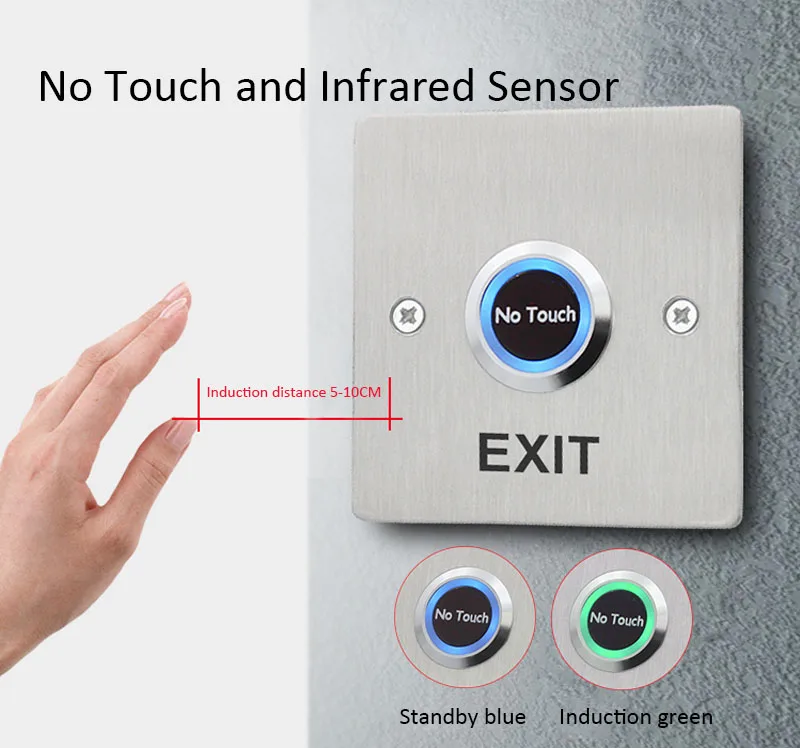

10.Detection range:0.1-10cm
11.White LED indicator:Power OFF
12.Blue LED indicator:Power ON(standby)
13.green LED indicator:Power ON(inductive)
14.Power: 12V/24VDC
15.Contact Rating: 12-24V,3A
