1. 【LED Touch Display】Pure white LED backlight, more energy saving than LCD screen (energy consumption ratio is 1:10). Covered by elegant glass panel, minimalist design that fits any decoration style.

2. 【Accurate Temperature】Integrated and external dual temperature sensor system, better temperature perception,0.5℃ temperature accuracy.

3. 【Manual/ Auto Model】Free to choose a manual mode or auto mode for different purposes.

4. 【Children Lock】Default mode, prevent children from operating by mistake.

5. 【Weekly Programmable】The thermostat supports different temperature settings accordingly with 6 time modes daily.

6. 【Memory Function】No need to worry about power failure, data memory when power is off.

7. 【Open Window Detection Function】Automatically stop heating when the open window is detected. Save more on your heating bill.

SPECIFICATION

1. Input: Electric Underfloor Heating System:100-250V~, 50/60Hz, 16A;Water/Gas Boiler System: 100-250V~, 50/60Hz,3A

2. Output: Electric Underfloor Heating System:16A maximum load;Water/Gas Boiler System: 3A maximum load

3. Set Point Range: 5~35℃

4. Accuracy: ±0.5 ℃

5. Dimensions : 86 x 86 x 42 mm

1. Power Consumption: ＜ 1 Watt
2. Compatible with most boiler/water heating systems. Control from anywhere with the internet at any time. Works with Apple HomeKit, Amazon Alexa, Google Assistant, and SmartThings.
3. Save your heating cost with a 7×24-hours smart graphic schedule. Never worry about arriving home with a cold room, or leaving the house with the system heating.

Installation Instructions

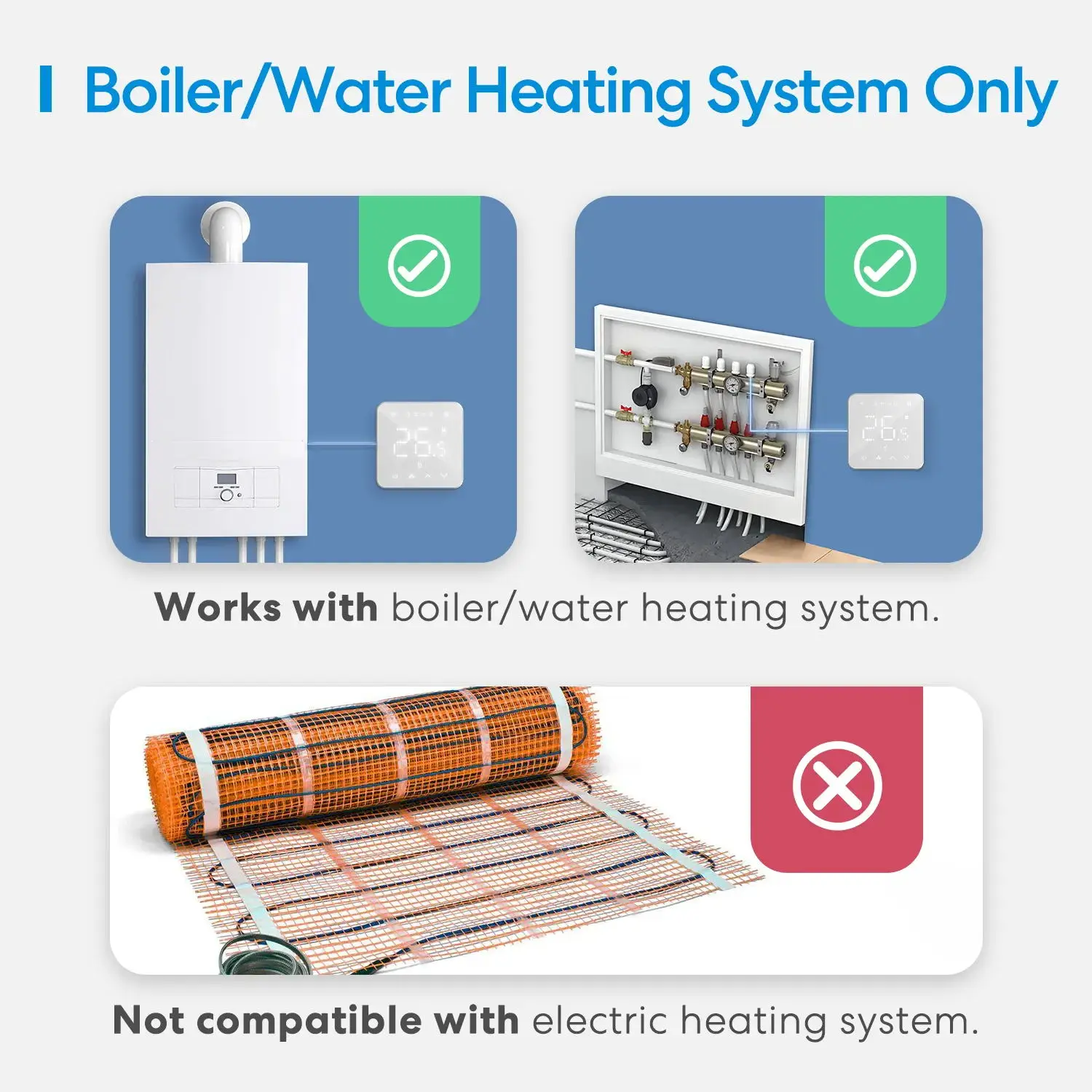

Boiler/Water Heating System Only

Works with boiler/water heating system only, not compatible with electric underfloor heating system

Open Window Detection

If the temperature in the room drops by more than 2 degrees within 15 minutes, the temperature control valve detects the temperature drop and stops heating operation,help you save you unnecessary energy bills. If the window is accidentally opened, you don't have to worry about heating out to the window.

Child Safety

Designed for families with children. You can activate or deactivate the child lock of the electric heating thermostat in the Meross app, and you can quickly unlock it temporarily on the glass panel.

Family Control

You can control the device with your family and friends.

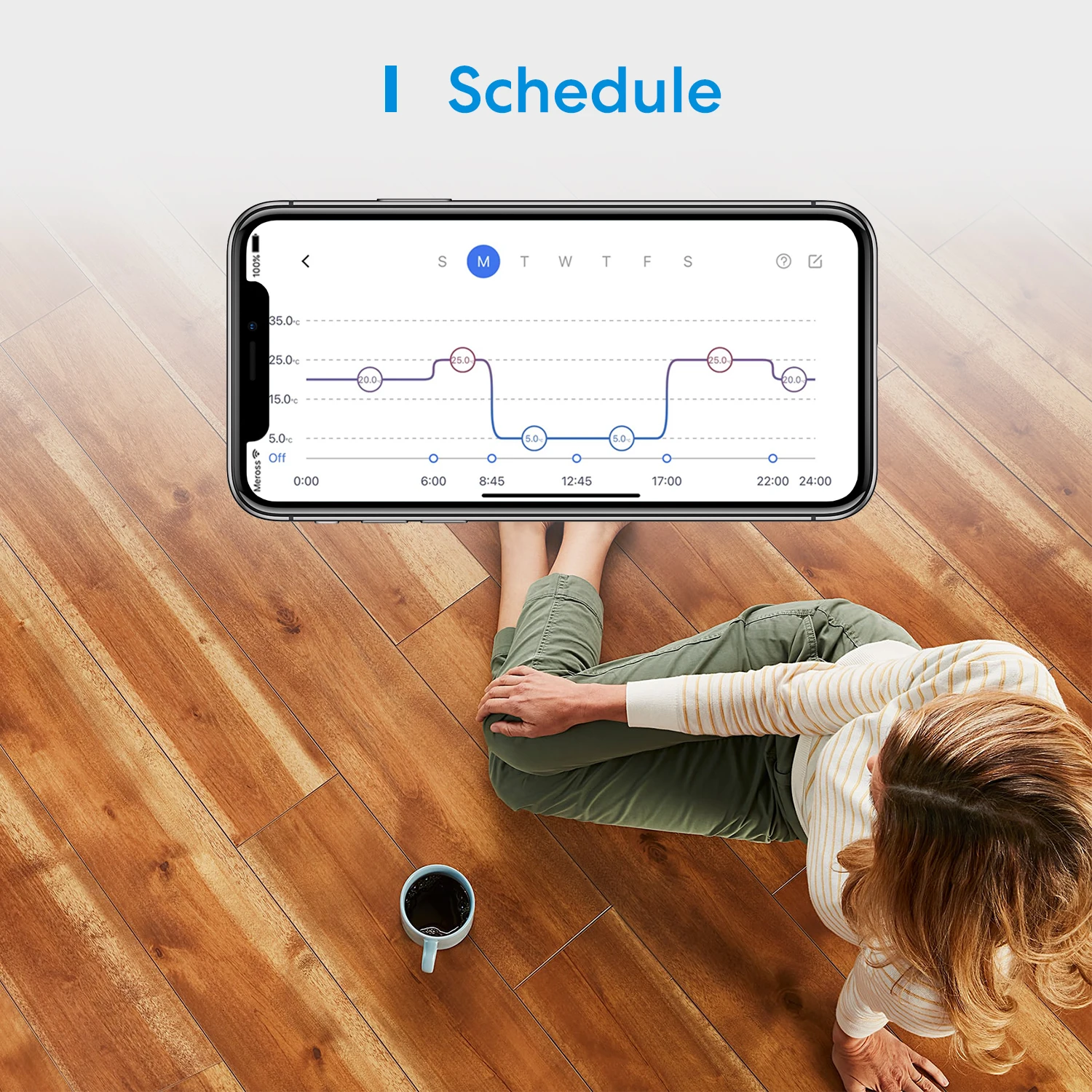

Schedule

Save your heating cost with a 7×24-hours smart graphic schedule. Never worry about arriving home with a cold room, or leaving the house with the system heating.

Energy Saved

Control your electric thermostat via the home app, turn it on/off. Individual control of the temperature in each room to find the right temperature for different living conditions. Save up to 30% on heating costs in winter compared to conventional thermostats.

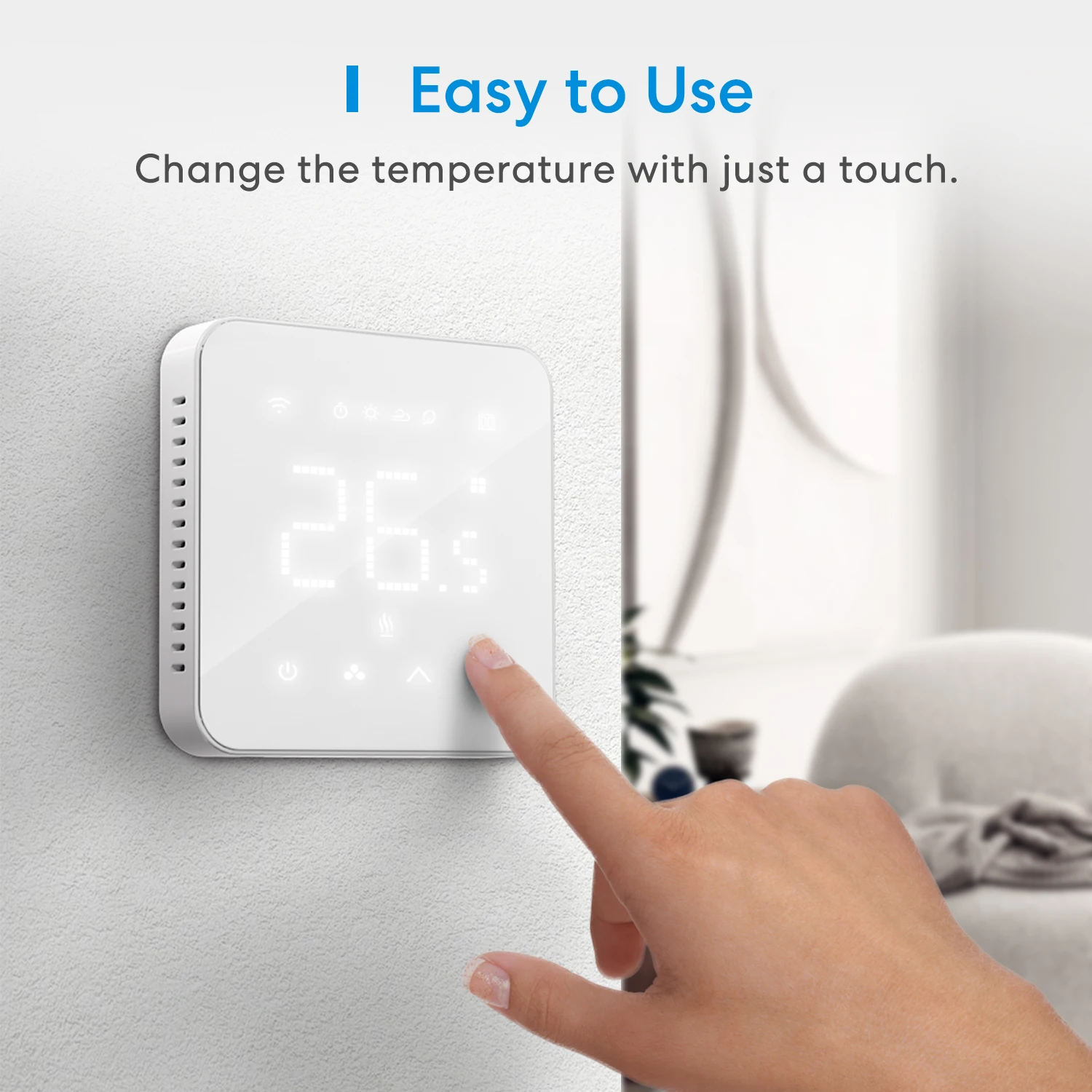

Easy to use

Change the temperature with just a touch, easy to read and operate

Dual Sensor System

The Double sensor system, an integrated temperature sensor for accurate air temperature measurement, external temperature sensor (in wall and optional) for overheating protection of the floor.

Voice Control

Control with your voice when your hands are not free, work with Siri, Alexa, Google Home

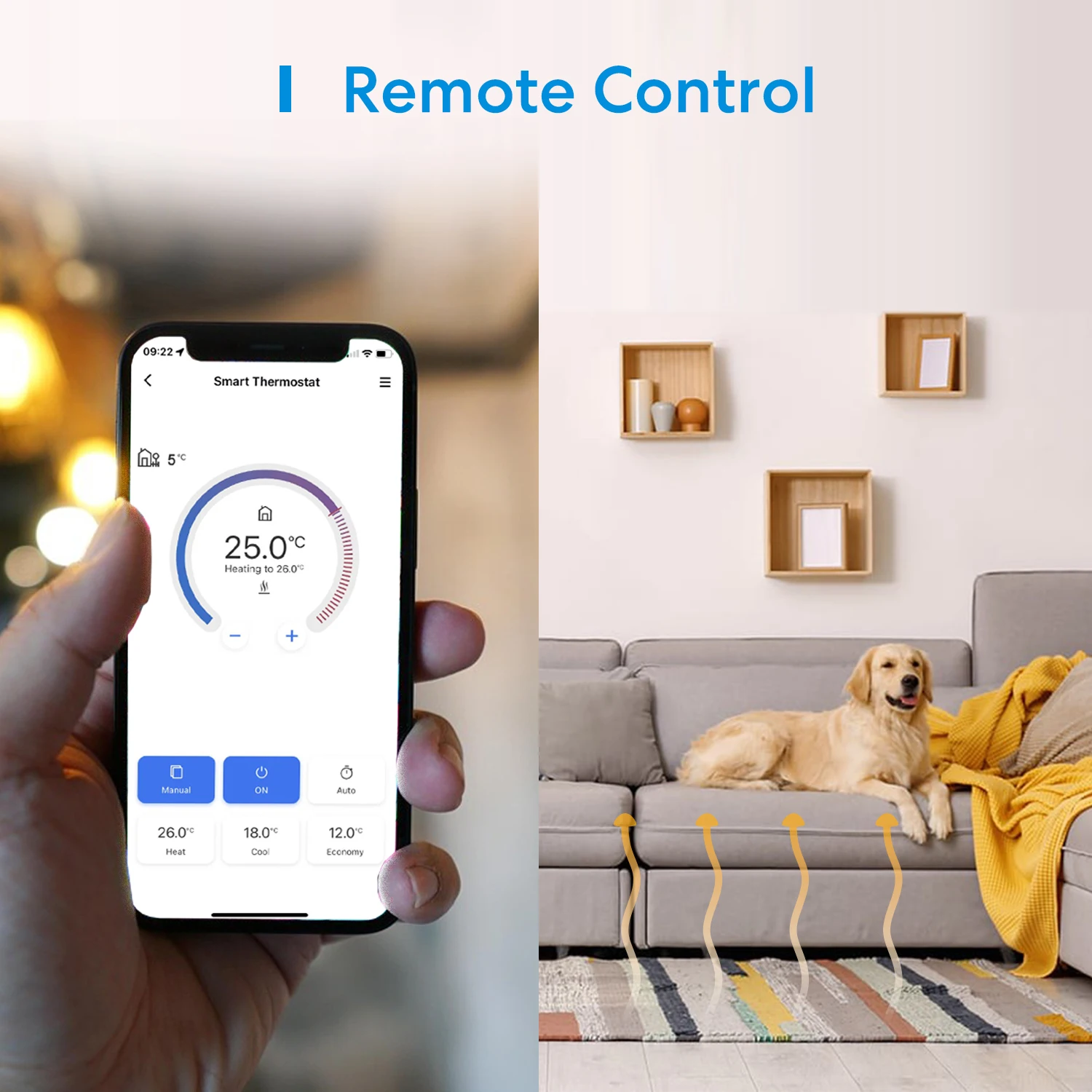

Remote Control

Control the temperature via Meross app, Apple HomeKit, Amazon Alexa, Google Assistant

and Smart Things

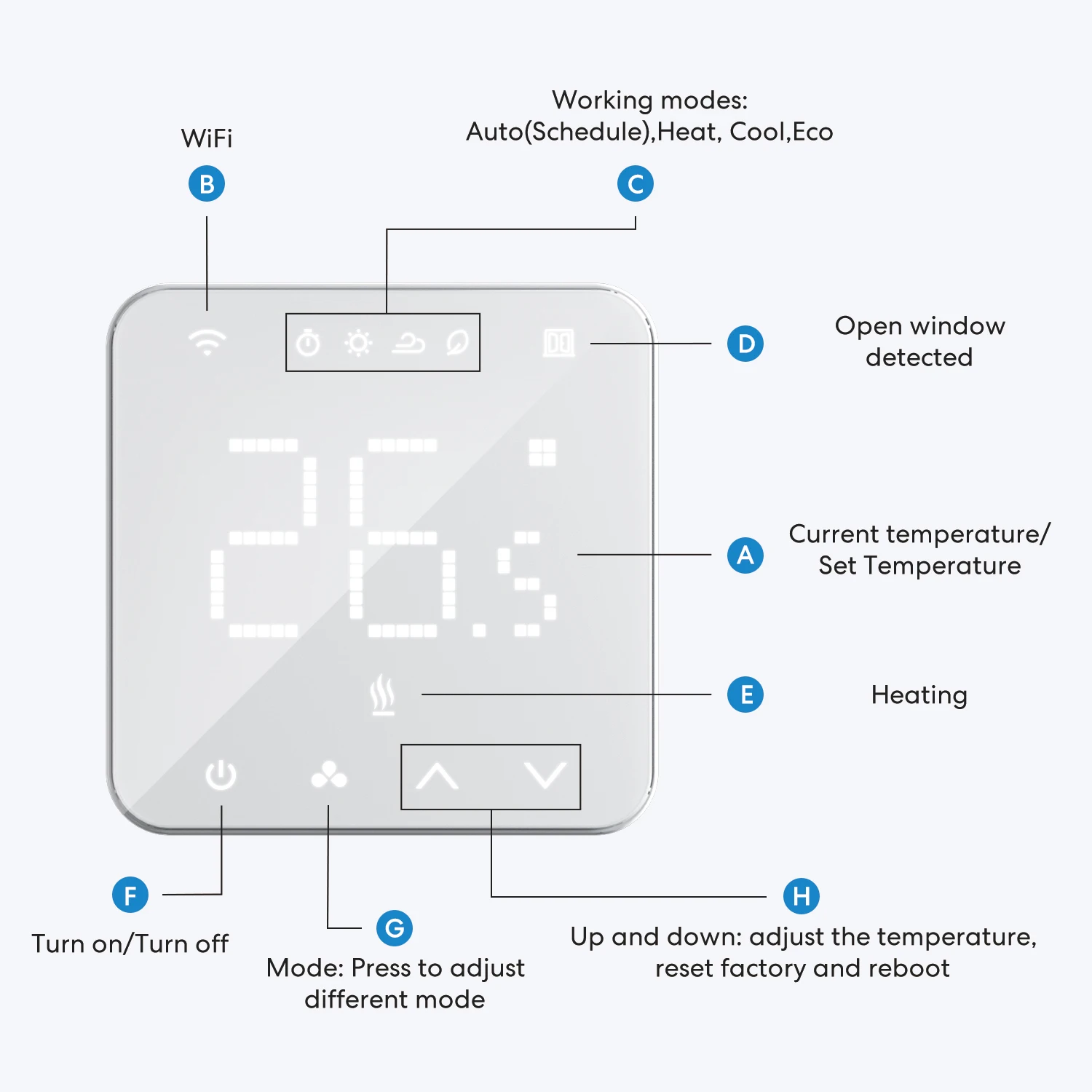

A: Current temperature/Set Temperature

B: WiFi

C: Working modes: Auto(Schedule),Heat,Cool, Eco

D: Open window detected

E: Heating

F: Turn on/ Turn Off

G: Mode: Press to adjust different mode

H: Up and Down: Adjust the temperature, reset the factory, and reboot

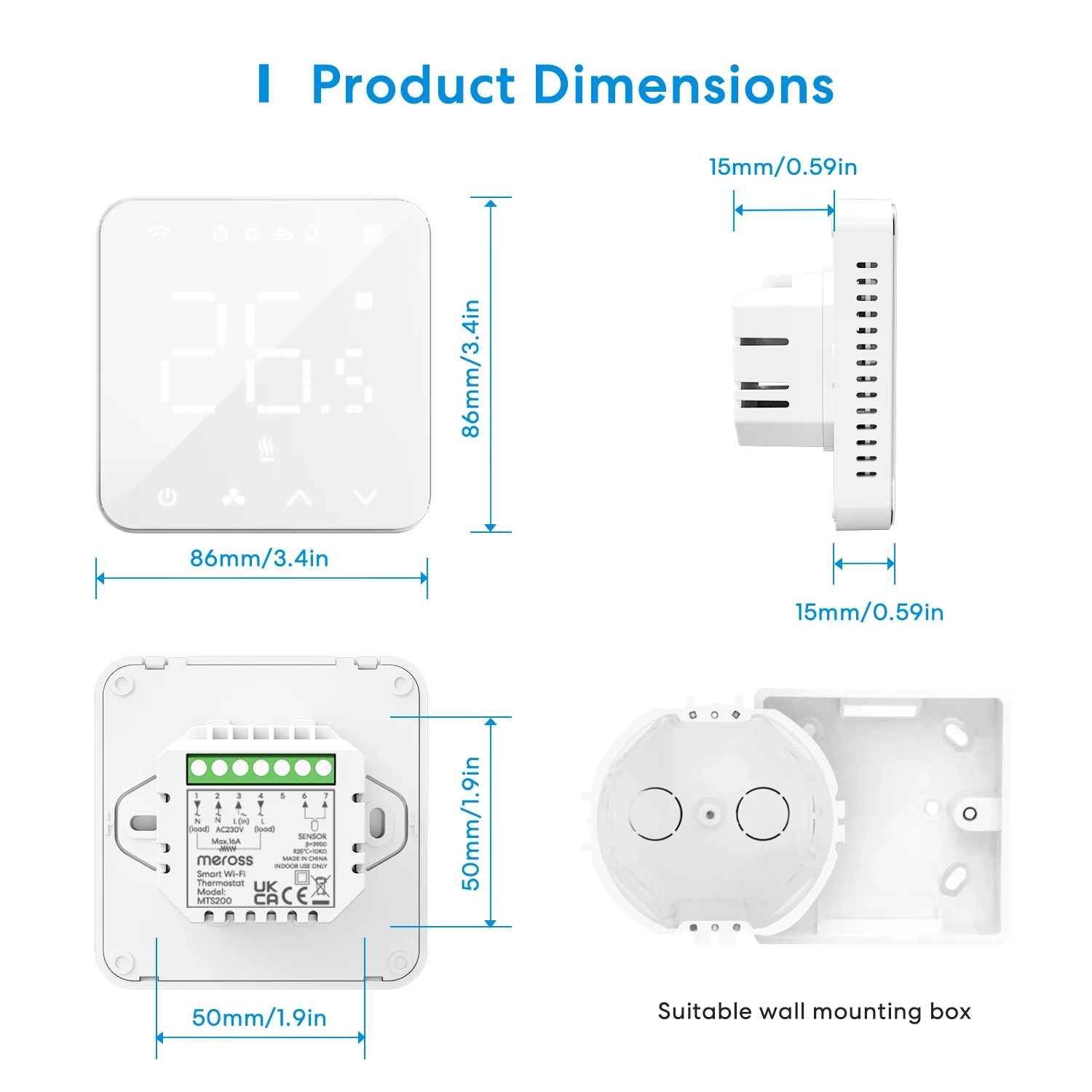

Product Dimensions
