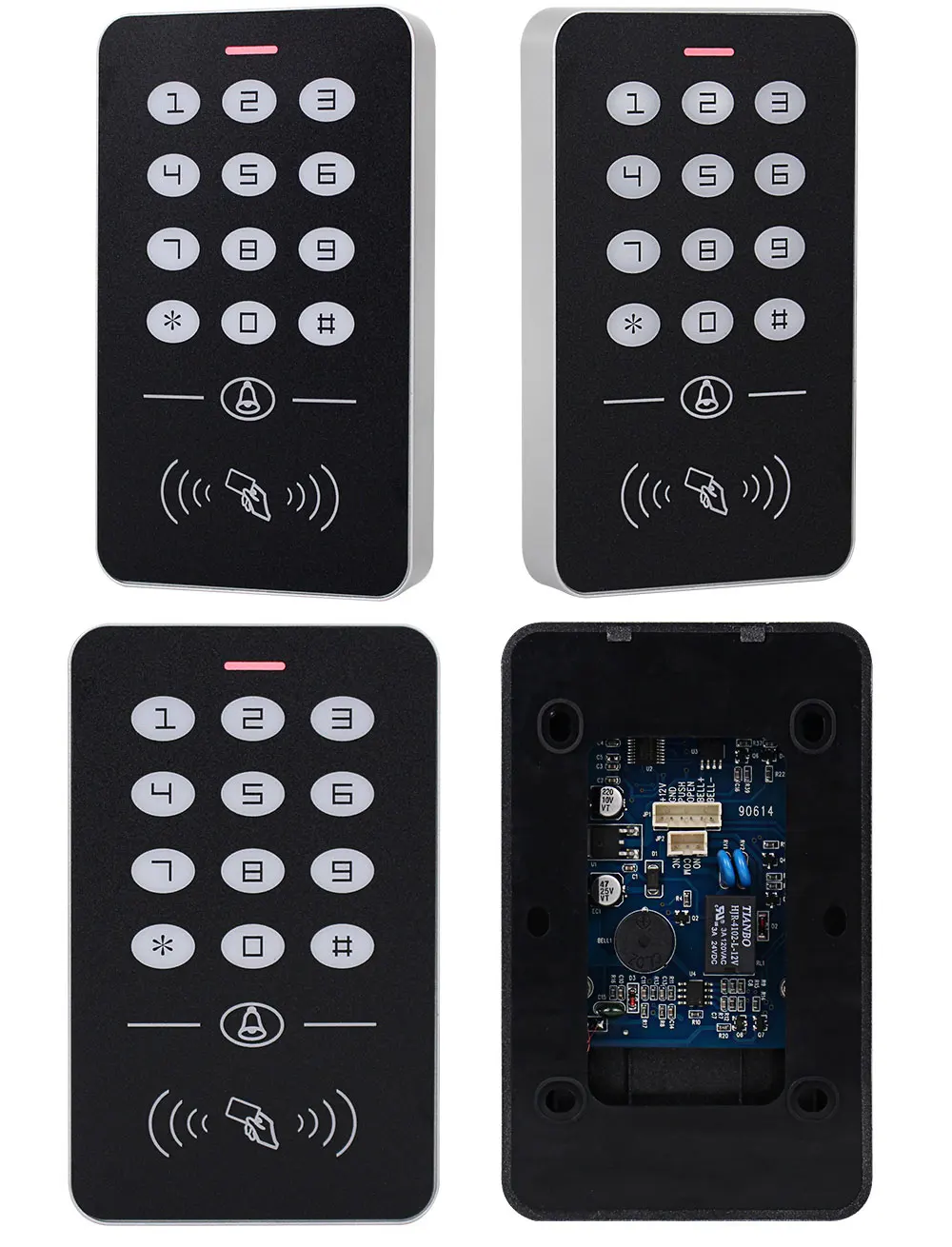

Product Description
High quality and high security.
Sensitively and response quickly.
1000 standard users .
Support card, password, password plus card to open the door.
With door bell button.
Classical Appearance with useful function.
Doesn't need to connect to the computer, can works alone.
Application: Home/ hotel/ office/ department / apartment etc.
Product Specification
User capacity: 1000
Card reading type: EM card
Card reading distance: 0-5CM

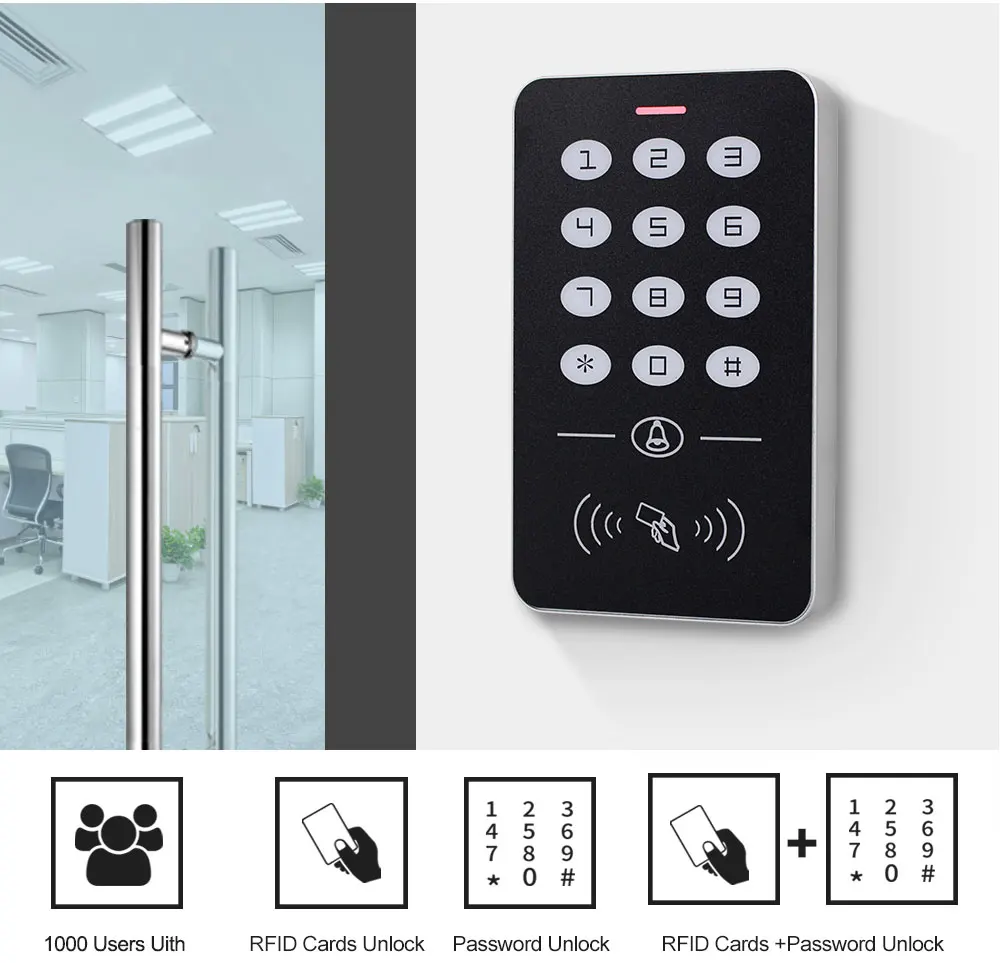

Identification method: RFID card, password, RFID card + password
Programming password: 123456
Unlocking time: 5 seconds
Open the door input: all the way to open the button input
Doorbell output: one way wired doorbell output
Can be connected to automatic door or gate
Working voltage: DC 12V ±10%
Working power supply: 100mA

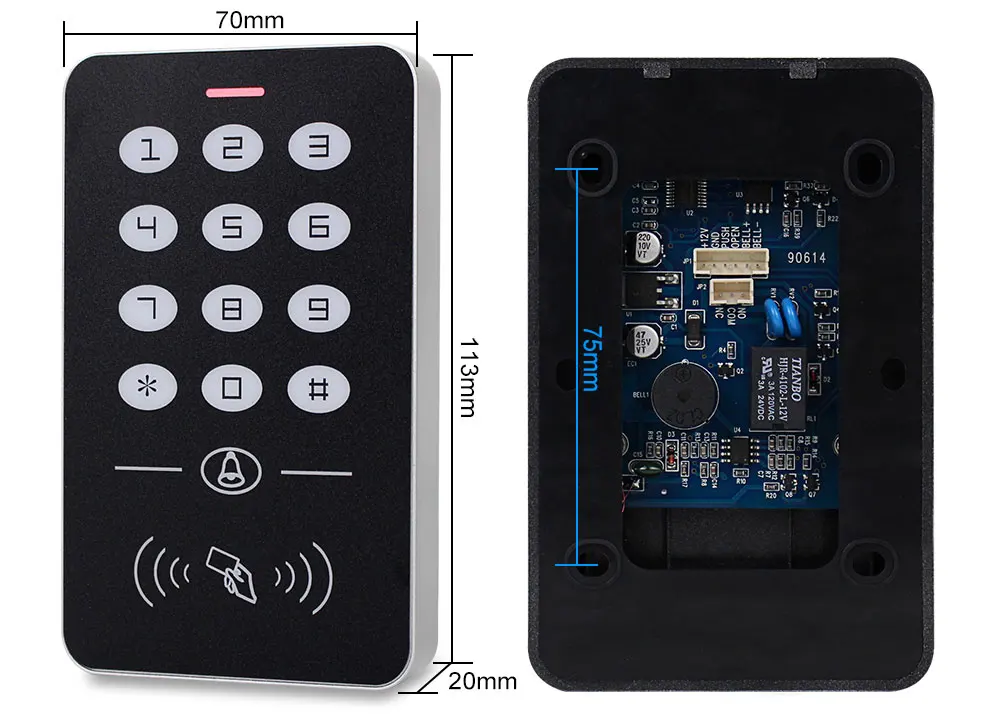

Size : 113*70*20mm

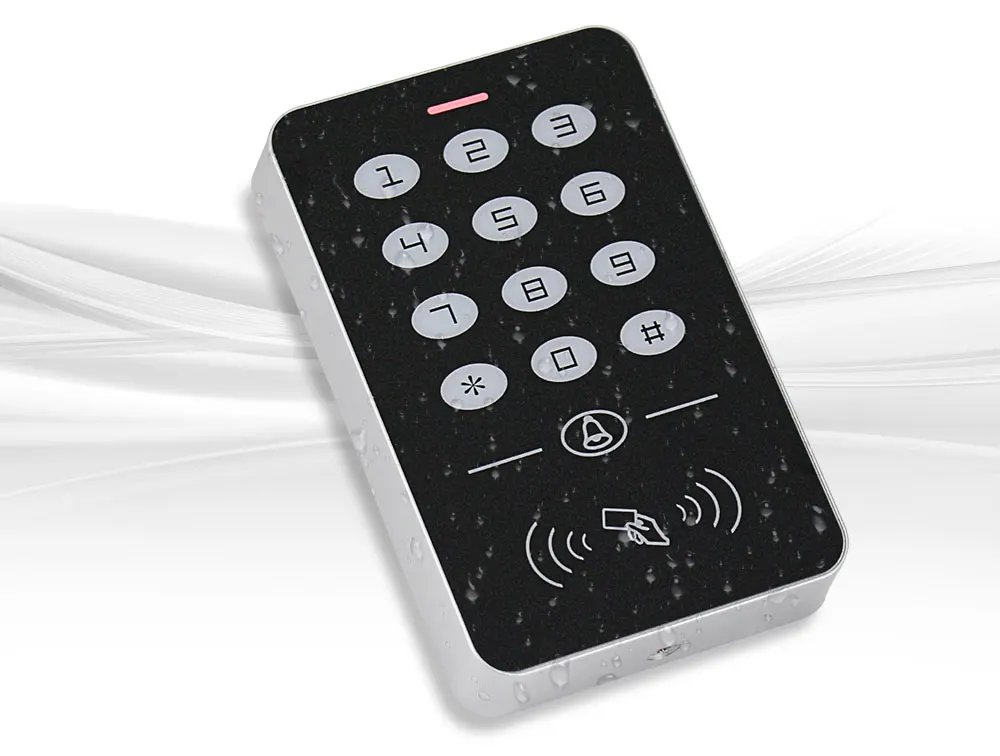

This Keypad is Not IP65 waterproof, can not be used under the rain directly
Made of High quality material, safe and durable
ABS fireproof material, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different environmental installation. (This keypad is not IP65 waterproof, can't be used under the rain directly)
Support 1000 user cards. and 3-6 digits password. Has 3 different unlock methods.
( unlock with rfid card, password, rfid card + password)
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access
control solution.

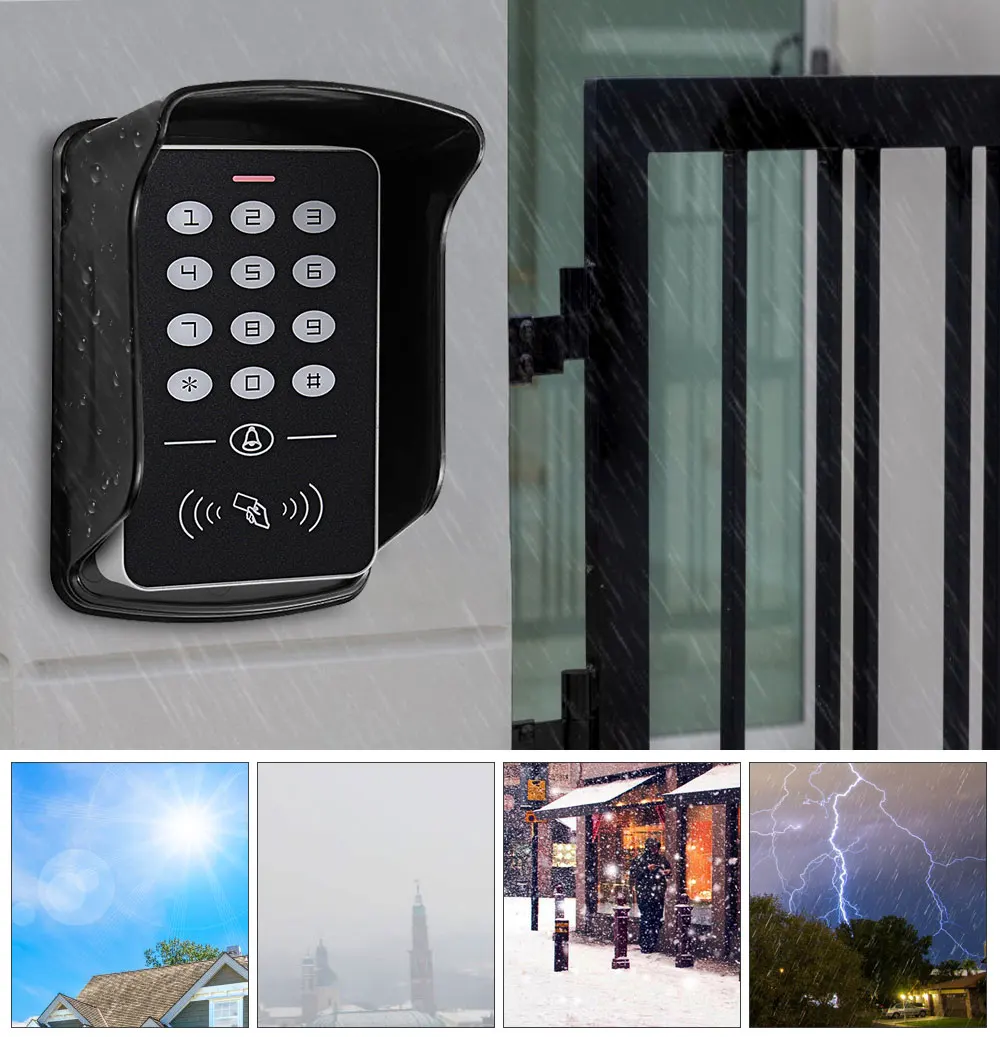

Used with Rainproof cover, can be installed outdoor.

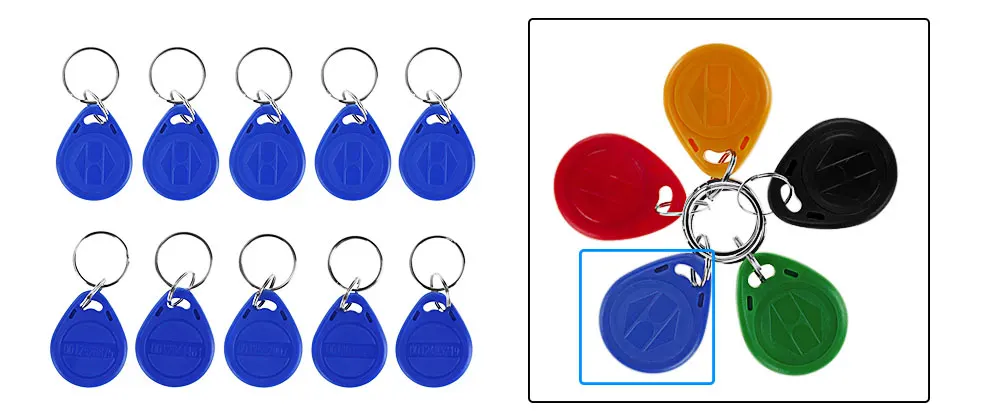

RFID Keyfobs (blue)
Working Frequency: 125KHz
With ABS high quality.
Each one has unique ID number on it.
Reading Range: 0-10cm
Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.
Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
Wiring Diagram
This Access Control Keypad is no need to connect to the computer. You just connect it to the DC12V power supply, electric lock, exit button, Then finished.
The power supply, electric lock, exit button, and door bell are not included in the package, if you need these, please contact us. Thank you!
