Access Controller
- User capacity: 10000
- Material: ABS high quality material
- Panel: touch screen panel
- Working frequency: 125KHz + 13.56MHz dual frequency
- Card reading type: support EM ID and MF 1K compatible cards
- Card reading distance: 0-5CM
- Identification method: RFID card, password, RFID card + password, NFC
- Backlight: has white backlight
- Waterproof function: IP68 waterproof, can be installed outdoor
- Doorbell button: support wired doorbell
- Wiegand signal: WG26Â / WG34 input/output
- Can set management card: yes
- Working voltage: DC 12V
- Door opening time: 0-99 seconds
- Working temperature: -20 ° C ~ 70 ° C
- Working Humidity: 20% ~ 90%
- Product size: 115*72*16mm
- Support machine data copy function, register one machine, share data of multiple machines, reduce workload. (Not all devices support this function. If you want this function, please contact us.)
Product Details:
Support NFC unlocking

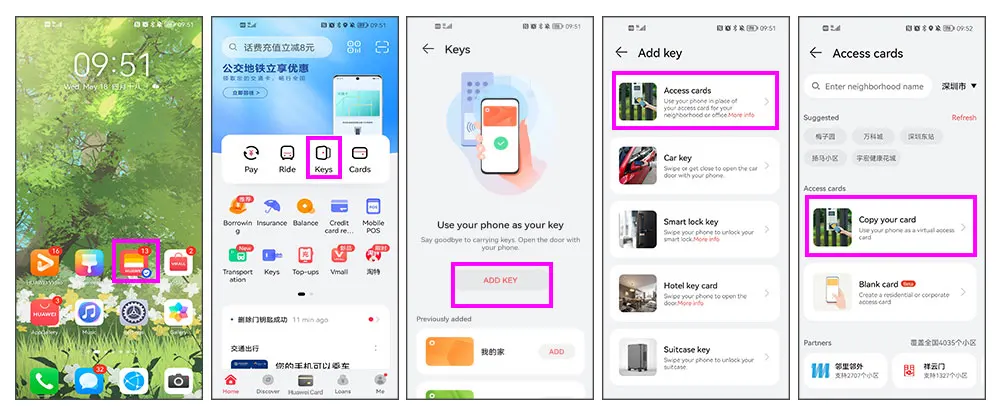

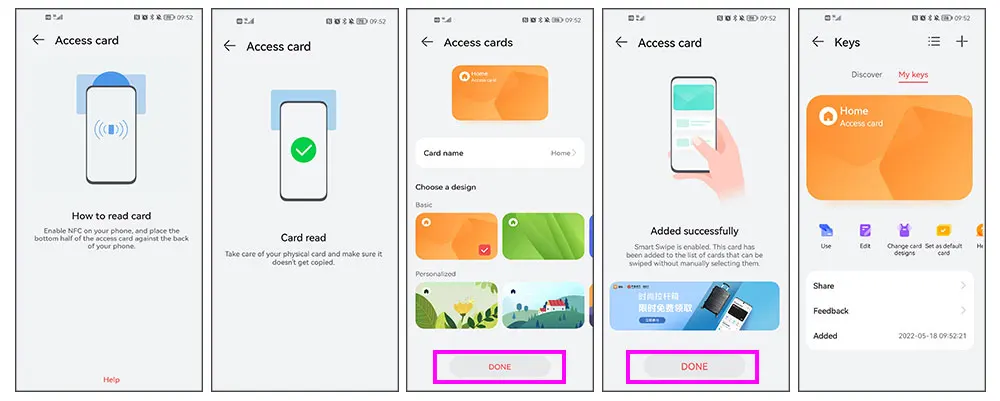

Support Moblie phone NFC unlocking, bank card unlocking, bracelet unlocking
This instruction is about Android, if your phone is ISO system, need to add a bank card first.
Support RFID Card, Password, Mobile Phone NFC to open the door
Support 10000 cards, 10000 password user capacity, more secure!
Can set Management card. Very easy to program!
Don’t need to connect to computer.
( Package not including Management cards, need to set by yourself)

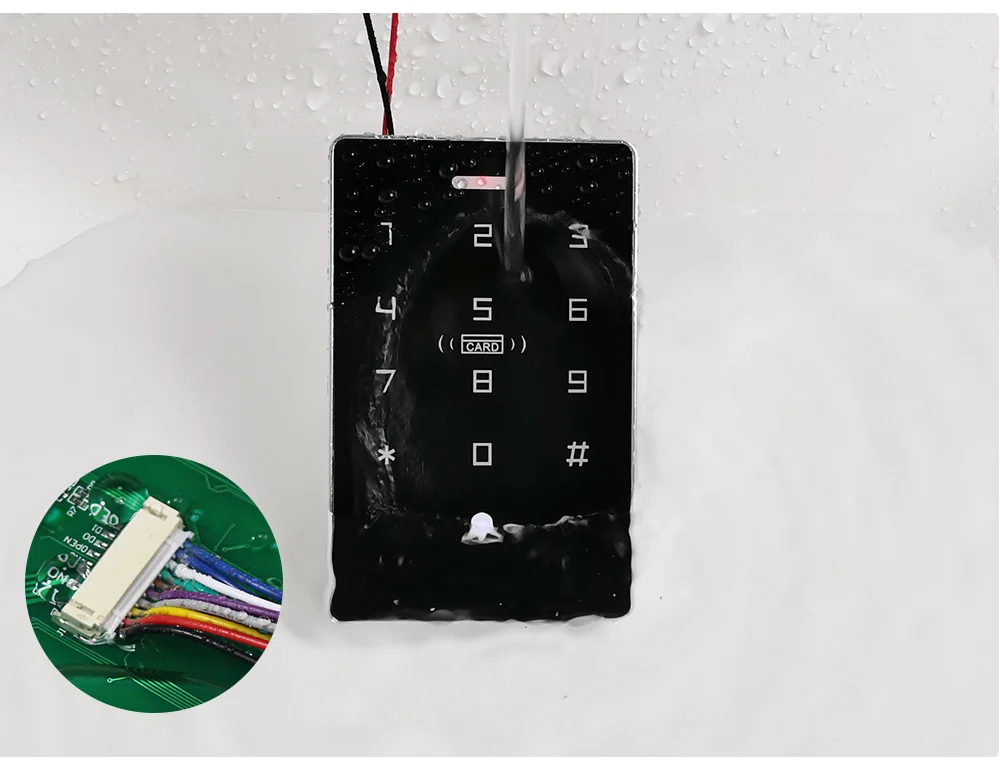

IP68 Waterproof. Can be installed outdoor

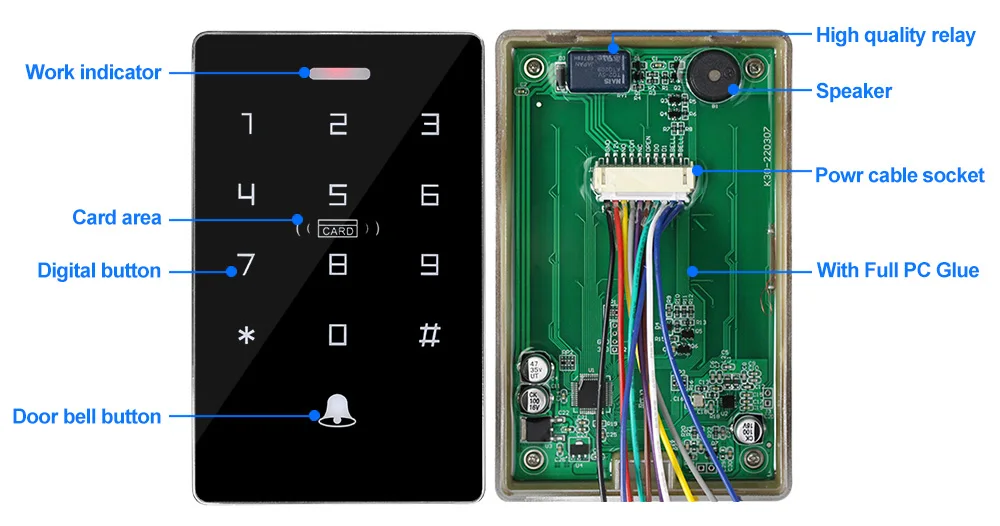

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

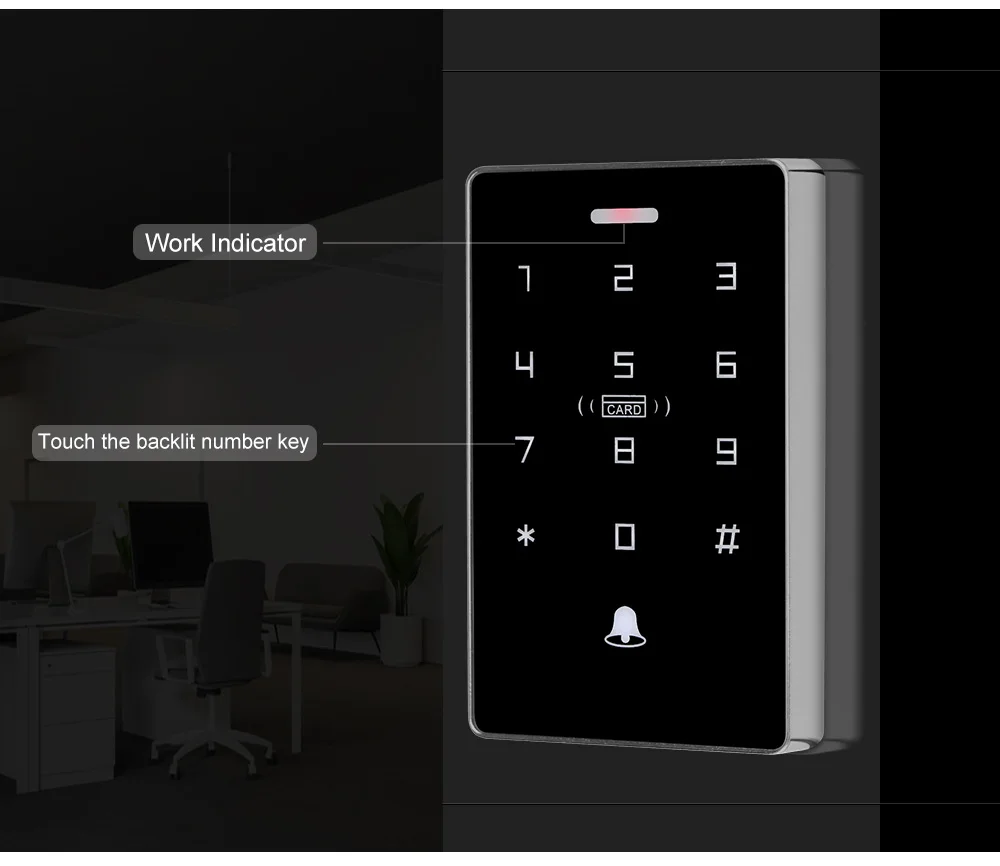

White Backlight keypad
The digits number can be seen clearly even at dark
Can set Normally Open model
Frequent entry and exit can be set to normally open model
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.
Suitable for most major access control solution.

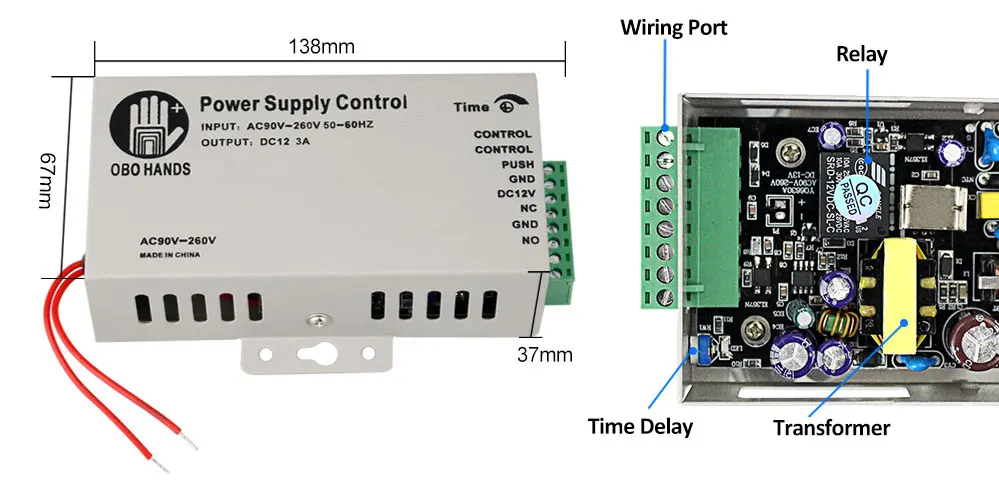

Power Supply:
This is AC110-260V, DC12V/3A power supply switch for access control system. Can connect to all kinds of access controoler, electric lock, exit button, remote control, etc. Help to reduct the overload of the access controller. NC/NO output mode cam be selected for different types of electric lock.
- Model Name: K803AÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
- Material: Steel
- Input Voltage: AC110-260VÂ Â Â Â Â
- Input Frequency: 50-60Hz
- Output Voltage: DC12V/3AÂ Â Â Â Â Â
- Output Power: 36w
- Dimension: 105*91*34mm   Â
- Time Delay: 0-15 seconds
Door Exit Button:
Material: Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / WÂ )
RFID Keyfobs:
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Package List
Kit2: Including Access control keypad + 10pcs Keyfobs+ Power supply+ door exit button. Not including electric locks.
Kit3:Â Suitable for wooden door, metal door. convenient and beautiful. No need bracket.
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs
(We will send the NC type by default, if you want NO type, please leave us a message.)
Working Voltage: 12V ± 10%
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）
Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs
Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )
Kit5: Suitable for wooden, metal and glass frame door. No need bracket.Â
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outsideÂ
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outsideÂ
Kit6: Suitable for frameless glass door. Need U bracket.Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs
If your door is frameless glass door, then will need a U bracket
Size of U Bracket: 130* 33 * 26mm (L/W/H)
Kit7: Suitable for wooden, metal door. Need L bracket.Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs
Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket:Â 170* 34 * 25mm (L/W/H)
Kit8: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs
If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)
Kit9: Suitable for wooden, metal and glass frame door. No need bracket. Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs
Size of the Lock:Â Â Â Â Â Â 192Lx33Wx20H(mm)
Size of Armature Plate:Â 139Lx32x11H(mm)
Holding Force:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 180kg(350Lbs)
Input Voltage:Â Â Â Â Â Â Â Â Â 12VDC
Current:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 12V/120mA
Size of Armature Plate:Â 139Lx32x11H(mm)
Holding Force:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 180kg(350Lbs)
Input Voltage:Â Â Â Â Â Â Â Â Â 12VDC
Current:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 12V/120mA
Wiring Diagram
