Product parameter description
|
●Android 8.1 system, RAM 2G, Rom 8G
|
||||||||
|
●7-inch display screen with 1024* 600 resolution
|
||||||||
|
● Round screen display, 1.28 inches; Resolution 240 * 240
|
||||||||
|
● Capacitive touch screen Power mode: AC 90v-240v
|
||||||||
|
● A set of audio inputs; Output a group
|
||||||||
|
● 485: Output a set
|
||||||||
|
● Regularly play music
|
||||||||
|
● Timing switch on/off
|
||||||||
|
●Bluetooth: supports connecting Bluetooth phones
|
||||||||
|
●Installation method: British standard 86 bottom box
|
||||||||
|
●Product weight: 0.65KG
|
||||||||
|
●Speaker output power: 2 *(10- 25W )(digital power amplifier)/analog audio output
|
||||||||
|
●Product size: 235*111.6*11.5MM
|
||||||||
Product Function
An intelligent central control host that can control the entire house’s smart home, play music, make video calls with visual doorbells, and control the scene with one click
detailed parameters
Function Introduction
Bluetooth Music
Music can be played on the host via Bluetooth via mobile phone
Video call
When the doorbell rings, we can have a video call with the doorstep machine through the screen
One click door opening
It can be linked with a fingerprint lock, and when someone presses the door lock outside, we can achieve one click door opening on the screen

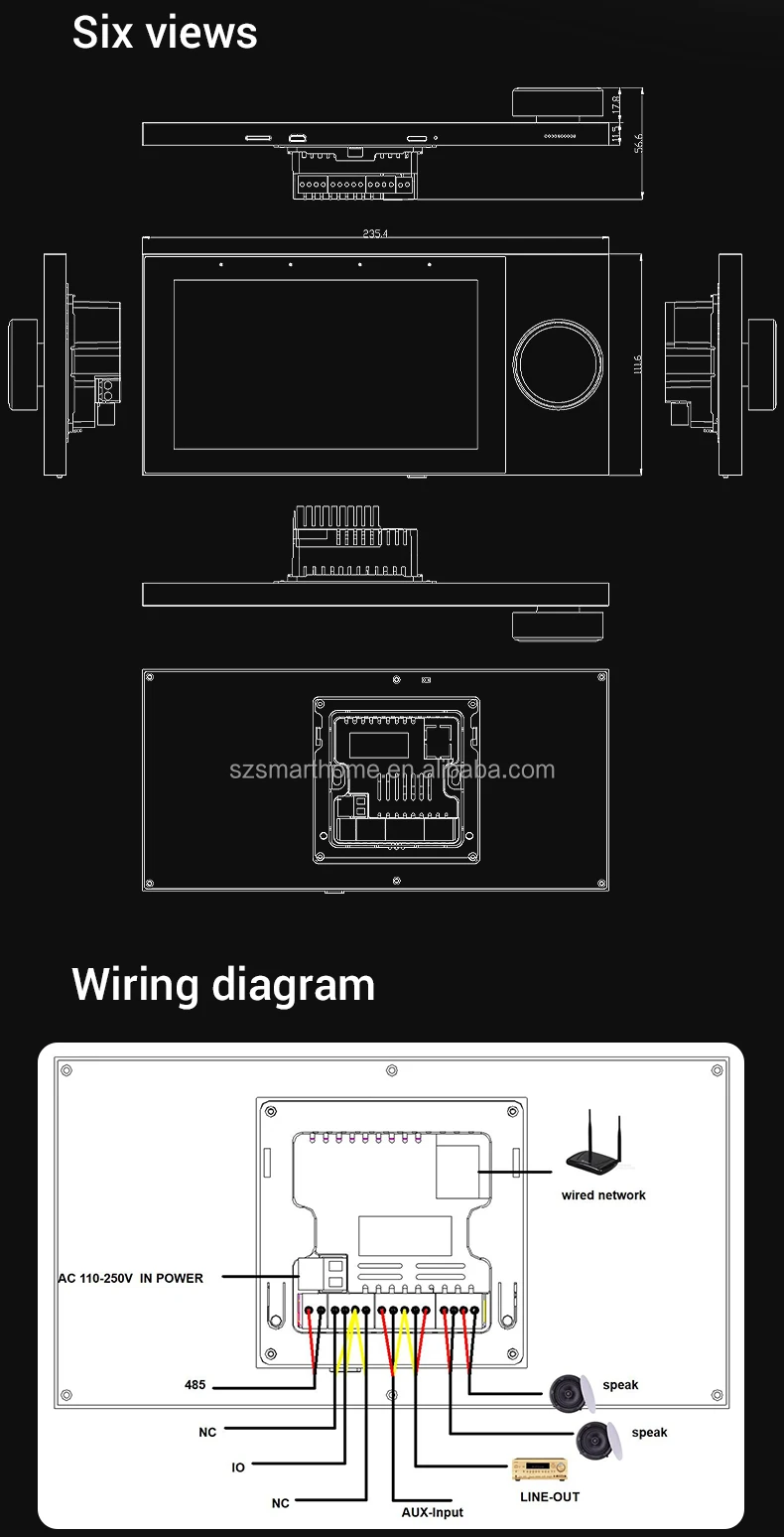

Product wiring diagram

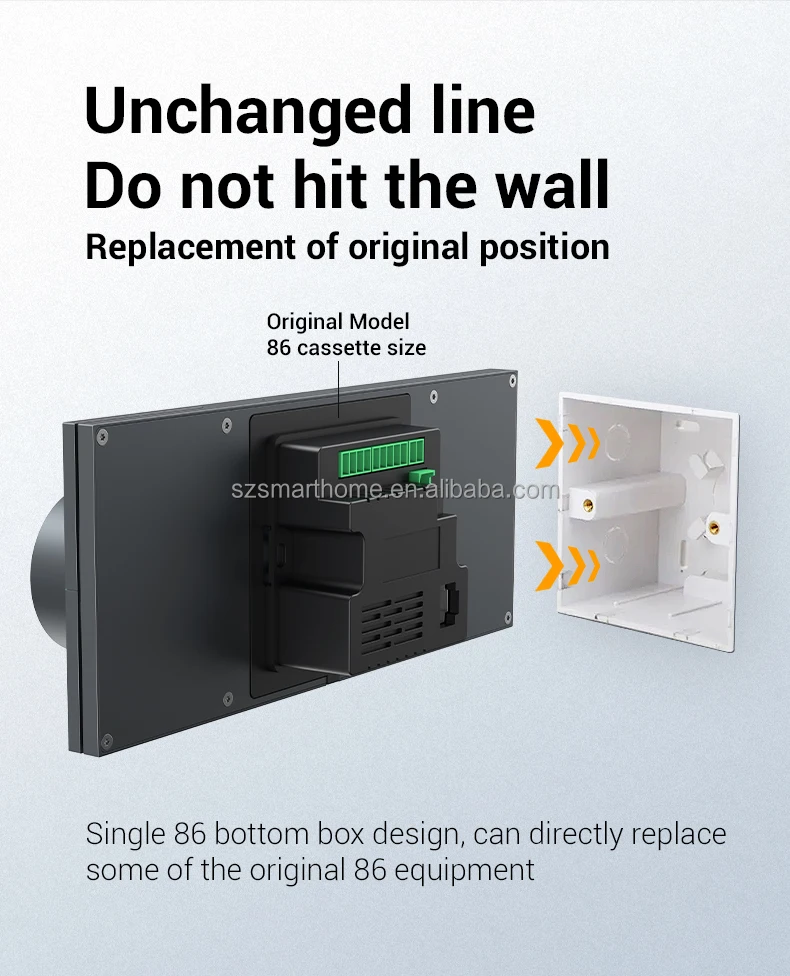

Back wiring instructions
The bottom box is designed with a dual 86 bottom shell, where both bottom shells can be powered simultaneously or one can be selected. When you choose one of them, the bottom shell has functionality.

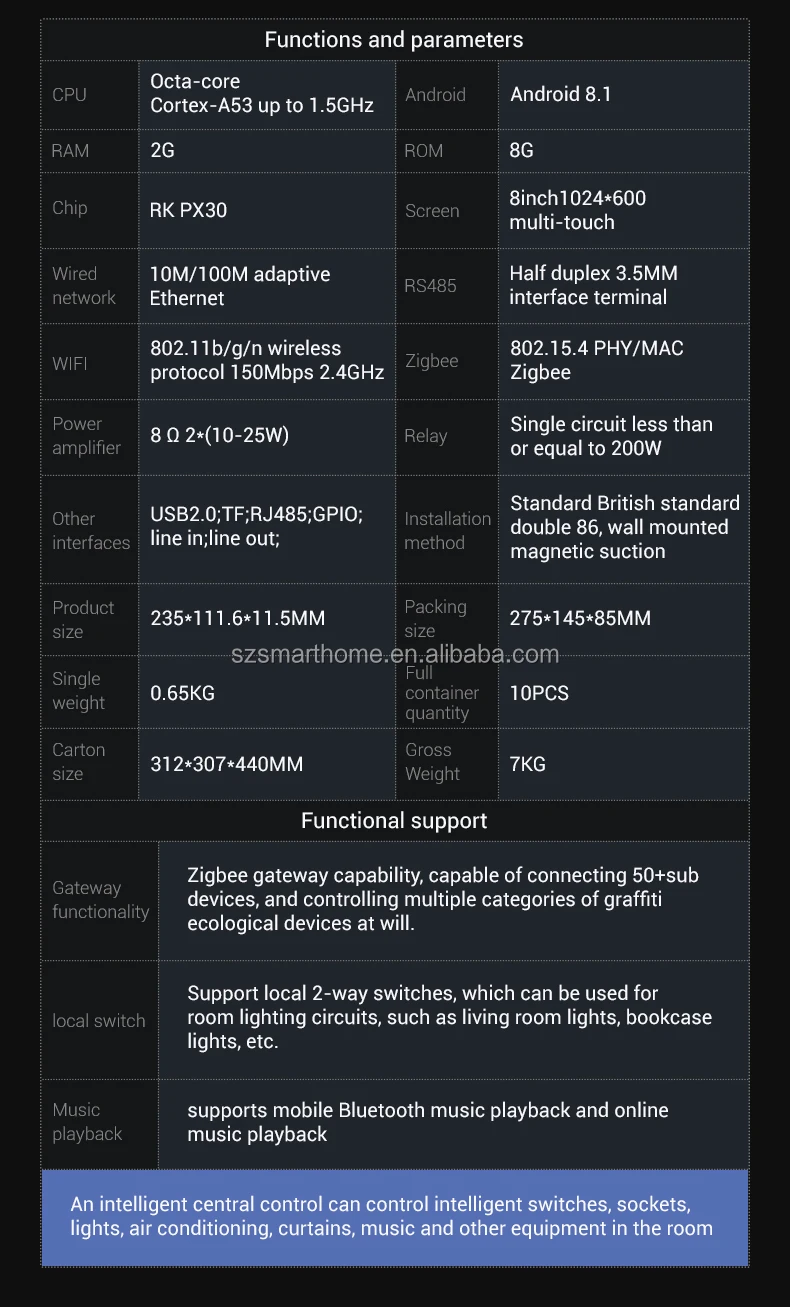

Specification parameters
