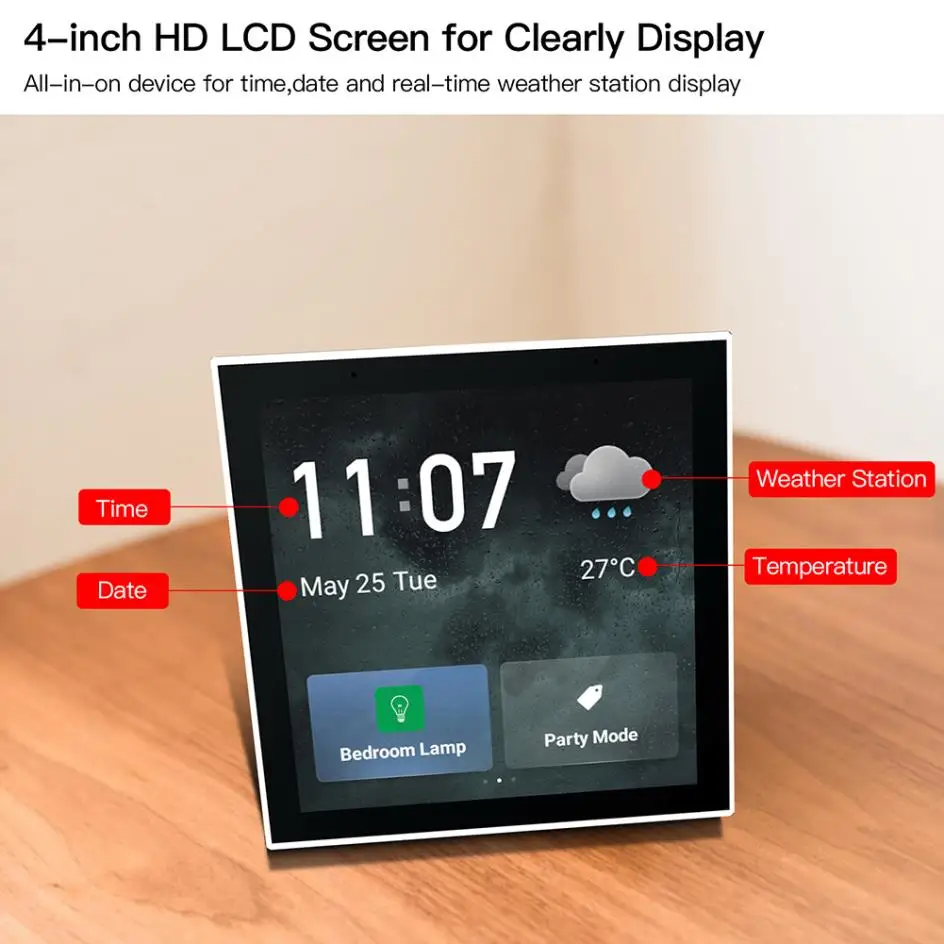

Tuya Smart Home Multi-functional Touch Screen Control Panel 4-inch in-wall Central Control for Intelligent Scenes and Smart Tuya Devices Tuya WIFI ZigBee Gateway Featured

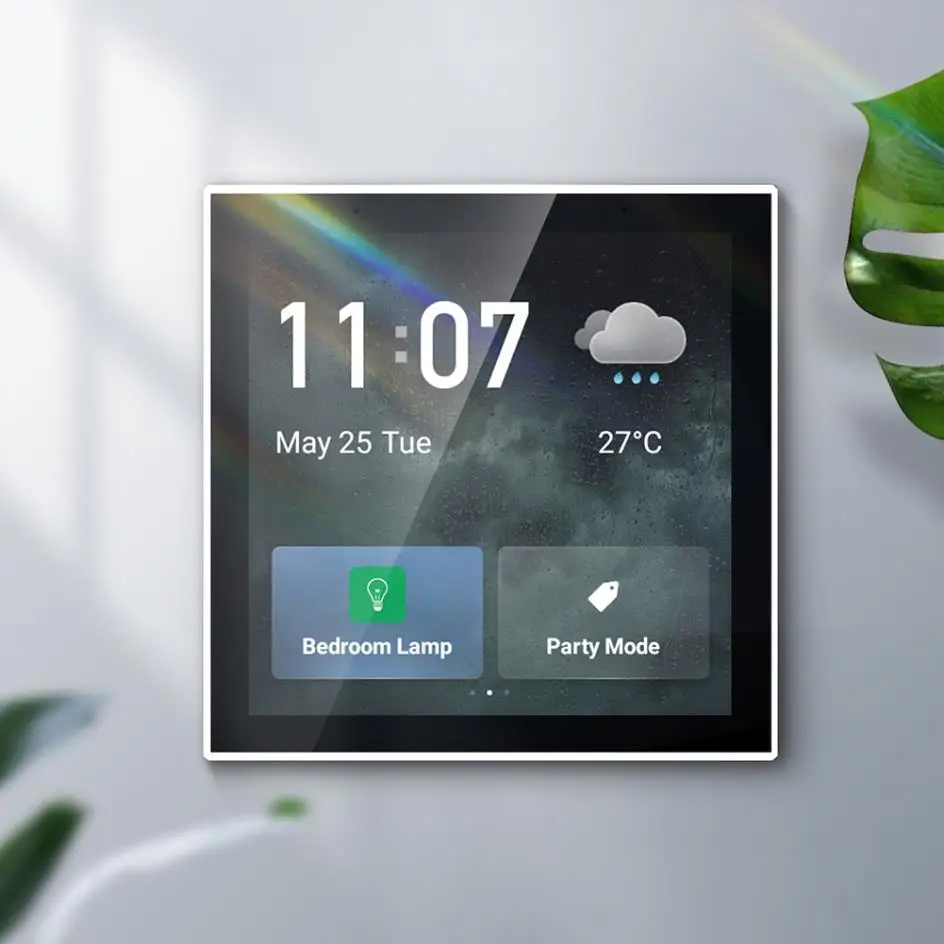

This 86 in-wall multifunctional central control panel adopts the Android platform and mainly provides gateway functions, interactive functions and context panel functions. It is installed in the 86 cassette in the user’s home. The user can manage the sub-devices at home through interactive methods such as screen andvoice.

Electricals:

Light Switches, Breaker, circ

uit breaker ,Wireless switch , Socket , Scene switch , lighting driver ,

Lightings:

Light strip , Symphony Light Strip , Magic String Lights , Star Projector Lamp,

Microwave radar sensor light, Lighting Controller , String lights , Ceiling light , Fan light , Panel light, Downlight , Spotlight

Sensors:

smoke alarm ywbj, PM25 , PIR Human Motion Sensor, Door Contact Sensor, Water Leak Detector

Temp & Humidity Sensorwsdcg Gas Alarm SOS Multifunctional Alarm

door lock air detector Switch Air Conditioner, Drying Rack, Thermostat

Others:

Fresh air blower ,Humidifier , Aroma Diffuser,Scene switch , Water heater , Air purifier, door lock , Gating ;

2; It can integrate with wifi, bluetooth, zigbee products all-in-one control panel;

FEATURES

1. Zigbee Gateway

The control panel includes Zigbee gateway, which is supported to connect 128+ sub-devices (laboratory data)

Support remote OTA upgrade, you can search and add sub-devices; on the smart control panel without using a mobile phone;

Supports cross-protocol and cross-gateway local linkage;

support LAN control;

2. Device Control

Powered by Tuya enpowers more than 500 000+ devices SKUs;

Synchronize family room information, easy to devices view and partition control based on the room management setting;

Recreate the unique interactive on the smart control panel for each device category supported by the smart control panel to realize the refined control of the devices

3. Scene Control

The smart control panel have preset scenes. After the end user customizes the scene, it can be executed by click and voice control

| leave home | home | wake up | sleep | Movie | party |

The central control will automatically obtain the manual scene on the APP, and when the scene is updated on the APP, it will be synchronized to the central control immediately;

The Control Panel will automatically synchronize the “Tap-to-run” scenes on the APP;

4.Search Devices:

Support manual search to search devices; support search to add Zigbee devices; Scroll down the home page search devices to turn on the search device Function;

Note:

The devices added by the smart control panel will be automatically synchronized to the Smart Life APP;

Devices added by the Smart Life APP, including Wi-Fi, will also be automatically synchronized to the smart control panel;

5. Easy to Install

Installation of the Live wire and Null wire, intelligent upgrade can be completed by using standard plastic cassettes.

6. Simple Configuration

Scan the code to log in, app interaction, once configuration is complete and you can leave. The devices added to the App will also be synchronized to the smart control panel immediately;

Specifications:

Product Name:Smart Multi-functional Control Panel

Input Power:100-240VAC,50/60Hz

Working Temperature:0-+40

Working Humidity:5%-90%RH(non-condensing)

Wireless Protocol:WiFi,Bluetooth,ZigBee

Dimensions:86*86*36mm

Package List:

Smart Control Panel*1

User Manual*1

Mounting Screw*2
