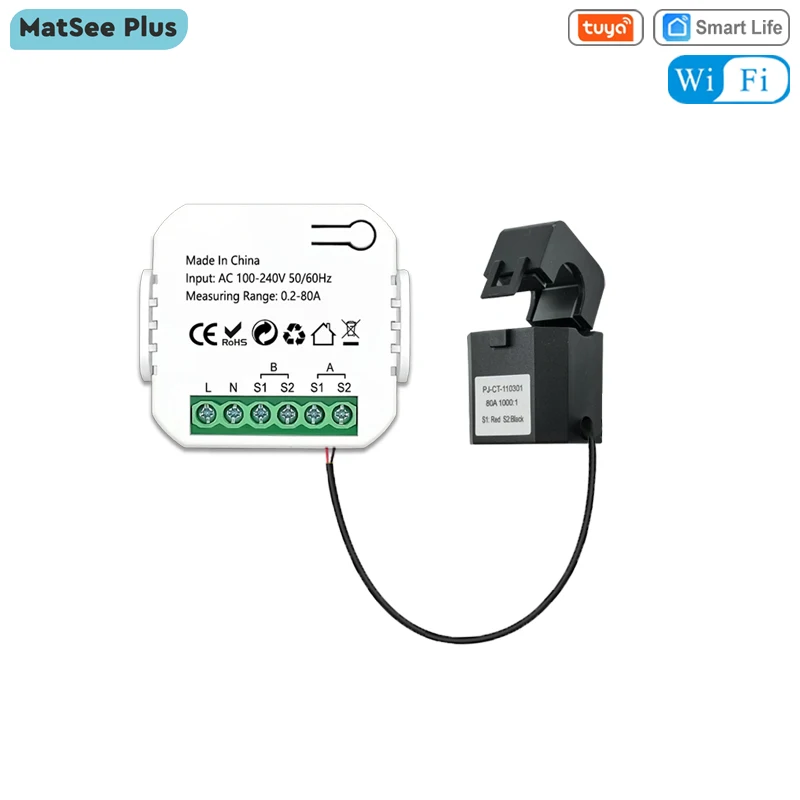

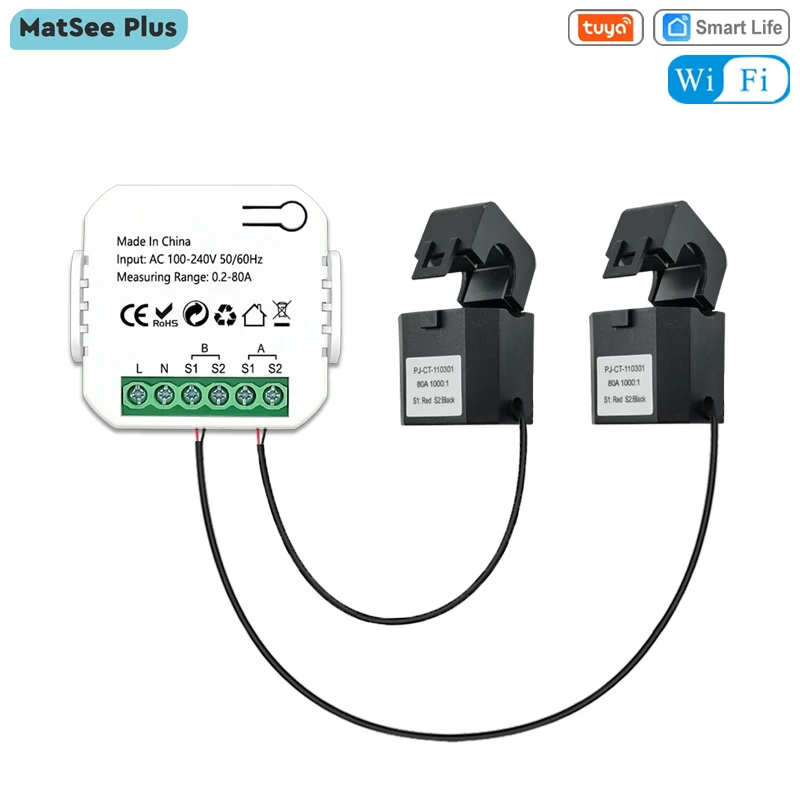

Tuya WIFI Smart Dual Channel Energy Meter with 2 Clamp 80A – Available to Calibrate
1 Channel and 2 Channel is Available
Please note if you buy 1 Channel meter, please just only connect one channel wire of A or B, and leave the other one unconnected anything.
2 Channels For Reverse and Forward direction
1 Channel or 2 Channels are available to choose and you can read from the APP for each Channel
– Real-time total power of 2 channels of reverse and forward direction
– Power for Channel A and B Separately (W)
– Current (mA)
– Voltage (V),
– Power factor, and Frequency (Hz)
Electricity Statistics for each channel in Forward and Reverse direction.
Hourly Elec. (KWh),
Daily Elec. (KWh),
Monthly Elec. (KWh),
Yearly Elec. (KWh),
Technical data:
Rated Voltage: 100-240V AC 50/60Hz

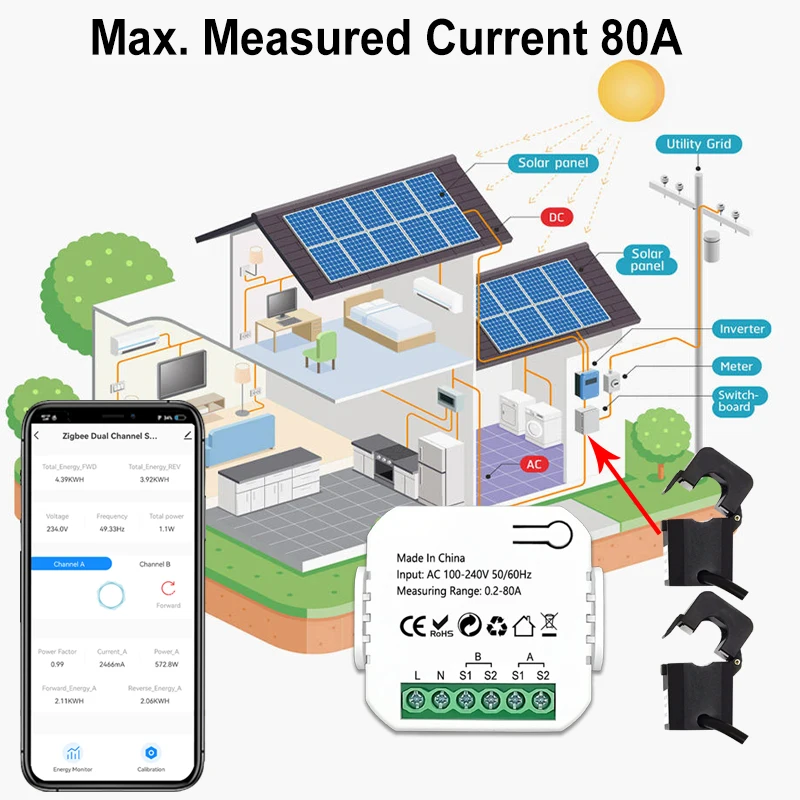

Measurable Current Range: 0.2A-80A
WiFi Frequency: 2.4GHZ (Not Support 5Ghz)
Ambient Temperature Range:-10°C ~ 55°C

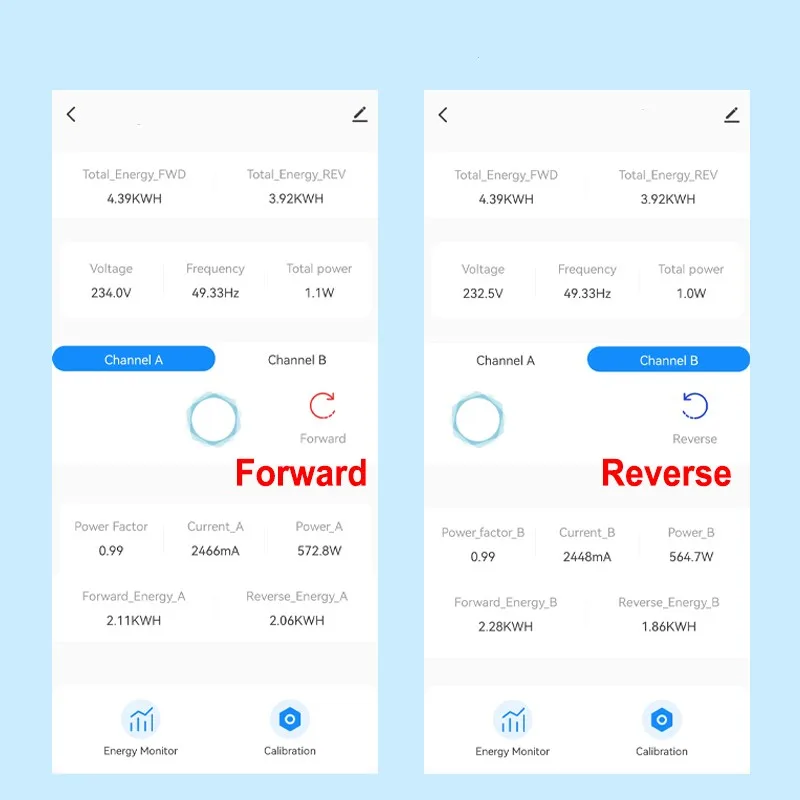

The APP can display Channel A and B Real-time power, current, voltage, power factor, and frequency for Forward and Reverse direction clearly

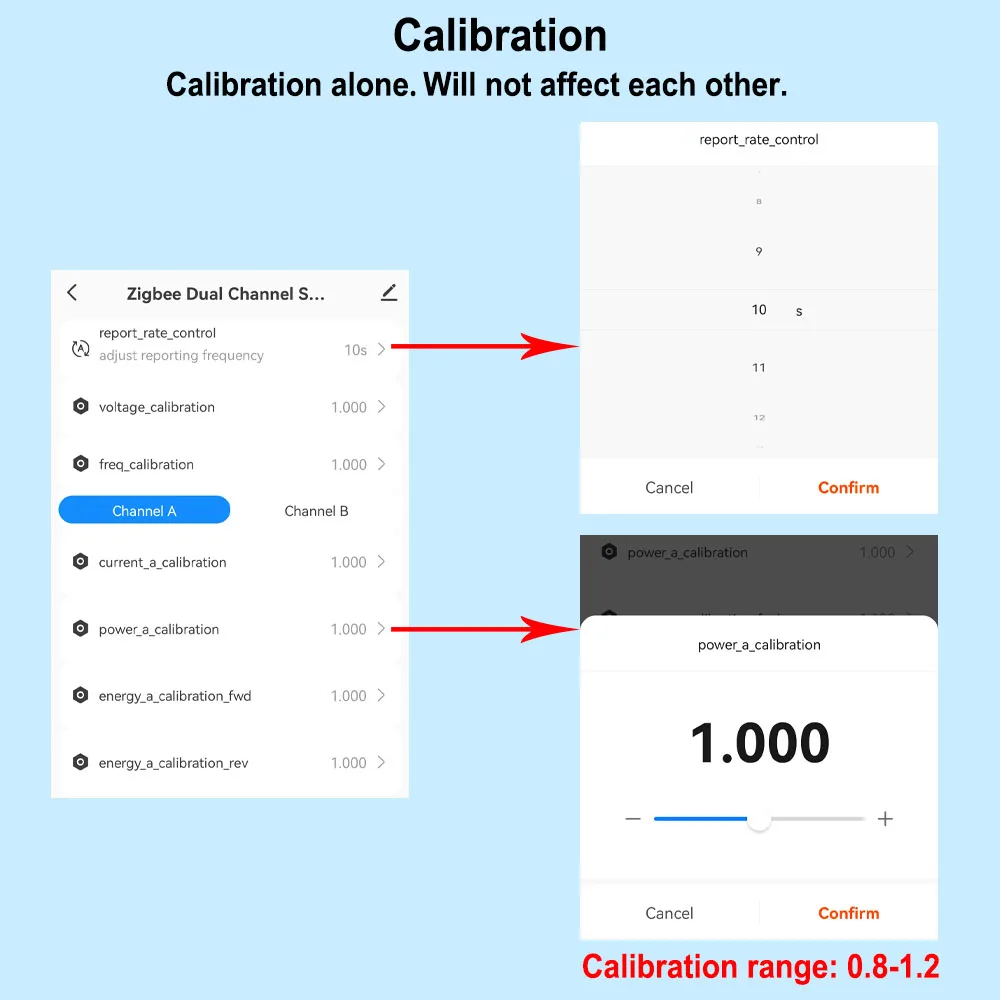

The meter allows to do calibration
Allow Calibration
The device can do calibration by adjusting the percentage

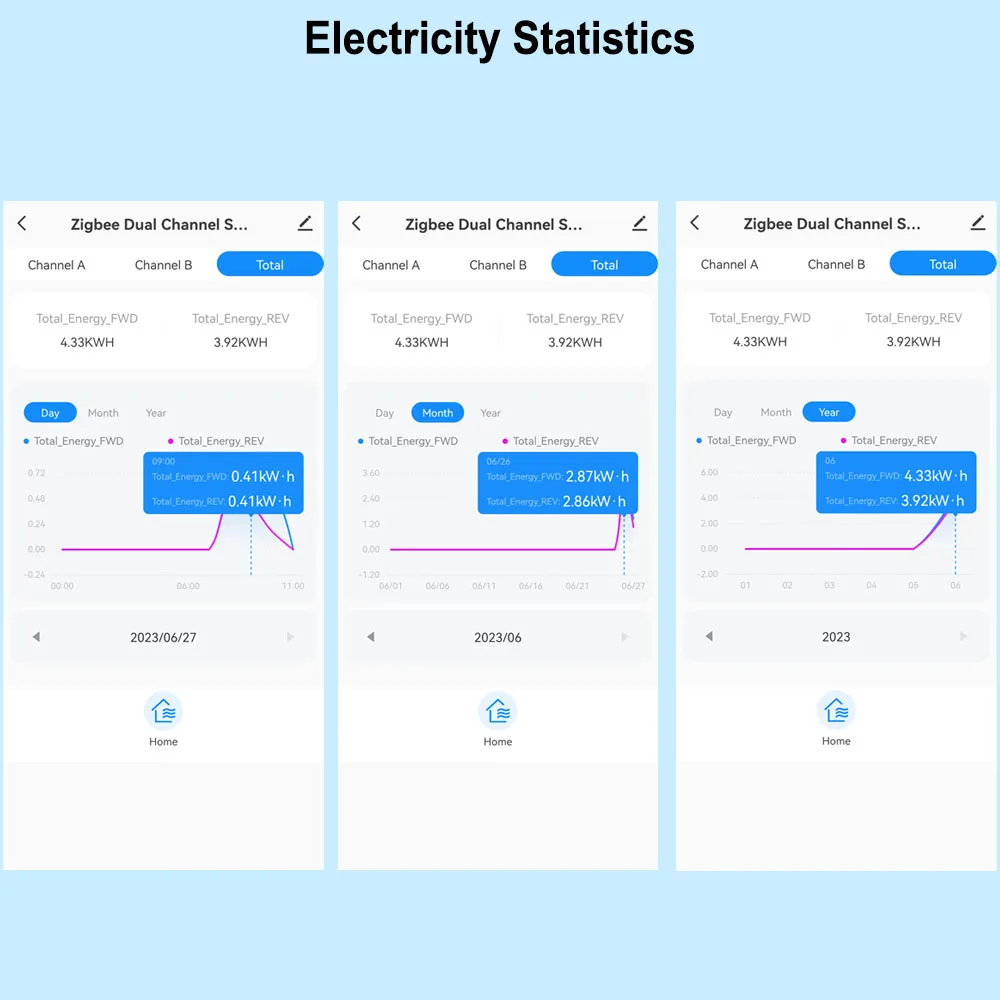

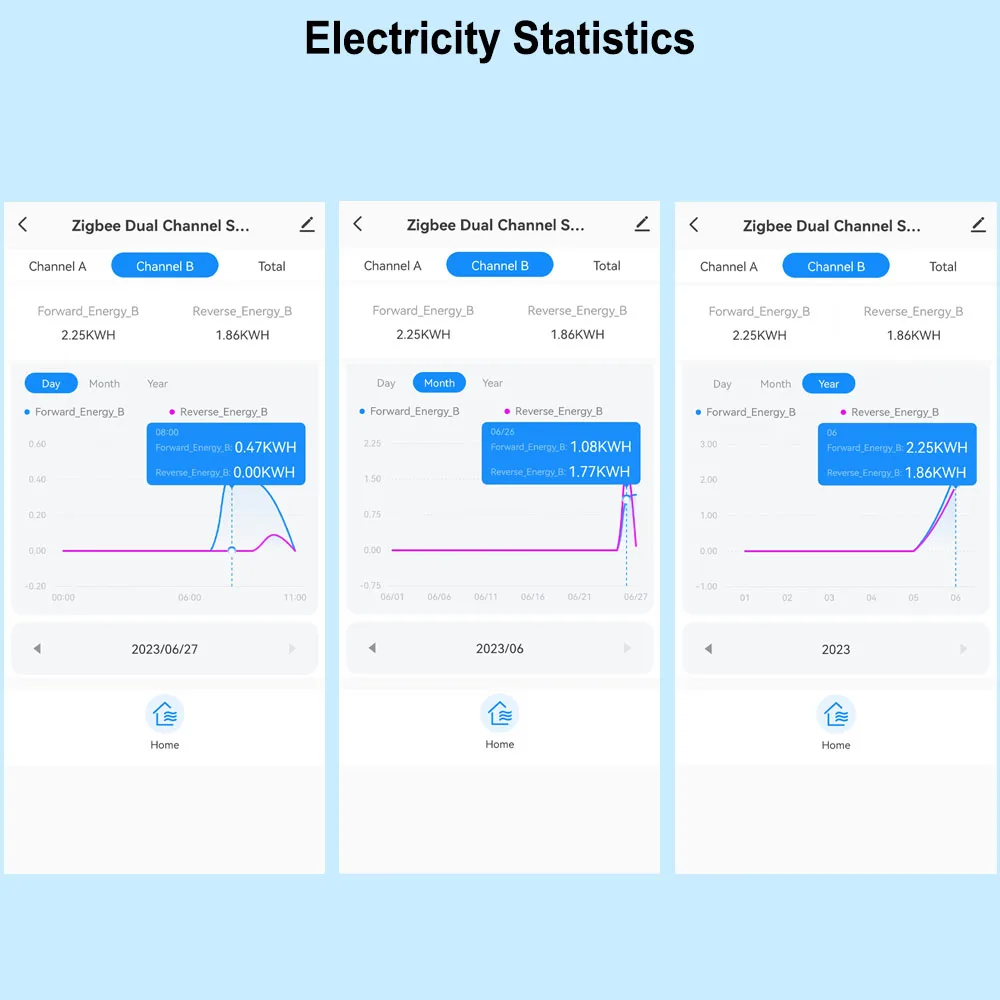

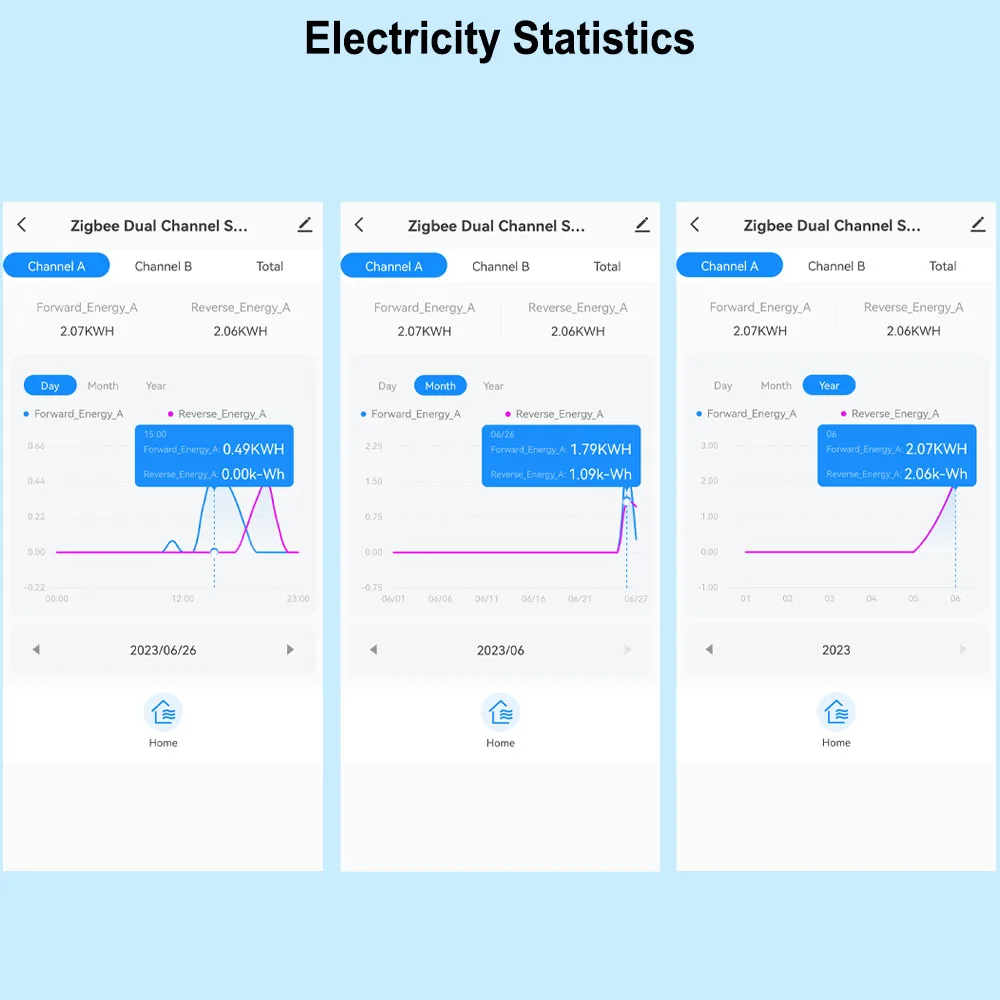

Electricity Statistic Channel A, B Separately and Total daily monthly, yearly Reverse and Forward Direction

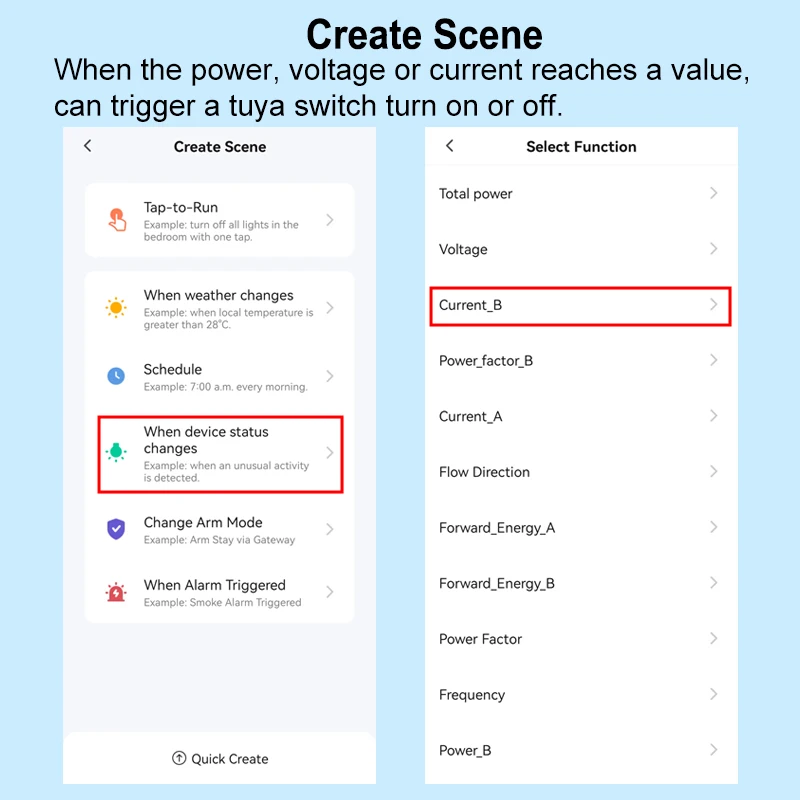

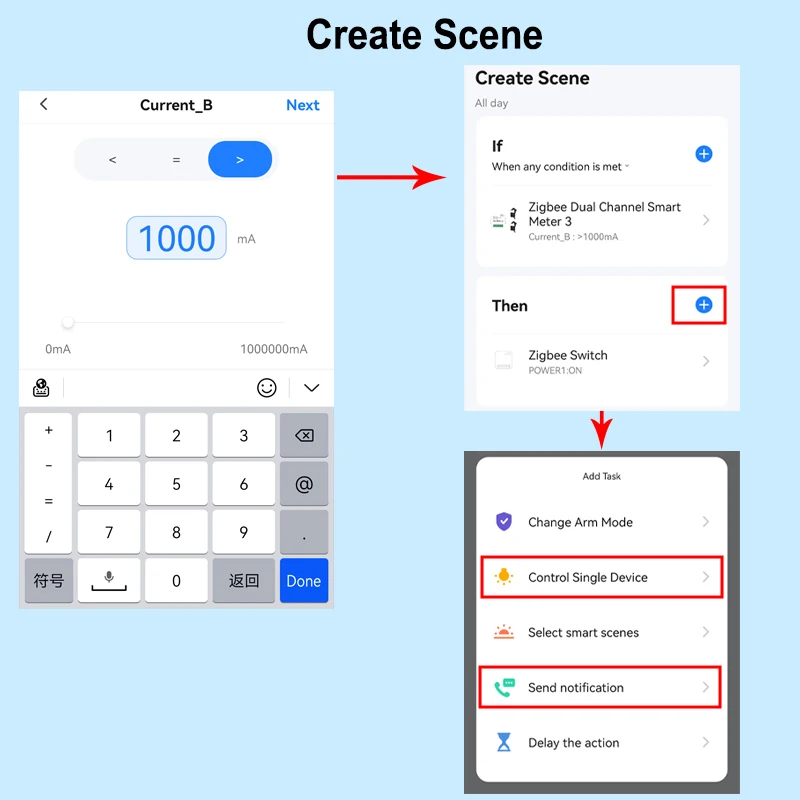

Automation, It allows to make a Scene for this device working with other Tuya devices
Set Automation for the Measured Device,
For example, If Power or Current Is over the Value, then other Tuya device starts to work.

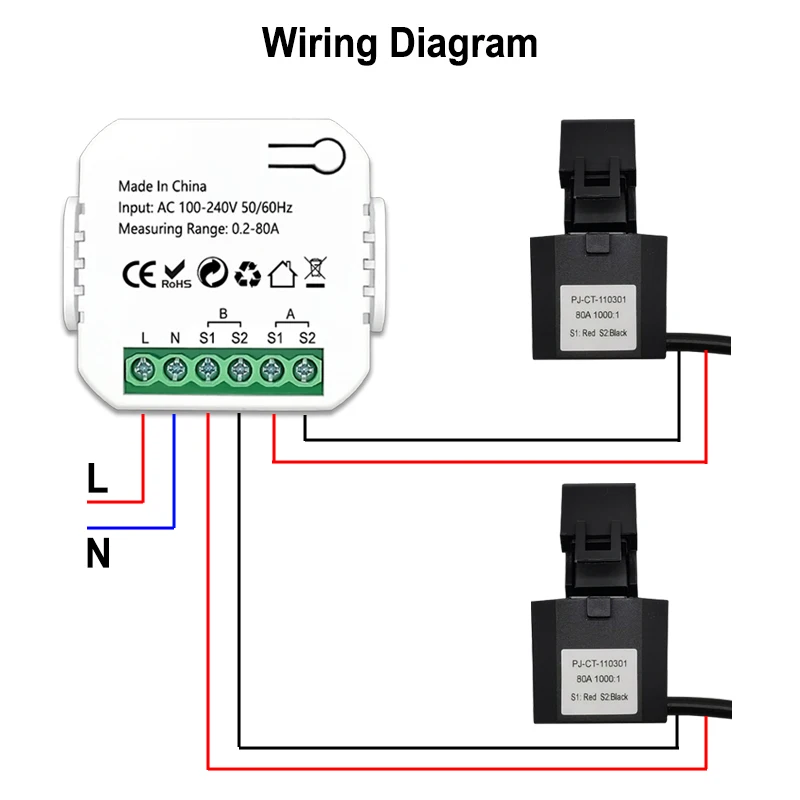

Wiring Diagram

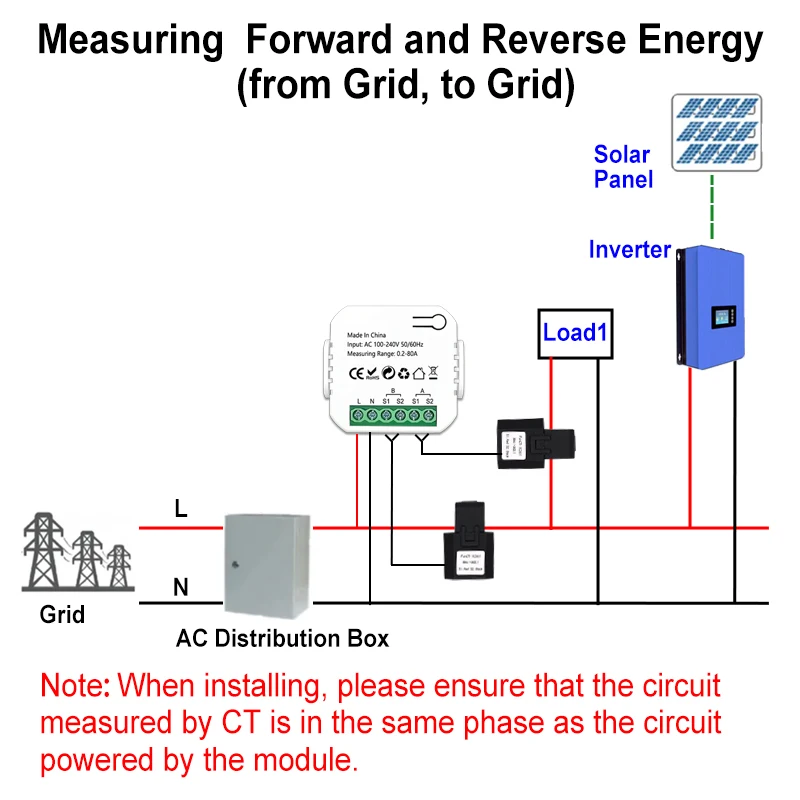

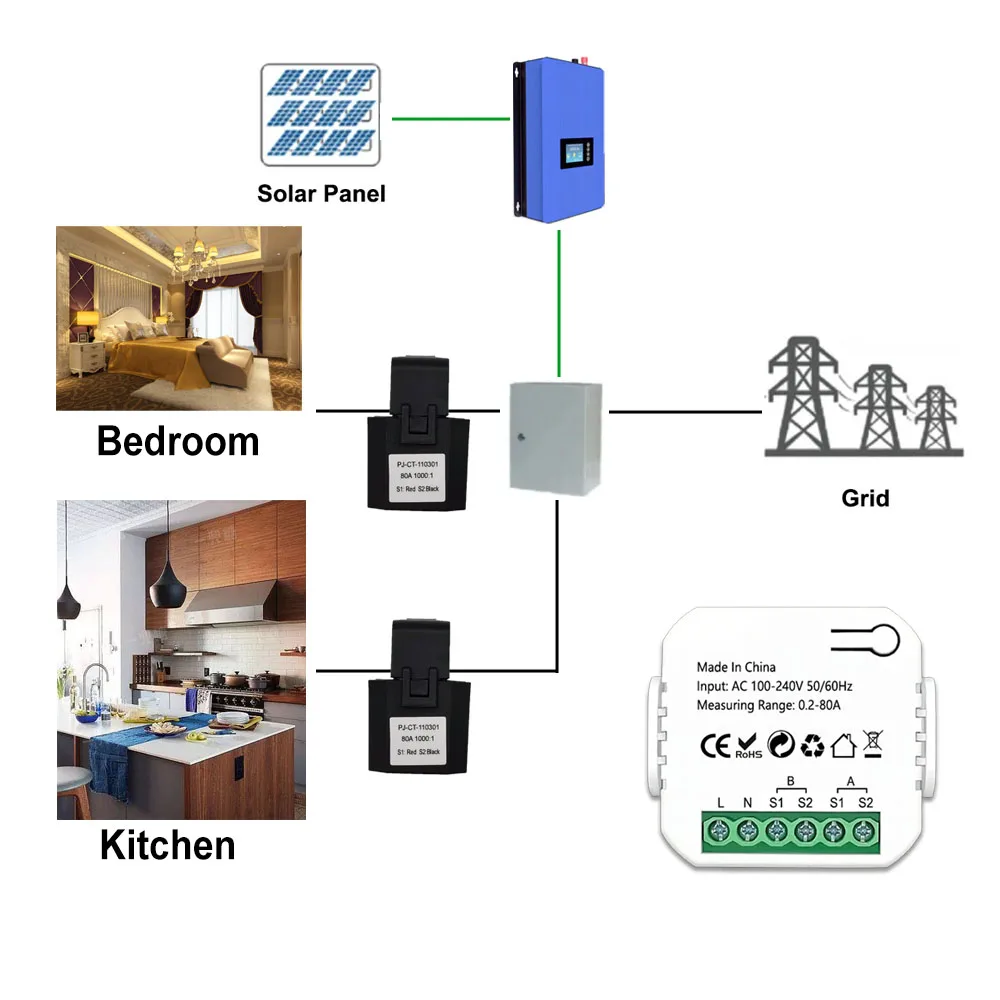

1. To measure the power 'from Grid' and 'To Grid'
Please note to make sure the circuit measured is in the same phase as the circuit power to the module.
2. Measure the power consumption.
Please note to make sure the circuit measured is in the same phase as the circuit power to the module.

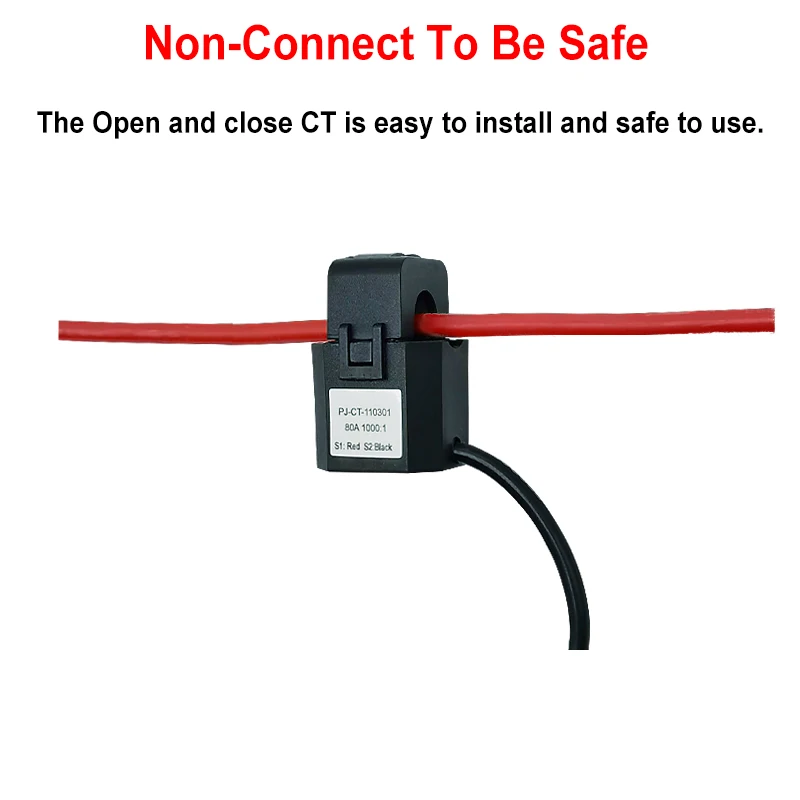

Non-connect to Be Safe, Easy, and Safe to Install
No need to change the wires, just put the wire into the clamp, and then it can measure, very easily.

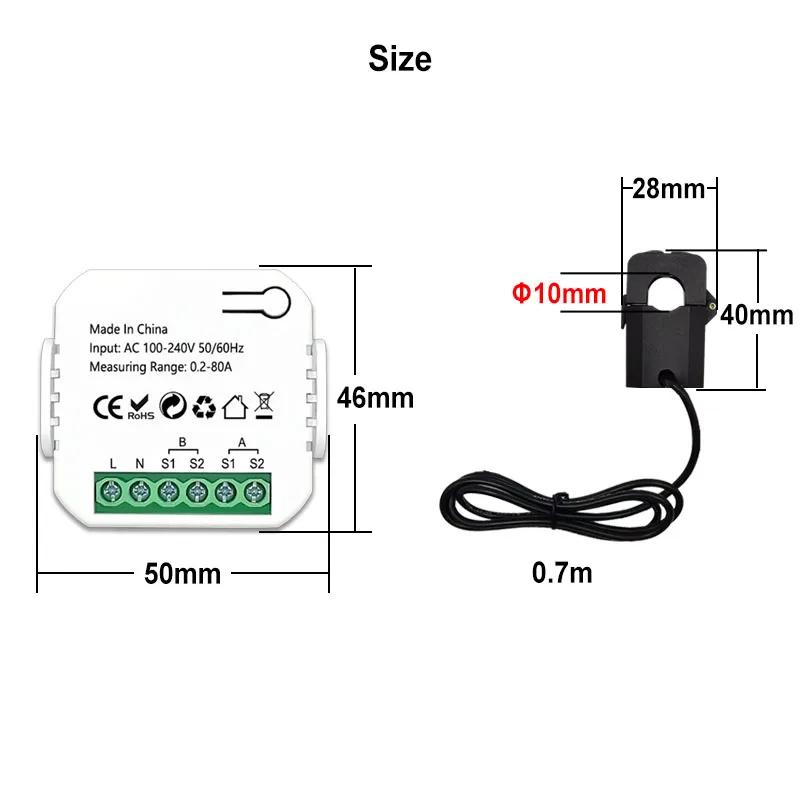

Small Size Module, Easy to Install
