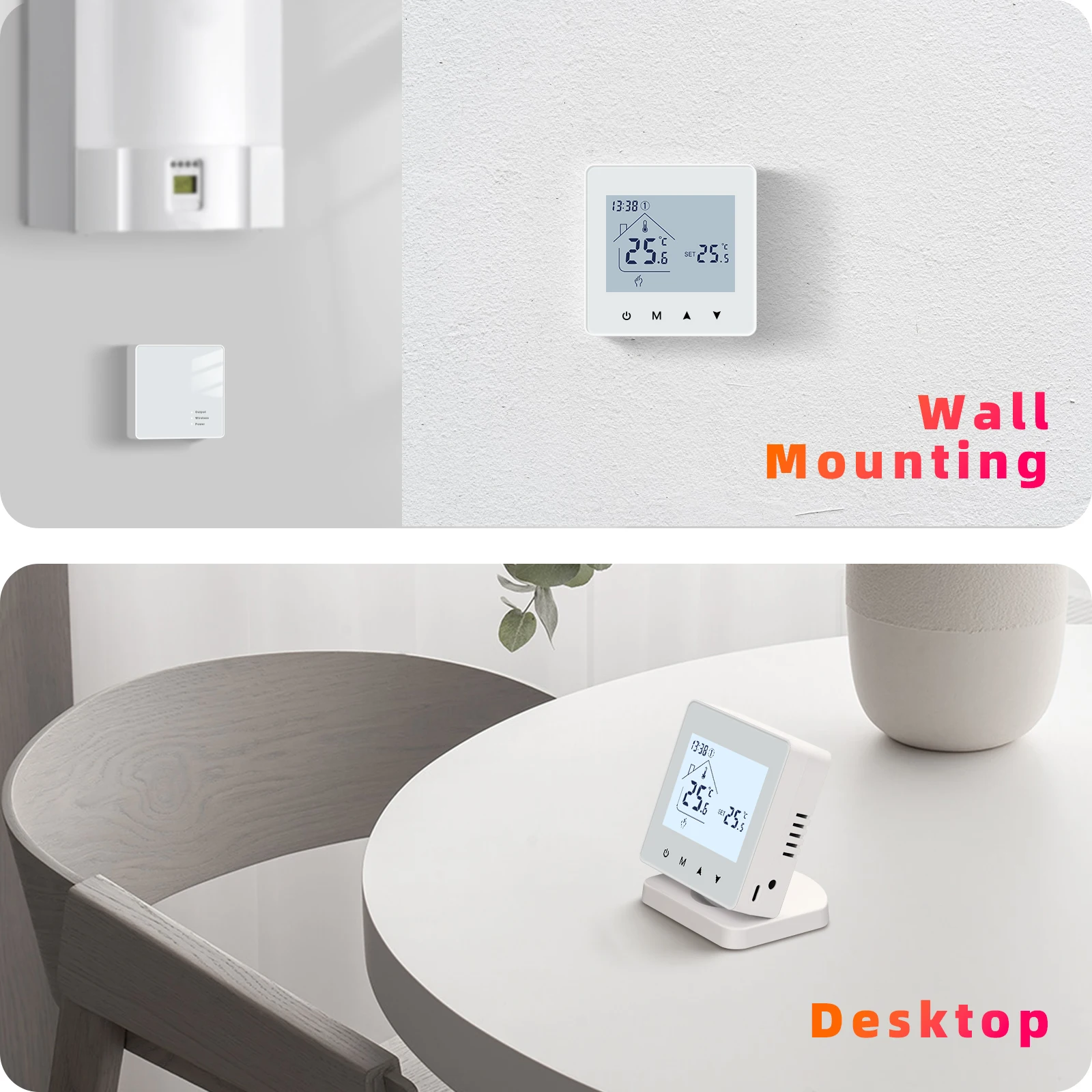

Smart Home wireless room digital thermostat wifi battery tuya thermostat programmable for Gas Boiler Floor Heating RF Temperature Controller wall-mounted Google Home, Alexa, and Alice voice control.

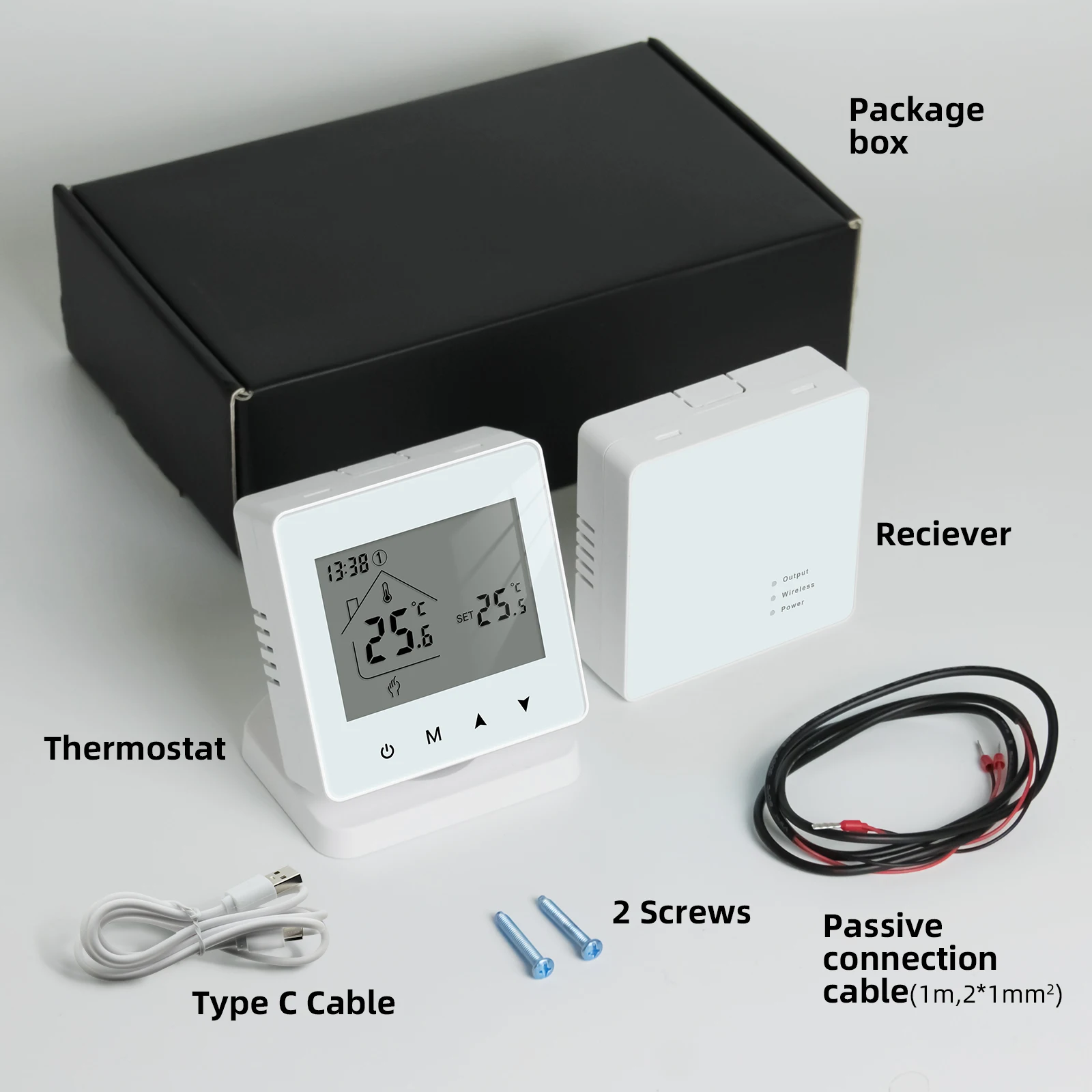

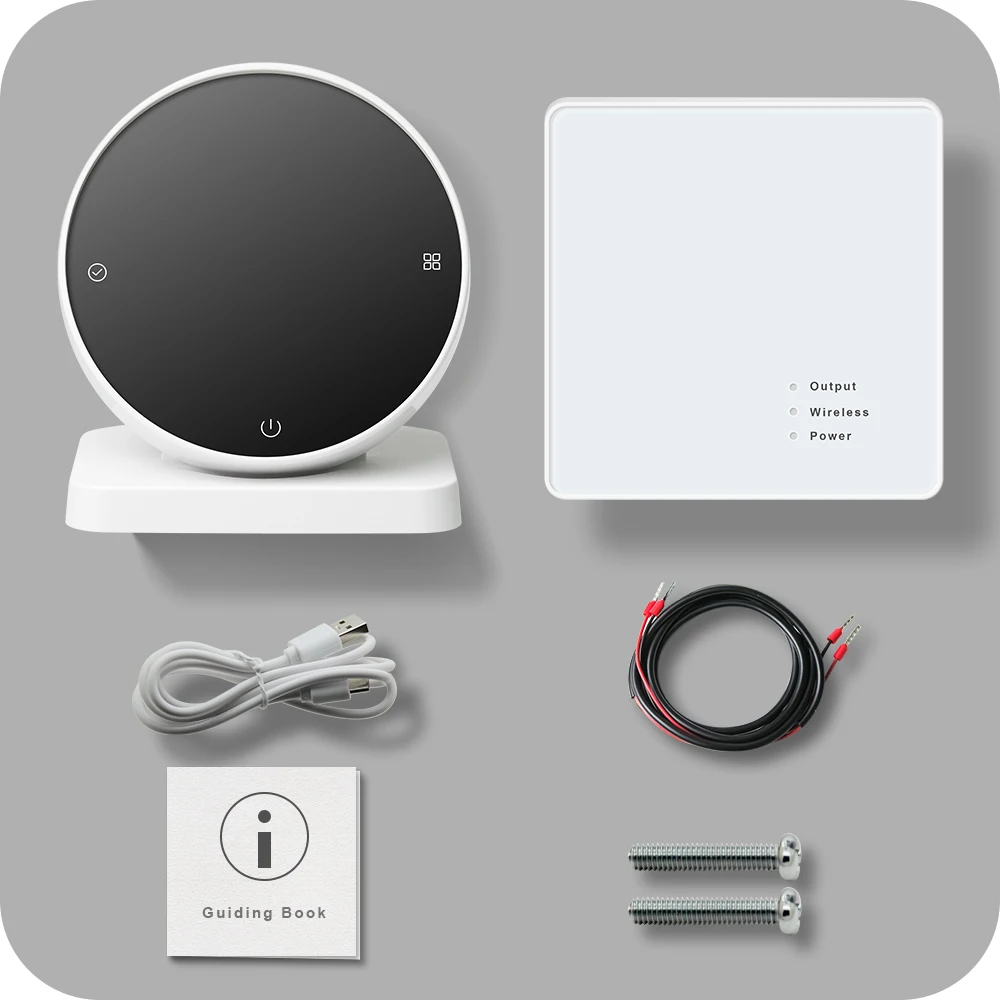

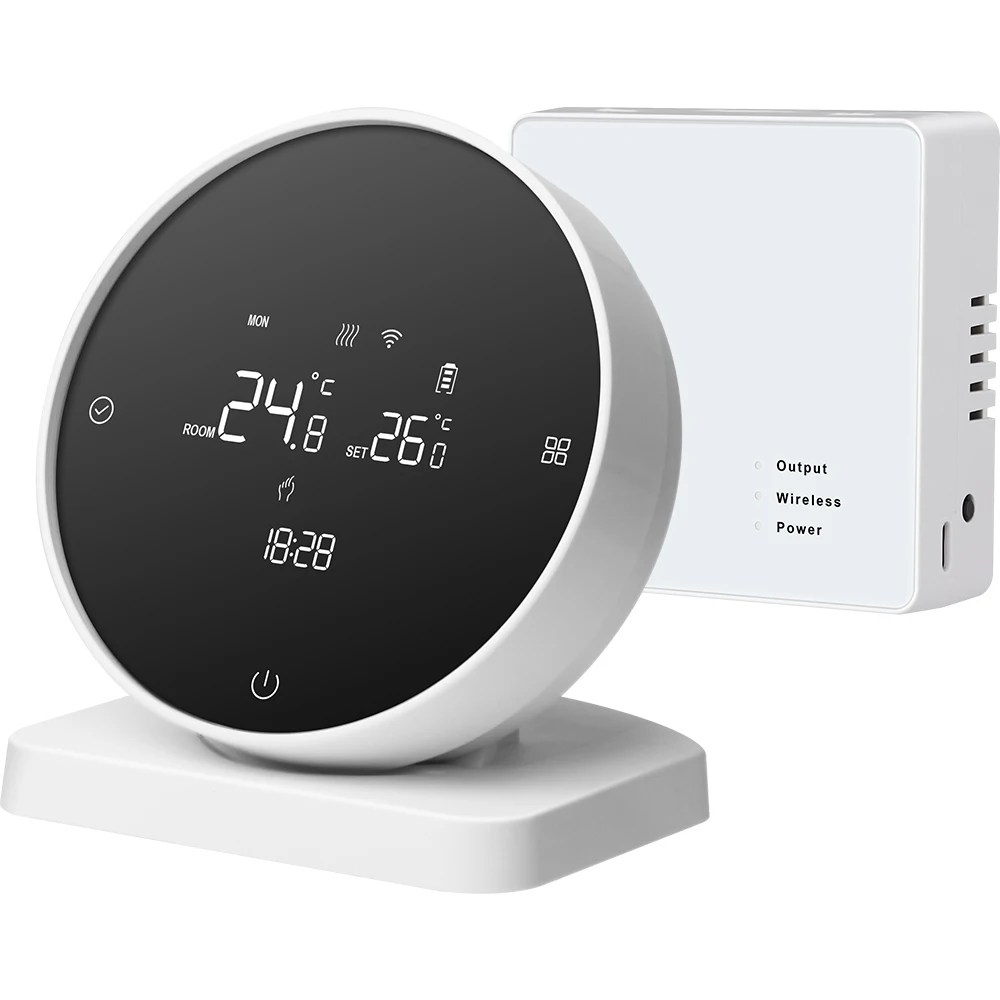

It is divided into two parts: receiver and controller.

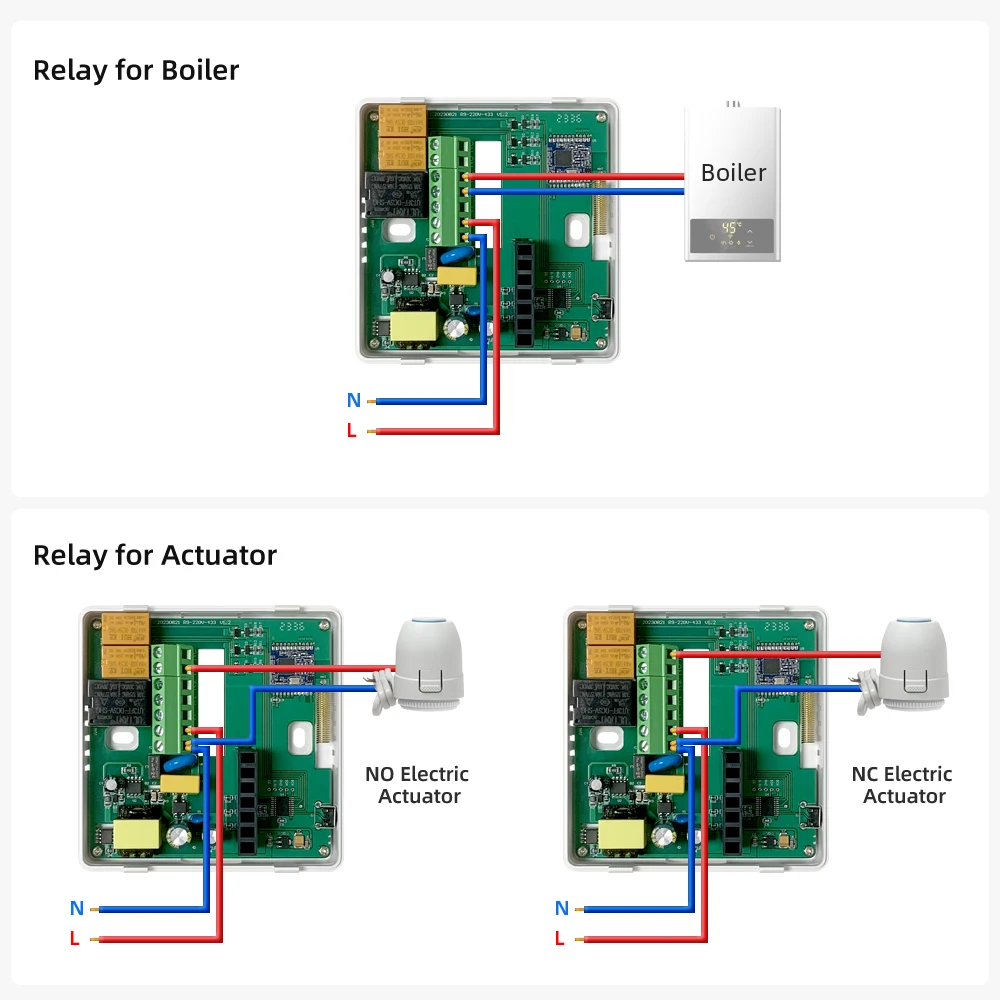

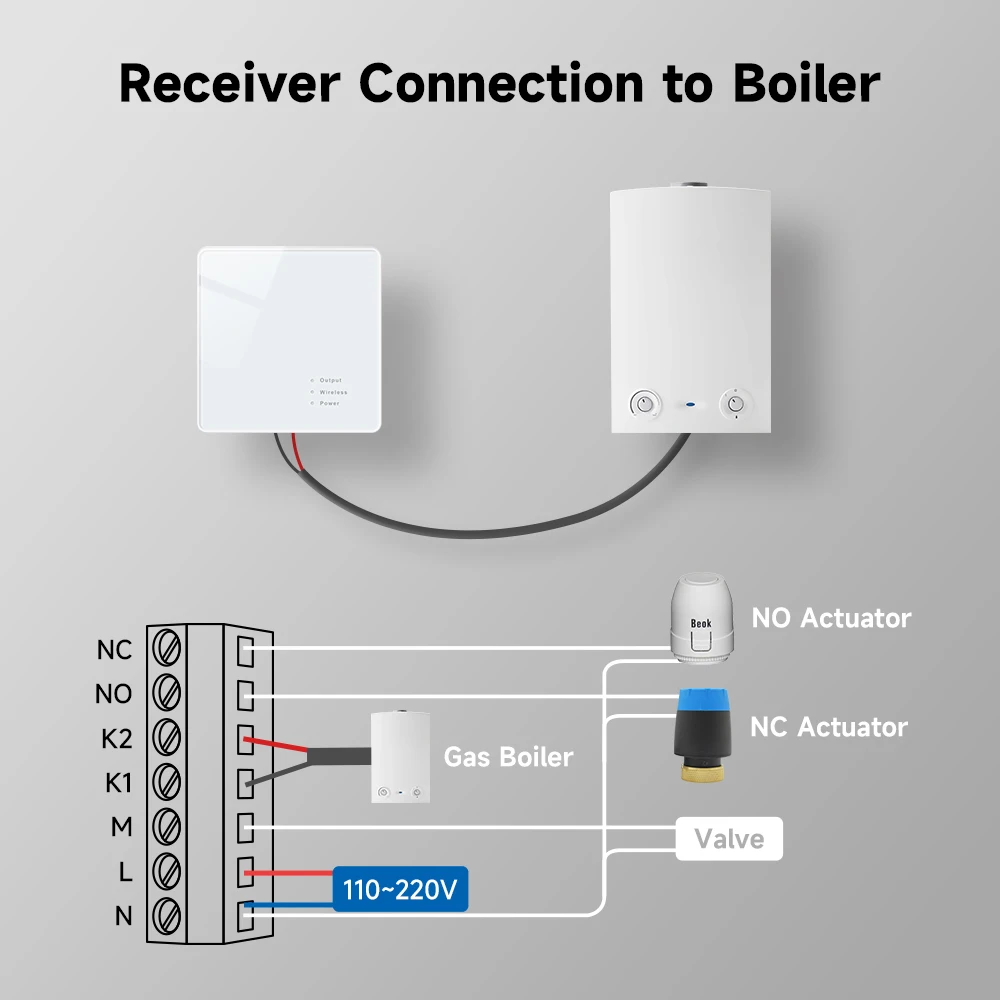

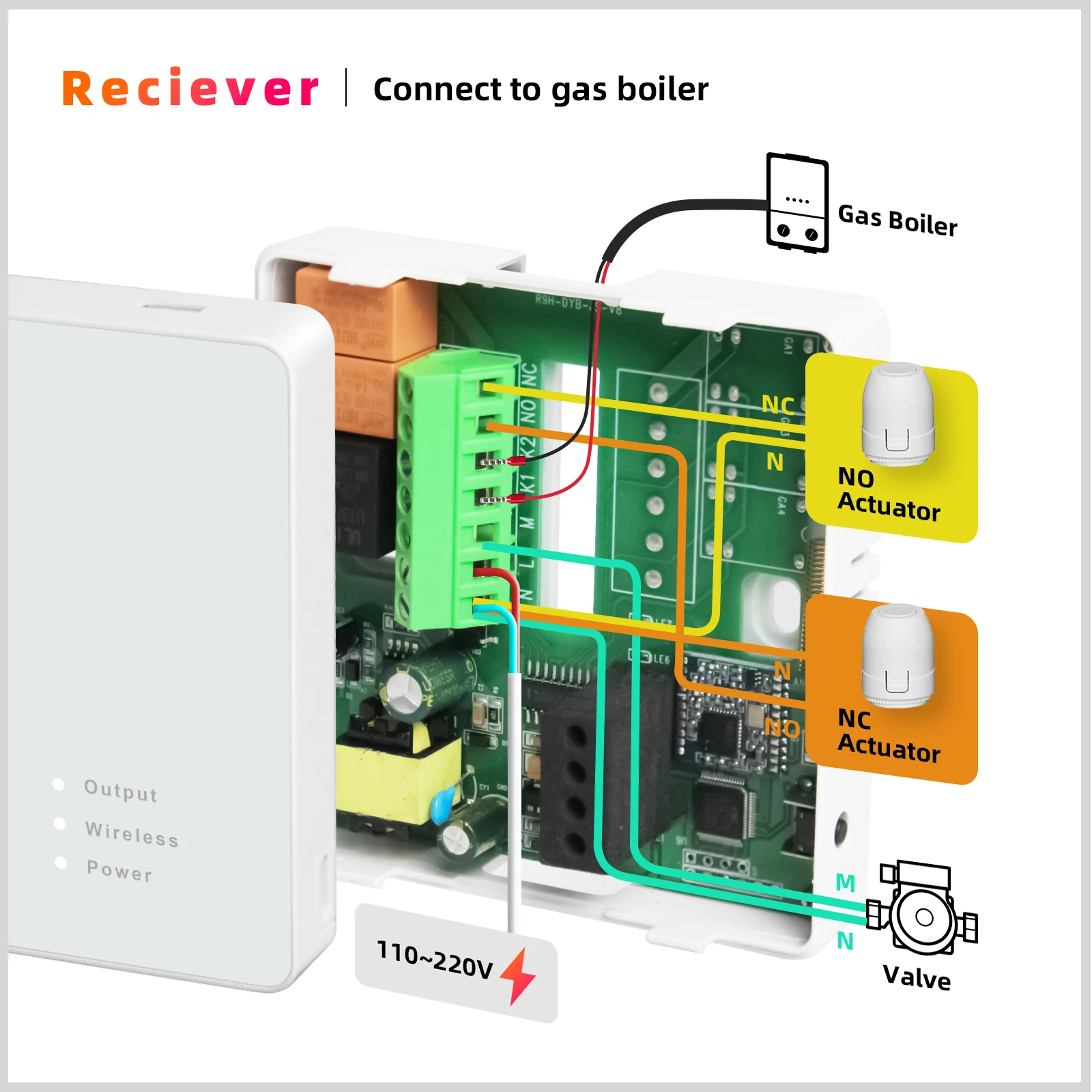

The receiver is connected to the boiler (dry contact) or NC/NO actuator or valve.

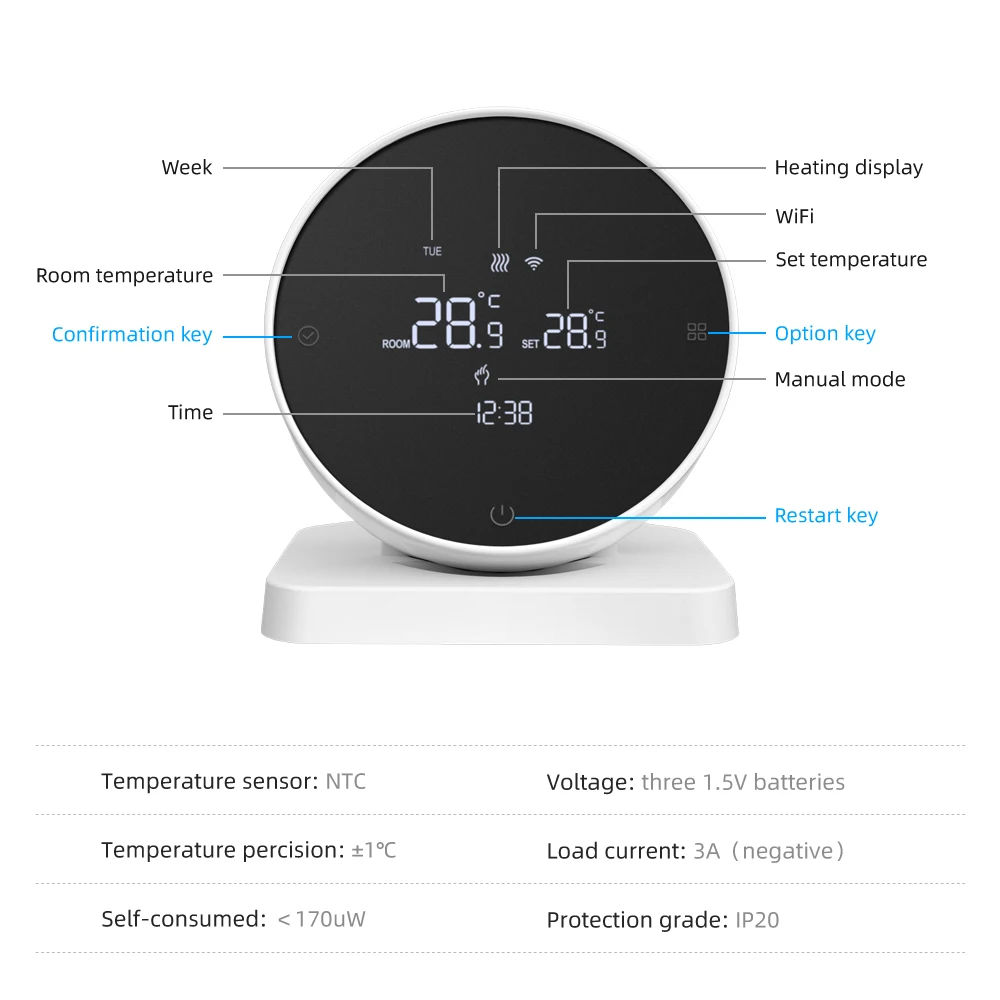

Technical Parameter:
1. Thermostat model: BOT-R6X/BOT-R7X wireless wifi thermostat
2. Temperature precision:±1℃
3. Self-consumed:<170uW

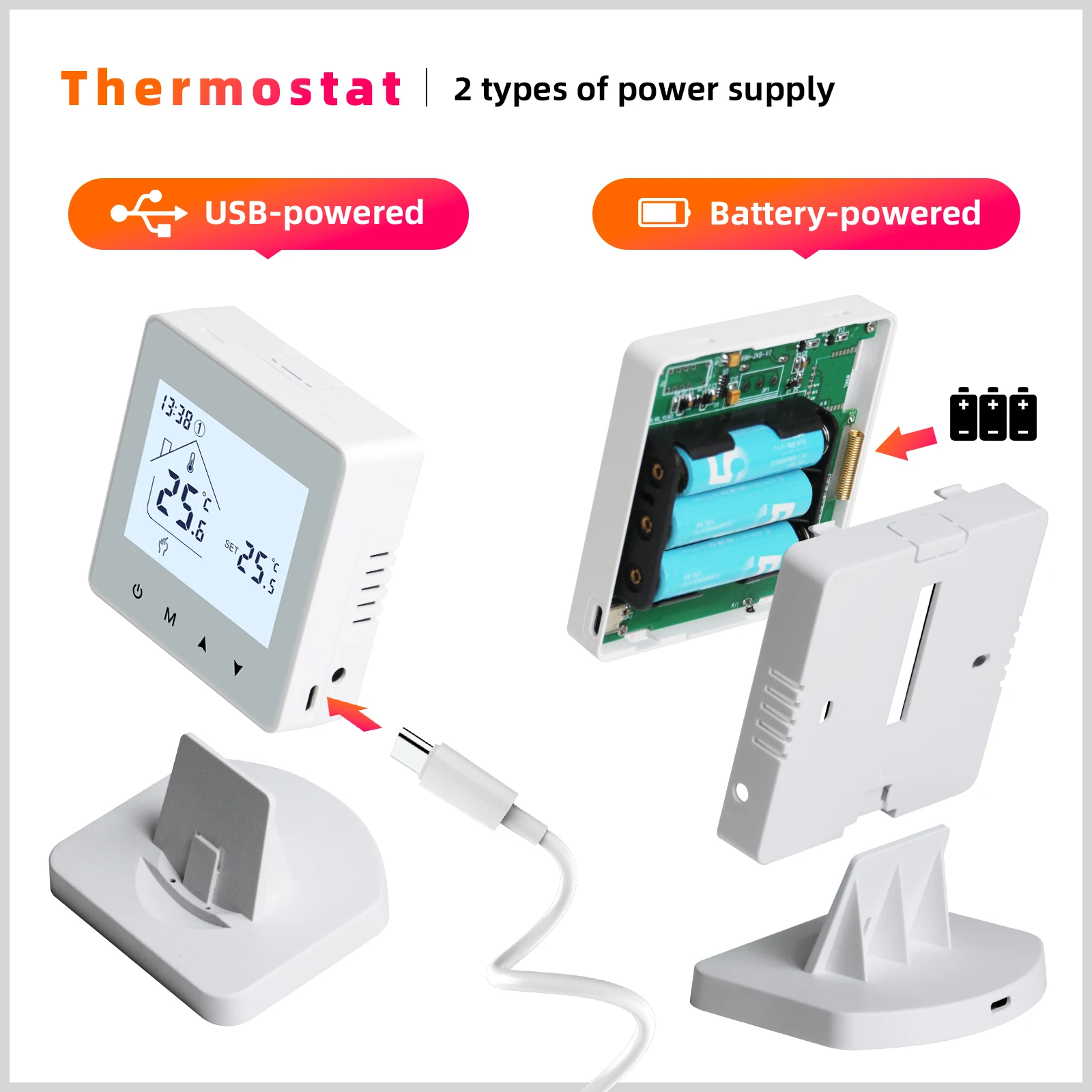

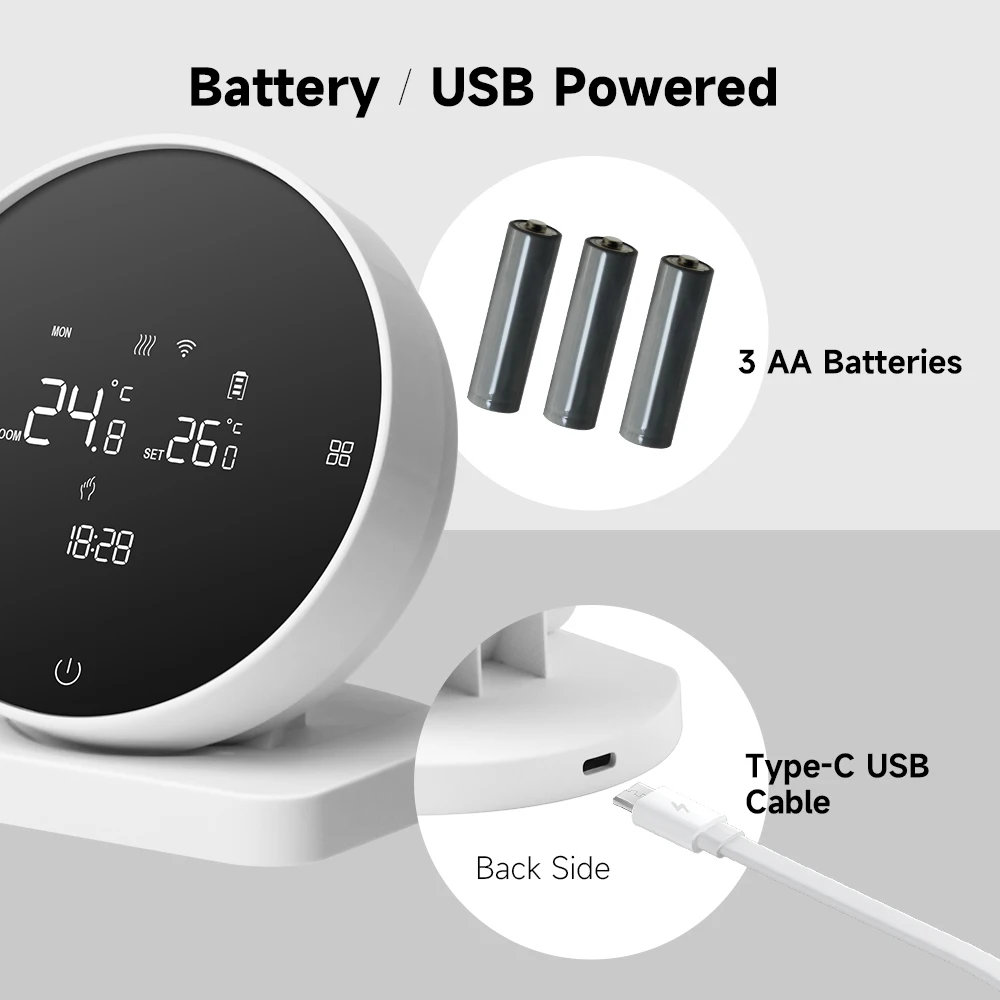

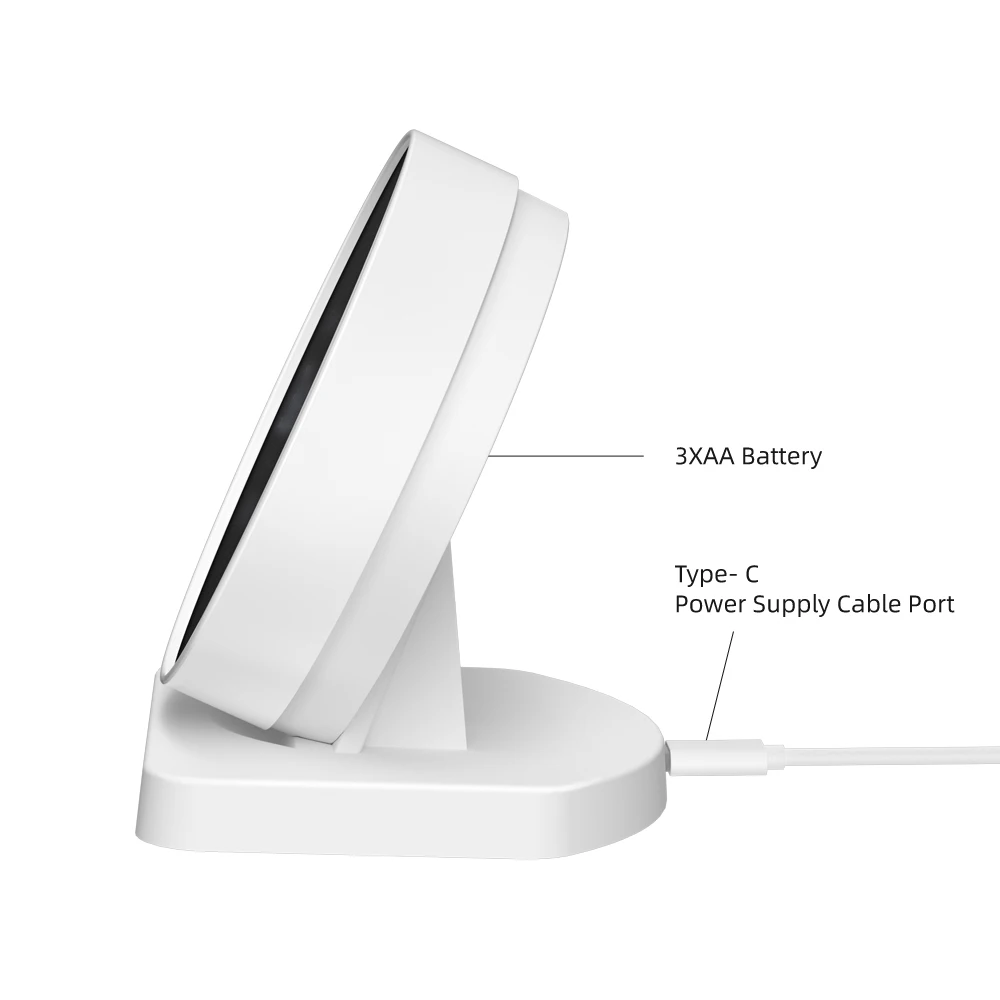

4. Voltage:three1.5V batteries
5.Load current:3A(negative)
6. Protection grade: IP20
7. Support Phone System: iOS System/Android System
8.APP:Tuya Smart/Smart Life APP
9. Voice Control: Amazon Alexa/Google Home/Yandex Alice
Features and Functions:

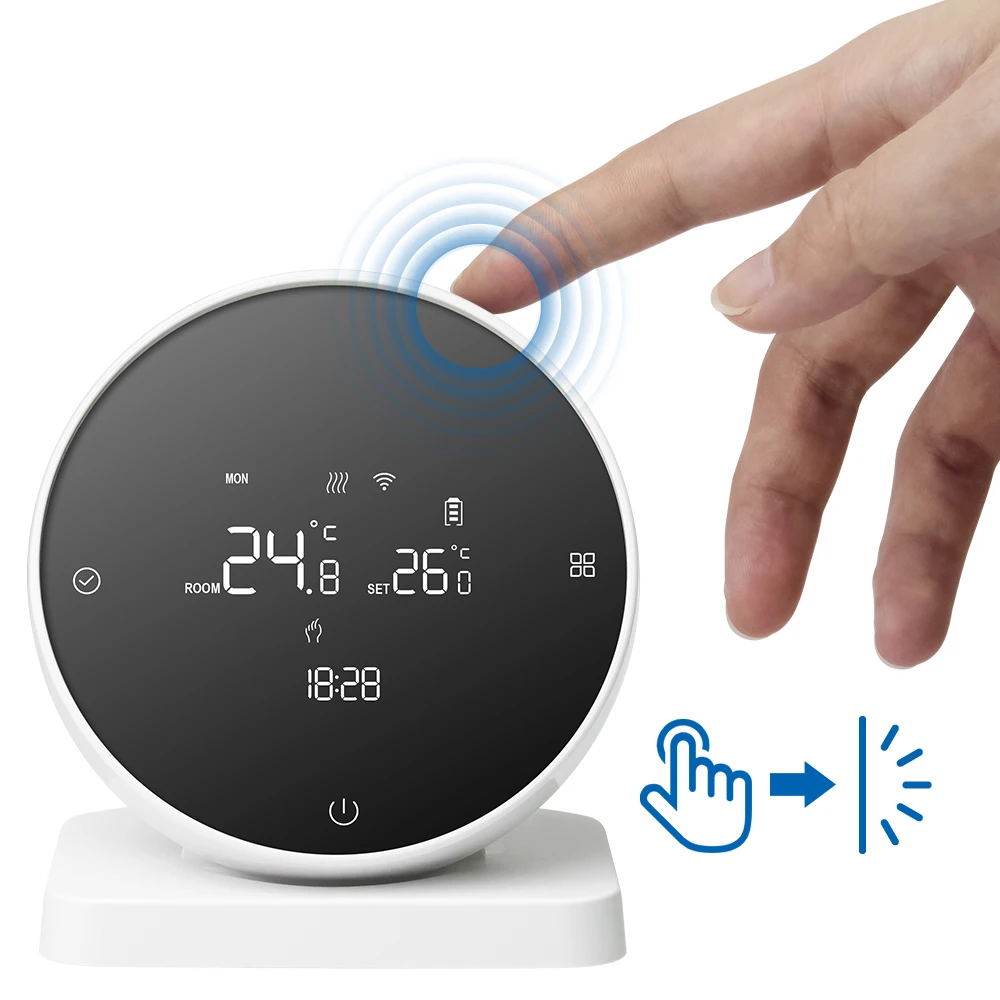

– LCD digital display, select temperature setting freely, easy to use.
– Wifi connection, can be controlled by Tuya/Smart Life app from anywhere.
– Smart voice control, works with Google Home Alexa, and Alice.
– Wireless control, no need to connect directly to the boiler.
– 5+2/6+1/7 days week program function for choice.
(For example, 5 in the 5 + 2 mode represents Monday to Friday, and you can set 6 time periods; 2 stands for Saturday and Sunday. You can set 2 time periods. Please note that it can't program daily.)
– Manual mode and auto mode selectable.
– With the child lock function, prevent children from accidentally touching.
– Anti-freeze function, prevent loss caused by low temperature.
– Power memory function, save the original settings after powering off.

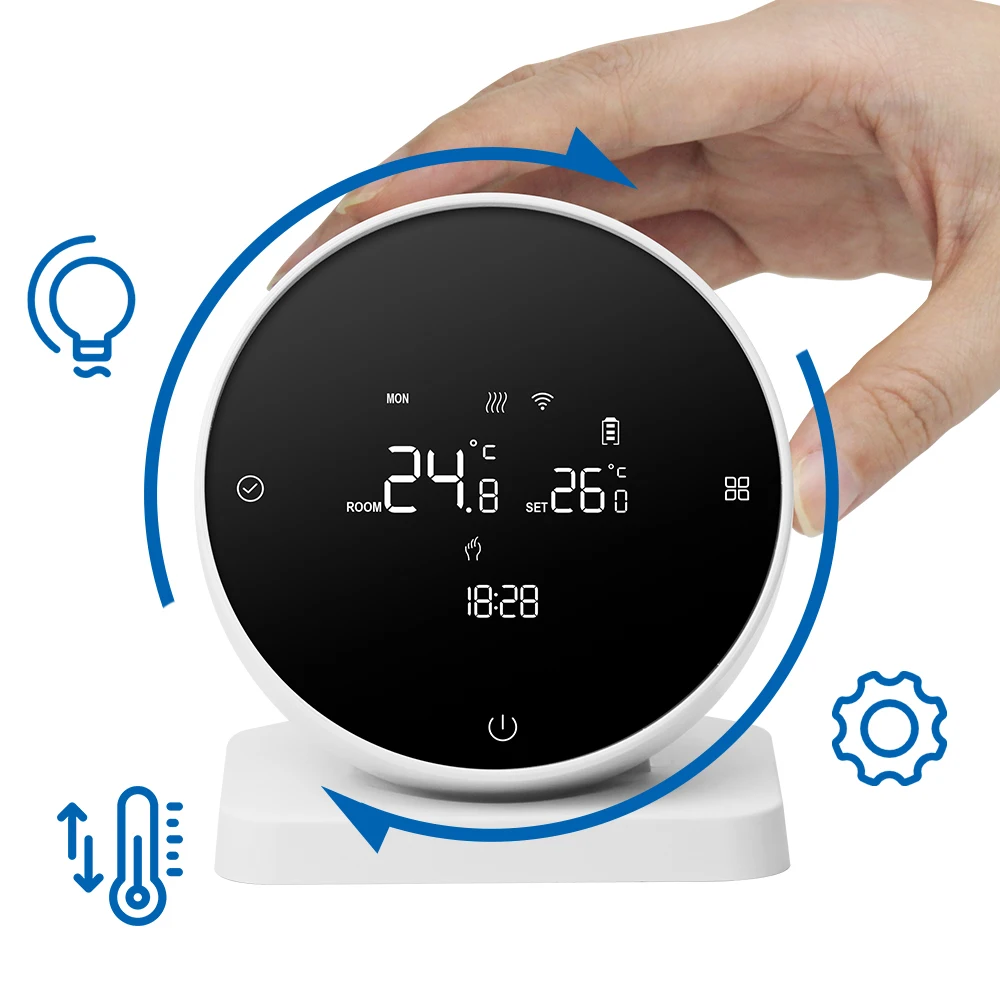

BOT-R7B-X-WIFI
BOT-R6X-WIFI
INSTALLATION INSTRUCTION

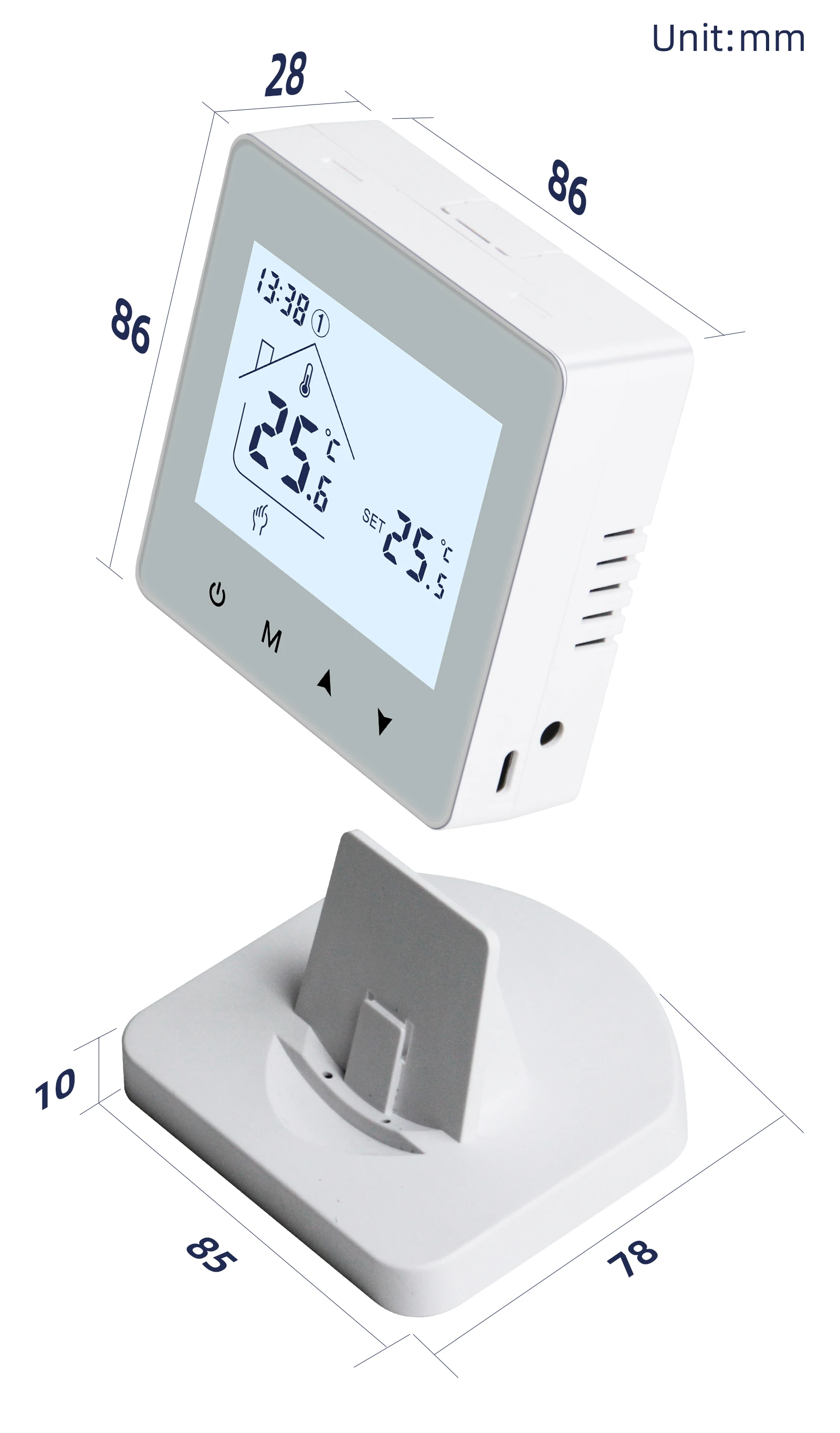

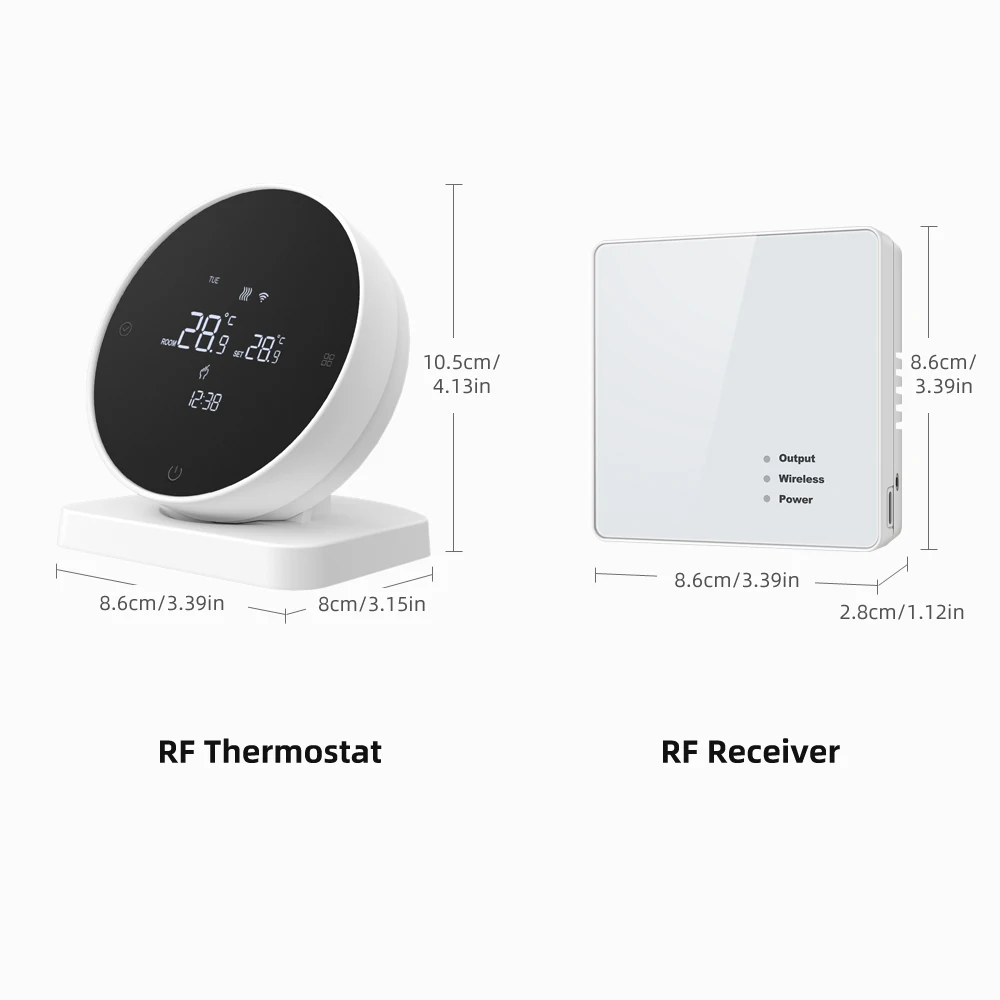

Product Parameter
Family Share Function
Create a smart home together with your family member

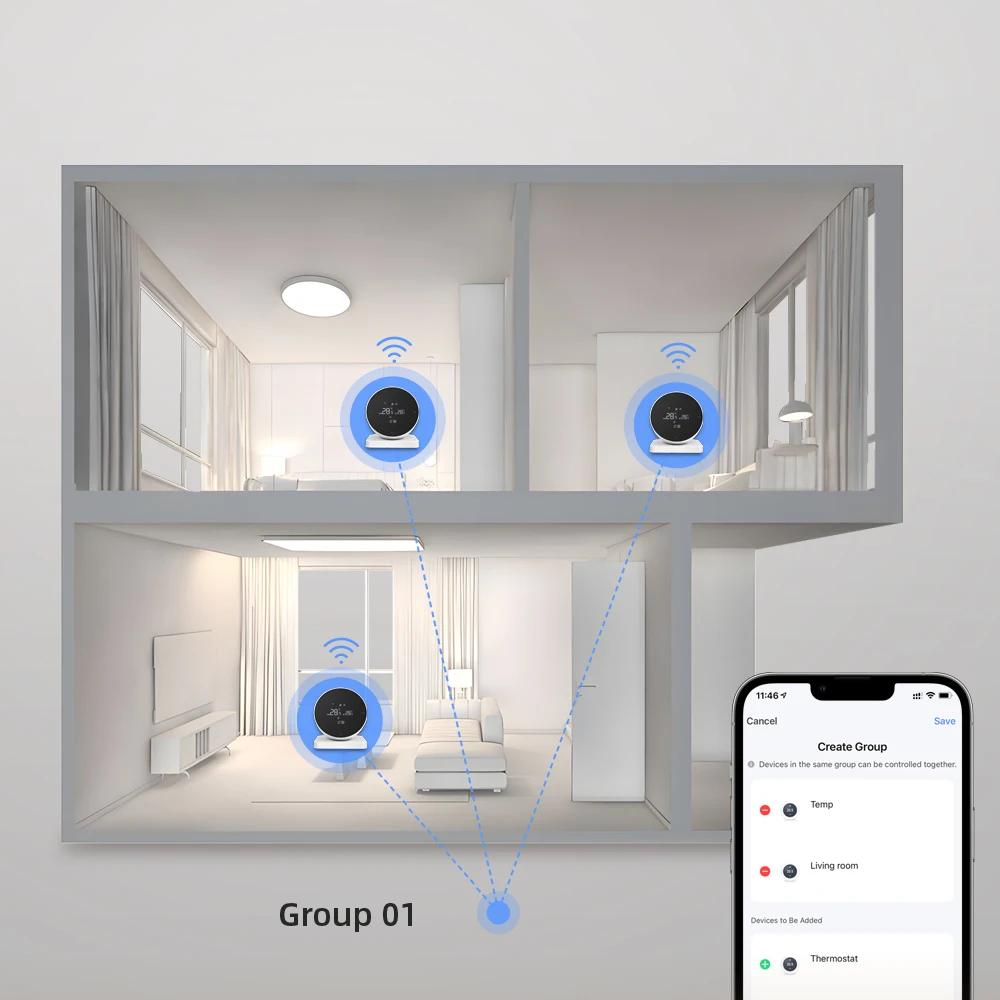

Group-Control Function
Realize group control in different rooms in special scene
Children Lock
Looking function is designed to prevent children from operating by mistake

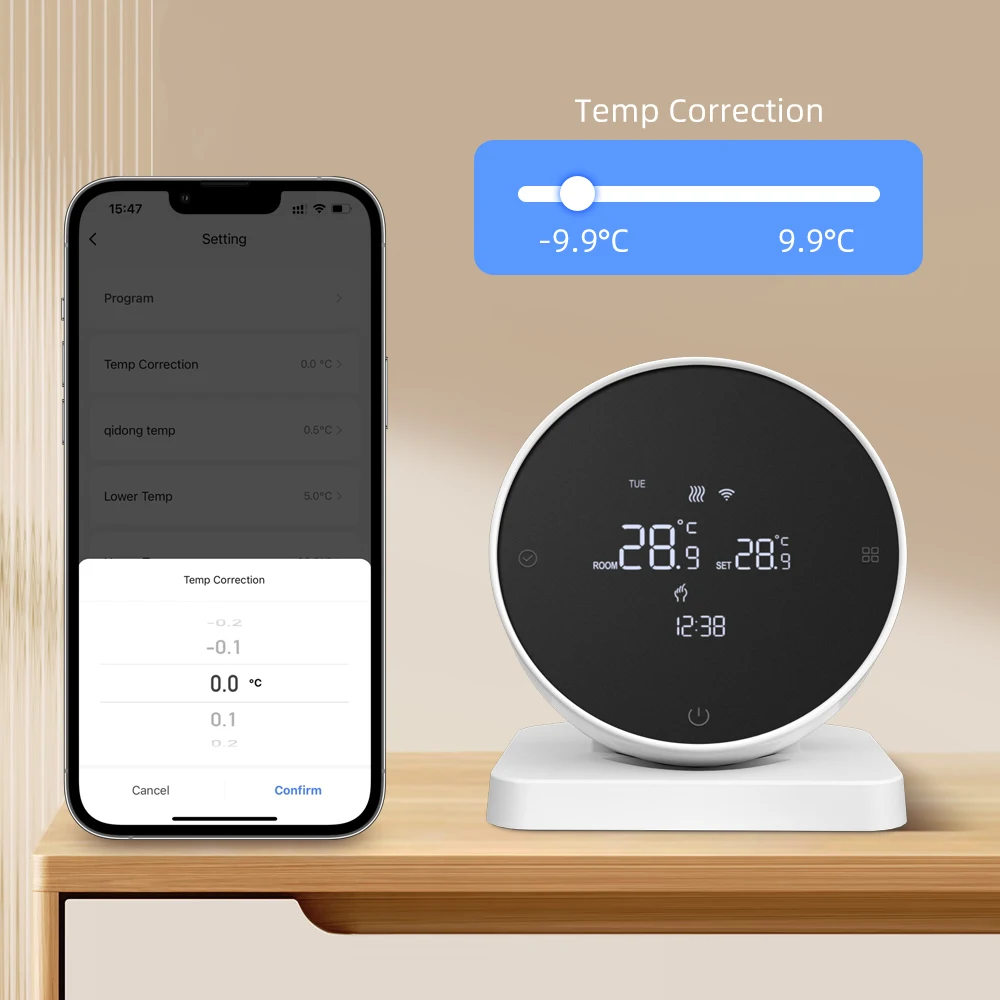

Temperature Calibration
Display temperature range difference, adjust temperature calibration (-9.9°C to 9.9°C)

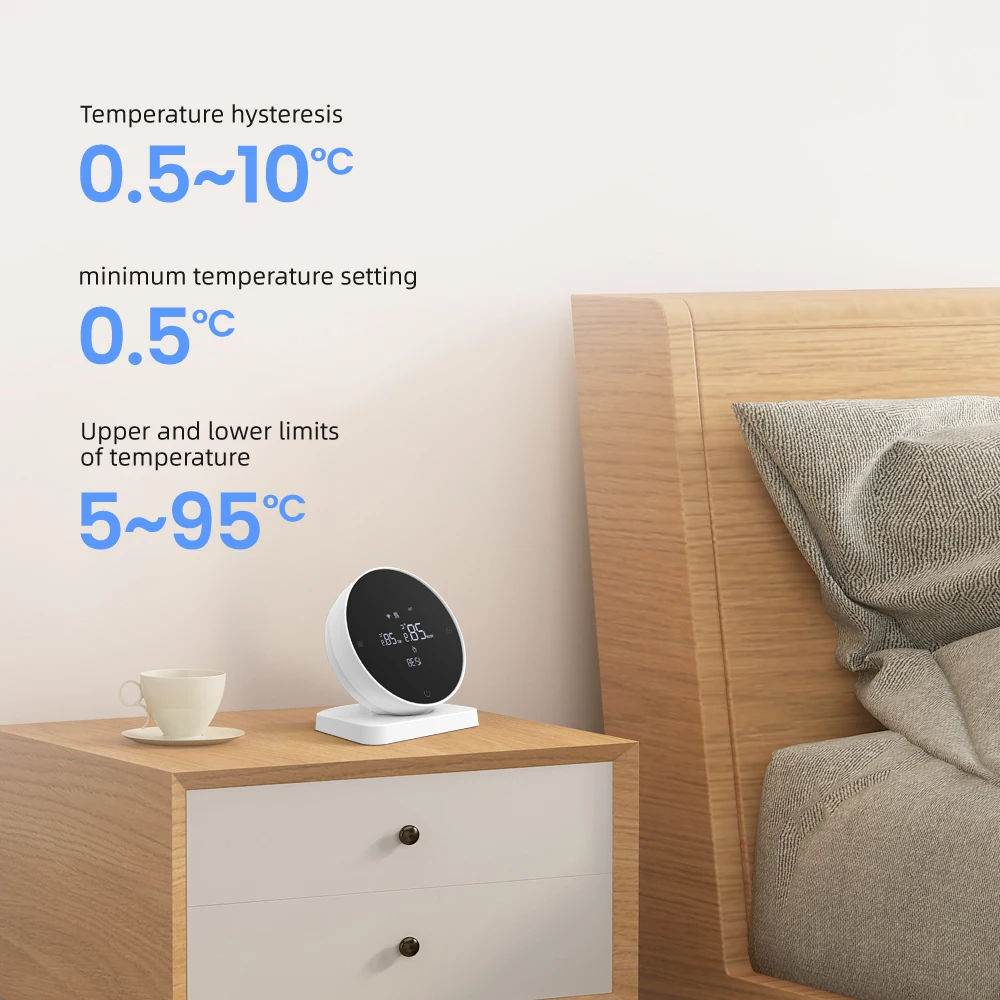

Precise Temperature Control More Comfortable
Temperature hysteresis：0.5℃-10℃
minimum temperature setting：0.5℃
Upper and lower limits of temperature：5℃-95℃

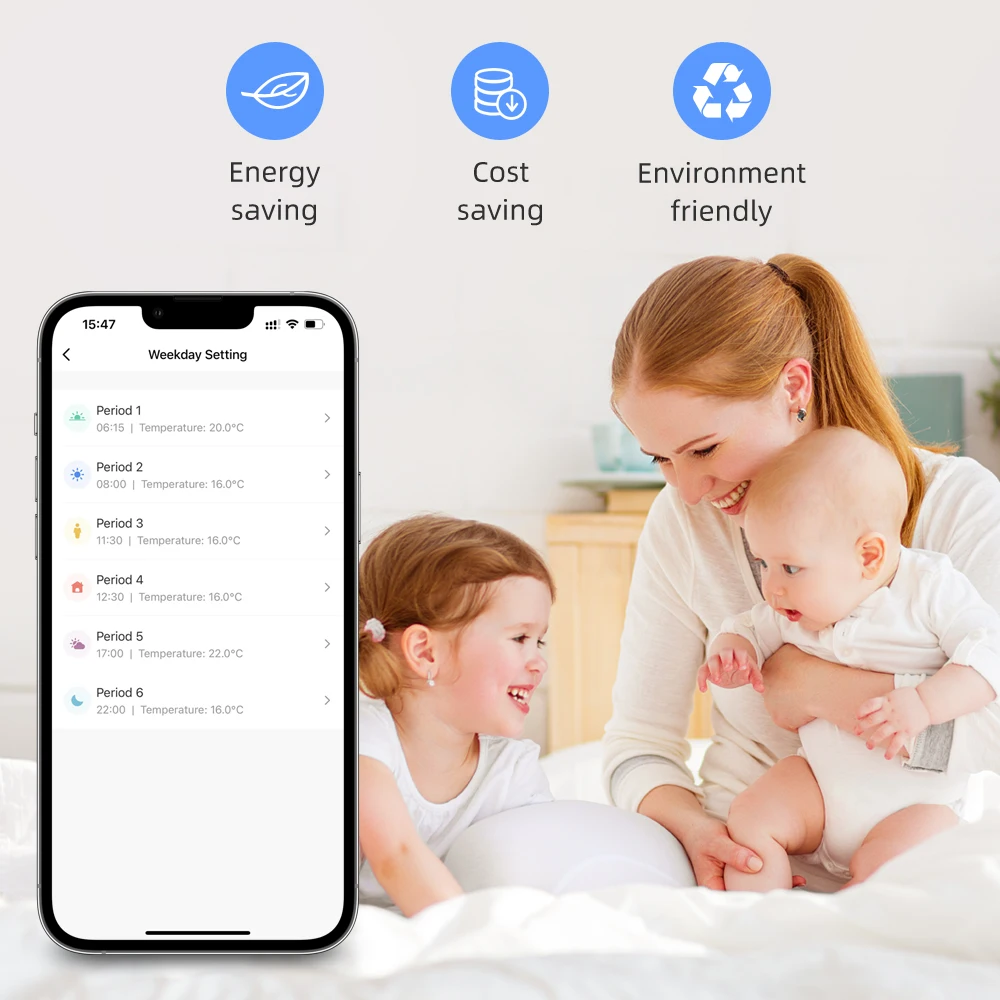

Programming Mode
5+2/6+1/7 days a week,6 time-modes daily, support different temperature settings, and run in schedule. Energy-saving Cost-saving Environment-friendly

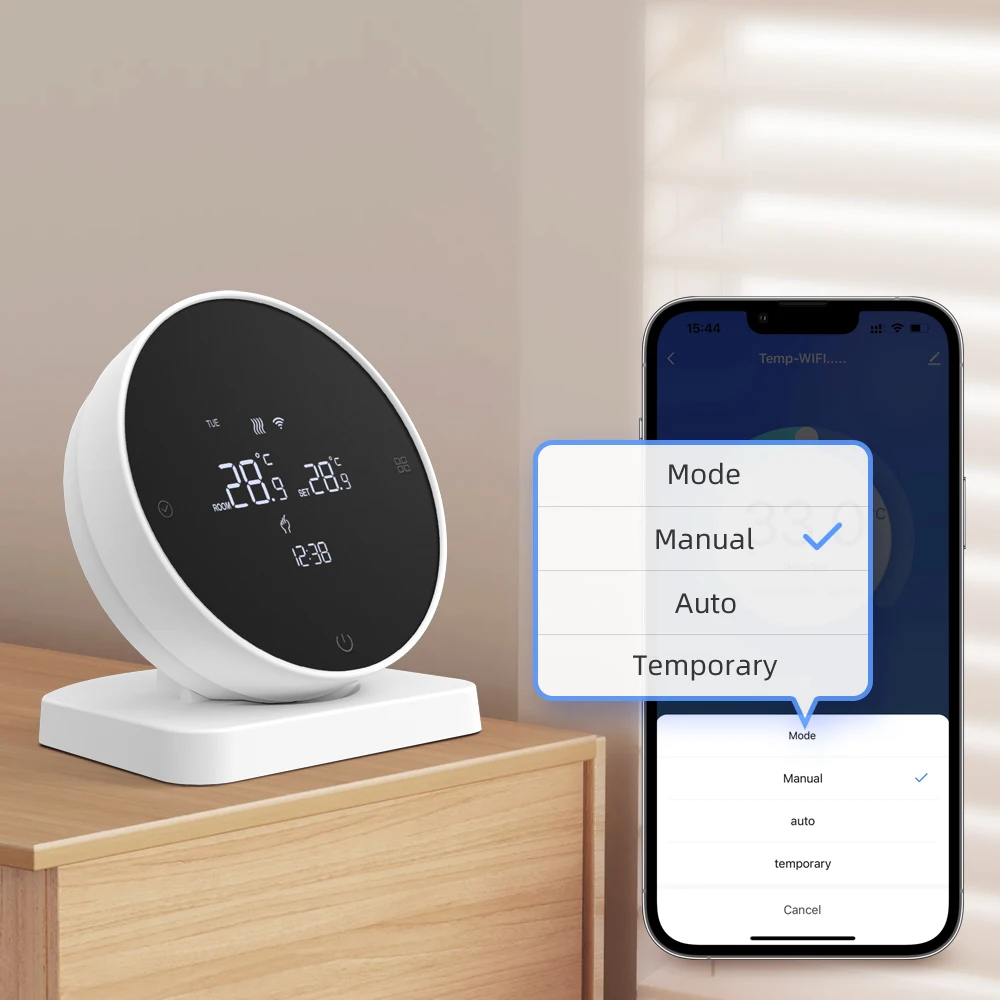

Three Modes Are Optional
Manual mode / Program mode/Temporary mode
Voice Control
Work with Alexa and Google Home, Yandex Alice

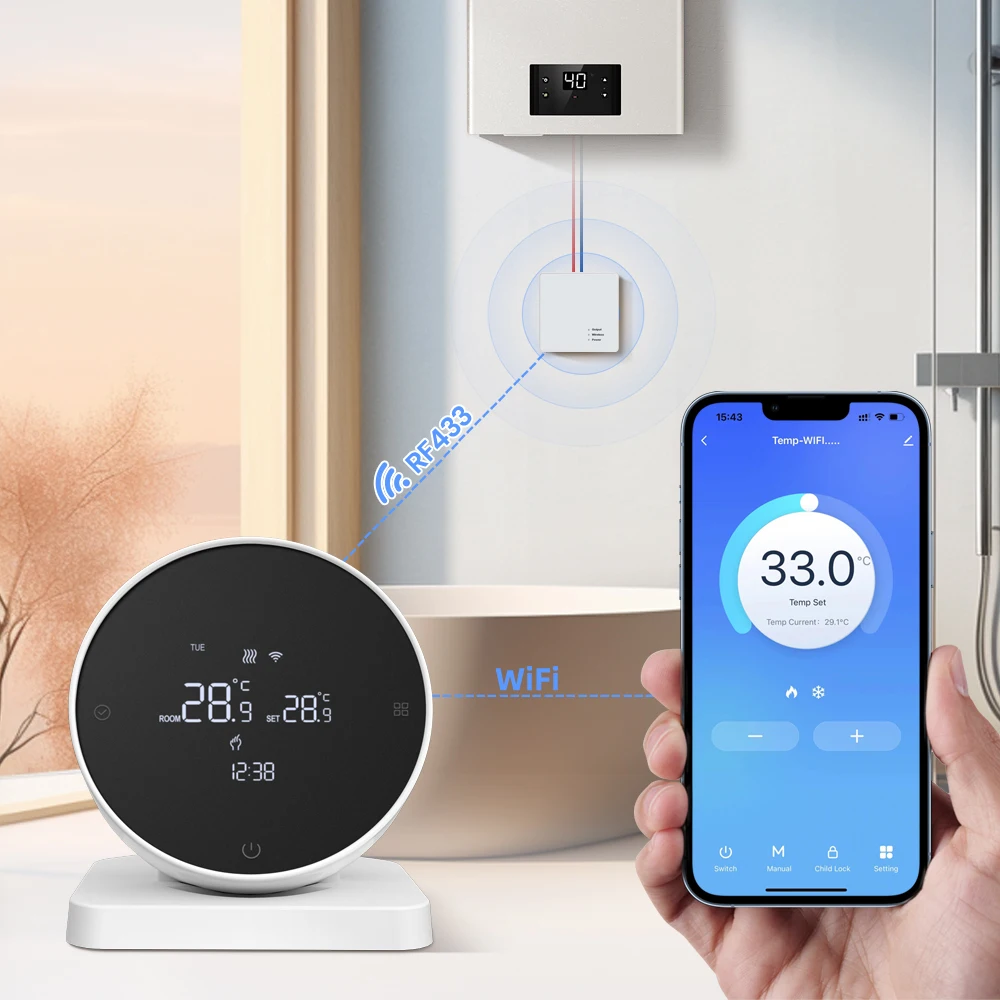

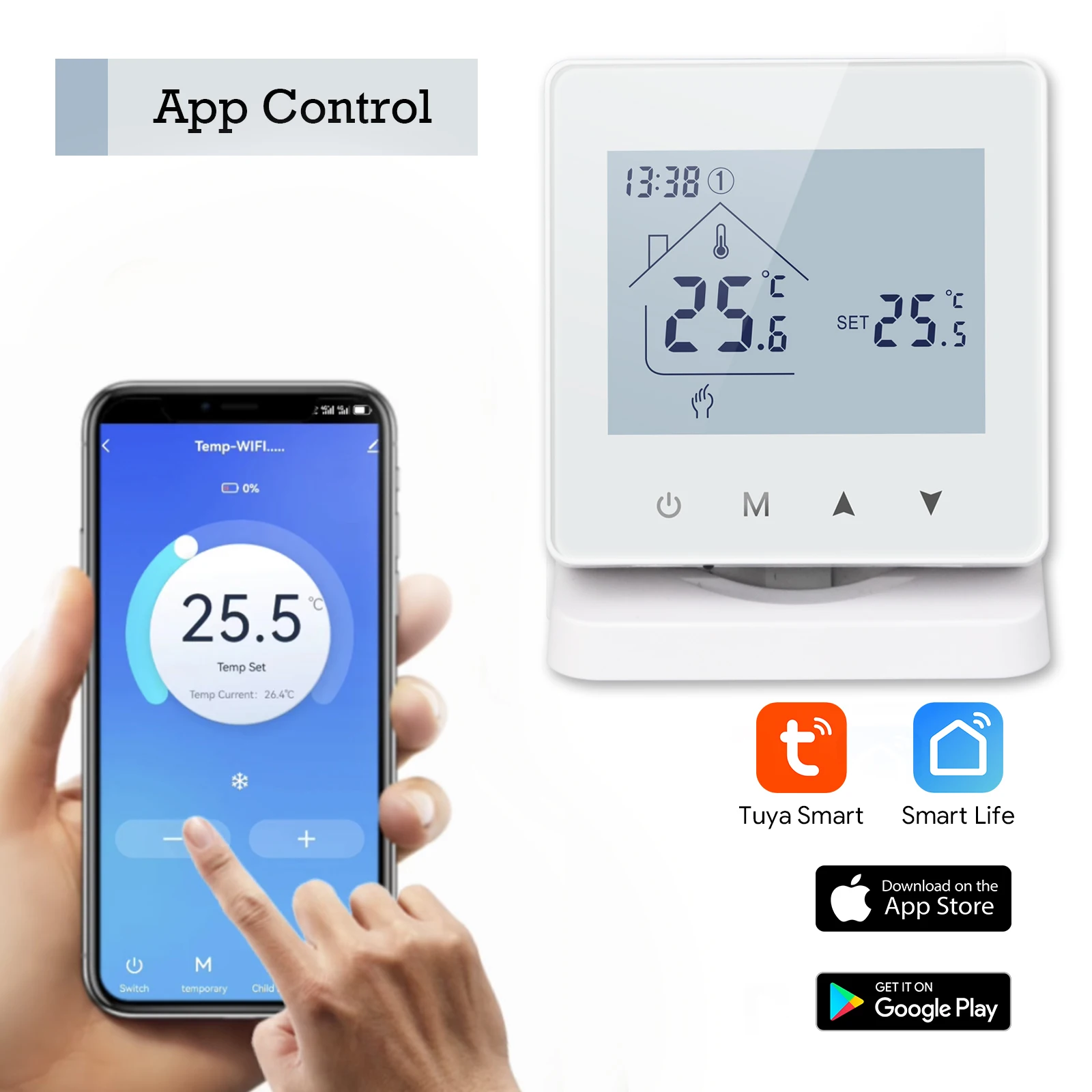

APP Remote Control
Smart life/Tuya app remote control from anywhere, anytime
WiFi Wireless Thermostat

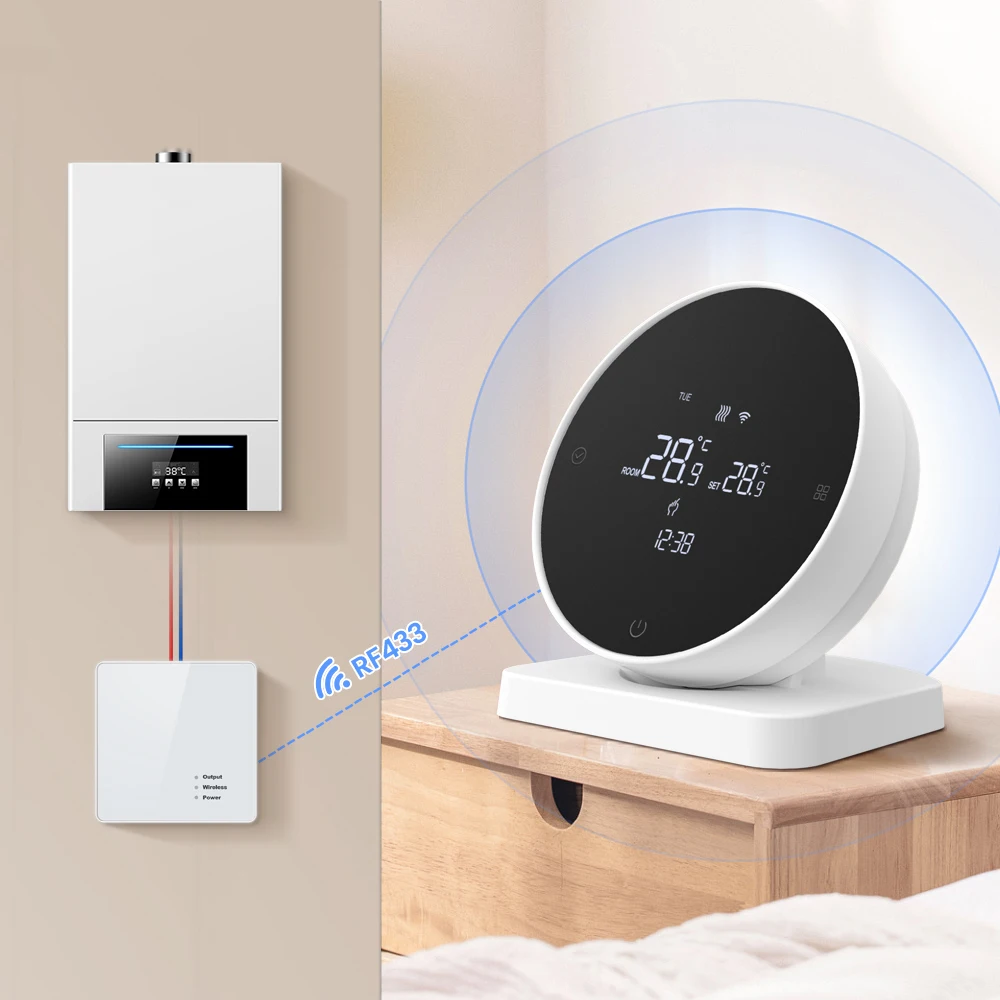

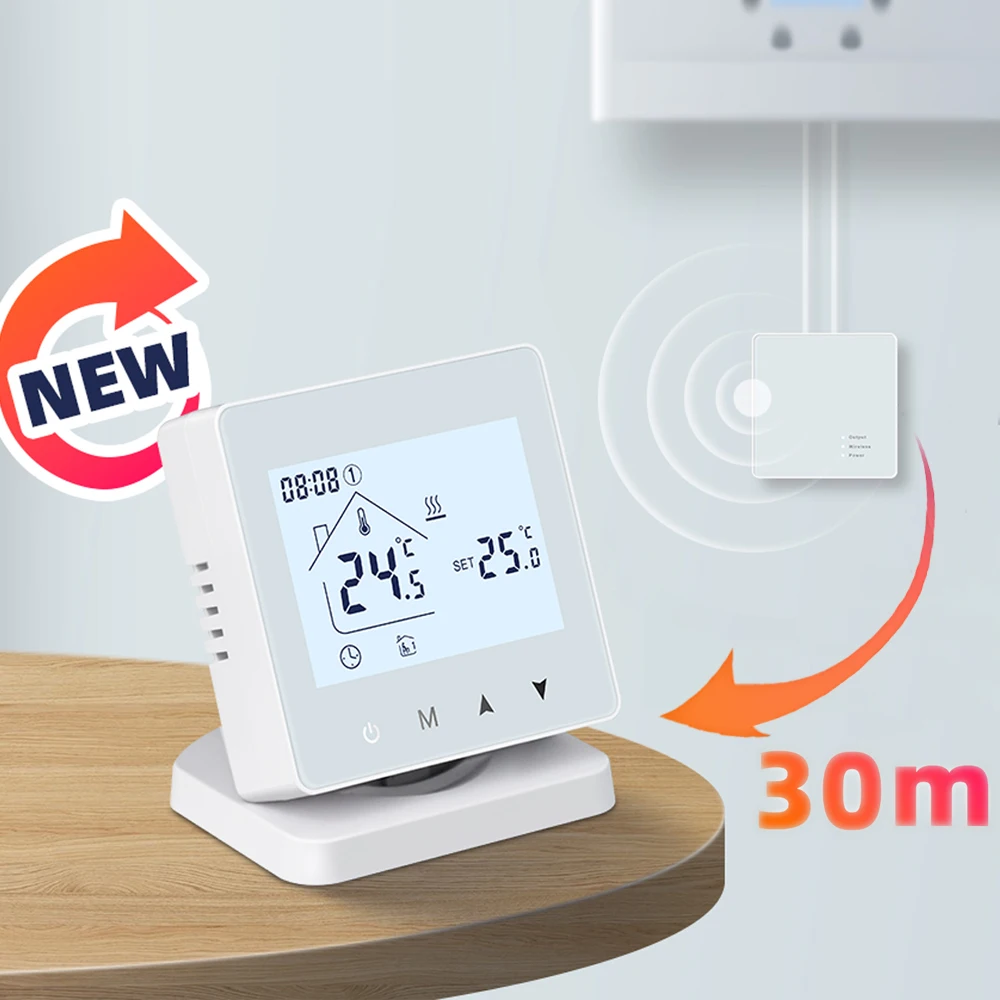

RF433 wireless connection design, no cables required.Works For Water Gas Boiler
