Features:
1. High precision.
The sensor uses top suppliers. It can guarantee the high precision of the measurement data.
2. Real-time monitoring and recording.
The sensor will report when the temperature and humidity change very little. You can view the changes in the value on the APP or display screen.
Record the temperature and humidity changes on the APP, and use the graphics to show you.
3. Backlight Supported
The sensor has a backlight, which make your browser the screen clear at night.
4. Wide viewing angle
We have carefully designed the viewing range of the LCD screen, compared to other types of similar products, our viewing angle is wider.
5. Scene linkage
The sensor can be used as the temperature and humidity data source of Tuya Smart, Smart Life, Amazon Alexa, and Google Home. You can do many automated processes based on the data source.

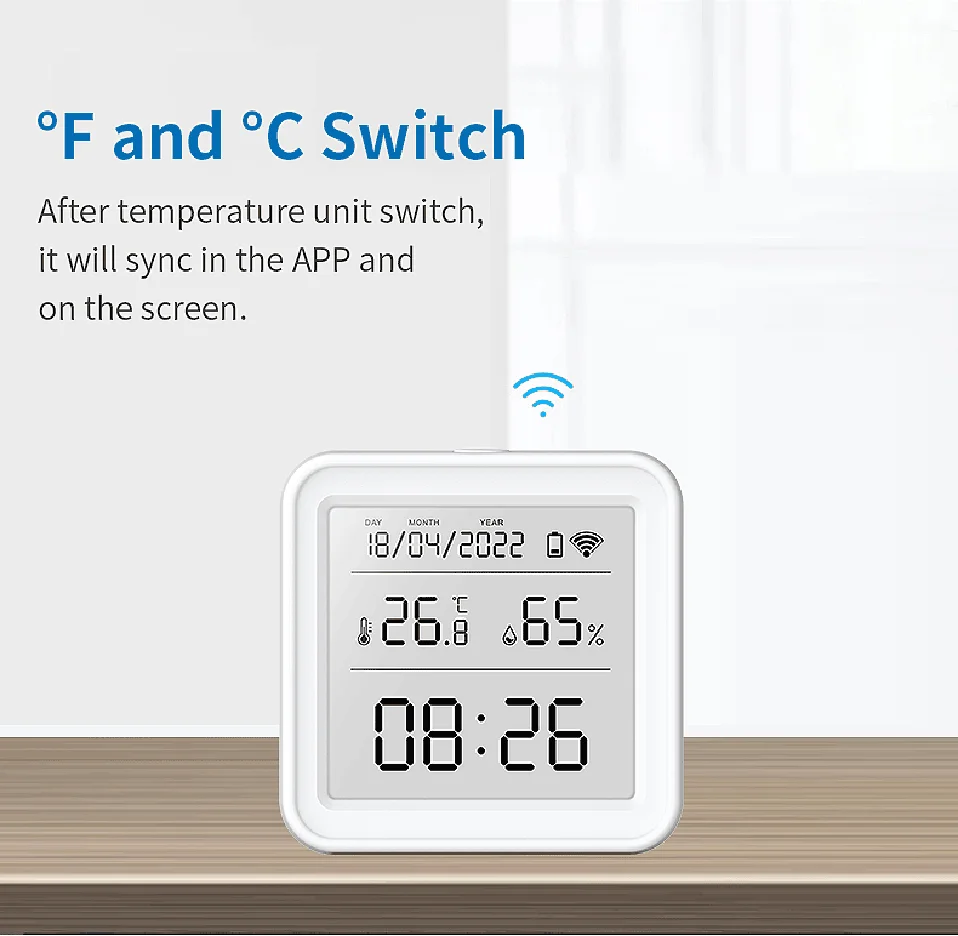

6. Temperature Unit Switch
The sensor is designed with a temperature display conversion function of Celsius and Fahrenheit. You can choose the unit that needs to be displayed according to your needs.
7. Third-party voice support.
The sensor supports Amazon Alexa and Google Home Assistant. You can check the current temperature and humidity by voice.

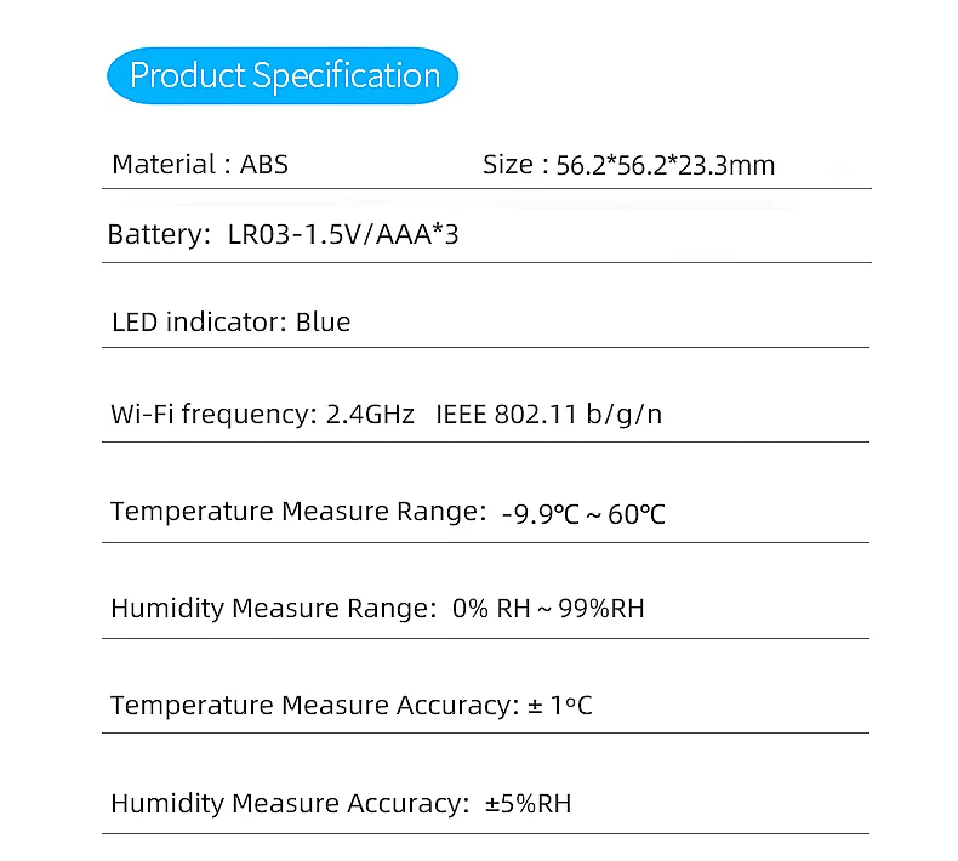

Product Parameter:
WiFi Version:
Power supply: Battery LR03-1.5V/AAA*3 (Not Included)
Backlight: Supported
Wireless: WiFi 2.4GHz IEEE 802.11 b/g/n
Temperature Measure Range: -9.9℃-60℃
Temperature Accuracy: ±1
Humidity Measure Range: 0% RH~99% RH
Humidity Accuracy: ±5% RH
ZigBee Version:( Tuya ZigBee Hub is required)
Note: the ZigBee Version Sensor can't work alone, it needs Tuya ZigBee Gateway
to work together.
Power supply: Battery LR03-1.5V/AAA*3 (not included)
Backlight: Supported
Wireless: Zigbee 3.0(Tuya Zigbee hub Only)
Temperature Measure Range: -9.9℃-60℃
Temperature Accuracy: ±1
Humidity Measure Range: 0% RH~99% RH
Humidity Accuracy: ±5% RH
NOTE:
About Displaying
1. The time format cannot be changed.
2. The temperature unit can be switched.
About Bluetooth Function
Bluetooth function is only useful during configuration. After configuration, the device will shut down the Bluetooth network.
About the updated frequency of temperature and humidity
1. We used the trigger mechanism When the temperature or humidity change reaches the trigger condition, report the data immediately The fastest update frequency is two minutes. Generally, the data is updated once an hour
2. The sensor cannot set the update frequency,
3. The sensor cannot set an alarm, and the alarm function is set on the APP
If you need to update data in real-time, please purchase a USB-powered version.
About Batteries
1. Only an LR03-1.5V alkaline battery can be used (a 1.2V rechargeable battery may cause the equipment to detect the wrong voltage and report low voltage)
2. Batteries of different models cannot be mixed
3. Batteries of different brands cannot be mixed
4. New and old batteries cannot be mixed
5. Do not use inferior batteries
Otherwise, 1. configuration failure, 2. battery consumption is too fast
How to obtain high-quality batteries or genuine batteries. Please buy them at regular supermarkets or chain stores over time
Note: After the device configuration is completed, it needs to be placed in a position where the wireless signal is good, otherwise the power consumption of connecting to the network will increase, which will lead to fast battery consumption
About Network Testing
The network will consume a lot of power
To ensure the service life of the battery, the sensor will stop using the network when it does not need to report data
Therefore, it is meaningless to test the network signal of sensors in the APP.
Error on temperature and humidity
1. All temperature and humidity sensors will have certain errors, please note
The error of this sensor is ± 1 ℃ and the error of humidity is ± 5% RH
Any value within this range is normal
2. Sensor error and manufacturing process will lead to certain errors between products of the same model
3. According to Newton's third law, heat conduction takes a certain time.
Therefore, our sensor needs 30 minutes to be consistent with the room temperature, and the measurement will be accurate.
About Historical Curves
1. The minimum granularity of historical data (daily chart) is 1 hour, and the minimum granularity of exported data is also 1 hour
2. Days of historical data are stored for 7 days
3. The value of historical data is the average value, that is, the average value in a minimum granularity time
Support for third-party smart speakers
1. Because the third-party smart speakers (Google Home/Amazon Alexa) do not have control panels corresponding to temperature and humidity sensors, the temperature and humidity may not be displayed normally on the third-party smart speakers' APP. But we have opened the voice query function.
Therefore, the current temperature and humidity can be queried by voice
2. Route or automatic process related to temperature and humidity cannot be established on the third-party smart speakers
3. The device does not support Yandex Alice
About Automation
The sensor uses the principle of Edge Triggered
That is, the action can only be triggered if the condition crosses the set condition
For example, when the automatic setting temperature is greater than 25 ℃, then turn on the air conditioner.
1. When the temperature rises from below 25 ℃ to 25 ℃, the automatic process can trigger to start the air conditioner
2. After the automatic process is set, the temperature is always above 25 ℃, and the air conditioner is not turned on.
3. When the temperature drops to 25 ℃ and rises to above 25 ℃, the automatic process will be activated.
For example, when the automatic setting temperature is less than 20 ℃, turn on the air conditioner
1. When the temperature drops from above 20 ℃ to 20 ℃, the automatic process can trigger to start the air conditioner
2. After the automatic process is set, the temperature is always below 20 ℃, and the air conditioner is not turned on
3. When the temperature rises to 20 ℃ and then drops to above 20 ℃, the automatic process will be activated.

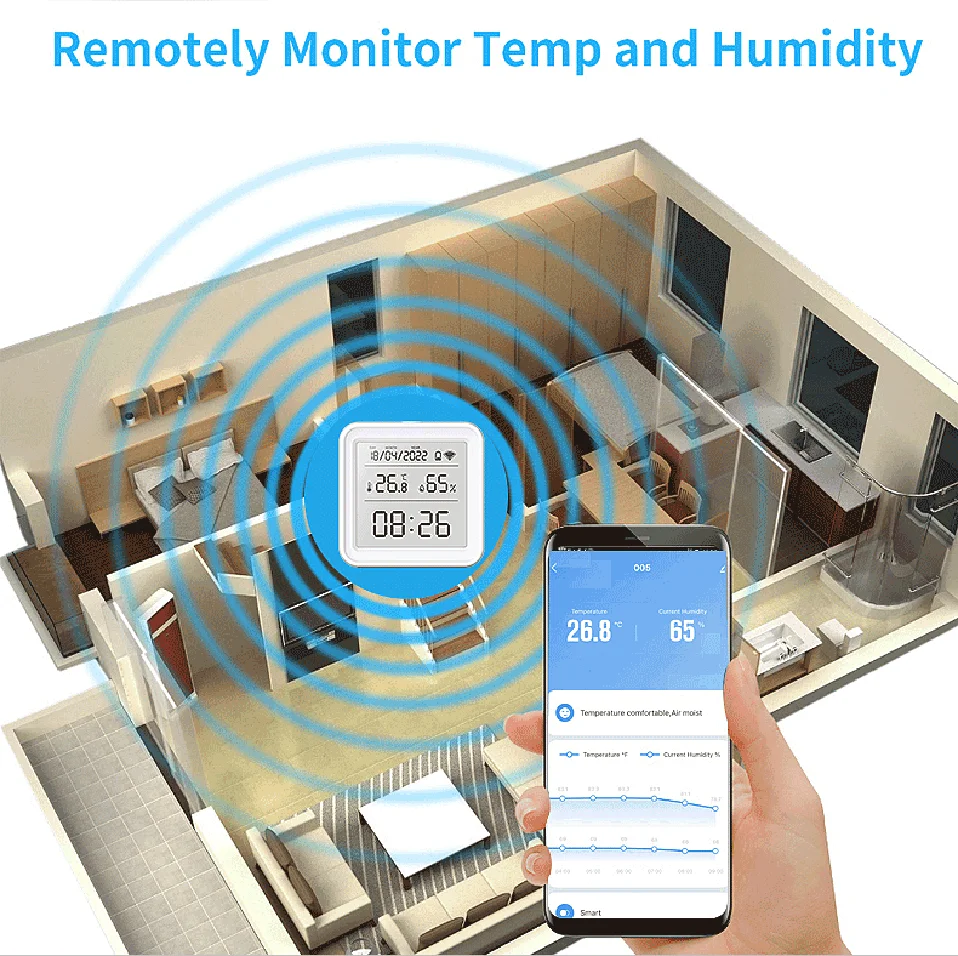

APP Remote Monitor
When the sensor is registered to the APP and connected to the Internet, you can monitor the temperature and humidity of the room in real-time anywhere in the world.

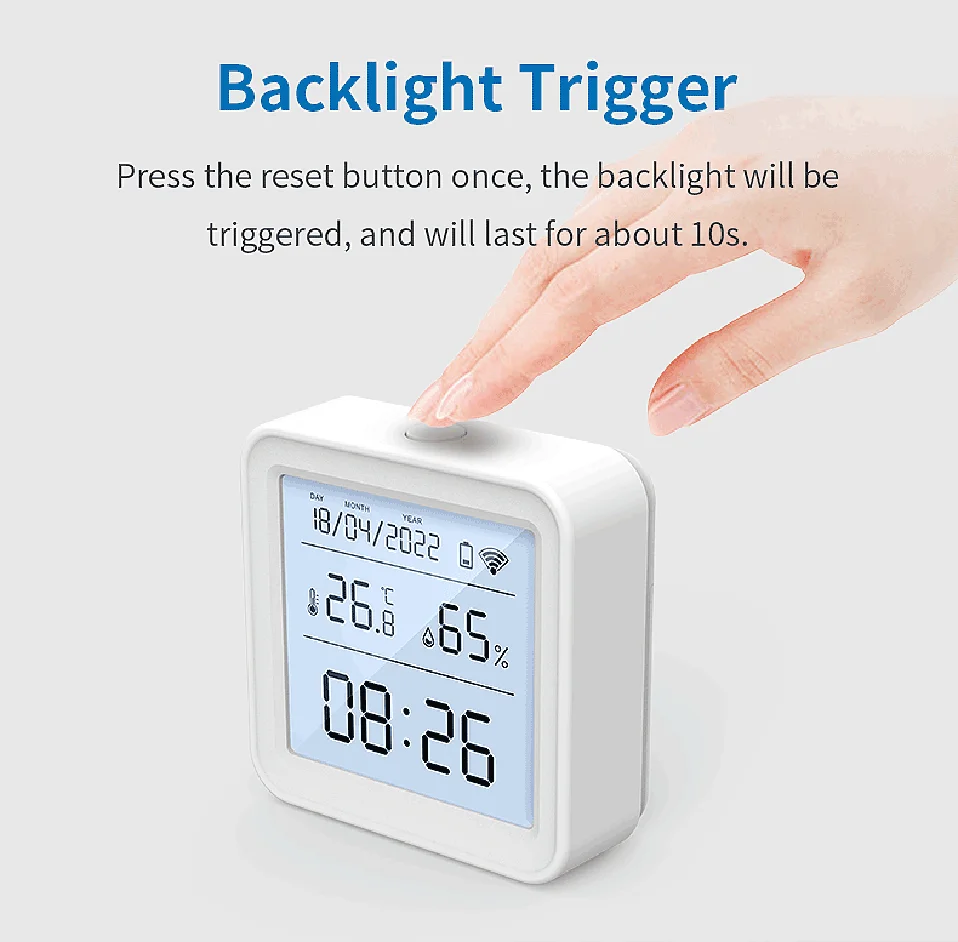

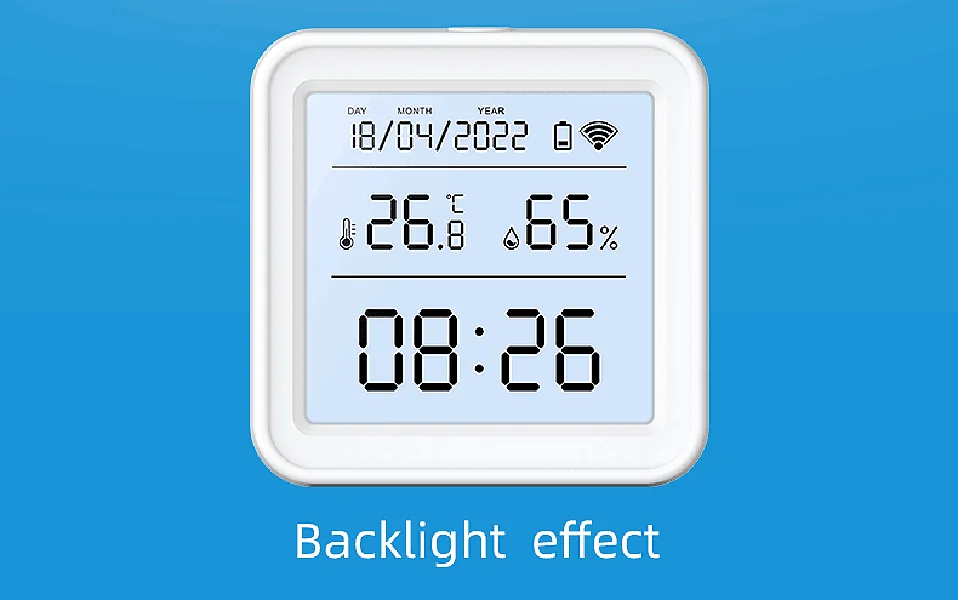

Backlight Supported
When you touch the reset button once, the backlight will be triggered, and it will last for about 10 seconds.

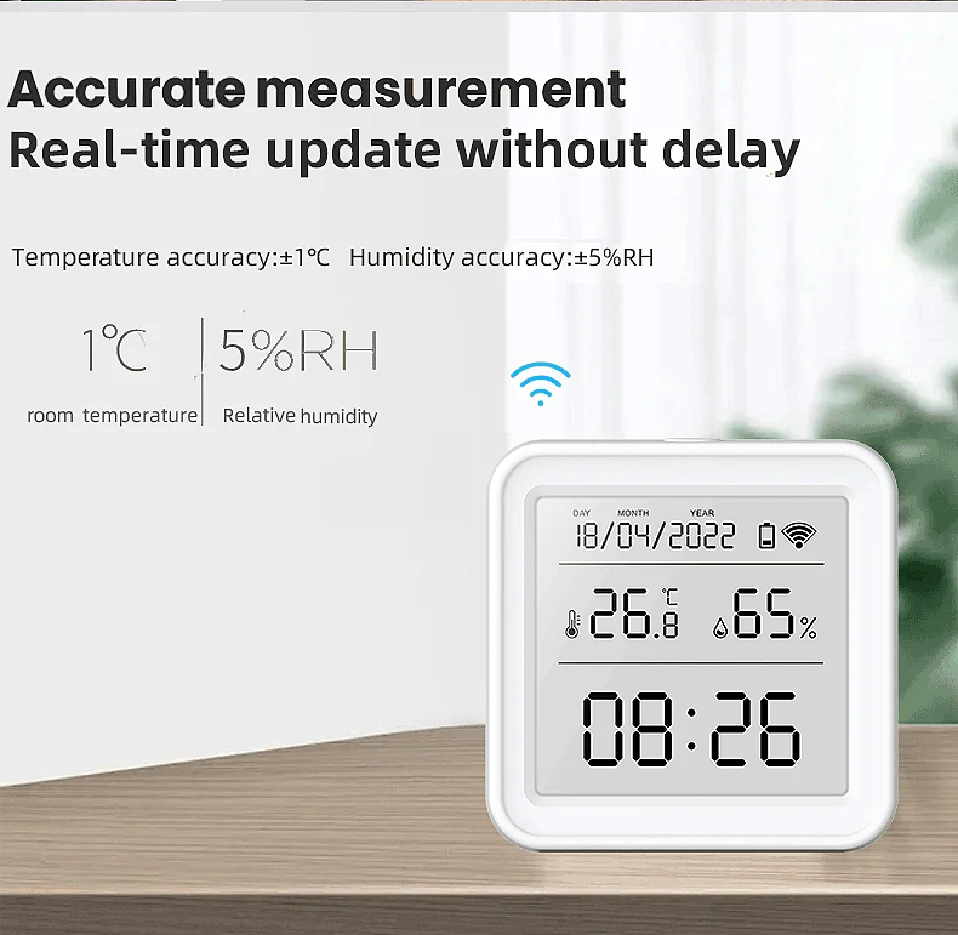

Accurate Measurement
NOTE:
After configuration, it will take 30 minutes to be accurate.

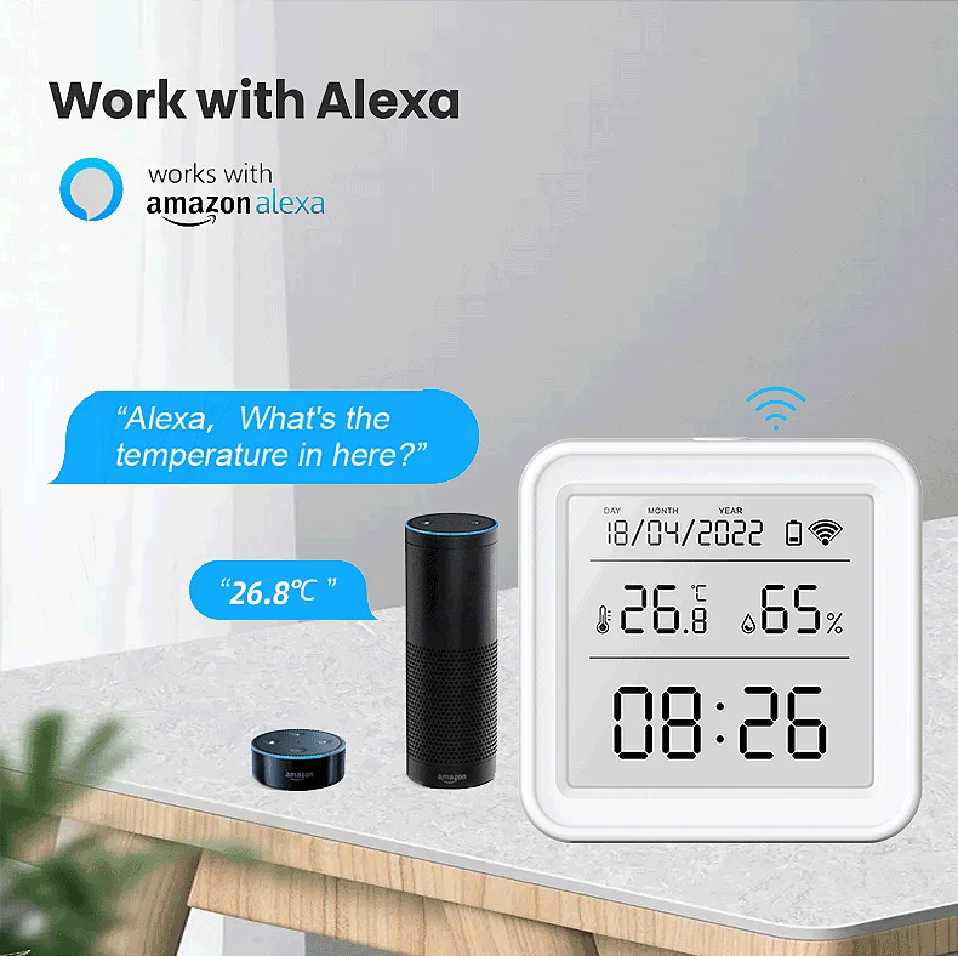

Voice Query Supported
The Sensor works with Amazon Alexa and Google Home. You can check temperature and humidity by voice.

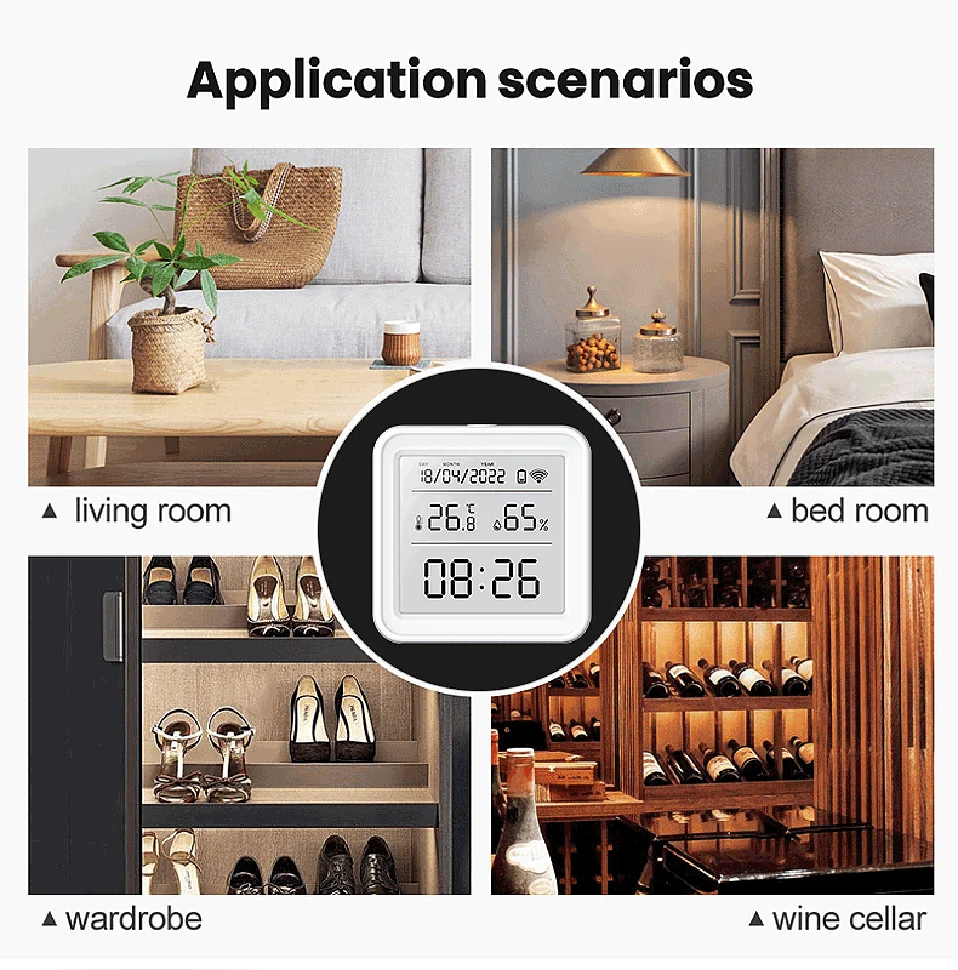

Application Scenarios
You can install the sensor wherever you need (a WiFi connection network is required).

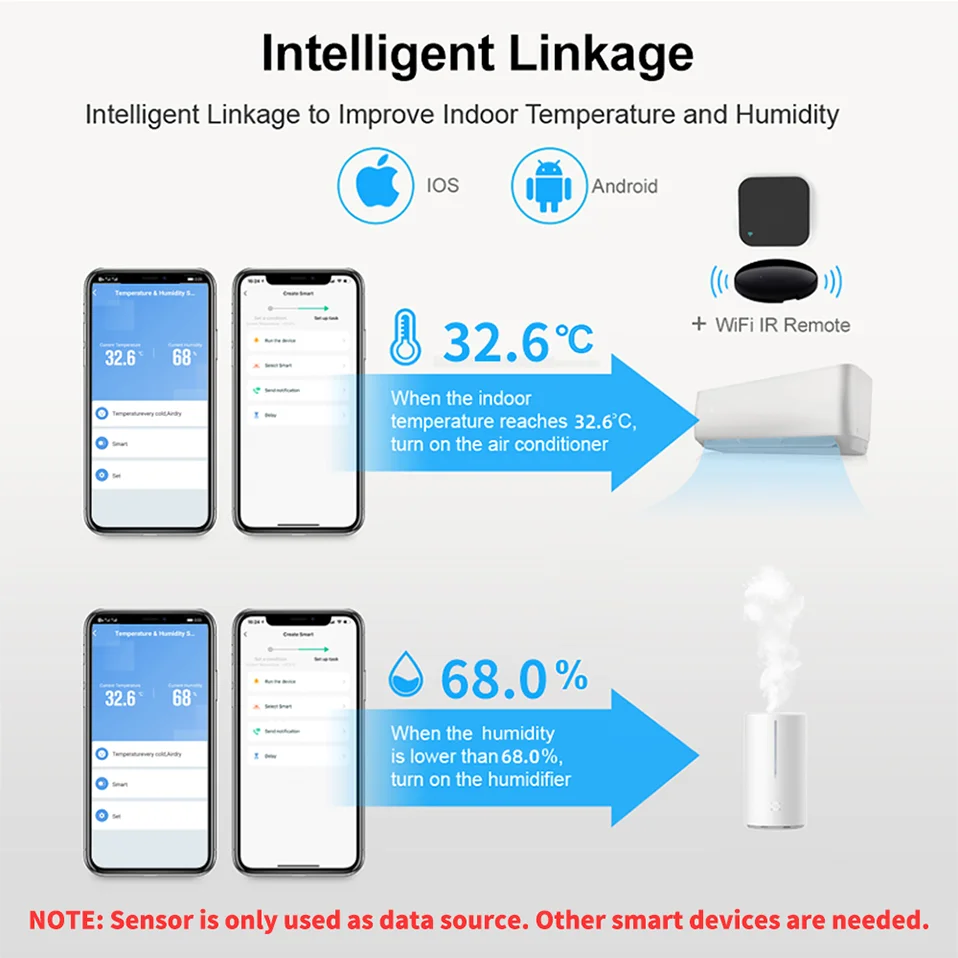

Intelligent Linkage
In the APP, you can make linkage settings by setting the temperature and humidity of the sensor as conditions. It will make your life more comfortable.

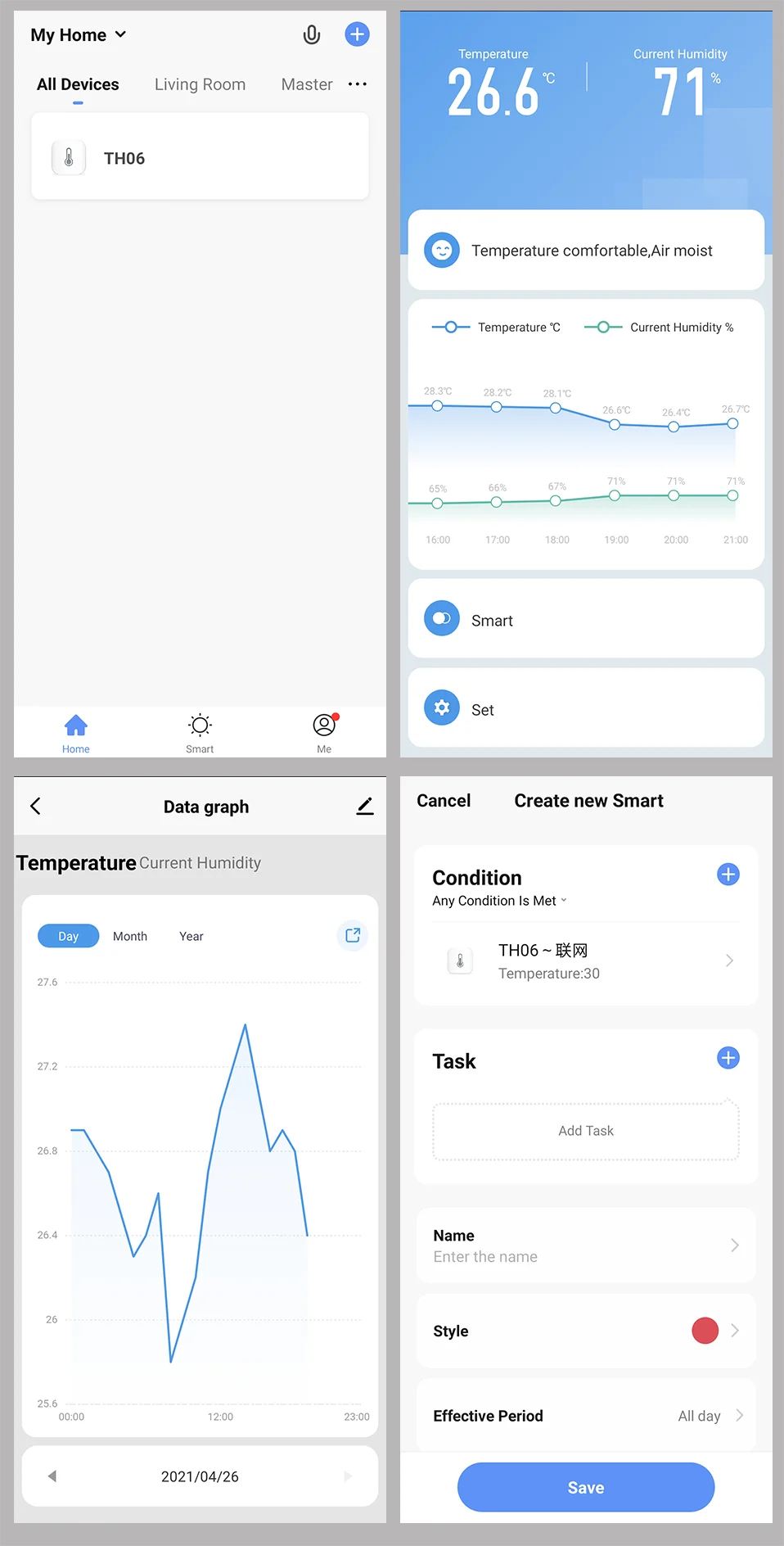

APP Pages
