NOTE:The meter requires the measured device must have neutral wire. otherwise it can't measure the device's voltage, current, and power.

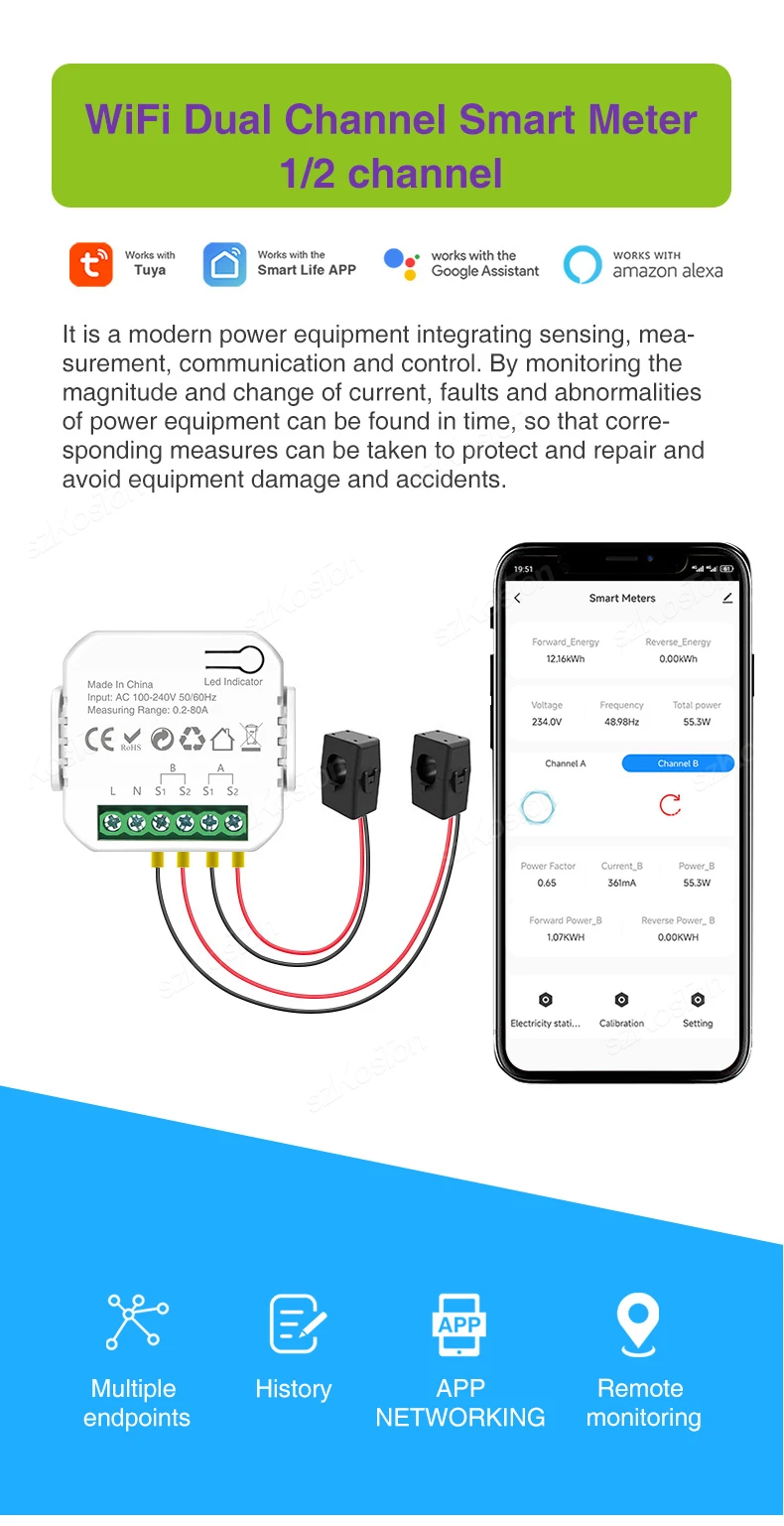

This Tuya WiFi intelligent energy meter helps measure how much energy the solar and photovoltaic system is producing and how much power it is consuming by monitoring application. Controlled by the Tuya APP, the app displays real-time power, current, voltage, power factor and frequency for channel for forward and reverse. Supports automatic setting of valve-values and with push notifications, and the device can be calibrated by adjusting the percentage.

Features:

Powerful Function: High-precise measurement, real-time monitoring of voltage, current and power of each channel when generating and consuming kilowatts.

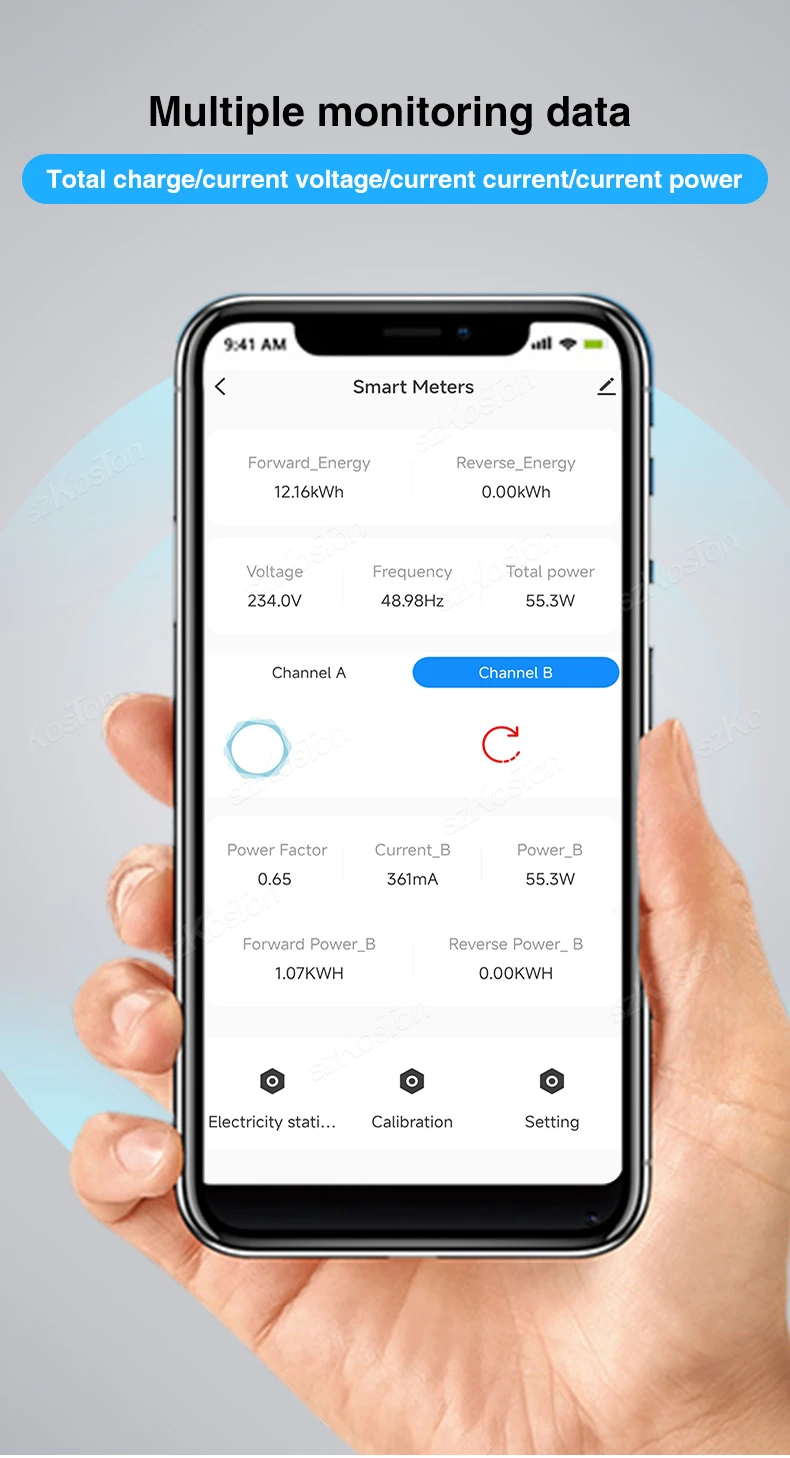

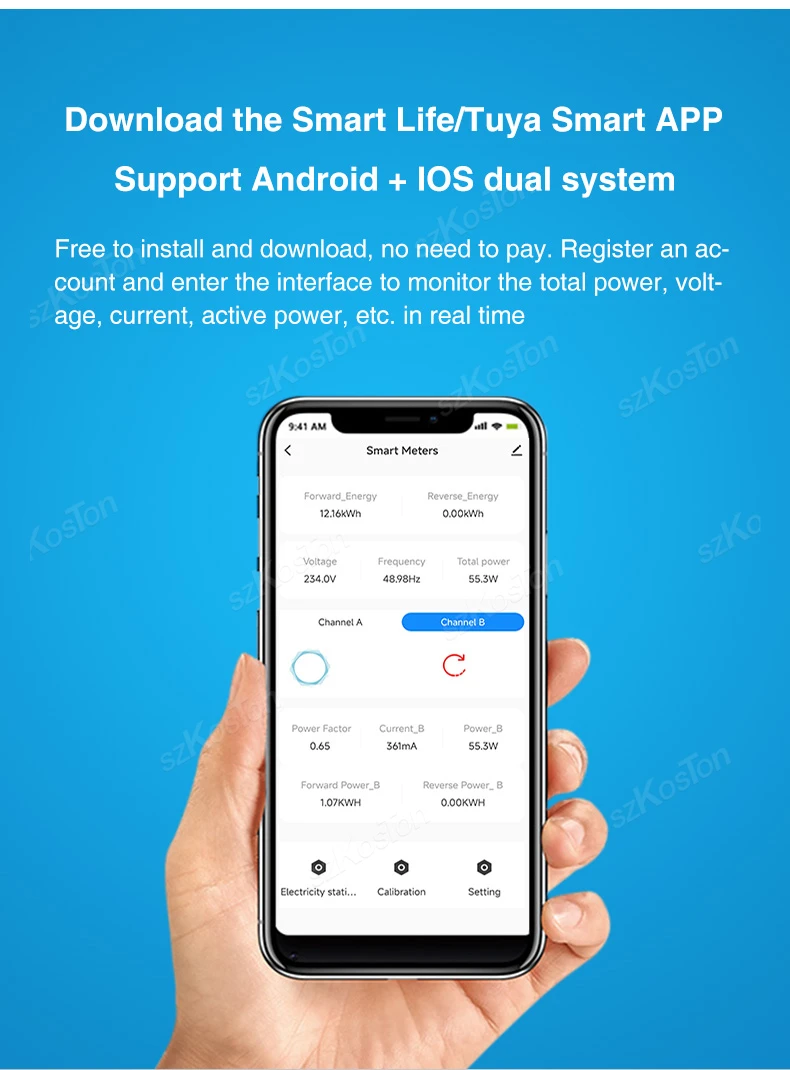

Mobilephone APP Control: The app displays real-time power, current, voltage, power factor and frequency of channel for forward and reverse.
Power Statistics: APP program displays daily, monthly and yearly reverse and forward totals of channel individually. Power usage percentage display to avoids abnormal power usage.
Automation Function: You can set the power or current value in APP, only when the power or current exceeds the value, the device will starts to work.

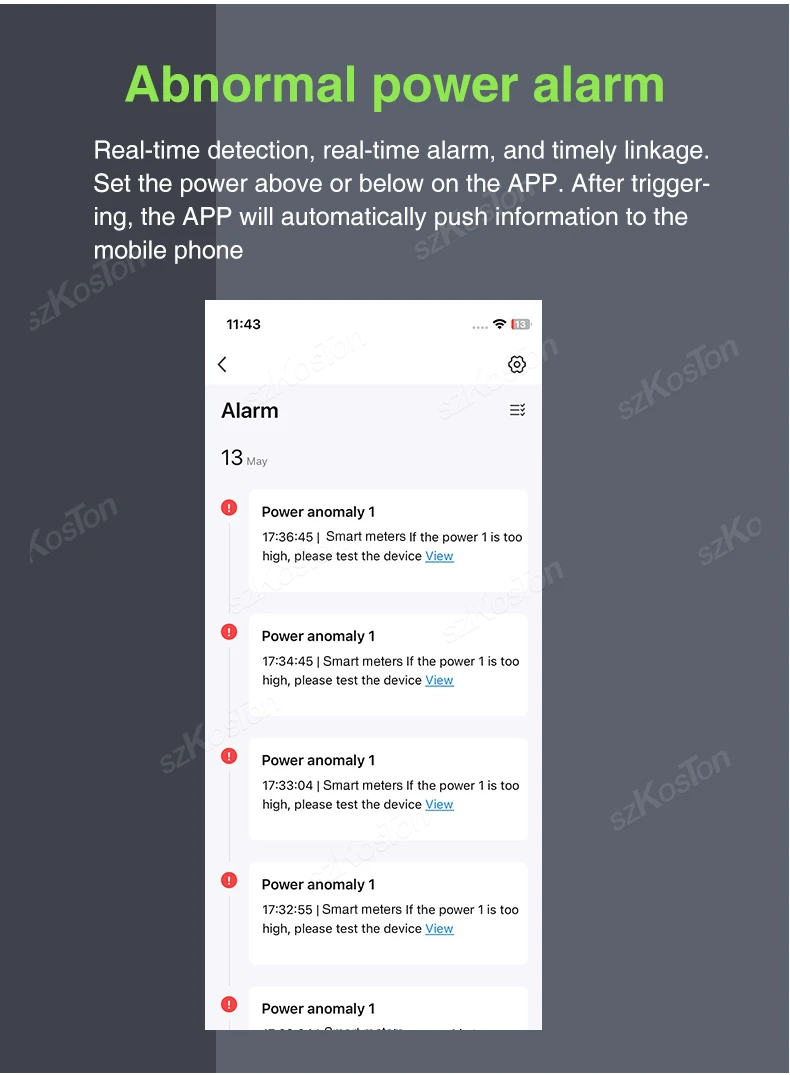

Feature-rich Design: Automated setting of valve-values and push notifications, and the device is able to be calibrated by adjusting the percentage. Szkoston

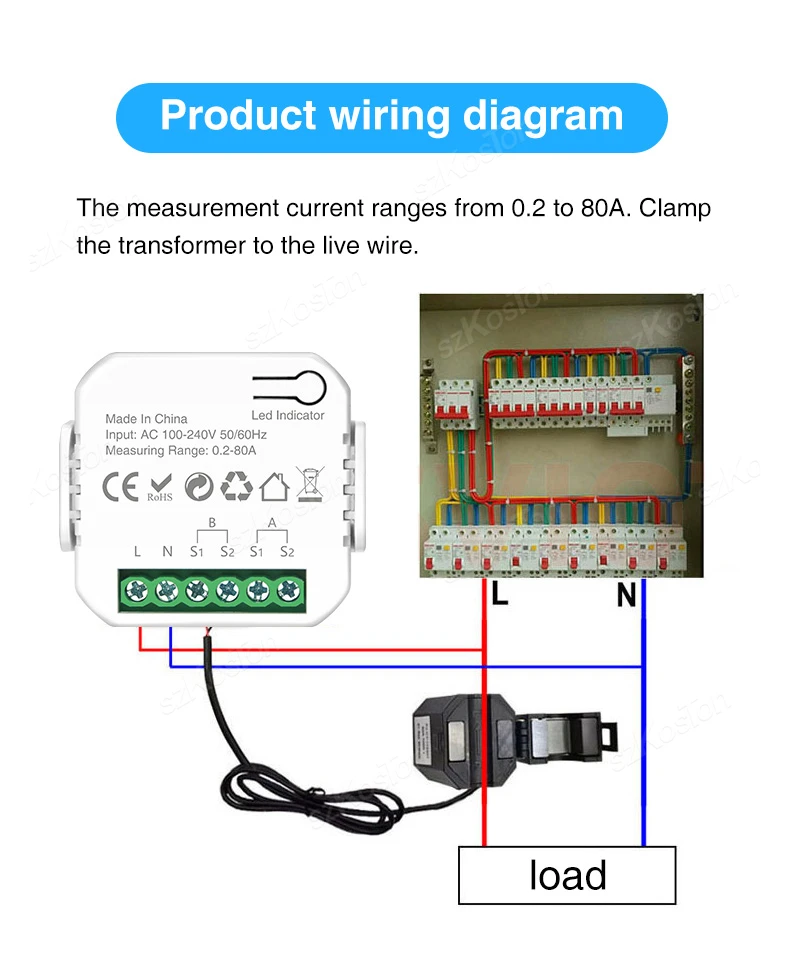

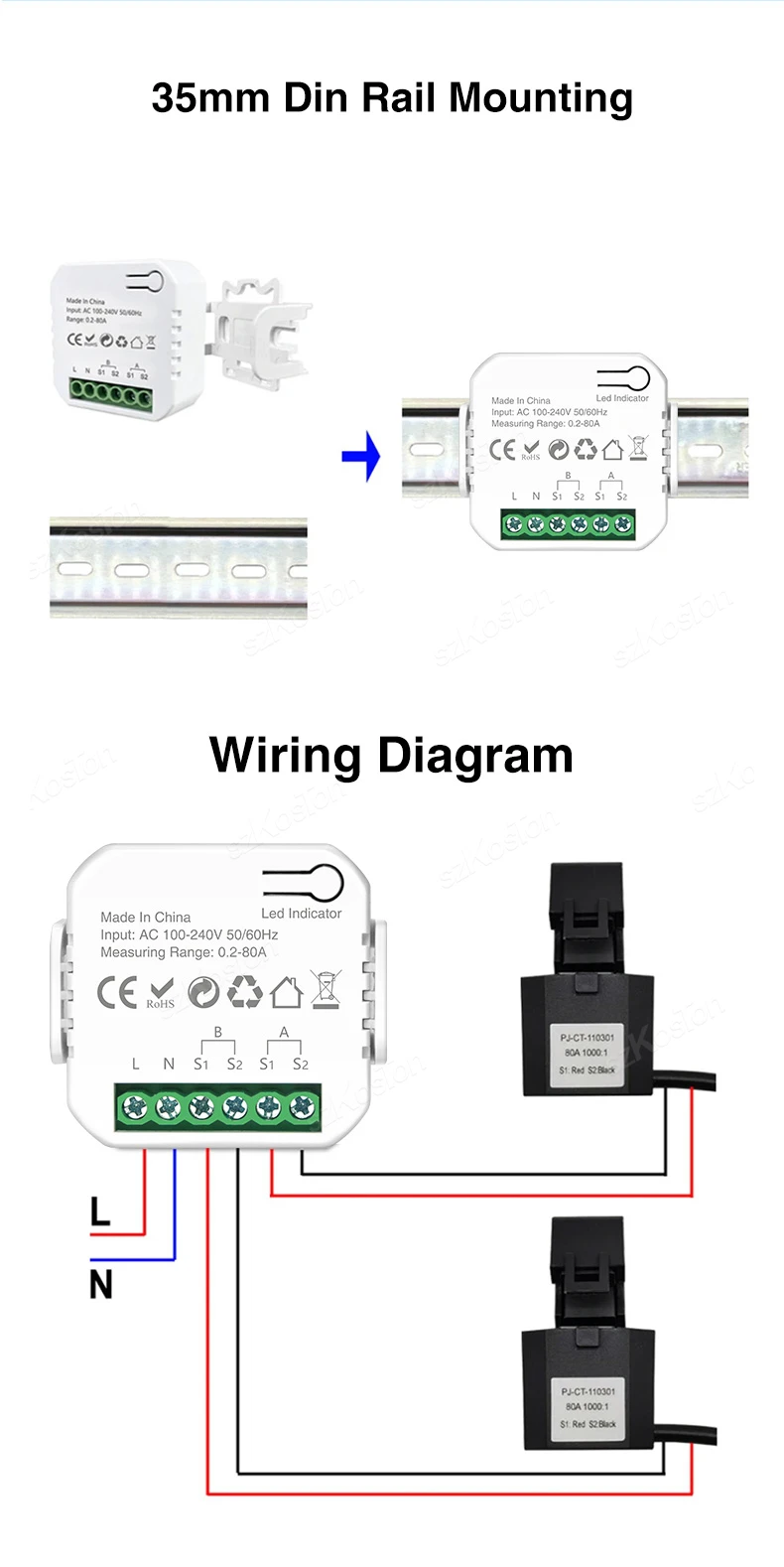

Easy Installation: 35mm rail mounting, no need to replace wires connection is safer, just put the wires in the clip and measure.

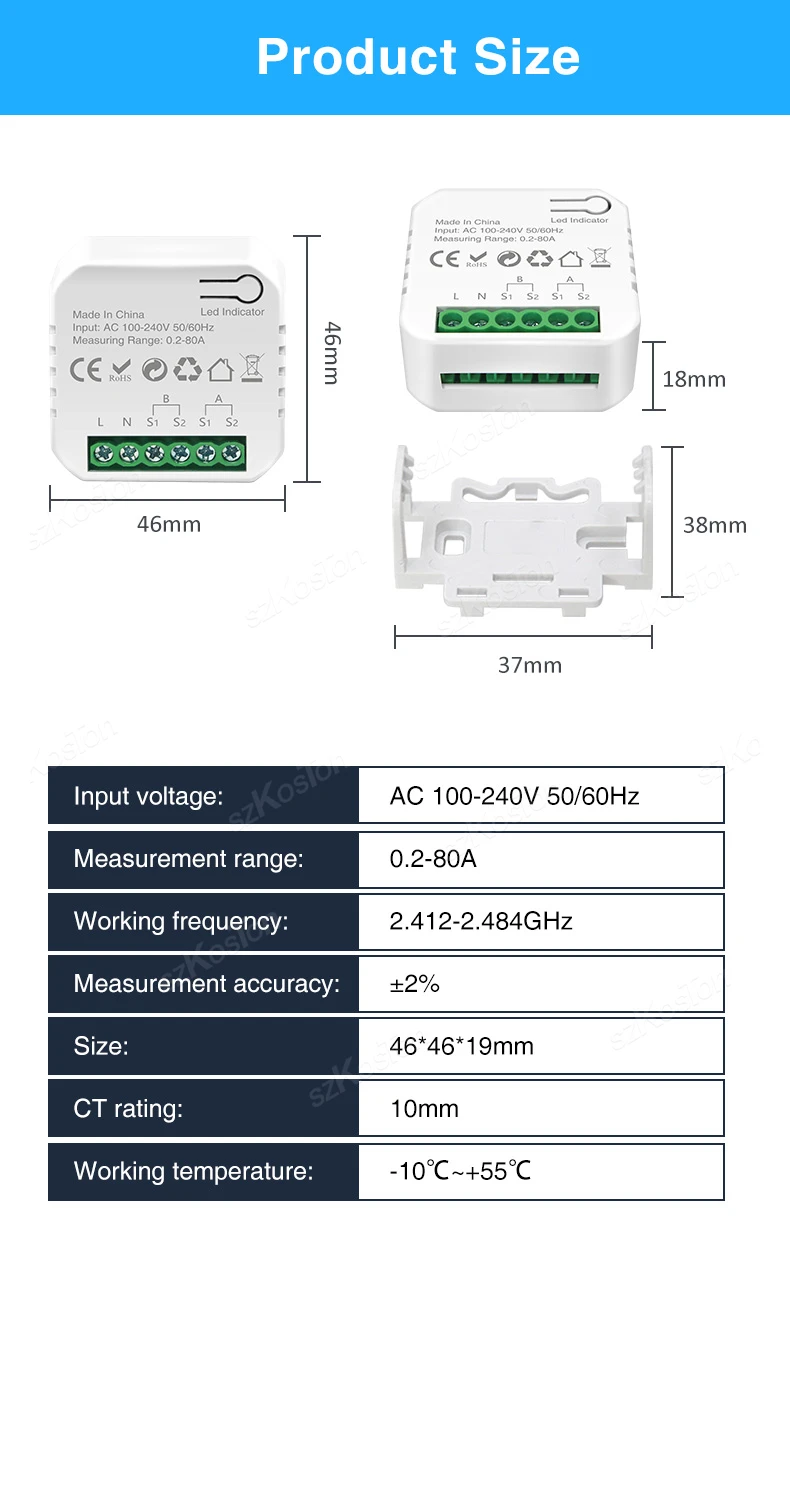

Specifications:

Name: Tuya WiFi Energy Meter
Material: PC
Type: 1CT, 2CT (optional)
Current: 0.2-80A
Input voltage: 110-240 V, 50/60Hz
Accuracy grade: 1.0
Working current: -10℃ to 55℃
Wireless type: 2.4GHz



Additional information

Weight 0.0 kg

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Vendor Information

Vendor: Digifolio

Rating: 4.62 rating from 4200 reviews
Company: Digifolio Ltd

Your name: Your email address: Your message:

£38.34£51.87 ex. VAT

Tuya Smart WiFi Power Meter with Current Transformer Clamp 1/2 Channel 80A Energy Meter Smart Home Wattmeter Solar PV System
