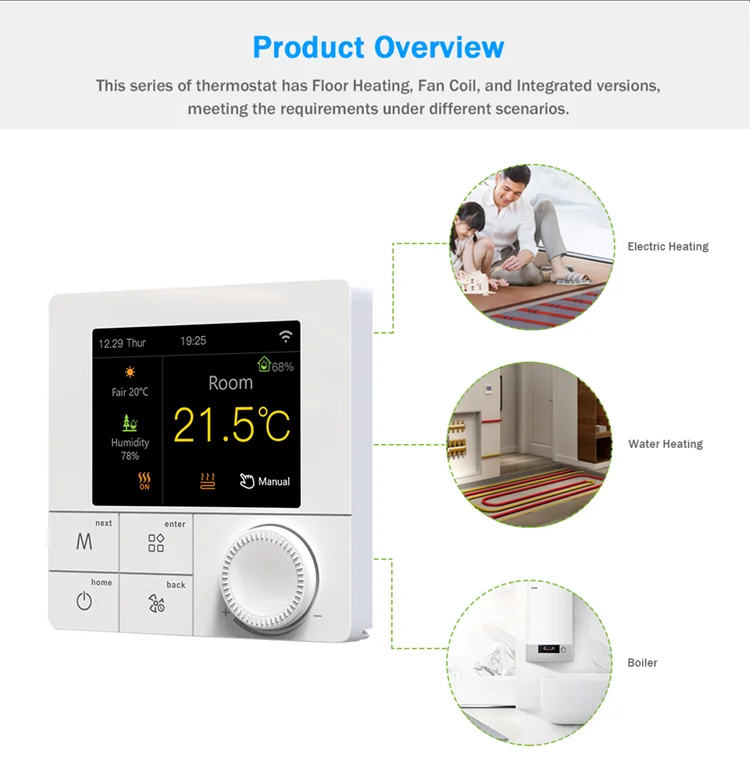

R8C WIFI smart digital temperature controller is suitable for warm floor heating systems.
It monitors the operating status of underfloor heating equipment by comparing the ambient temperature with the set temperature, which improves comfort and saves energy.
This digital temperature controller adopts microcomputer control technology and is equipped with push buttons, which are elegant in design and easy to use.
Product Highlight

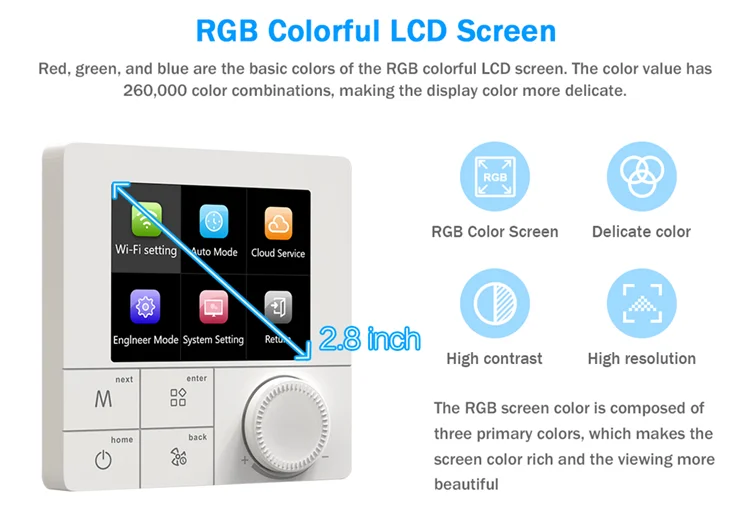

1. Color screen will make your home more vivid

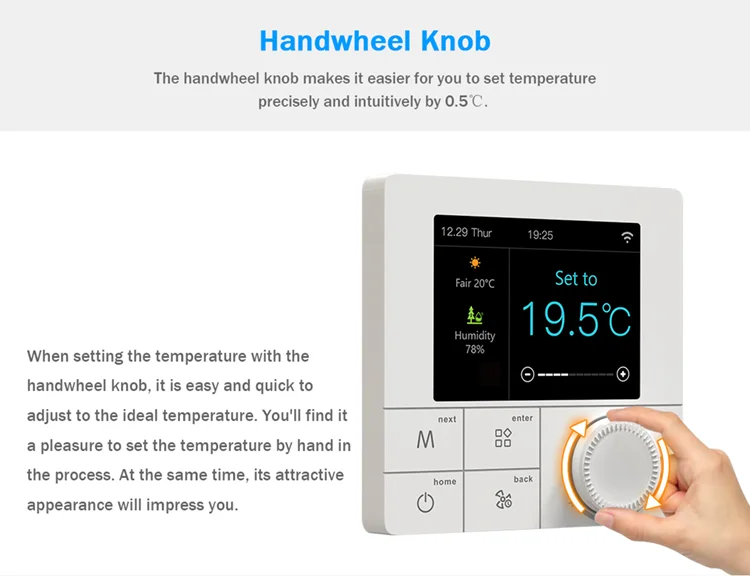

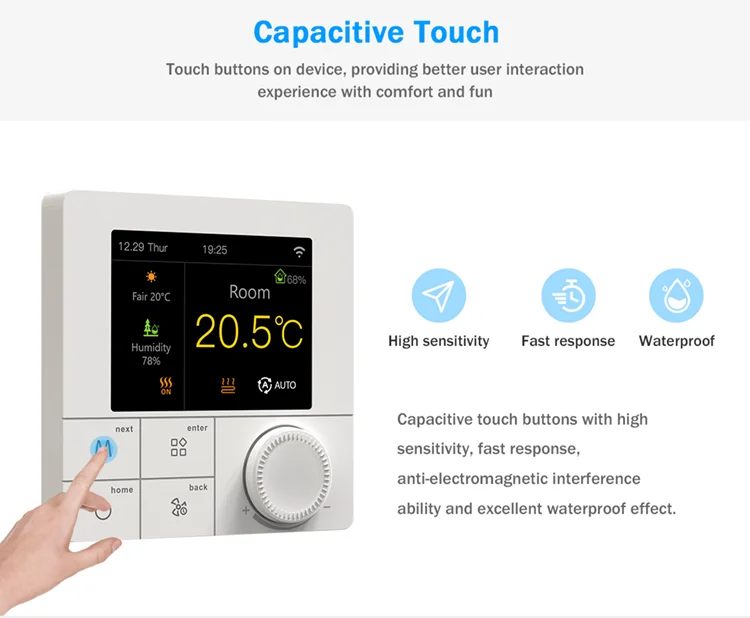

2. Large screen and touch button
3. Power-off memory function
4. Real-time data storage function
5. Anti- freezing

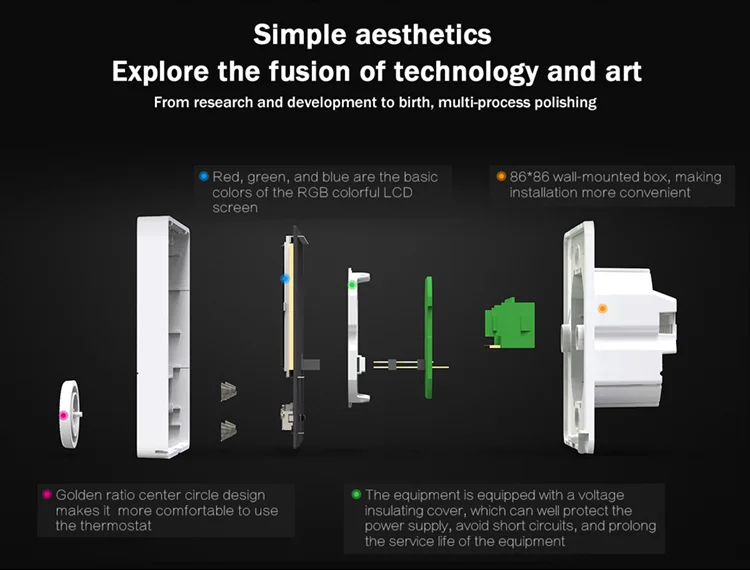

6. Choose from a 60-mm round European Hidden box or 86mm hanging box.
7. With the child lock function
8. With the child lock function
9. Output delay time setting
10. Tuya Smart / Smart Life WIFI Phone Remote Control
11. Alexa / Google Home Voice Control

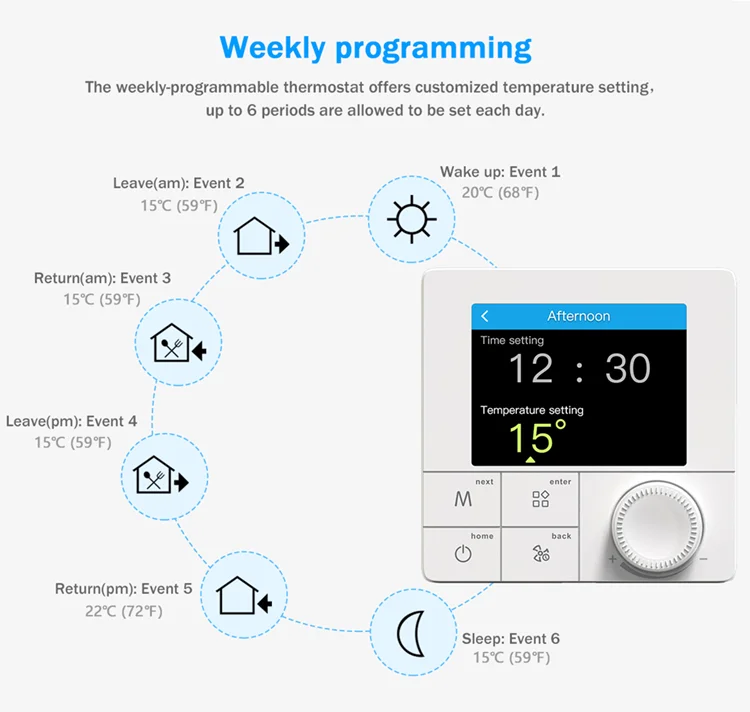

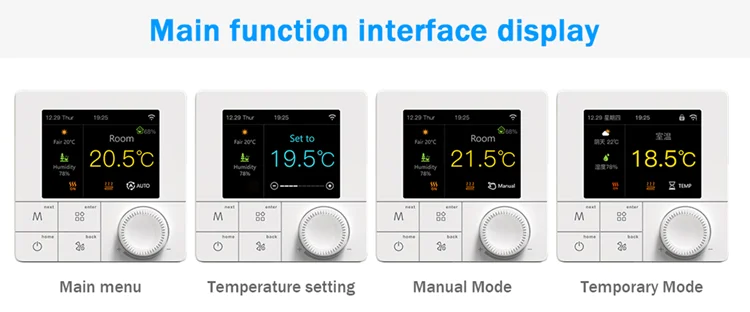

12. The thermostat has a manual automatic, programmable, and memory state.
13. Multi-language: Thermostat can display English, Italian, and Russian.

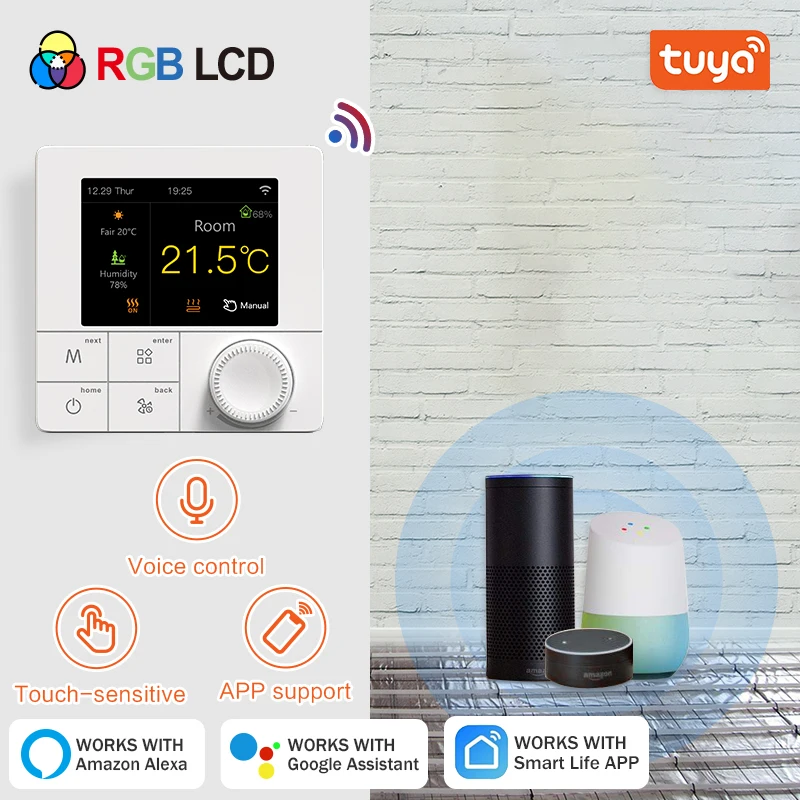

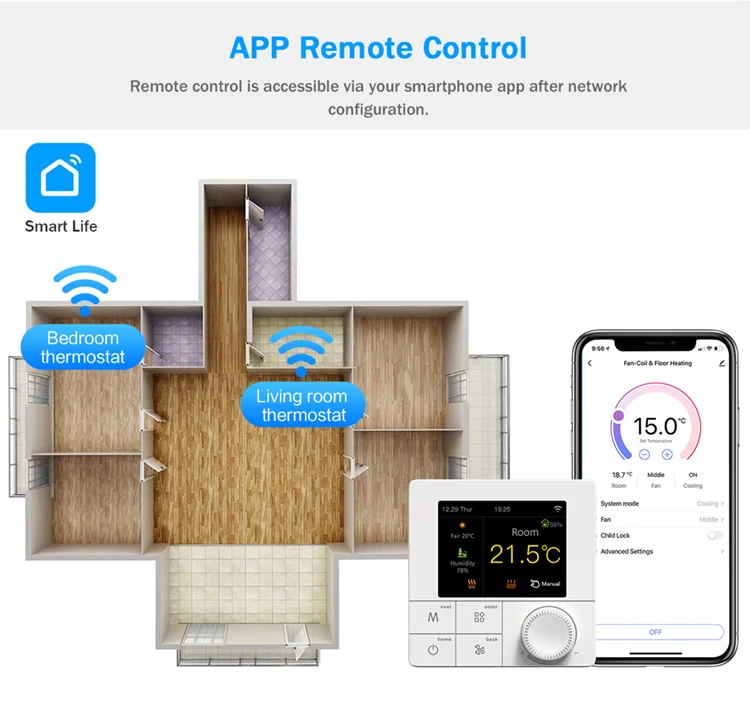

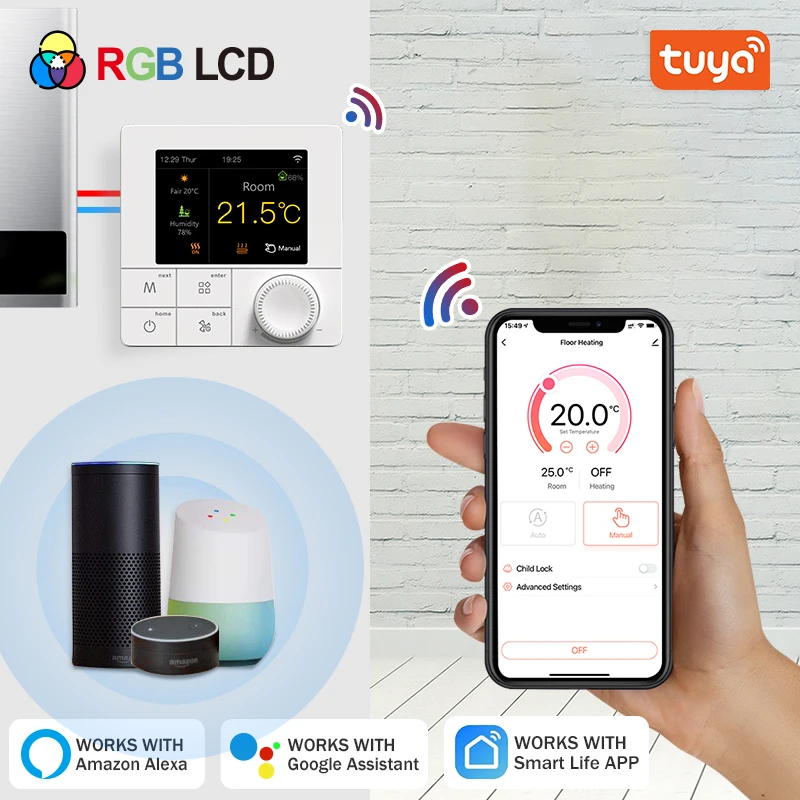

WIFI Control
Works with Tuya Smart and Smart Life App. Just turn on Bluetooth for a quick connection. No matter where you are, you can control the temperature at any time.
Smart WiFi Thermostat Voice Control
Supports voice control through Google Assistant and Amazon Alexa

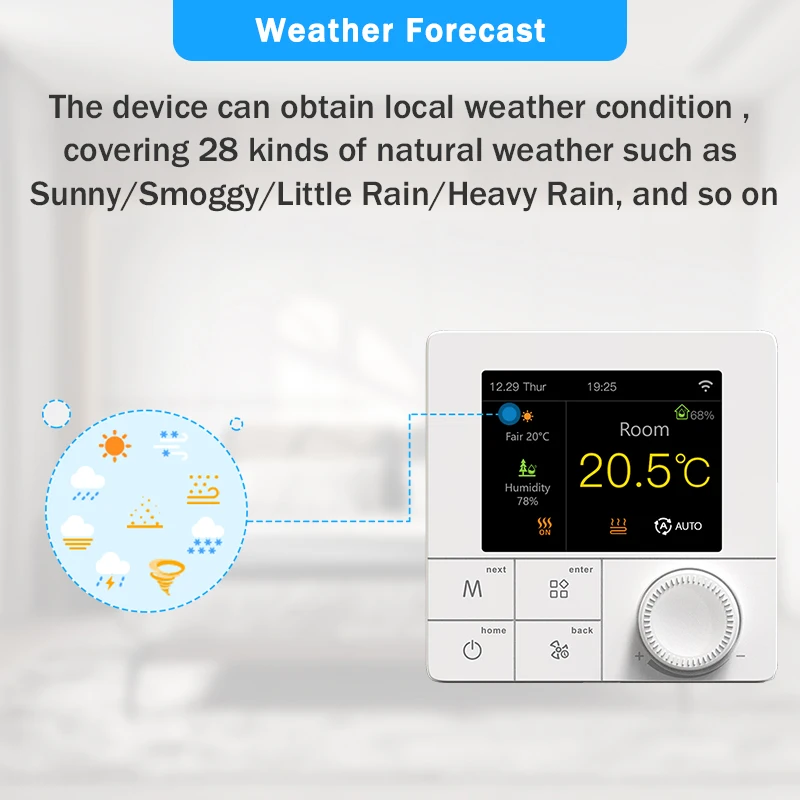

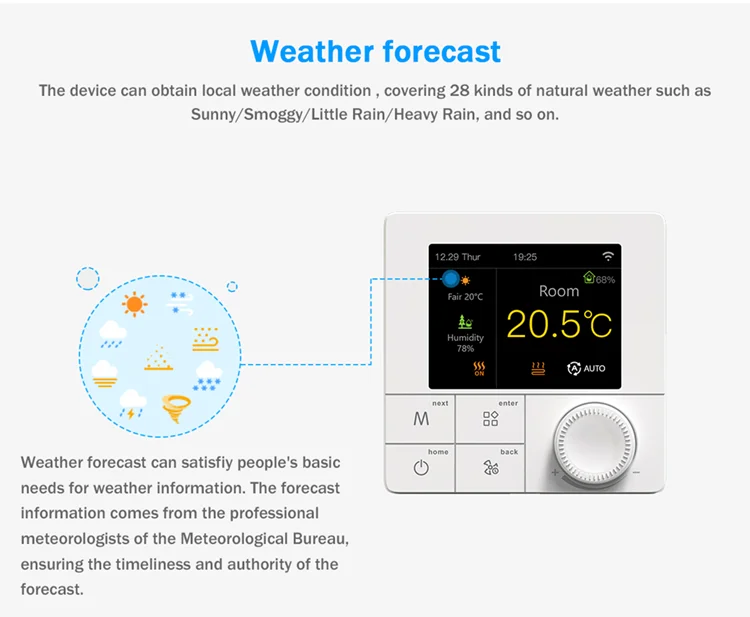

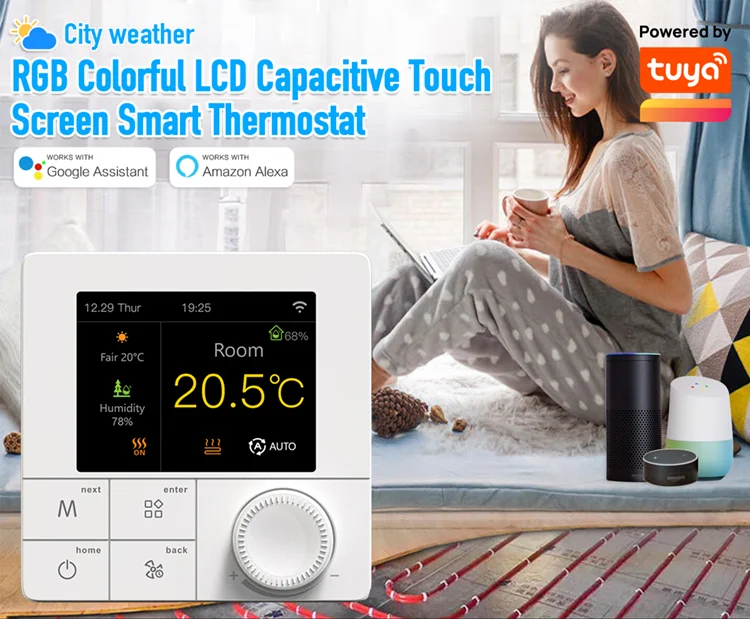

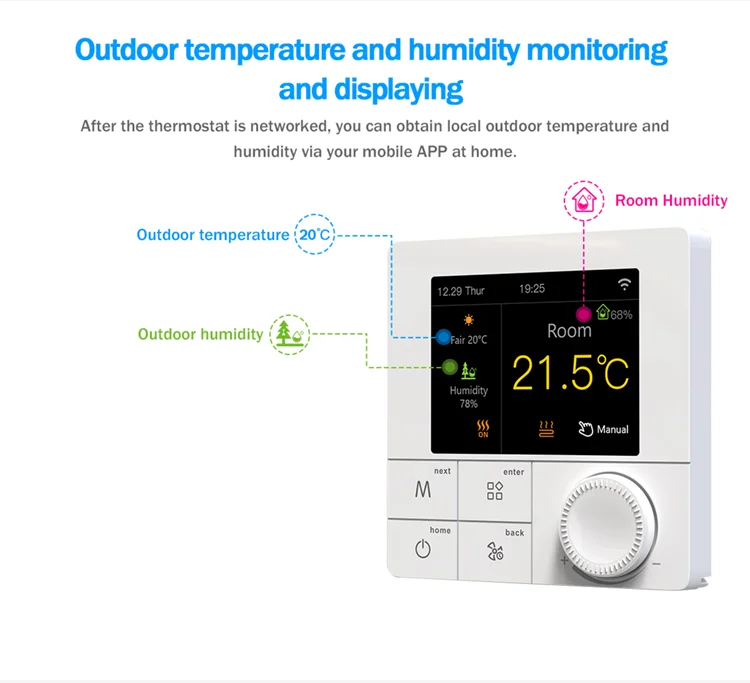

Weather And Humidity Display
Synchronization of humidity and weather in your city when connected to wifi.
Technical Specifications
Supply voltage :AC100~240V; 50/60Hz
Current Load: 3A and 16A (Option)
Power consumption :1W Max (Wi-Fi 3W Max)
Temp. setting range :5~95℃(41~99℉)
Floor limited range:20~90℃(68~99℉)
Temp. Dif:0.5~10℃(1~10℉), Factory setting ±1℃
Ambient temperature :-5~50℃(23~99℉)
Protection level: IP20
Shell material: Anti-Flammable PC
Sensor:
16A model thermostat including floor sensor
3A model thermostat without floor sensor

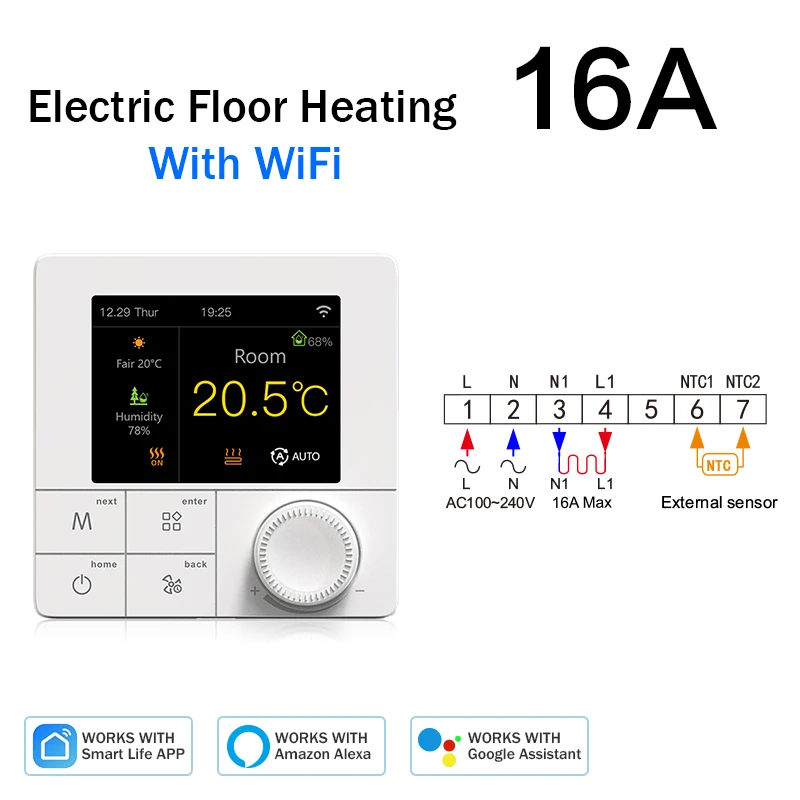

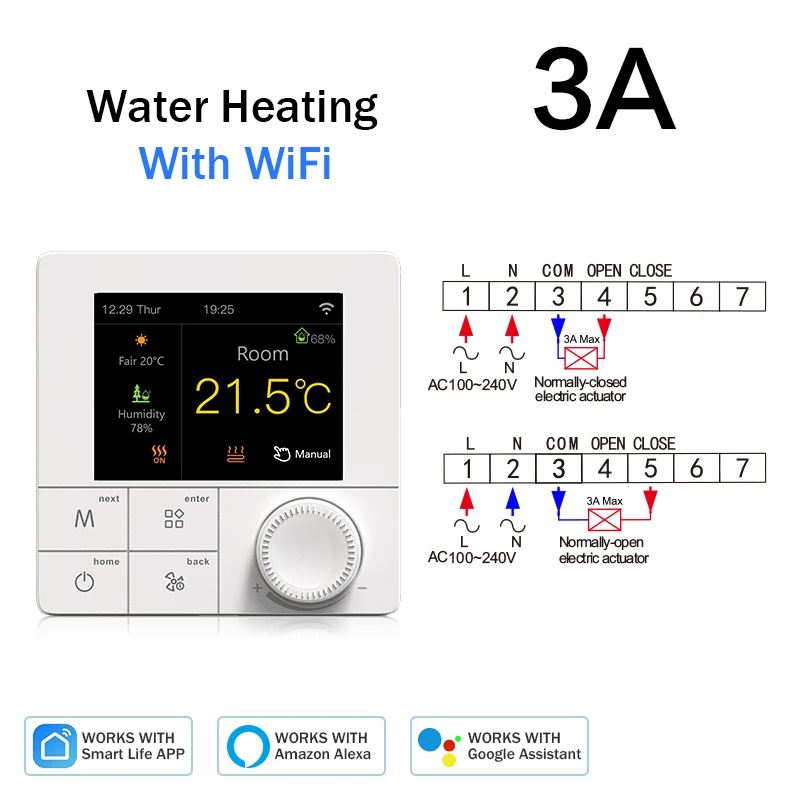

WiFi Thermostat Underfloor Heating Termostato Wiring Disgram
The Model: R8C.716
16A Electric Floor Heating Thermostat WiFi
The Model: R8C.703
3A Water Underfloor Heating Thermostat

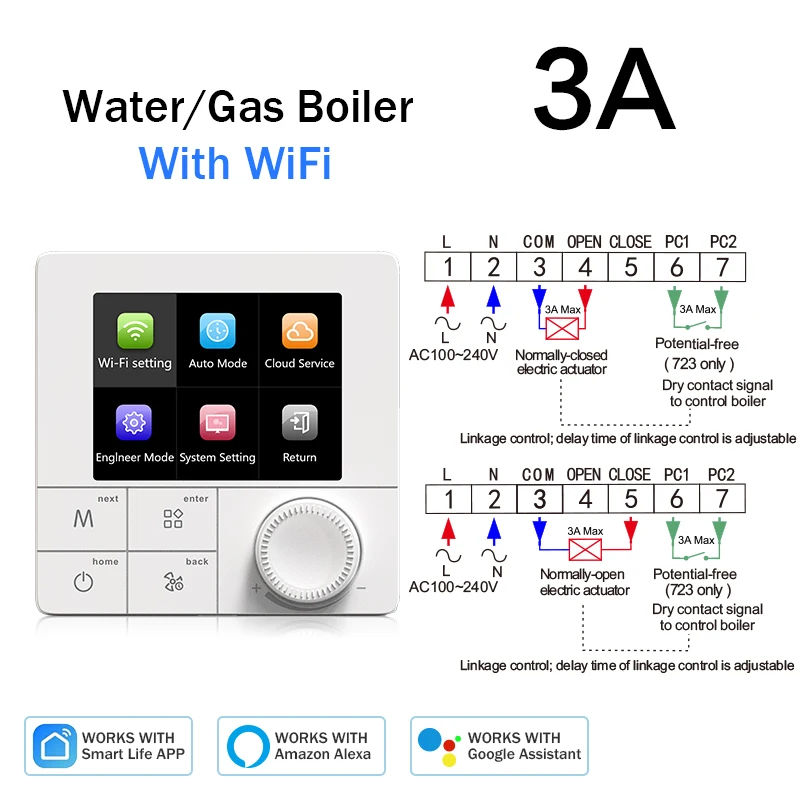

The Model : R8C.723
Water Gas Bolier Heating Wifi Thermostat

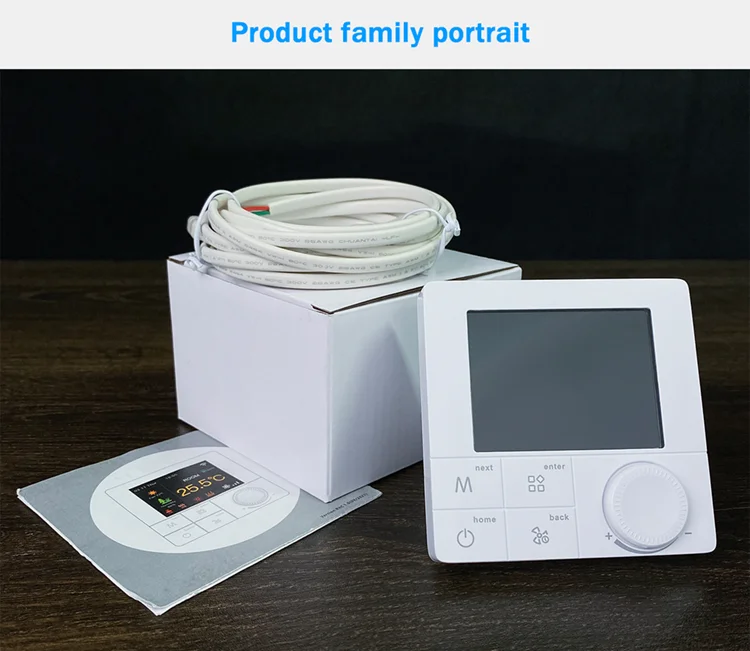

Smart Wifi Warm Floor Heating Temperature Controller Package List
16A thermostat: With 3Meter floor sensor
3A thermostat: Without a Floor sensor
