Wifi Tuya Door Access Control System Kit Set Waterproof RFID Keypad Controller APP Remote Unlock, Electric Magnetic Strike Locks
Access Controller
IP68 Waterproof Wifi Tuya APP RFID Access Controller
Wifi Tuya APP / RFID Card / Password / RFID Card + Password unlock methods
- User capacity: 10000 user
- Material: ABS high quality material
- Panel: touch screen panel
- Working frequency: 13.56MHz and 125KHz dual frequency
- Card reading type: support EM and MF 1K compatible card
- Card reading distance: 0-5CM
- ldentification method: RFID card, Password, RFID Card plus Password, Tuya APP remote unlock.
- Record capacity: Tuya APP remotely view the latest lock opening information
- Backlight: has blue backlight
- Waterproof function: IP68 waterproof, can be installed outdoor
- Doorbell button: support wired doorbell
- Wiegand signal: WG26/34 output
- Working voltage: DC 12V
- Working current: ≤3A
- Door opening time: 0~99 seconds
- Can set Management card: Yes
- Working temperature: -20 ~ 70 Degrees Celsius
- Working Humidity: 10% ~ 90%
- Product size: 115*72*17mm
Product Details:
About Tuya APP
-
You can add Password, RFID cards on the APP, it's very convenient.
-
You can open the door with Tuya APP unlocking button, or Tuya password.
-
A periodic password can be set, and the password is valid for a certain period of time.
-
You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
-
Supports sharing password via WeChat, Email and SMS.
-
Can view unlock records. Click reminder information to view logs.
Tuya APP Setting Instruction
1) Scan QR code to download Tuya APP or Search Tuya on App store to download it.
2) Enter *123456 # 041# on the access control machine, wait for 5 seconds for the indicator light to flash and start pairing, pair with the mobile phone via WiFi.
3) Open Tuya APP to add new equipment.
4) Select "Camera & Lock", click "Lock(Wi-Fi)".
5) Connect with available devices. Choose Wi-Fi and enter password.
6) Confirm that the device indicator flashes and click "Done".
7) Select "AP Mode".
8) Connect mobile WiFi to device hotspot.
9) Connecting, Added successfully, click "Done"
10) Click setting, open remote unlock setting.
11) Select user, click "+" to add user, fill in name, click next step, then click “Add" to input 6 digits code or generated code randomly, fill in code name or card name, click "Save".
12) Swiping one card within 60 seconds, add card successfully, then fill card name and click "Done".
13) Then input the related information and click "Next step".
14) Add temporary code, click "Once" , input code name, click "Save offline code" , Done.
Notice: The code valid time for 6 hours and only can be used once.
15) Add ordinary user by clicking ordinary member “+”.
2) Enter *123456 # 041# on the access control machine, wait for 5 seconds for the indicator light to flash and start pairing, pair with the mobile phone via WiFi.
3) Open Tuya APP to add new equipment.
4) Select "Camera & Lock", click "Lock(Wi-Fi)".
5) Connect with available devices. Choose Wi-Fi and enter password.
6) Confirm that the device indicator flashes and click "Done".
7) Select "AP Mode".
8) Connect mobile WiFi to device hotspot.
9) Connecting, Added successfully, click "Done"
10) Click setting, open remote unlock setting.
11) Select user, click "+" to add user, fill in name, click next step, then click “Add" to input 6 digits code or generated code randomly, fill in code name or card name, click "Save".
12) Swiping one card within 60 seconds, add card successfully, then fill card name and click "Done".
13) Then input the related information and click "Next step".
14) Add temporary code, click "Once" , input code name, click "Save offline code" , Done.
Notice: The code valid time for 6 hours and only can be used once.
15) Add ordinary user by clicking ordinary member “+”.
Support Tuya APP remote unlock
You can hold and press the unlock icon to open the door
You can hold and press the unlock icon to open the door
Support Temporary password unlock
You can set Tuya APP temporary password. Supports sharing password via WeChat, Email and SMS.
You can set Tuya APP temporary password. Supports sharing password via WeChat, Email and SMS.
Support RFID Card, Password, RFID Card plus Password, Tuya APP to open the door
Support 1000 RFID card and password user capacity.
Support 1000 RFID card and password user capacity.
Can set Management card, very easy to program.
Don't need to connect on computer.
Management cards was not included in the package, need to set them by yourself.
Don't need to connect on computer.
Management cards was not included in the package, need to set them by yourself.
ABS fire retardant material shell
Touch keyboard, very beautiful design. Has a door bell button, can install a wired door bell
Can set normally open mode.
Frequent entry and exit can be set to normally open model
Frequent entry and exit can be set to normally open model
IP68 Waterproof. Can be installed outdoor
With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm
Blue Backlight keypad
The digits number can be seen clearly even at dark
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.
Suitable for most major access control solution.
Power Supply:
This is AC110-260V, DC12V/3A power supply switch for access control system. Can connect to all kinds of access controoler, electric lock, exit button, remote control, etc. Help to reduct the overload of the access controller. NC/NO output mode cam be selected for different types of electric lock.
- Model Name: K803A
- Material: Steel
- Input Voltage: AC110-260V
- Input Frequency: 50-60Hz
- Output Voltage: DC12V/3A
- Output Power: 36w
- Dimension: 105*91*34mm
- Time Delay: 0-15 seconds
Door Exit Button:
Material: Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / W )
RFID Keyfobs:
125KHz frequency RFID keyfobs
Operating frequency: 125KHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.
Operating frequency: 125KHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.
Package List
Kit1: Including access control keypad + 10pcs keyfobs+ Power supply+ Door exit button. Not including electric lock.

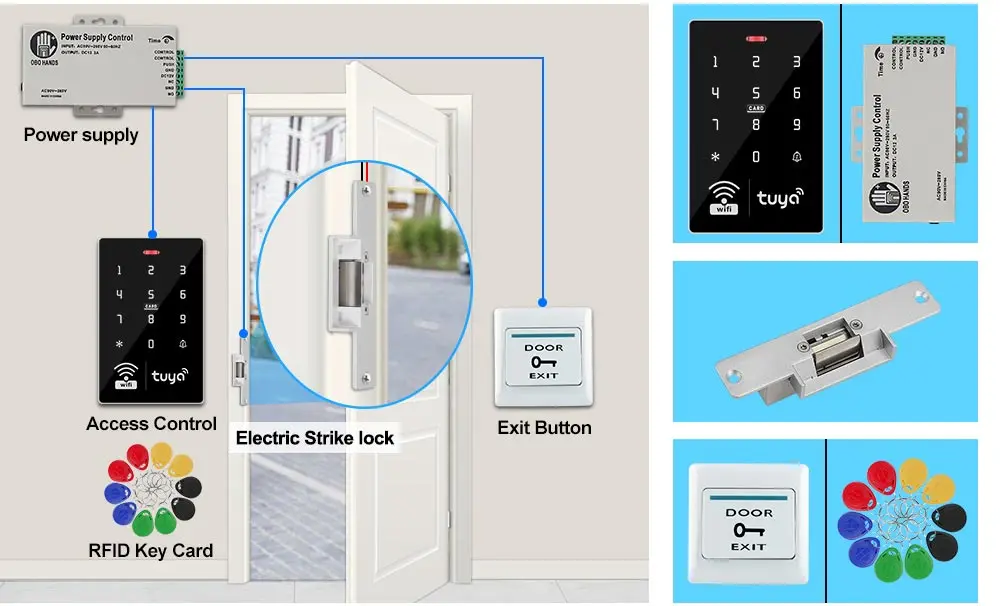

Kit2: Suitable for wooden door, metal door. convenient and beautiful. No need bracket.
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs
(We will send the NC type by default, if you want NO type, please leave us a message.)
Working Voltage: 12V ± 10%
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）

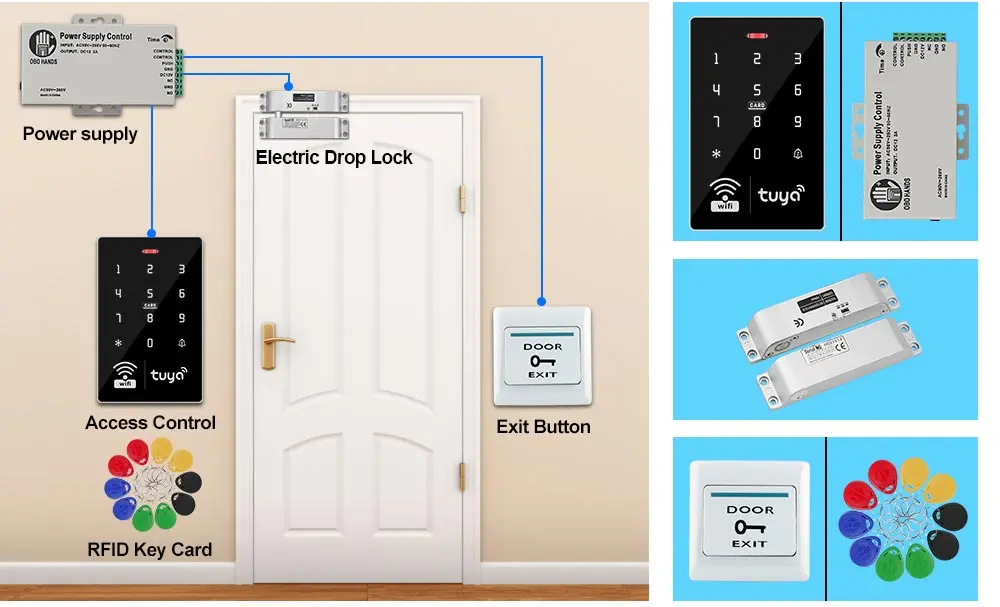

Kit3: Suitable for wooden, metal and Stainless steel door. No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs
Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )

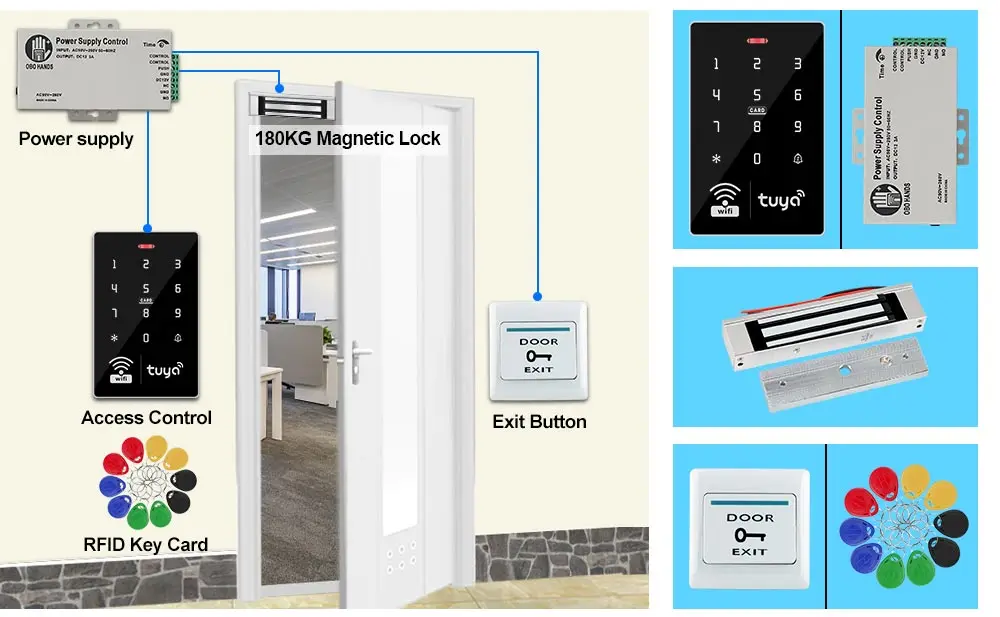

Kit4: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs.
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside

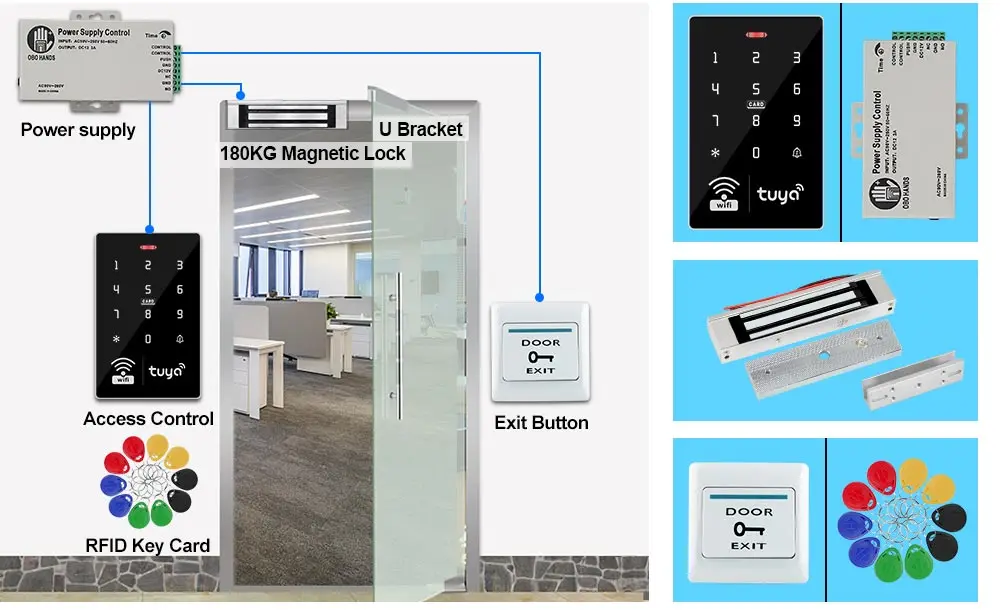

Kit5: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs.
If your door is frameless glass door, then will need a U bracket
Size of U Bracket: 130* 33 * 26mm (L/W/H)

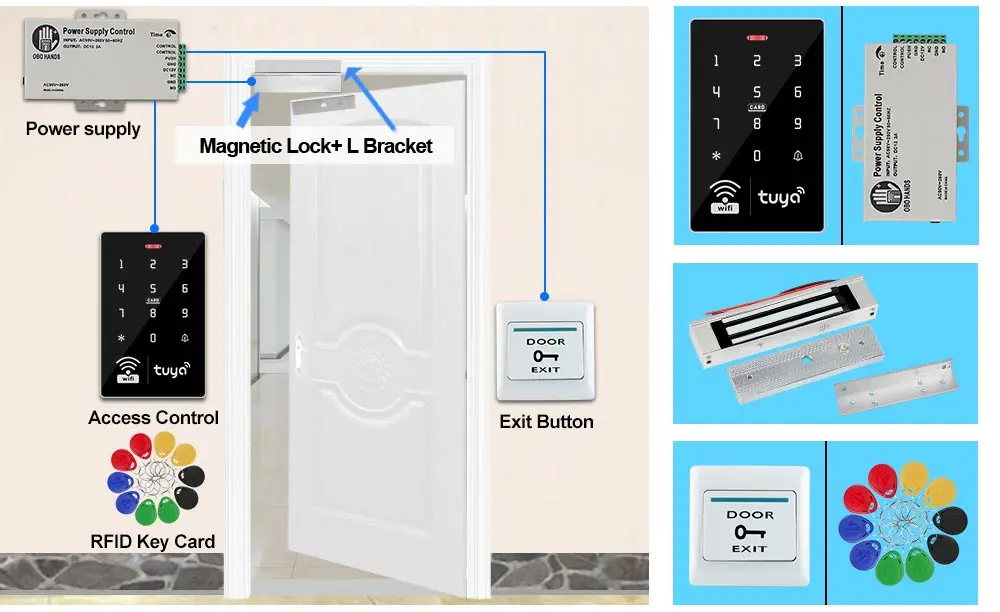

Kit6: Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs.
Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket: 170* 34 * 25mm (L/W/H)

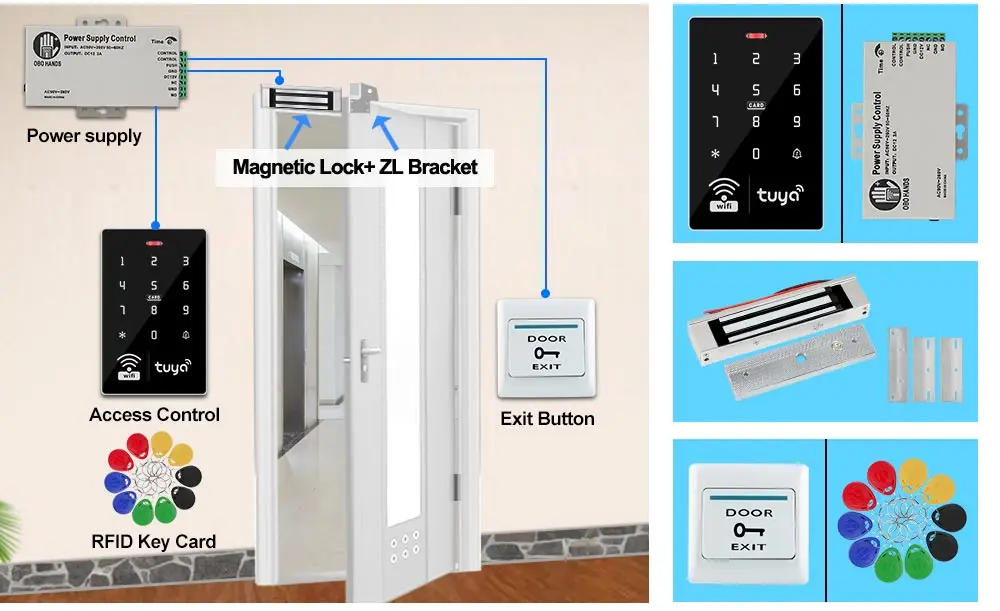

Kit7: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs.
If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)

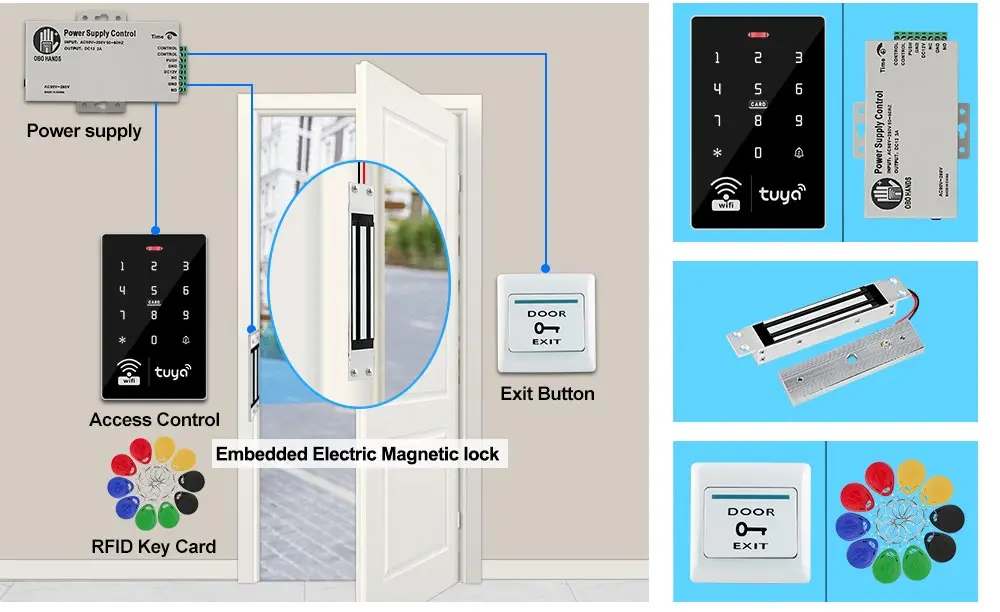

Kit8: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs.
Size of the Lock: 192Lx33Wx20H(mm)
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA

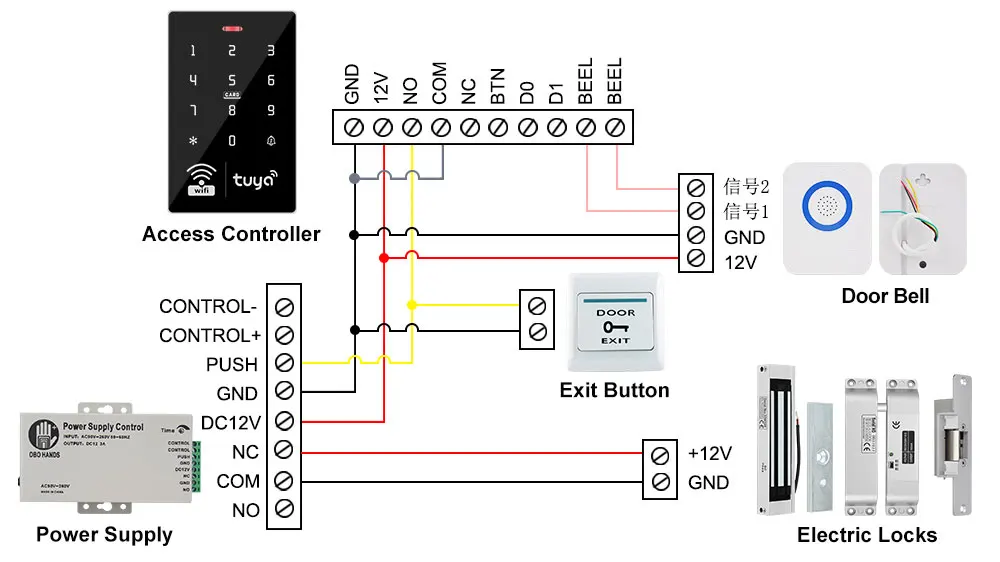

Wiring Diagram
Connect the access control keypad, electric lock, door exit button to the DC12V power supply, then connect the DC12V power supply to AC220V power. (The door bell in the picture was not included, need to buy extra.)
