– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
– Before using App to control the shutter, please keep the wall manual switch at ‘STOP’ position, otherwise , the App can’t work, it’s to protect the motor.

APP Name: Tuya App or Smart Life App

Support : Android and IOS

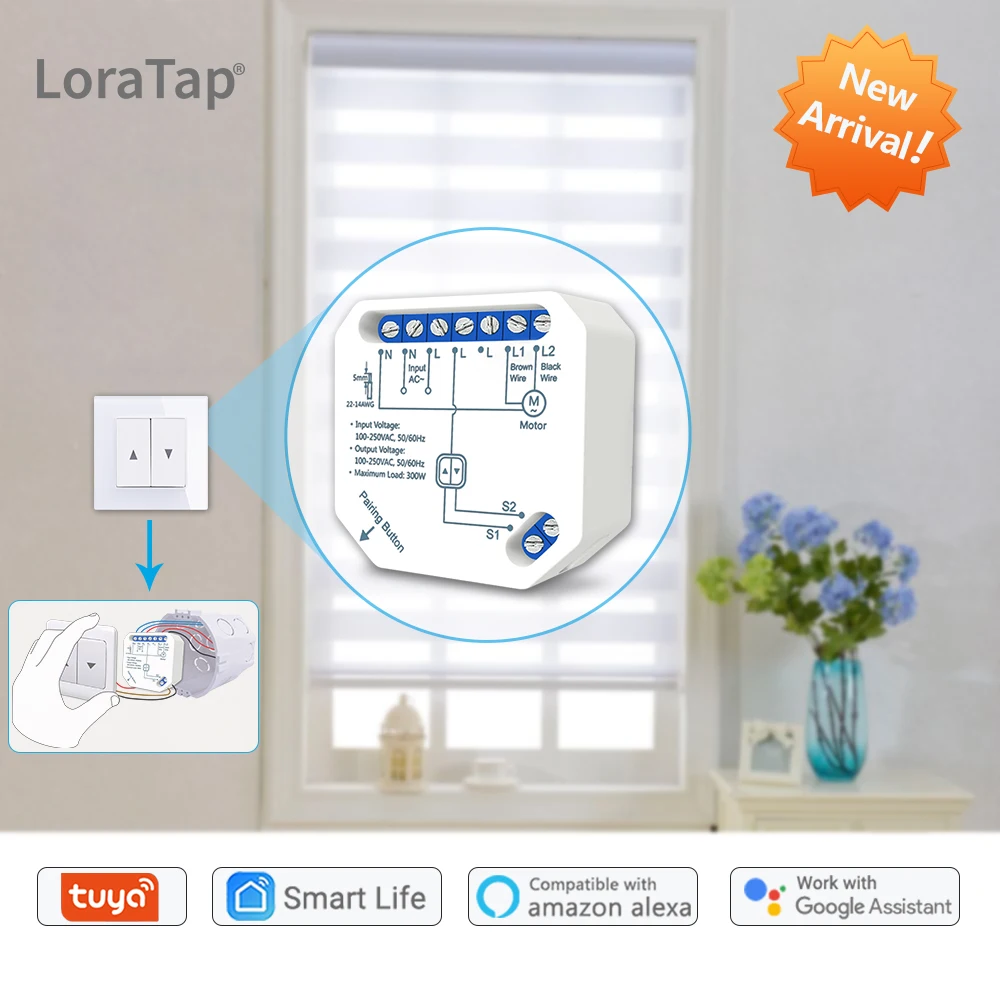

NEW WiFi Smart Curtain Blind Switch Module Make your roller shutter smart

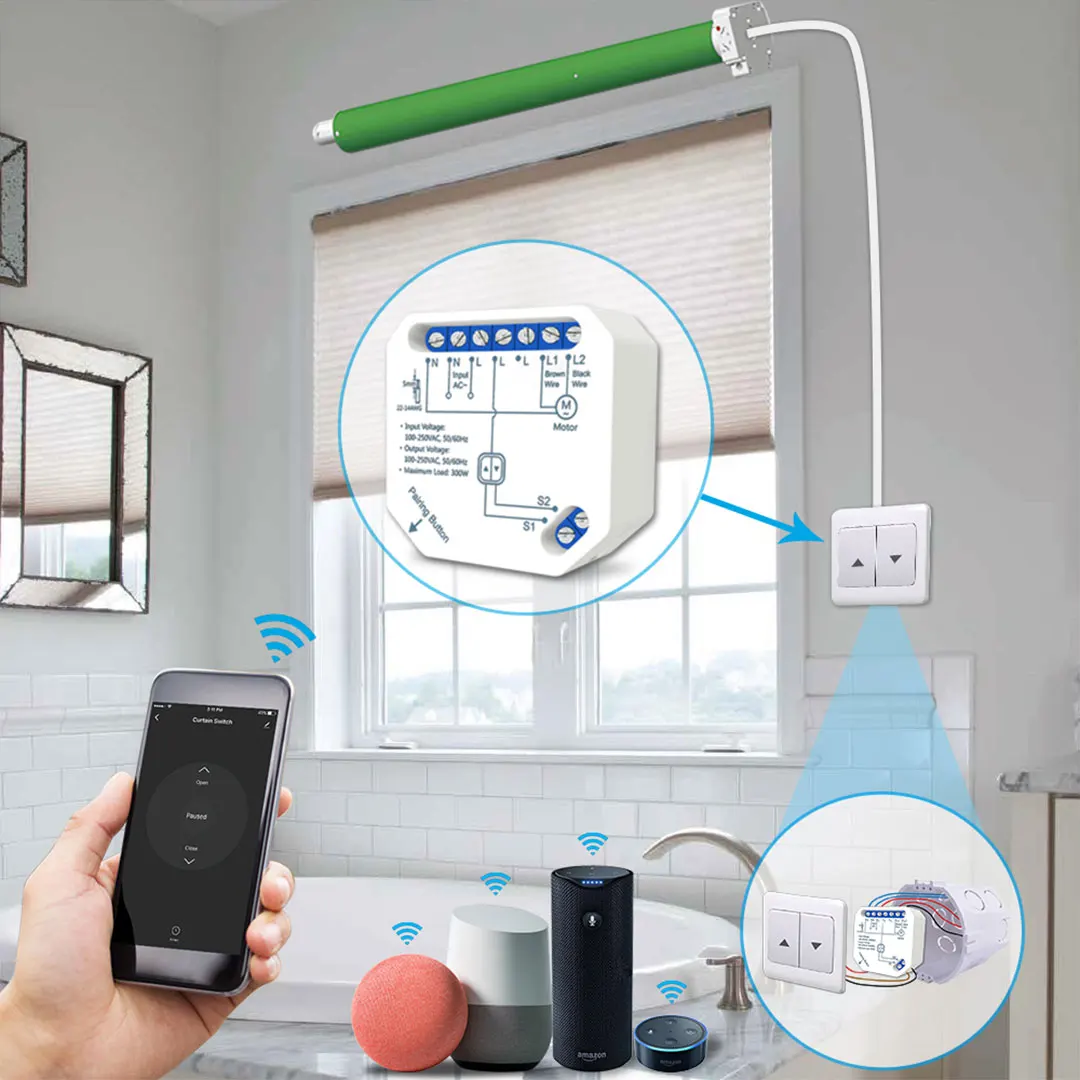

After you install this module, your wall manual switch still works, it can open , pause, or close the shutter, and also it becomes smart.
1. Mobile phone remote control open or close
2. You can set timer schedule for when to open or close your window or roller shutter
3. Voice Control with Google Home, Amazon Alexa

Hands free- Voice Control

Voice Control with Google Home, Amazon Alexa

Set Timer Schedule for your curtain

Set timer on App for when to open, when to close your curtain, it will open or close automatically.

Remote control with your mobile anywhere even you are not at home

– Group Function and Device Sharing

You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

Compact Mini size

Tiny size design enable it can fit most junction box.

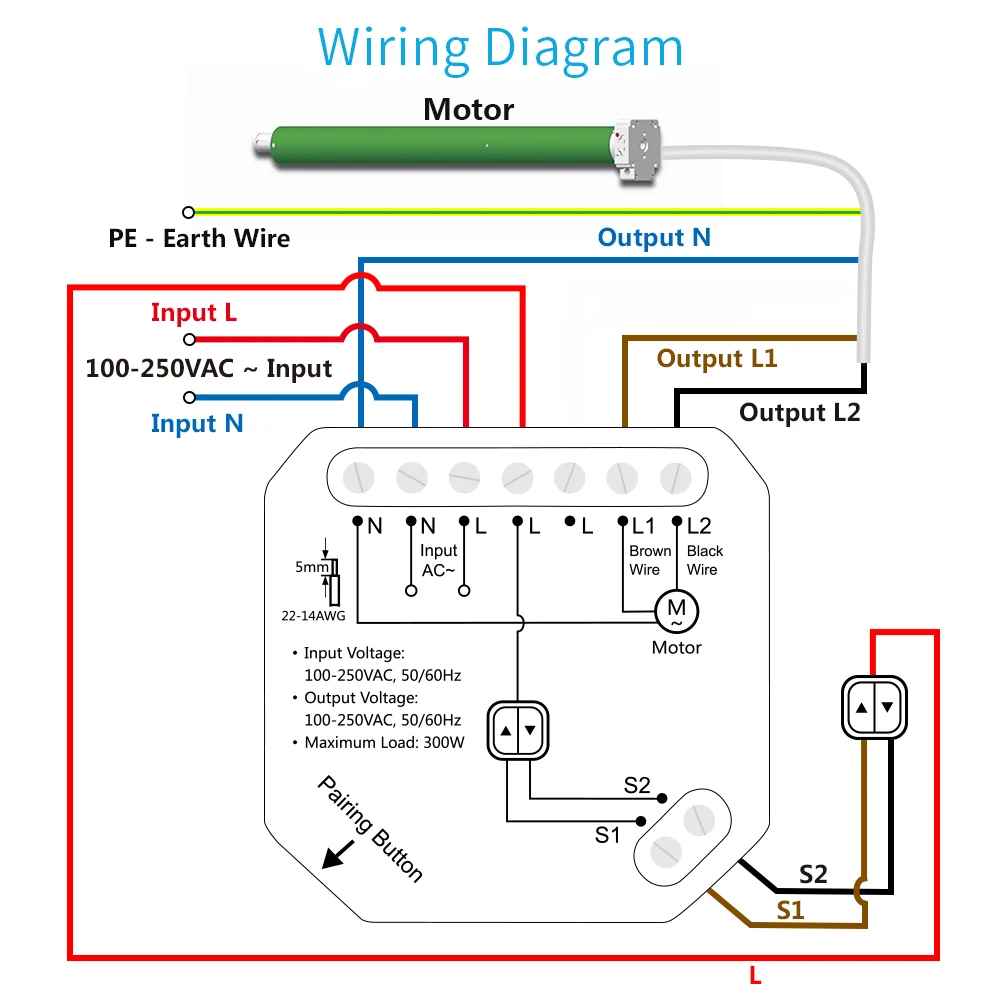

2 Wiring diagram according to your need, to connect with your manual switch or don’t need a manual switch

– If you need to connect with your manual switch, please refer to below wiring diagram .
– To protect the motor, before using App to control the shutter, please keep the wall manual switch at ‘STOP’ position.
– If you need any help for how to connect the module, please be free to contact with seller.

– If you don’t need to connect with your manual switch, please refer to below wiring diagram .
– If you need any help for how to connect the module, please be free to contact with seller.

Specification

Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wi-Fi Standard: 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Standby Consumption: below 0.5W
APP Name: Smart Life or Tuya
Voice Control: Google Assistant, Amazon Alexa
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes

We have all the accessories you need in the box, you don’t need to pay extra cost.

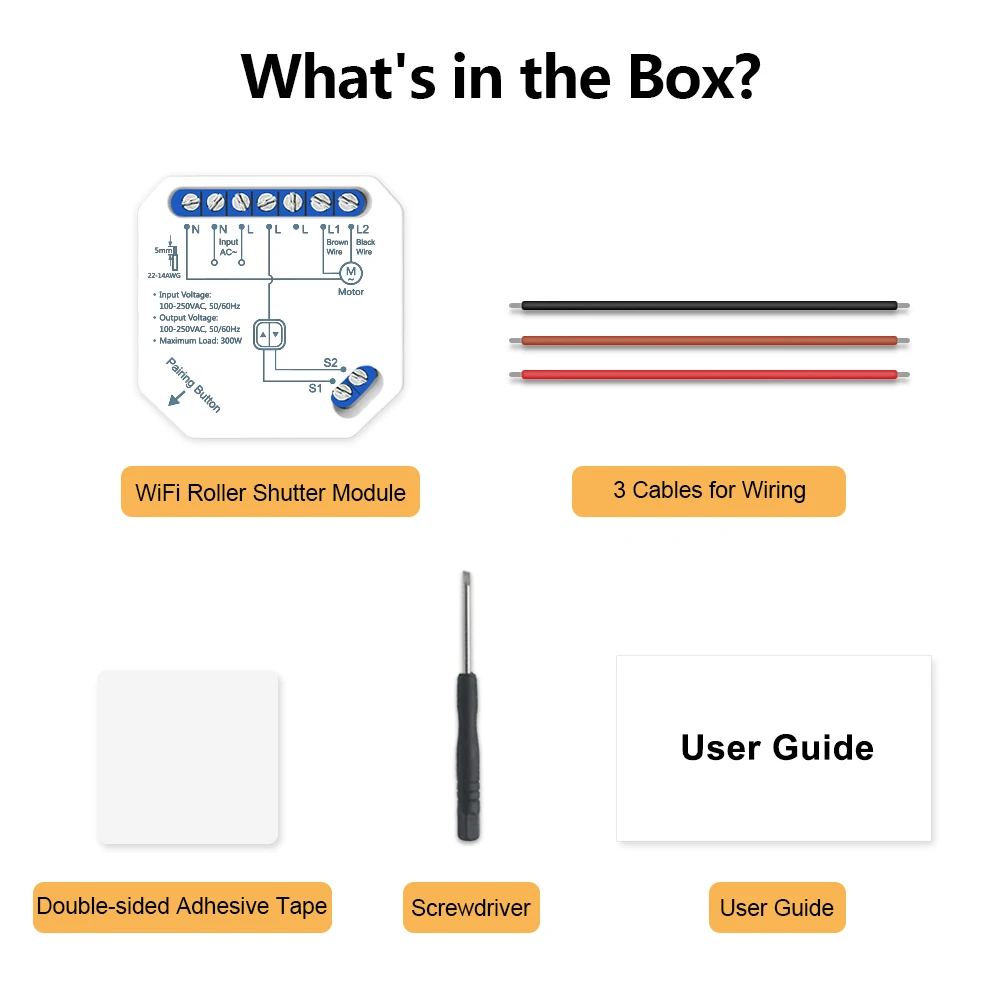

What’s in the box?

1 * Wi-Fi Smart Curtain Switch Module
1 * Screwdriver
3 * Cable for Wiring
1 * Double-Sided Tape
1 * English or French or Germany or Spanish User Guide
