Specifications

From the APP You Can Read:

Hourly Elec. (KWh)
Weekly Elec. (KWh) on 'Smart' Page
Daily Elec. (KWh), on 'Smart' Page
Monthly Elec. (KWh) on 'Smart' Page

Current Ele(mA),
Current Power(W),
Current Voltage(V),

Please note it's not a bidirectional meter, it can only measure the consumed power. and only show positive data on the App.

Technical Data

Rated Voltage:100-240V AC 50/60Hz

Measurable Current Range: 0.2A-80A

Protocol: ZigBee

WiFi Frequency: 2.4GHZ (Not Support 5Ghz)

Ambient Temperature Range:-10°C ~ 55°C

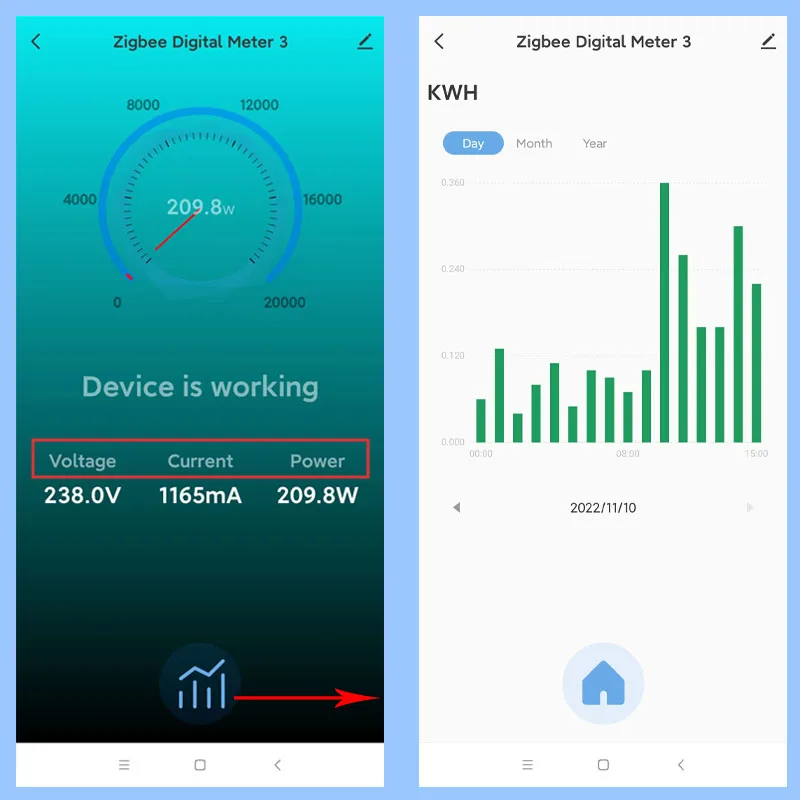

App Real Time Monitor Energy Consumed KWh. Voltage, Current, and Power, also can Monitor the Device Working Status

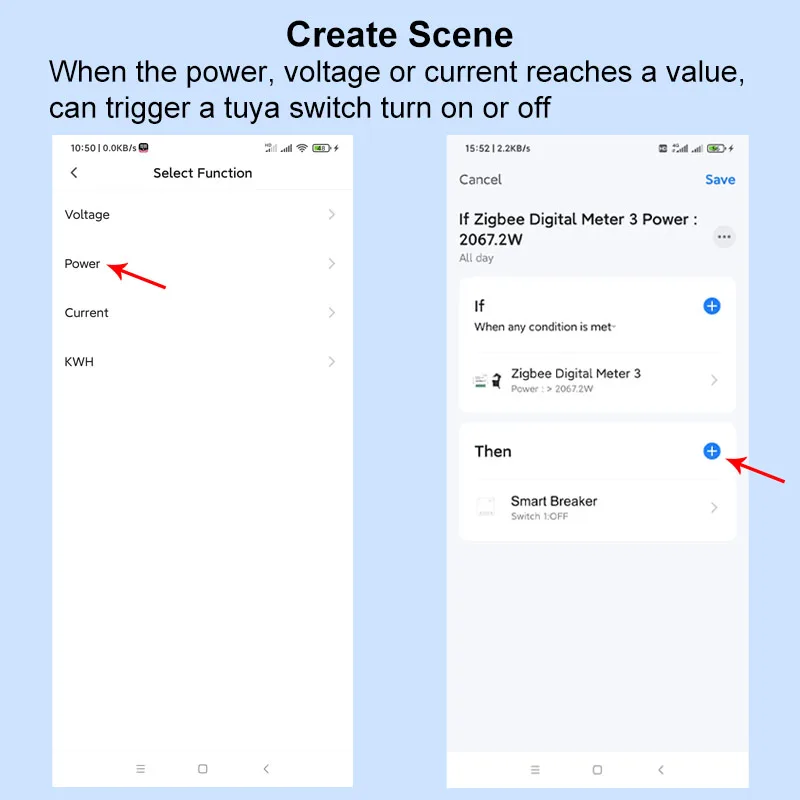

Automation, It allows to make a Scene for this device working with other Tuya devices

Set Automation for the Measured Device,
For example, If Power or Current Is over the Value, then other Tuya device starts to work.

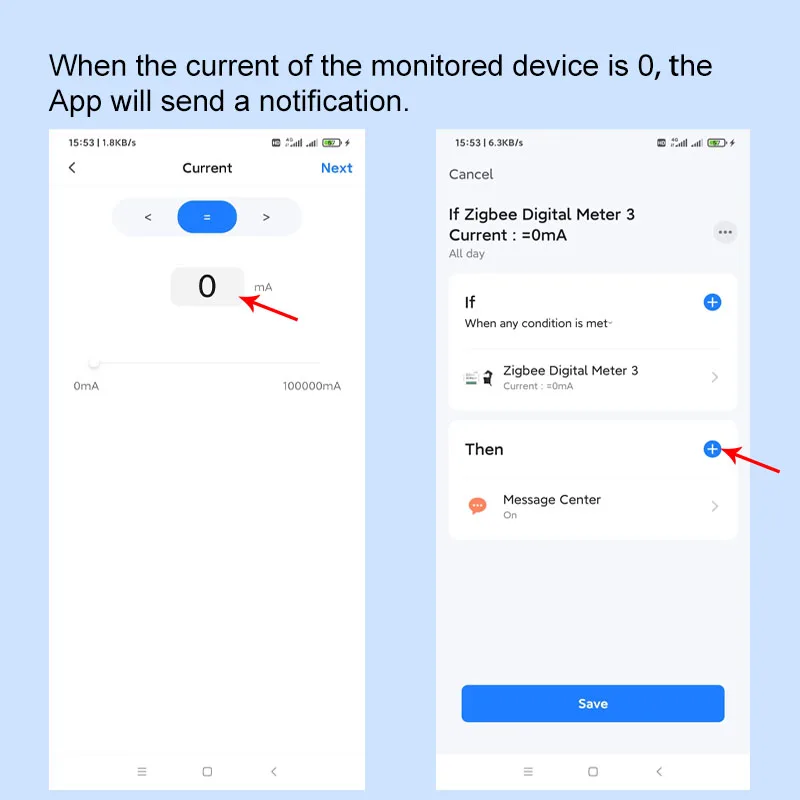

Automation. Send A Notification

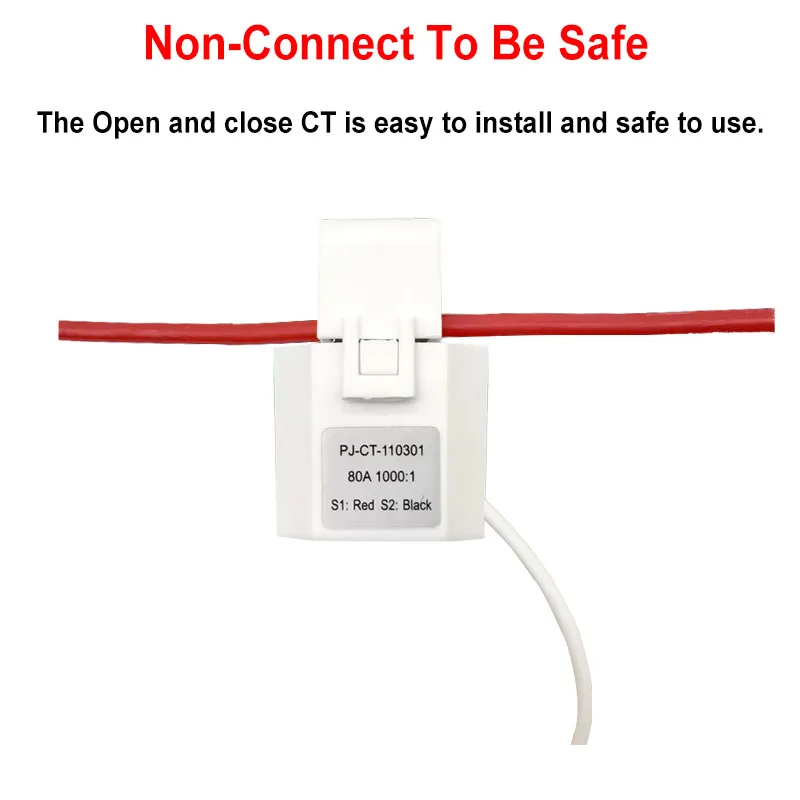

Non-connect to Be Safe, Easy, and Safe to Install

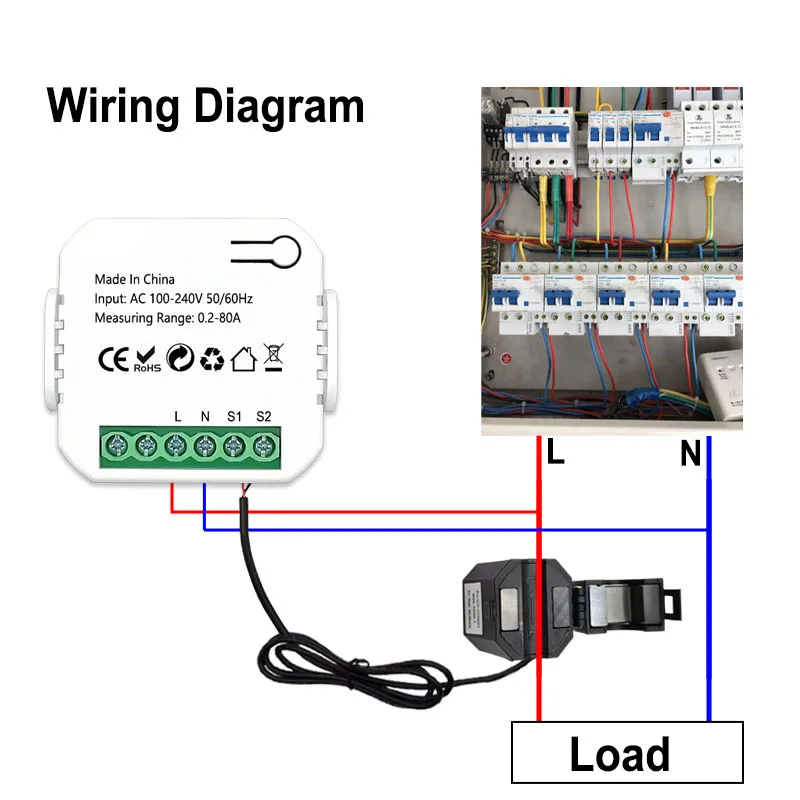

No need to change the wires, Just put the wire into the clamp, and then it can measure, very easily.



Additional information

Weight 0.0 kg
  • Author’s gravatar
    D***l
    2 months ago

    works with z2m but power (kWh) is a delta from last measure, need to check retain flag in settings

  • Author’s gravatar
    J***z
    2 months ago

    It works perfectly and fulfills its mission, but you must take into account some things if you want to integrate it into Home Assistant.

    There is still no official support with ZHA (I do not know if with Zigbee2MQTT it works since I do not use it). Home Assistant finds the device but then shows no consumption sensor. To solve this you must look for a “quirk” file and install it where it corresponds so that the sensors are generated.

    Once recognized as God intended, it works perfectly.

  • Author’s gravatar
    o***d
    2 months ago

    conforme

  • Author’s gravatar
    S***a
    2 months ago

    Energy consumption counting does not work well with Zigbee2MQTT on home assistant. Instant power and voltage seem correct.

Only logged in customers who have purchased this product may leave a review.

Vendor Information

Vendor: Digifolio

Rating: 4.65 rating from 3386 reviews
Company: Digifolio Ltd

Your name: Your email address: Your message:

£25.71£26.22 ex. VAT

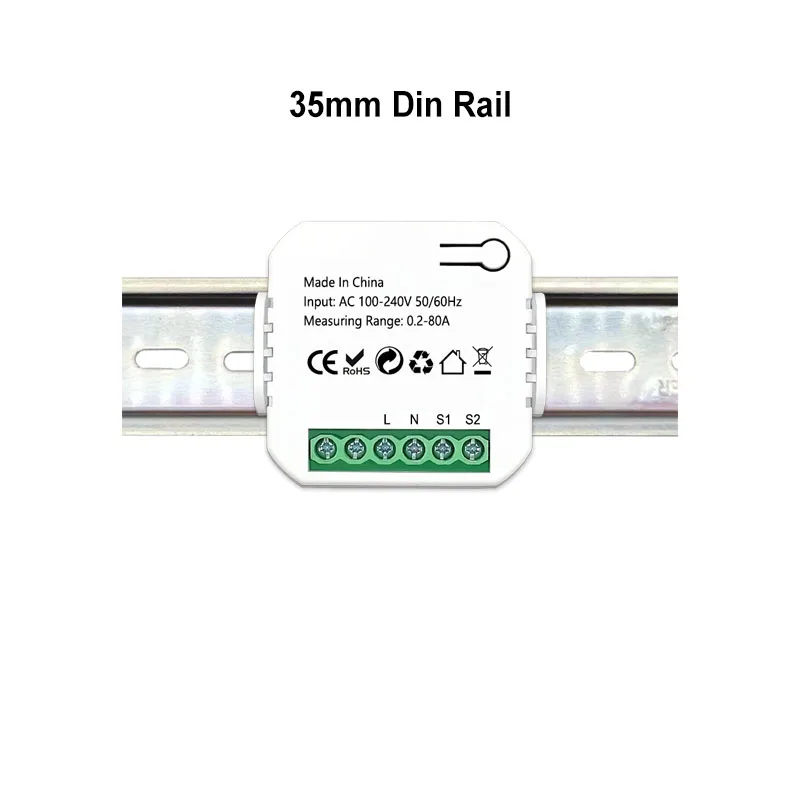

Tuya Smart Life ZigBee Clamp Power Digital Meter Energy Monitor 80A CT Din Rail App Electricity Statistics Single Phase AC
  • 0 Sales
  • 3 Ratings
  • 67 Views
Clear

Specification

Last Update: October 2, 2024
Relased: September 22, 2024
Color Black CT White CT
