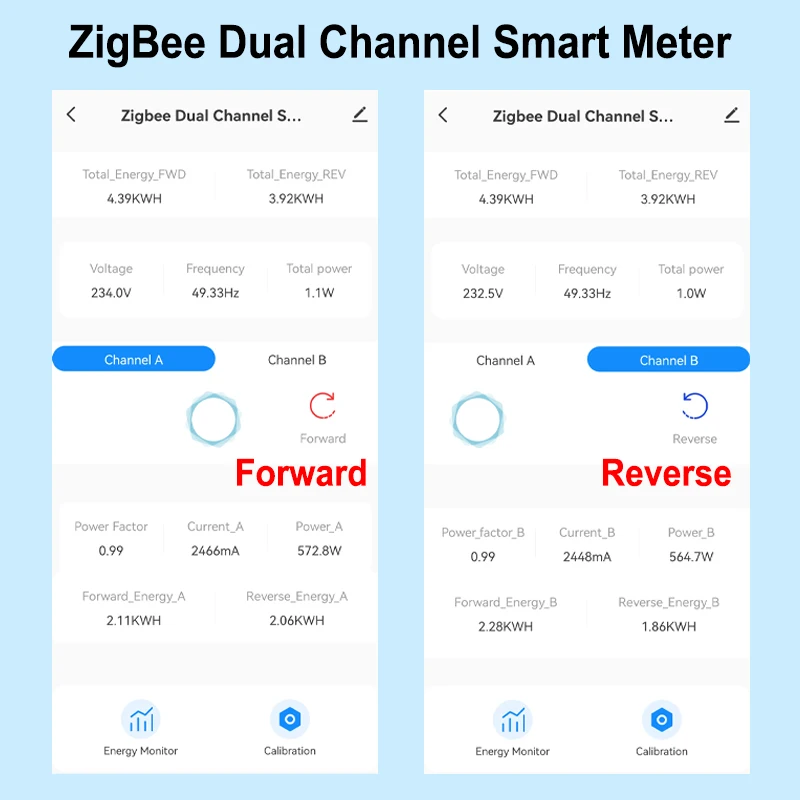

the app can display Channel A and B Real-time power, current, and voltage for Forward and Reverse direction clearly

The meter is allowed to do calibration

Calibration

The device can do calibration by adjusting the percentage

2 Channels For Reverse and Forward direction

1 Channel or 2 Channels are available to Choose And you can read from App for each Channel

– Real-time total power of 2 channels of reverse and forward direction
– Power for Channel A and B Separately(W)
– Current(mA)
– Voltage(V),
– Power factor, and Frequency(Hz)

Electricity Statistics for each channel in Forward and Reverse direction.

Hourly Elec. (KWh)
Daily Elec. (KWh),
Monthly Elec. (KWh)
-Yearly Elec. (KWh)

Technical data:
Rated Voltage:100-240V AC 50/60Hz

Measurable Current Range: 0.2A-80A

Protocol: ZigBee

WiFi Frequency: 2.4GHZ (Not Support 5Ghz)

Ambient Temperature Range:-10°C ~ 55°C

Electricity Statistic Channel A, B Separately and Total daily monthly, yearly Reverse and Forward Direction

Automation, It allows to make a Scene for this device working with other Tuya devices

Set Automation for the Measured Device,
For example, If Power or Current Is over the Value, then other Tuya device starts to work.

Wiring Diagram

1. To measure the power 'from Grid' and 'To Grid'
Please note to make sure the circuit measured is in the same phase as the circuit power to the module.

2. Measure the power consumption.
Please note to make sure the circuit measured is in the same phase as the circuit power to the module.

Non-connect to Be Safe, Easy, and Safe to Install

No need to change the wires, Just put the wire into the clamp, and then it can measure, very easily.

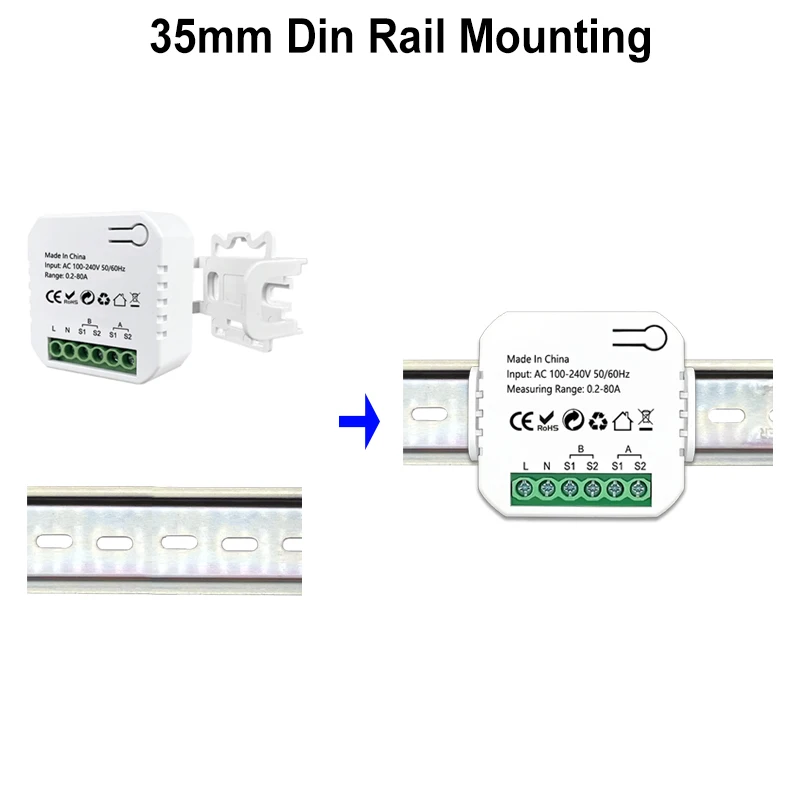

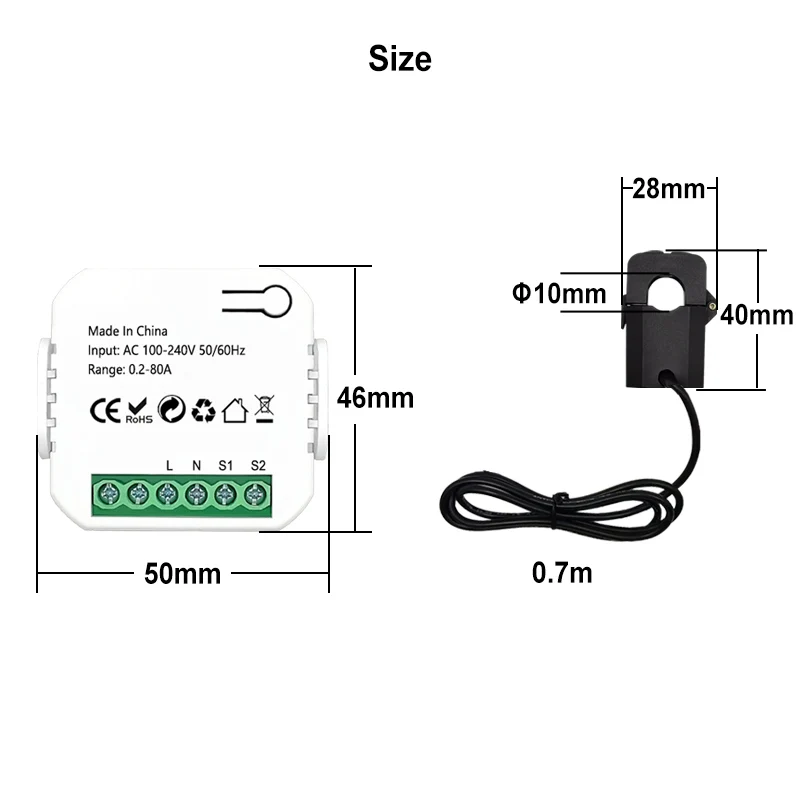

Small Size Module, Easy to Install



Additional information

Weight 0.0 kg
