1. Premium Material: This energy meter is made of ABS and PC material, with higher strength and toughness, higher temperature resistance, and better overall performance.

2. Multi-color Screen Interface Design: New intelligent design, higher definition interface, more accurate data display, more convenient operation, safer electricity use.

3. Multi-functional Design: Voltage, current, power, timing, electric energy, temperature, frequency, and power factor 8in1 design, convenient for users to understand the use of electric energy, and realize the visualization of electricity consumption. And with a power-off memory function.

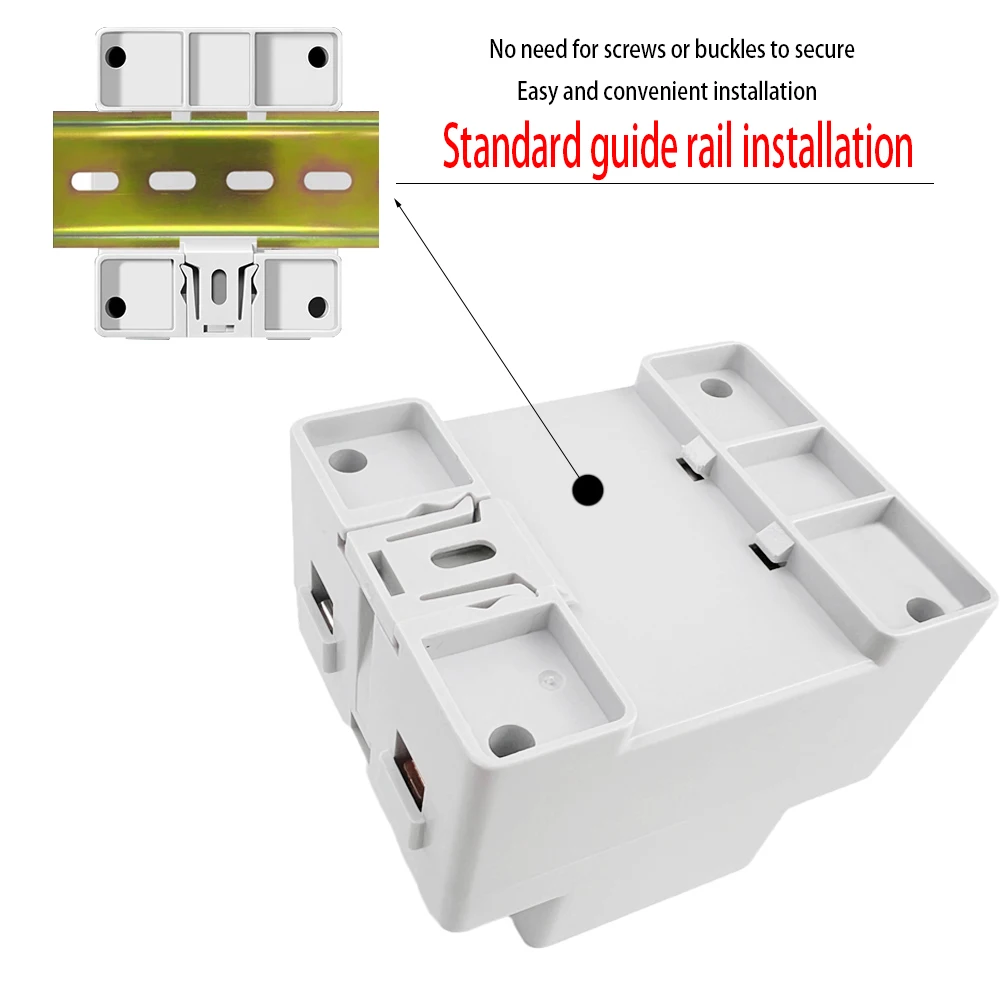

4. Guide Rail Slot Installation: Standard guide rail installation, no screws, snap-on mounting, convenient and easy to install.

5. Wide Applications: Suitable for high and low-power distribution cabinets, display cabinets and racks, factory assembly lines, corporate warehouses, rental apartments, companies, shopping malls, hotels, family homes, etc.

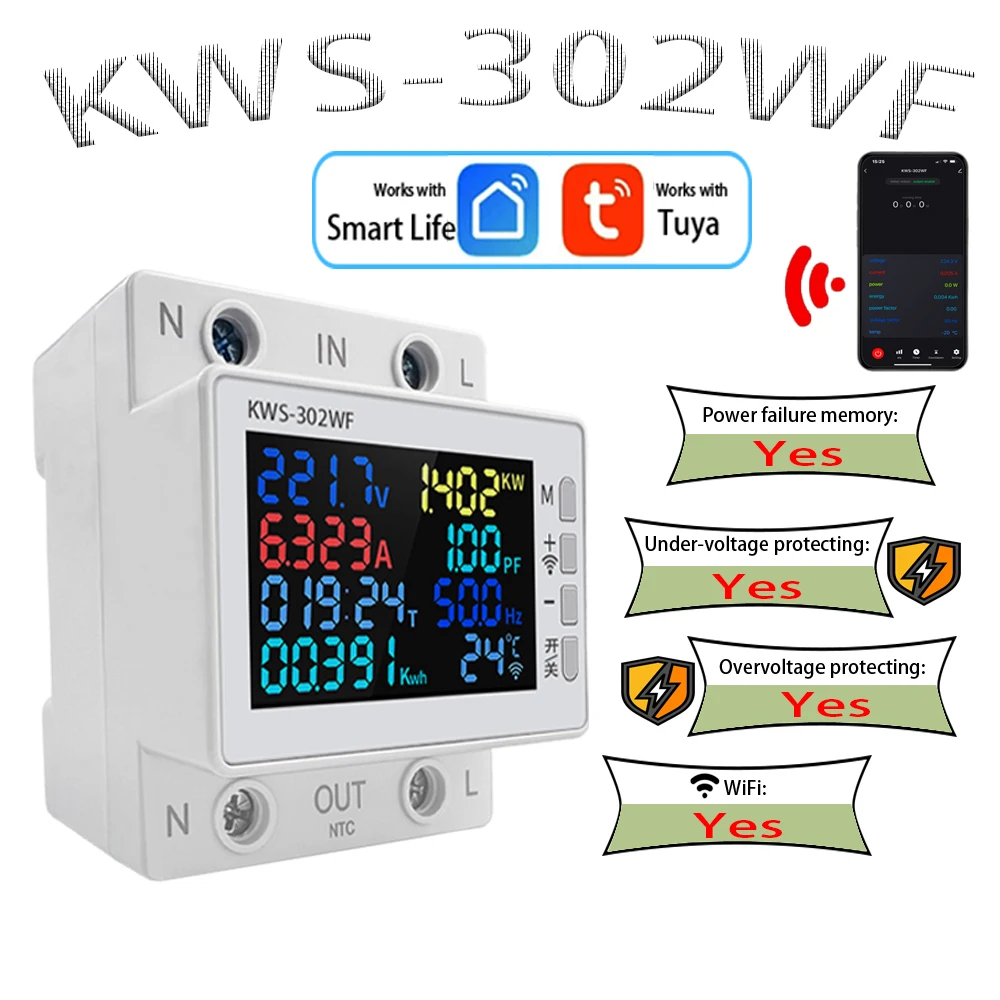

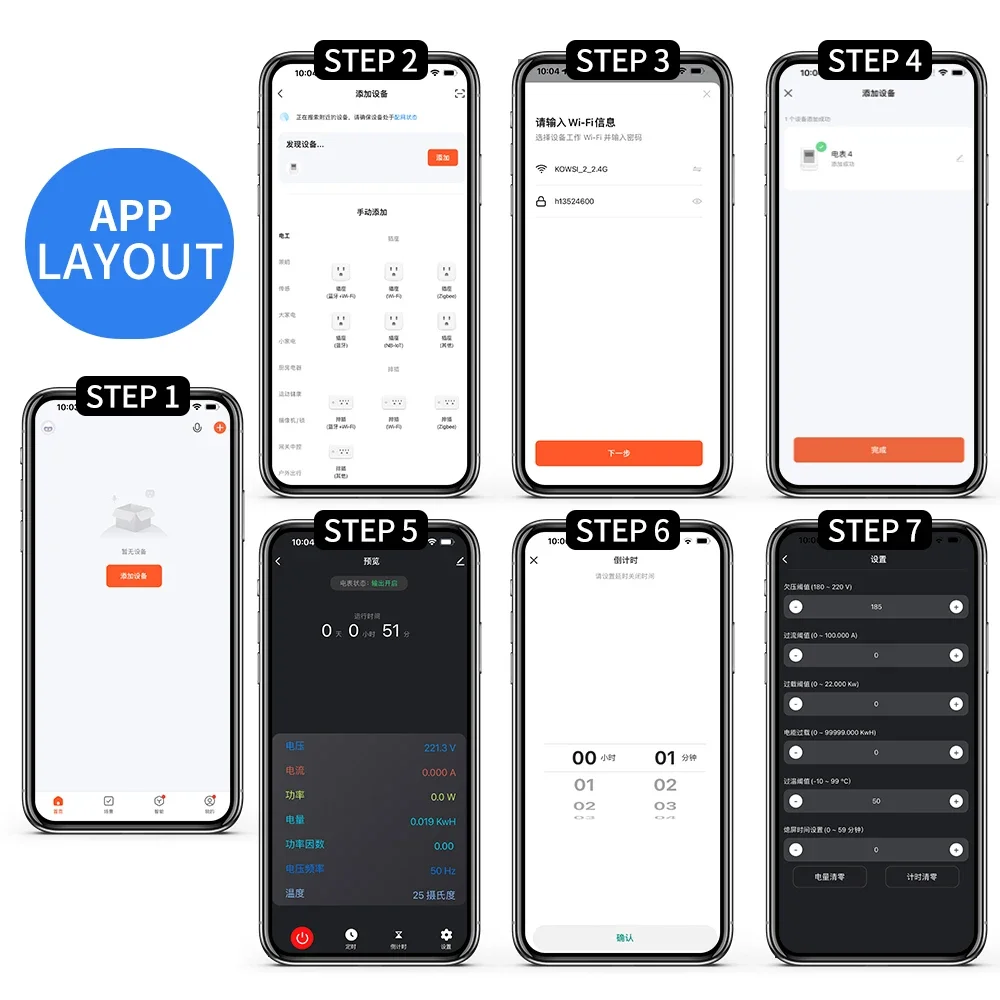

APP Function (Only KWS-302WF Support):

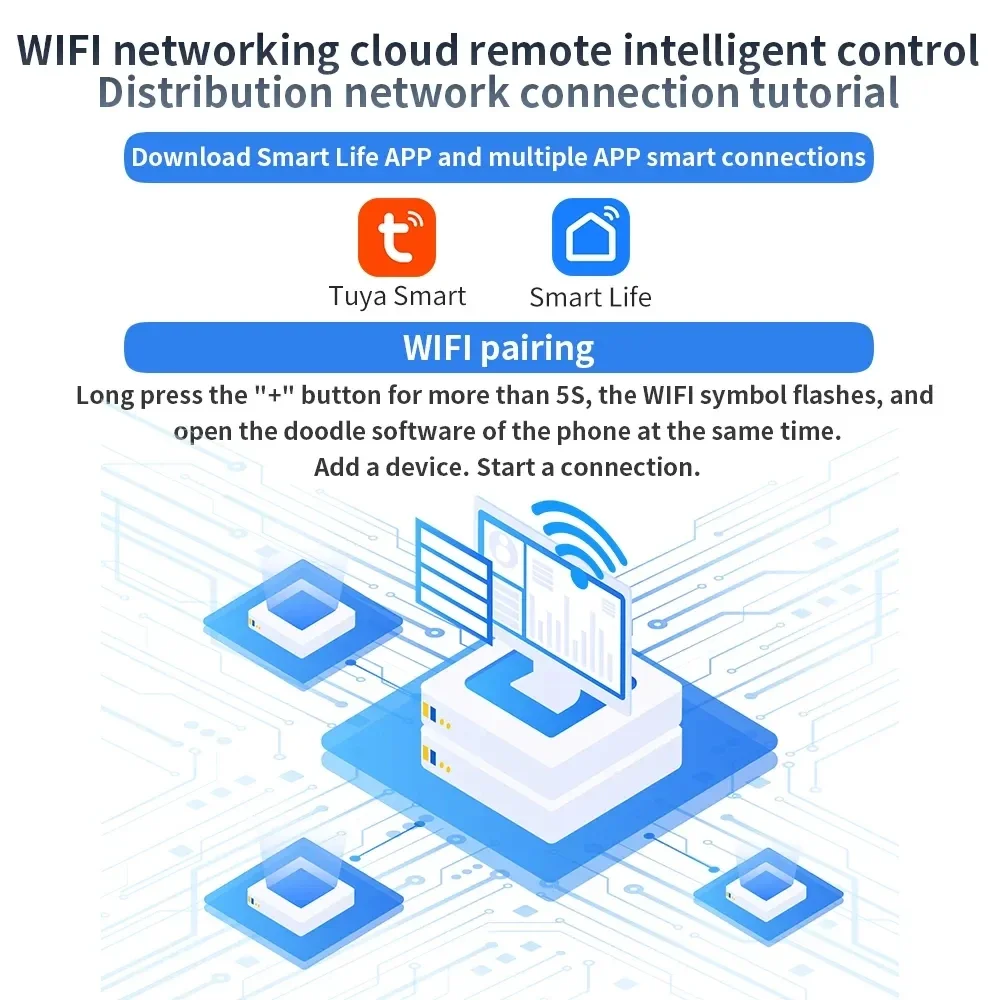

Cell phone Remote APP Control: Download the Smart Life APP or Graffiti intelligent APP connection, and realize WIFI network cloud remote intelligent control. Where there is a signal, you can control the device whenever and wherever you want, unlimited distance.

APP Timing Function: Countdown function, you can add multiple sets of time data in the mobile phone APP to set the power on.

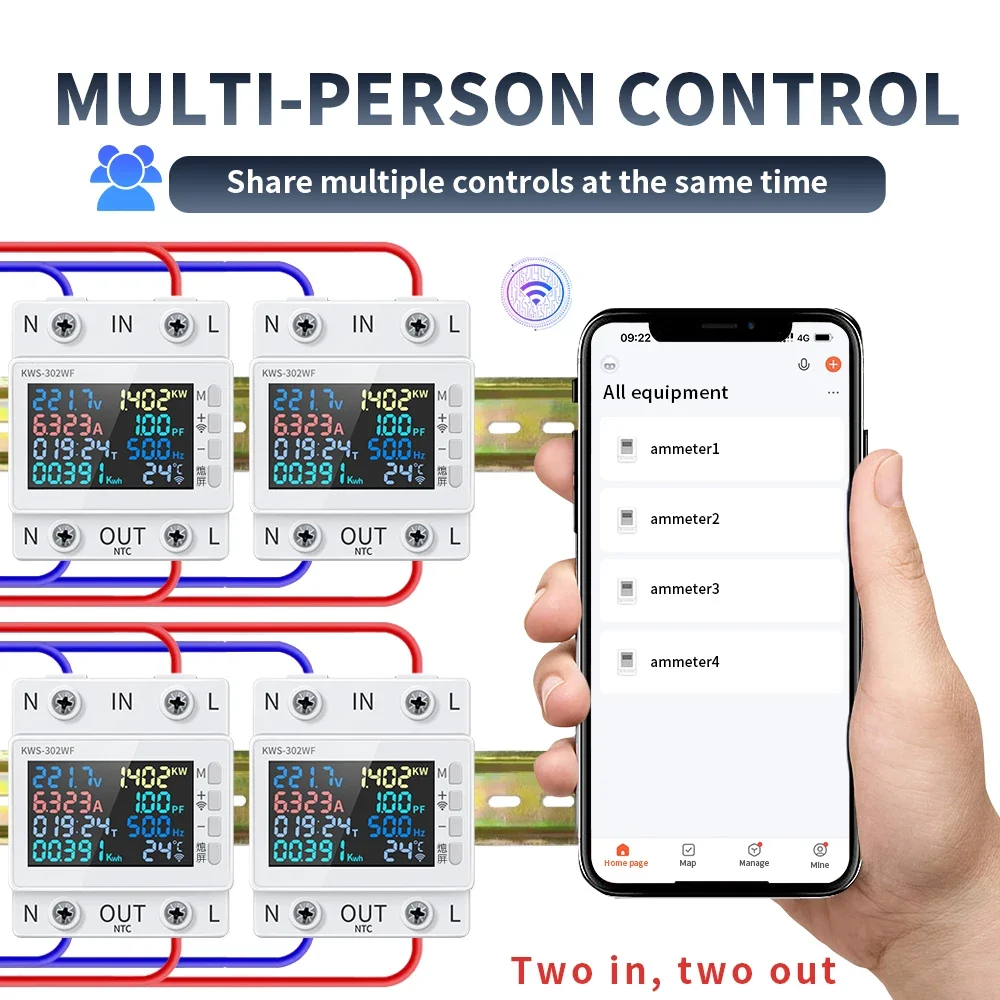

Device Sharing: Share management, multi-person control, support one cellphone to control multiple switches, at the same time you can share multi-person control.

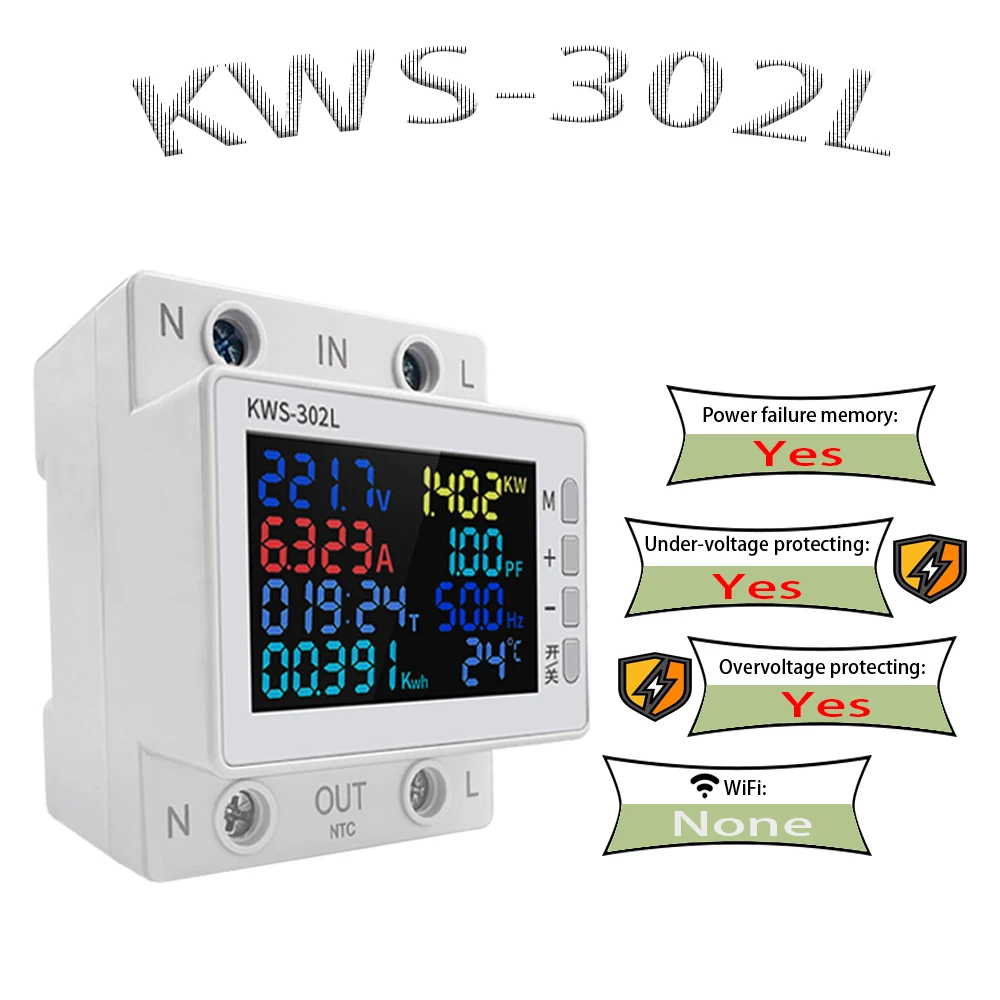

Power Failure Protecting Function (KWS-302WF and KWS-302L Support):

Support over-voltage, under-voltage, over-current, over-power, over-temperature, timer power failure protection settings, and screen hibernation settings.

Please note:

Before purchasing, please read the feature version introduction. If the purchased version does not support all features, you will not be able to use all features

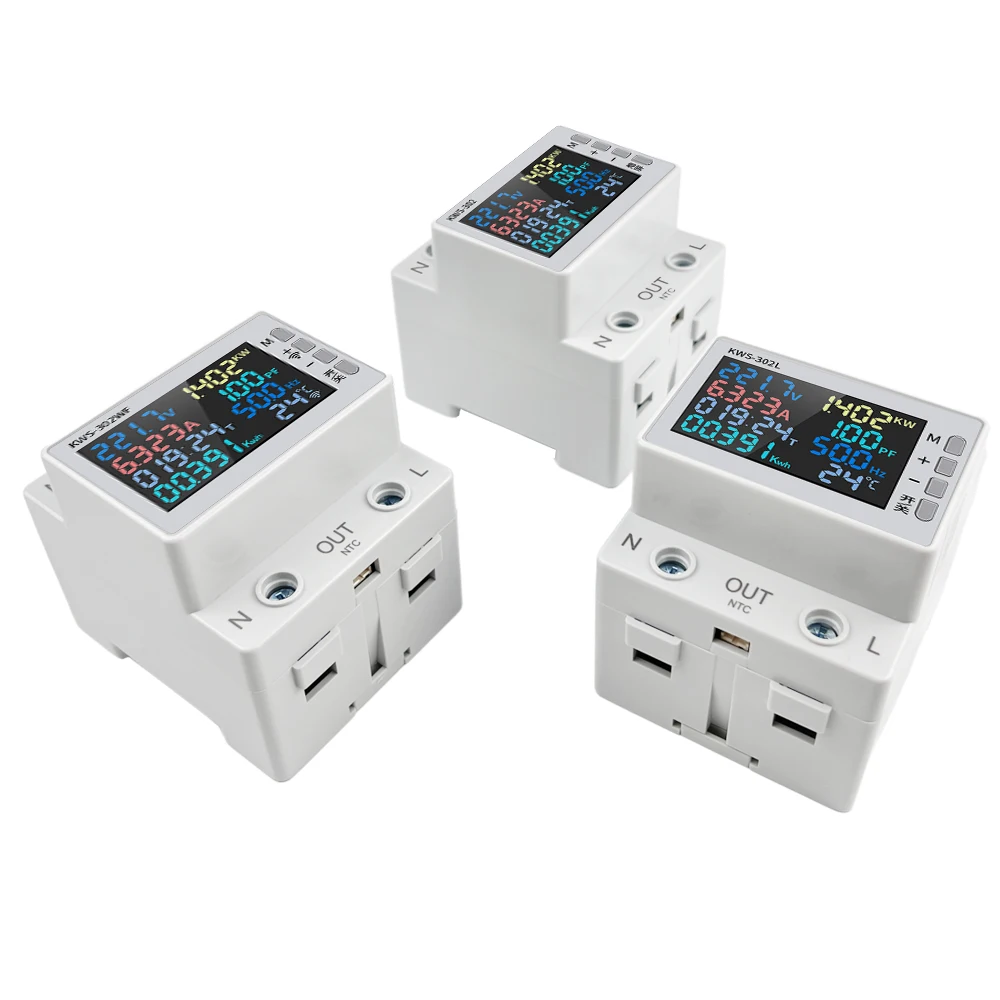

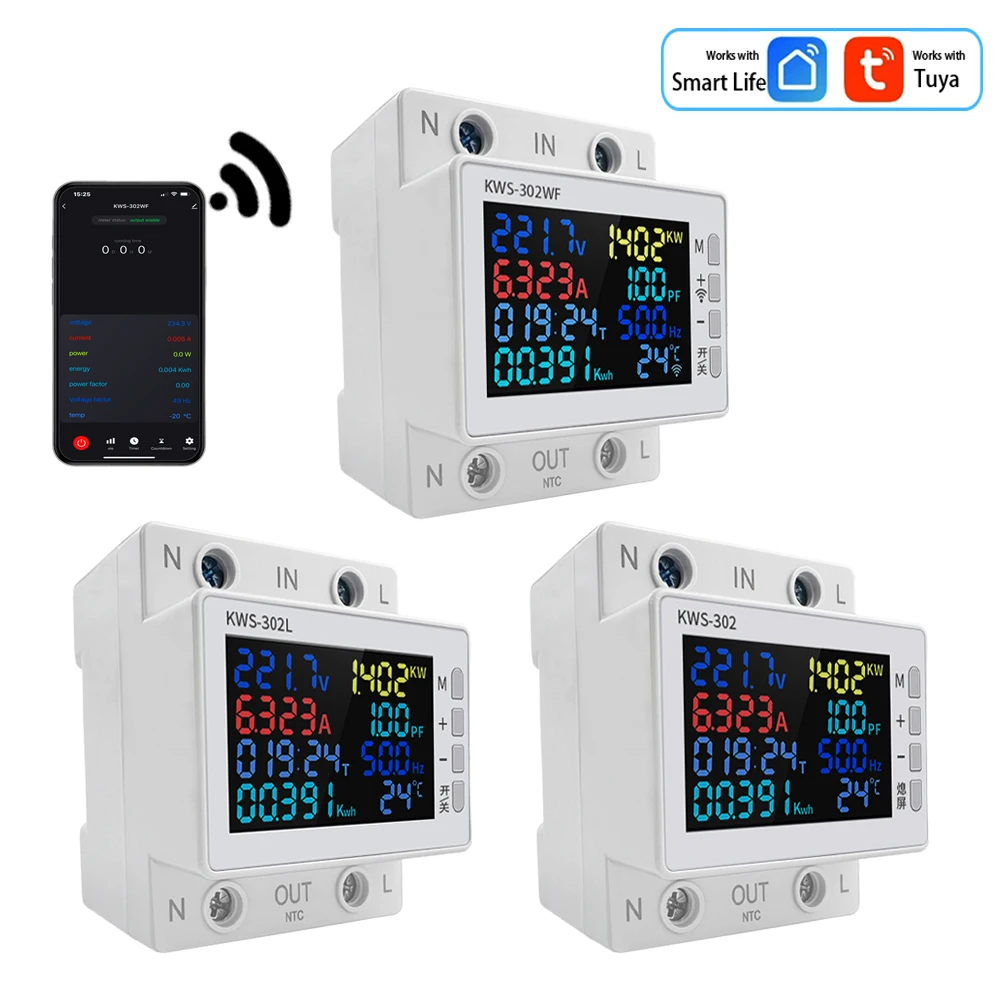

Model

KWS-302WF

KWS-302L

KWS-302

Power outage memory

Yes

Yes

Yes

Undervoltage protection

Yes

Yes

None

Overvoltage protection

Yes

Yes

None

WIFI

Yes

None

None

Voltage range

170-270V

170-270V

170-270V

Current range

0-63A

0-63A

0-63A

Power range

0-17KW

0-17KW

0-17KW

Timing range

0-999hours

0-999hours

0-999hours

Electric energy range

0-9999Kwh

0-9999Kwh

0-9999Kwh

Temperature range

-20-150℃

-20-150℃

-20-150℃

Frequency range

50-60HZ

50-60HZ

50-60HZ

Power factor

0.00-1.00PF

0.00-1.00PF

0.00-1.00PF

Function settings:

Long press M for 3 seconds to enter the settings display

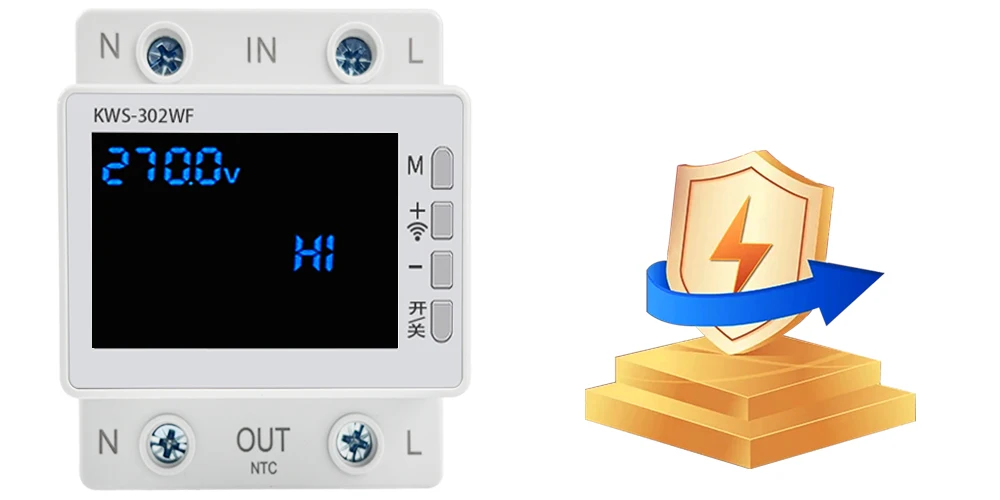

Overvoltage power-off protection setting

Press SET to display as follows: 270.0V HI Press+- to adjust (//1V)
Short press to add or subtract 1V, long press to quickly accumulate or decrease 270.0V, default to factory value

Undervoltage power-off protection setting

Press SET again to display as follows: 170.0V LO Press+- to adjust (//1V)
Short press to add or subtract 1V, long press to quickly accumulate or decrease 170.0V, default to factory value

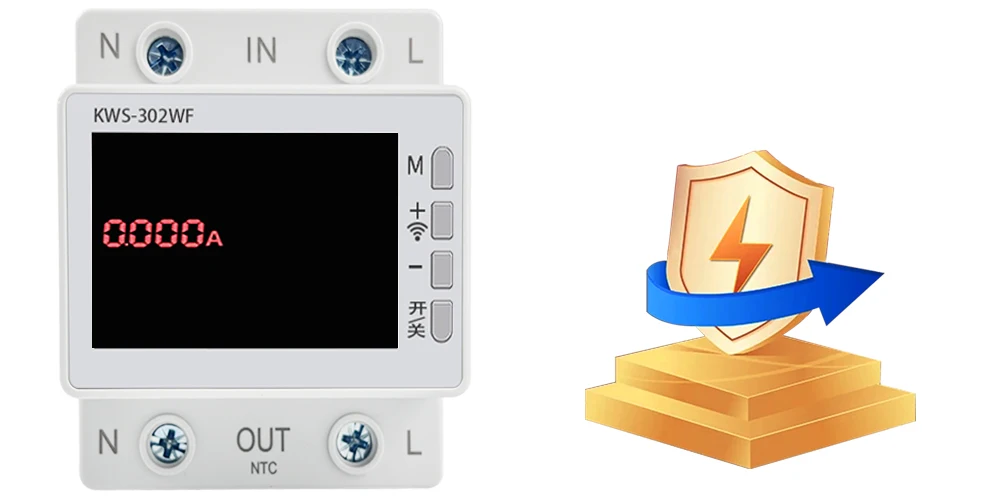

Overcurrent and power-off protection settings

Press SET again to display as follows: 0.000A Press+- to adjust (//1A)

Short press to add or subtract 0.001A, long press to quickly accumulate or decrease. 0 Default Normally Closed

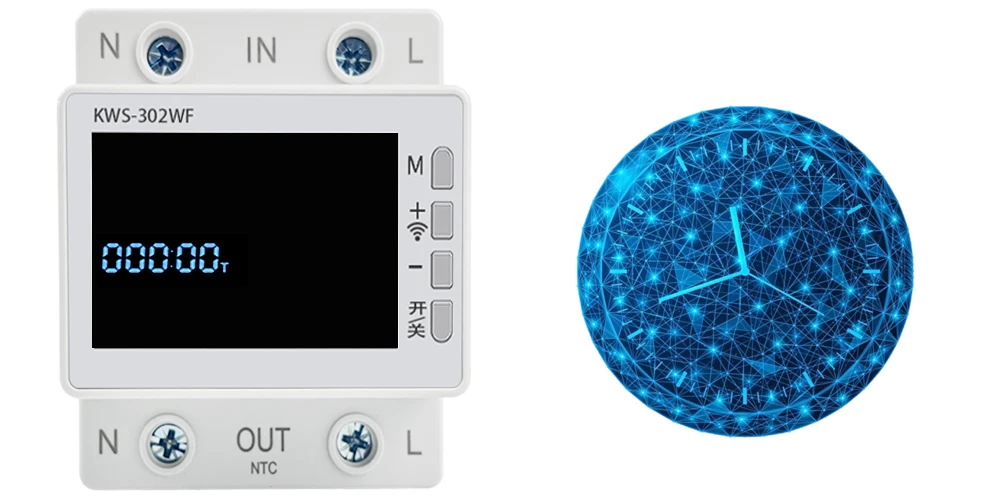

Timed power-off protection setting

Press SET again to display as follows: 000: 00T Press+- to adjust (short press once for 30 minutes)

Long press to quickly accumulate or decrease. 0 Default Normally Closed

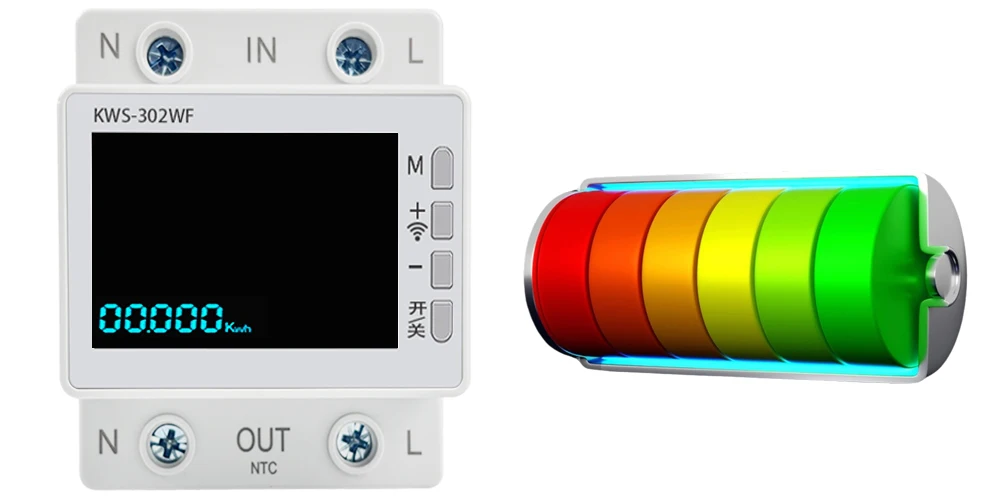

Overcharge and power-off protection settings

Press SET again to display as follows: 00000 KWH. Press+- to adjust (//1 degree). Short press once to add or subtract 0.001 KWH,

Long press to quickly accumulate or decrease. 0KWH is normally closed by default

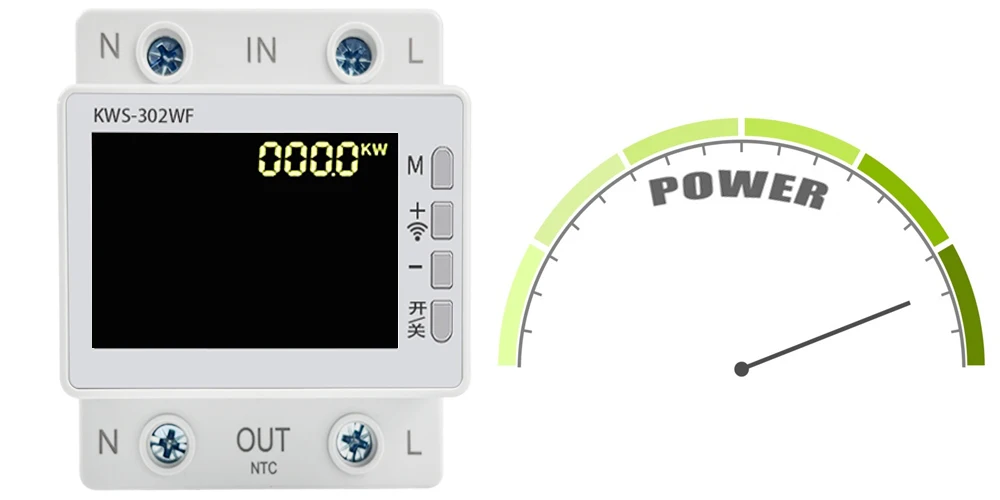

Overpower power-off protection setting

Press SET again to display as follows: 0W Press+- to adjust (//10w)

Short press to add or subtract 0.1W, long press to quickly add or subtract 0W, default off

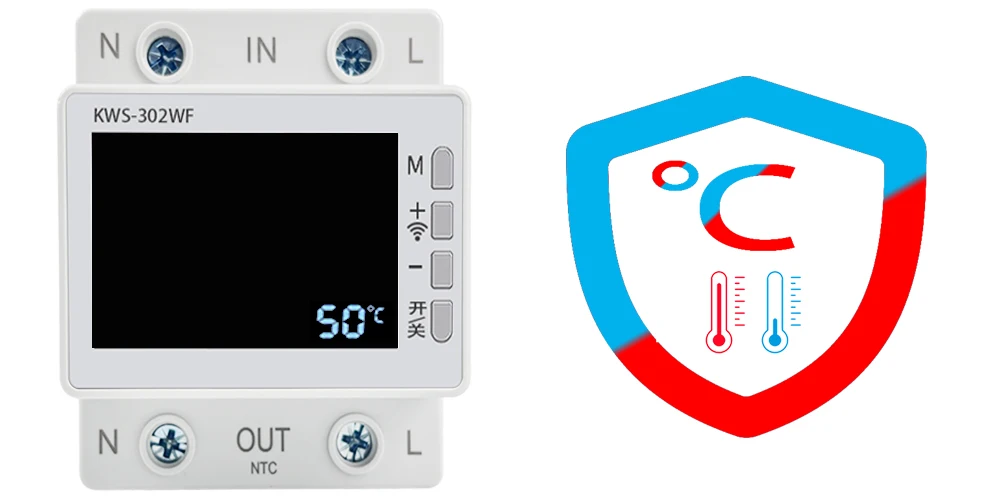

Overtemperature power-off protection setting

Press SET again to display as follows: Over temperature power-off protection 50° C Press+- to adjust (1℃)

Short press to add or subtract 1℃, long press to quickly accumulate or decrease. 50° C defaults to factory value

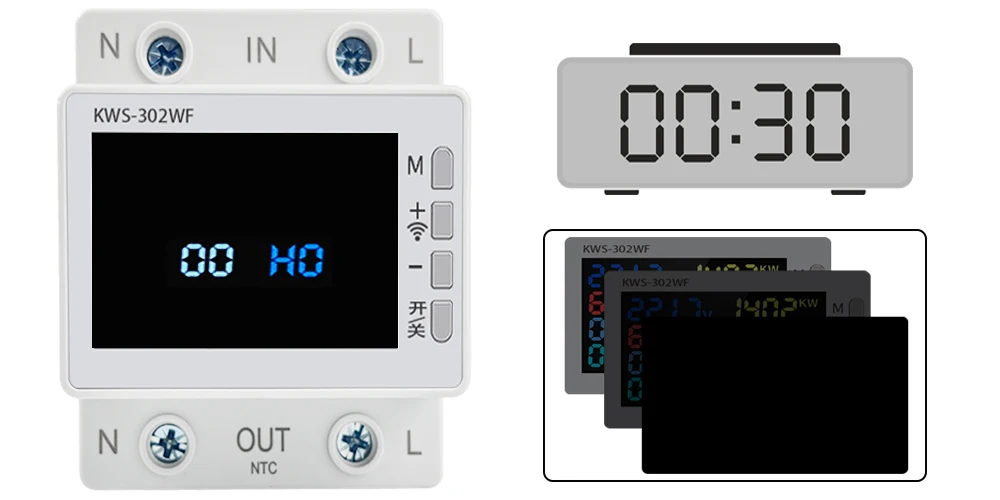

Screen Sleep Settings

Press SET again to display as follows: HO 0 Press+- to adjust (//1 minute)

Short press to add or subtract for 1 minute, long press to quickly accumulate or decrease 0, normally off for 1-60 minutes





Additional information

Weight 0.0 kg
