Waterproof Bluetooth Wifi Tuya Fingerprint Access Controller RFID Keyboard Touch Keypad System WG26 Smart APP Remote Door Opener

IP68 Waterproof Wifi Bluetooth Tuya APP RFID Access Controller

Tuya APP / Fingerprint / RFID Card / Password / Remote Control

Access Controller

  • Material: high quality ABS plastic
  • Fingerprint capacity: 100
  • Card capacity: 8000
  • Panel: touch screen panel
  • Working frequency: 125KHz and 13 56MHz dual frequency
  • Card reading type: support EM ID and MF 1K compatible card
  • Card reading distance: 0-5CM
  • ldentification method: Fingerprint, RFID Card, Password, Tuya APP.
  • Record capacity: Mobile phone APP remotely view the latest door opening information.
  • Management cards: can be set.
  • Backlight: has blue backlight
  • Waterproof function: IP68 waterproof, can be installed outdoor
  • Doorbell button: support wired doorbell
  • Language: Chinese, English.
  • Volume setting: 0~4 adjustable volume
  • Wiegand signal: WG26 / WG34 input/output. Supports machine data copy function.
  • Working voltage: DC 12V
  • Working current: ≤30mA
  • Remote control working frequency: 315MHz
  • Working temperature: -20。C ~ 70。C
  • Working Humidity: 20% ~ 90%

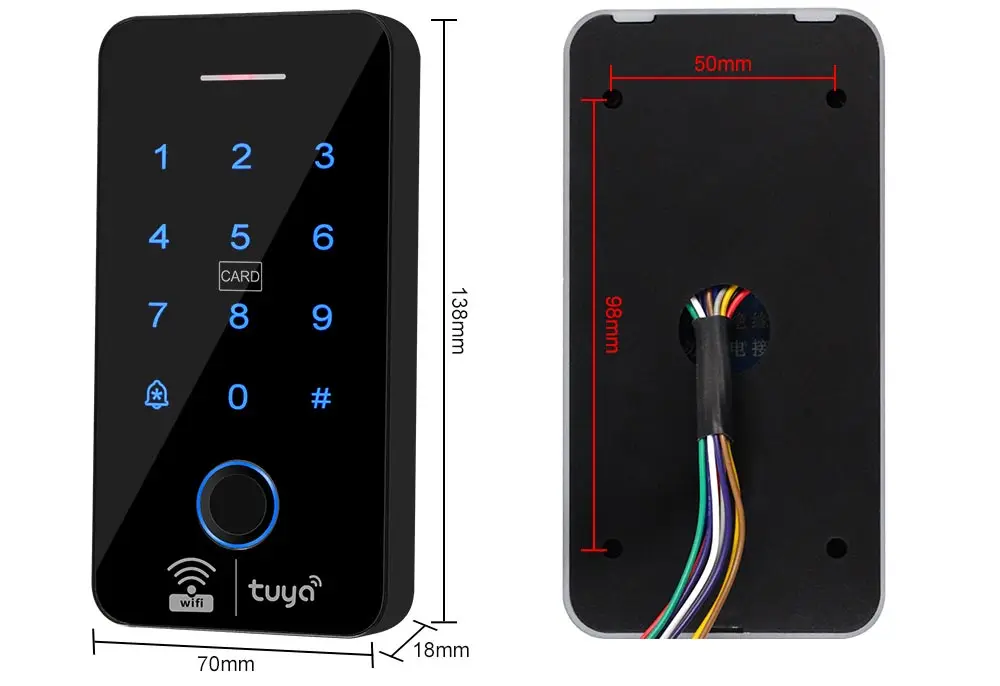

  • Product size: 138*70*18mm

Product Details:

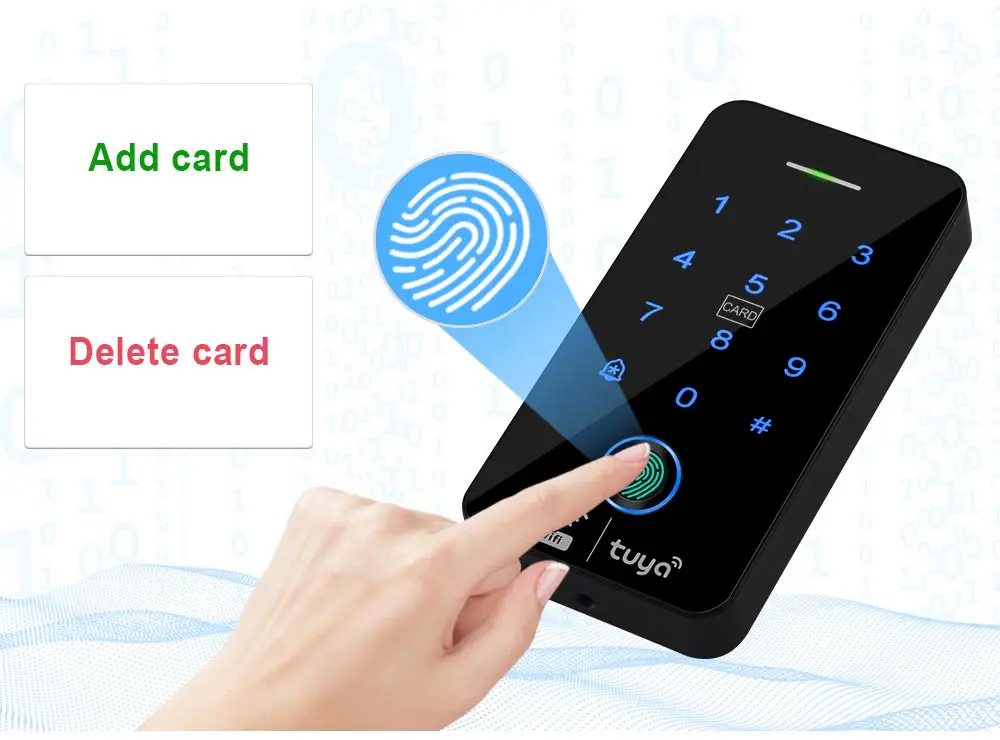

* 360 degree comprehensive fingerprint recognition, fast identify Speed
For different angles of fingerprints, it can be quickly and accurately identified
* Can set Management cards, very easy to program. Don't need to connect on computer.
Management cards was not included in the package, need to set them by yourself.
* Change the voice prompt to English: input # * 123456 # 661 # on the access control keypad.


IP68 Waterproof. Can be installed outdoor.
Has a door bell button, can install a wired door bell.
White backlight keypad. The digits number can be seen clearly even at dark.

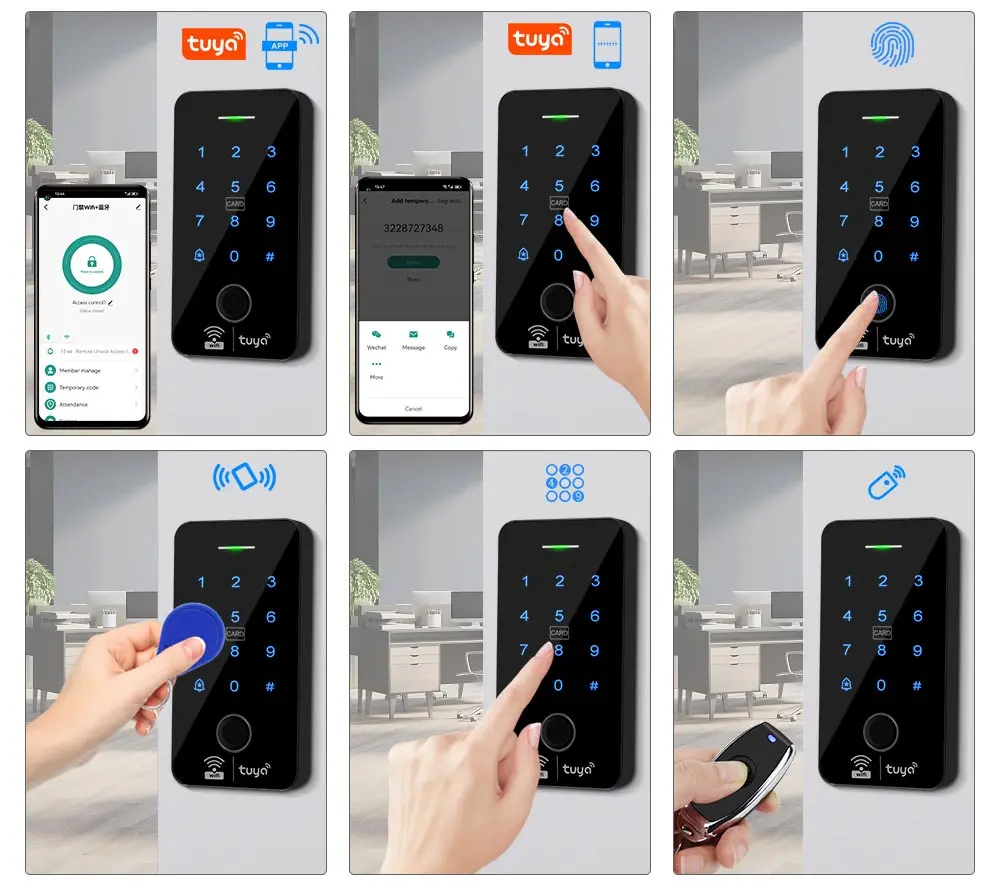

Support Fingerprint, RFID Card, Password, Tuya APP, remote control transmitter to unlock the door
Support 100 Fingerprints, 8000 RFID cards user capacity,
Mobile phone APP remotely view the latest 10000 lock opening information, more secure!

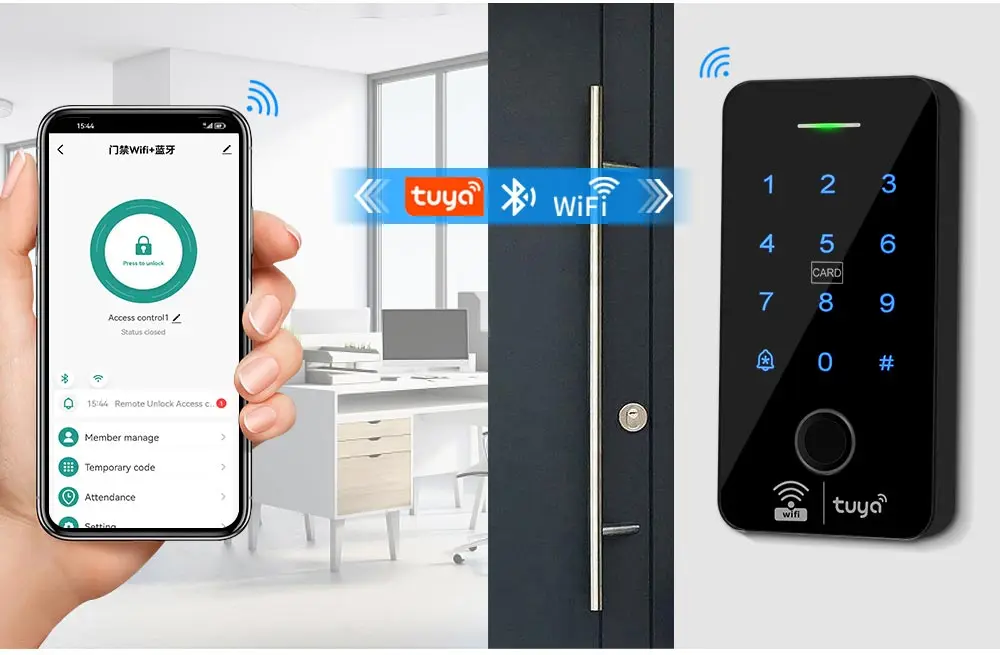

Support Tuya APP remote unlocking
Can unlock the door with the bluetooth if mobile phone without wifi

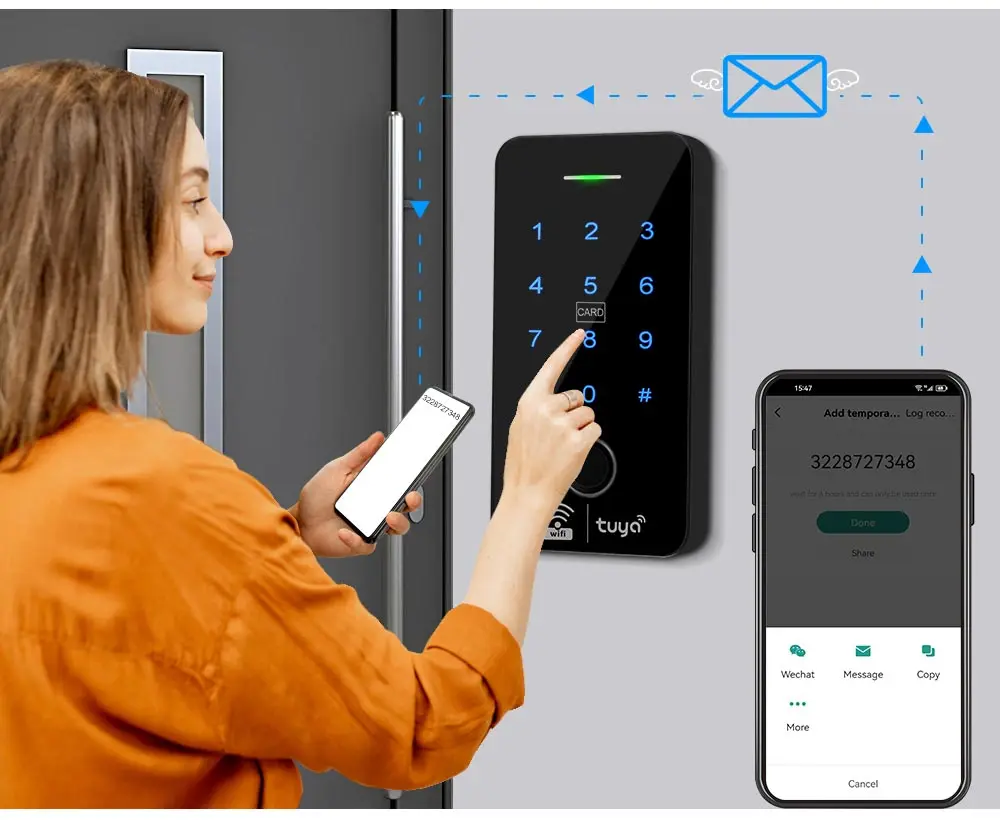

Support Temporary password unlock
can sharing password via WeChat, Email and SMS.

About Tuya APP
1) Supports language: Chinese, English.
2) You can add fingerprints, password, RFID cards on the APP, it's very convenient.
3) You can open the door with Tuya APP unlocking button, or Tuya password.
4) A periodic password can be set, and the password is valid for a certain period of time.
5) You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
6) Supports sharing password via WeChat, Email and SMS.
7) Can view unlock records. Click reminder information to view logs.

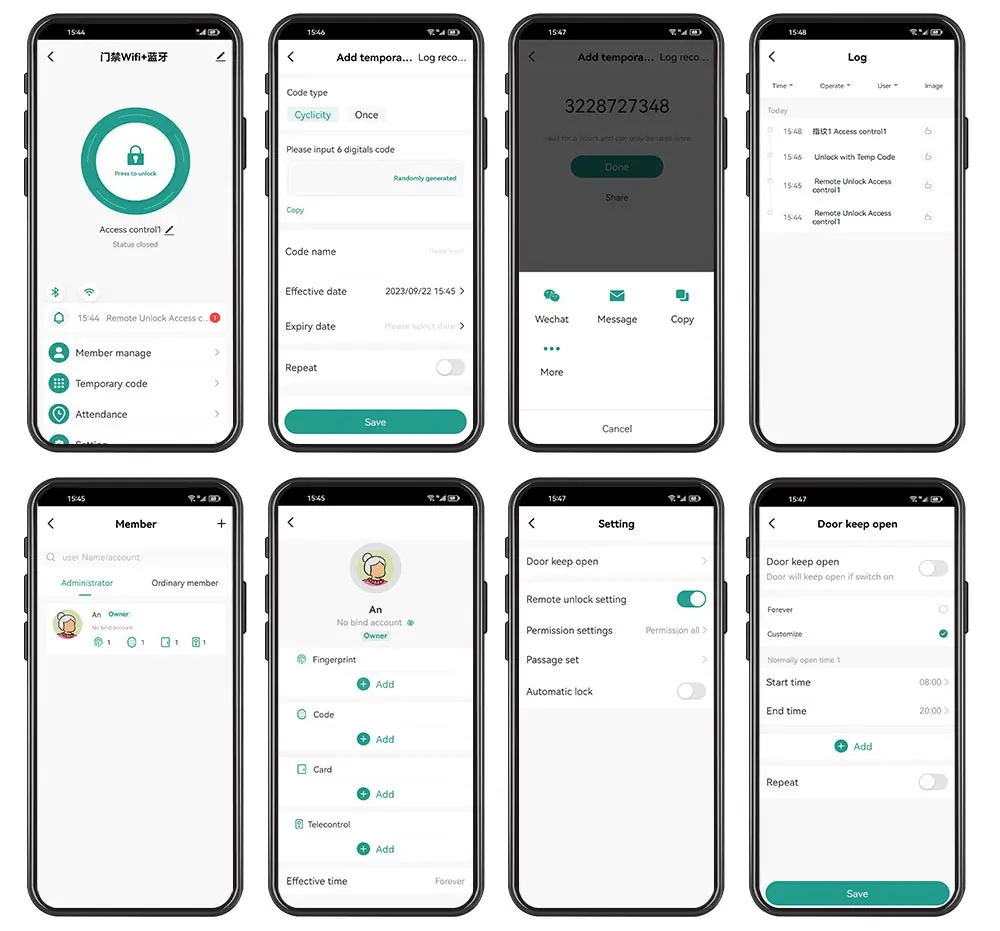

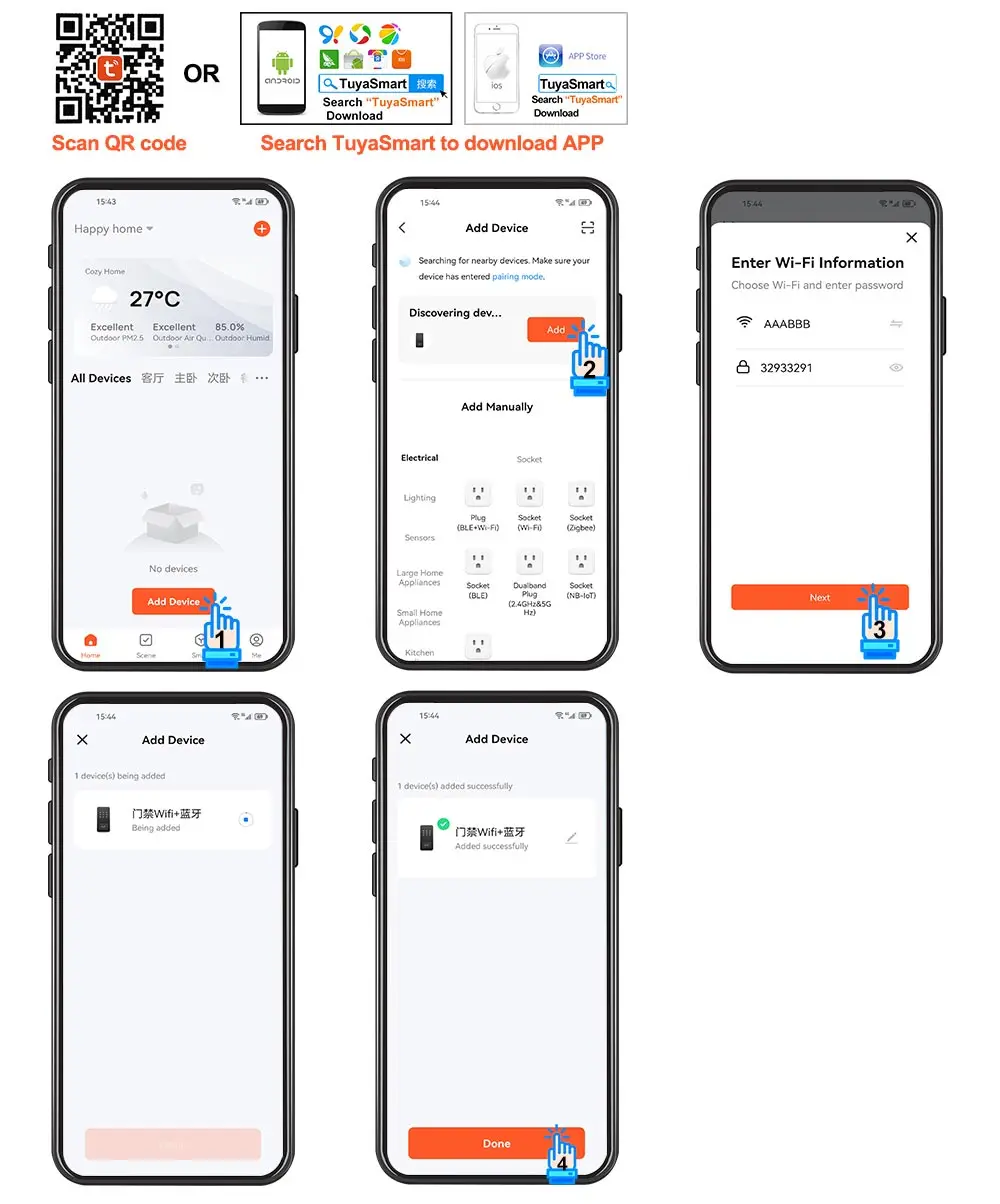

Tuya APP Setting Instruction

1) Scan QR code to download Tuya APP or Search Tuya on App store to download it.
2) Enter *123456 # 68 # on the access control machine, wait for 10 seconds, the indicator light flash and start pairing, pair with the mobile phone via WiFi.
3) Turn on Tuya APP to add new equipment.
4) Select "Auto scan", click "Searching".
5) Connect with available devices, click "Next". Choose Wi-Fi and enter password, click "Next".
6) Connecting, Added successfully, click "Done".
7) Click setting, turn on "remote unlock setting".
8) Select user, click "+" to add user, fill in name, click next step.

9) Add user fingerprints, Code, cards, remote control transmitter
10) Input the related information and click "Next step".

11) Add temporary code, click "Once'", input code name, click "Save offline code" , Done.

Notice: The code valid time for 6 hours and only can be used once.
12) Add ordinary user by clicking ordinary member “+”.

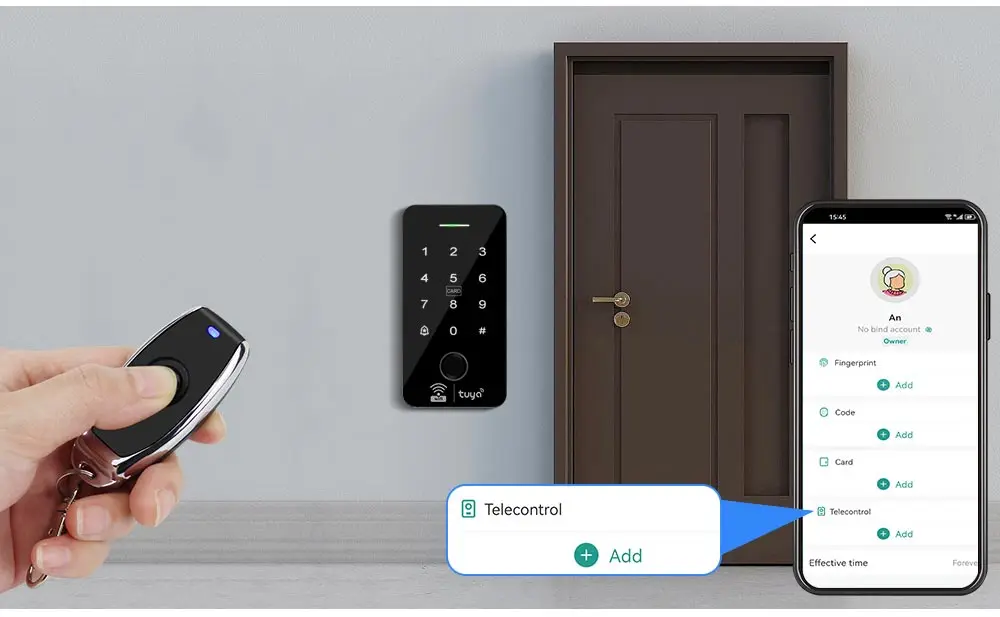

Support remote transmitter to unlock the door, wide range up to 30 meters.
(The remote transmitter is not included in the package, need to buy extra)

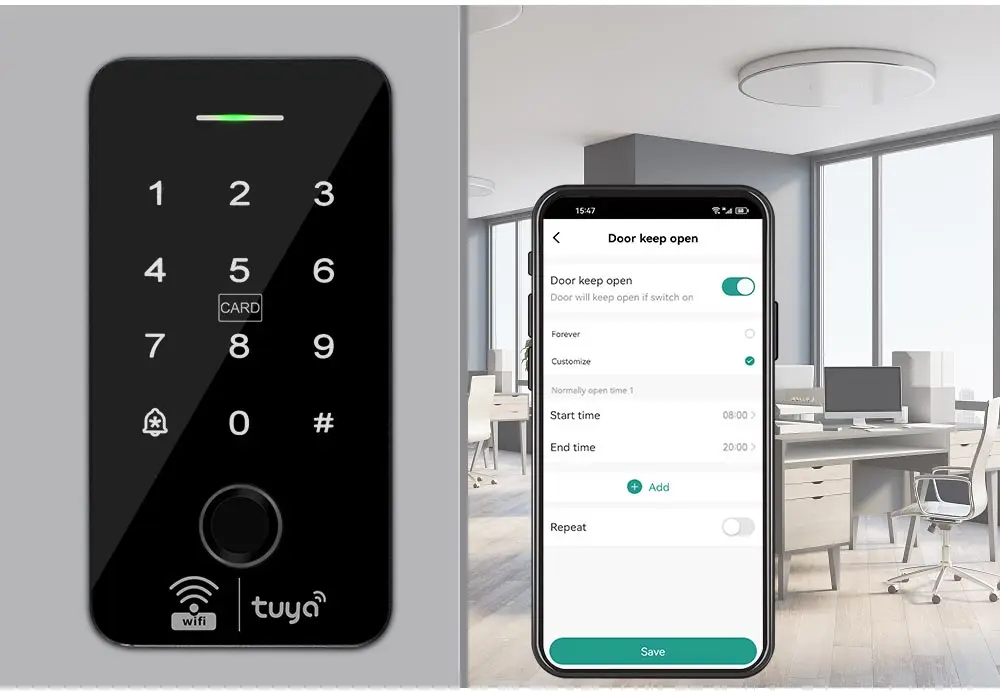

Can set Normally Open model
Frequent entry and exit can be set to normally open model



Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity.




RFID Keyfobs:
Material: ABS
Operating frequency: 125KHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.


Wiring Diagram
(The power supply, electric locks, door exit button are not included in the package)

Additional information
