Features:

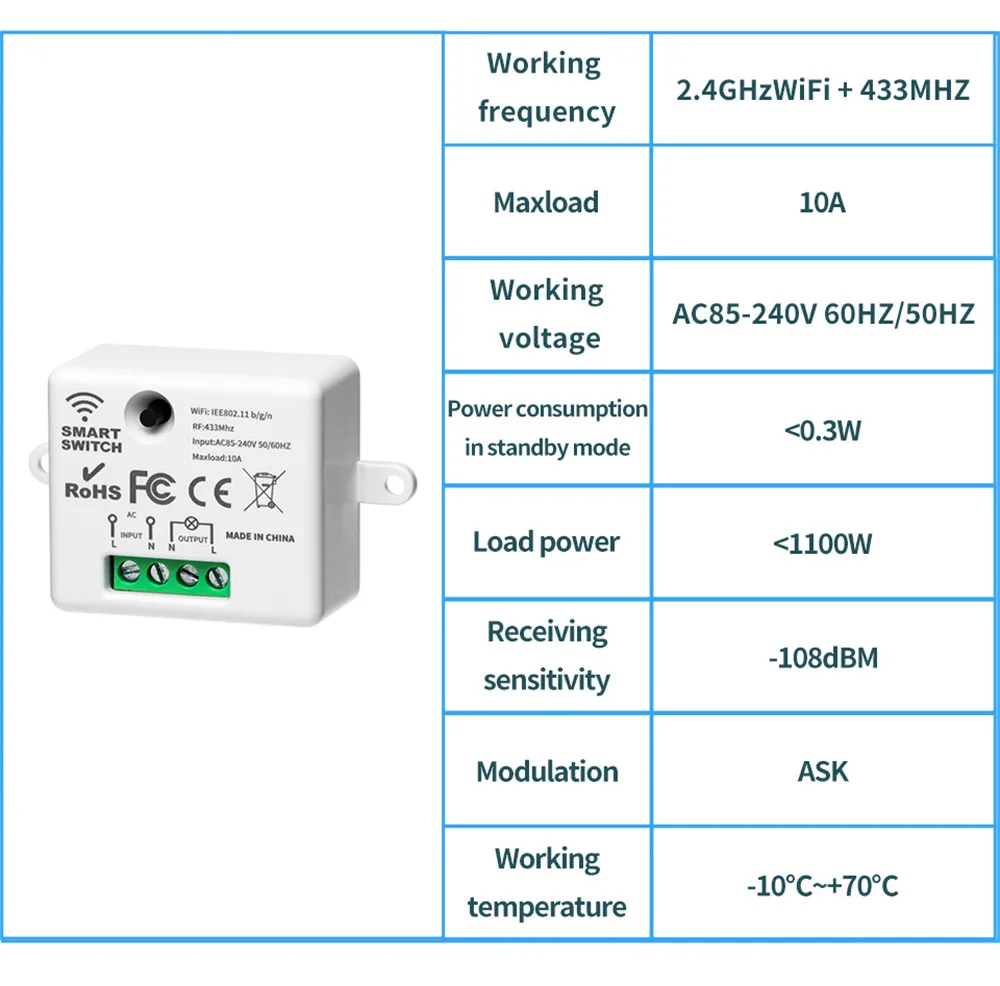

(1) controller (Receiver)

1) Working voltage: AC85-240V 60HZ/50HZ

2) Working frequency: 433MHZ

3) Power consumption in standby mode: <0.3W

4) Load power: <1100W

5) Receiving sensitivity: -108dBM

6) Working way:wireless control

7) Coding way: learning code

8) Modulation: ASK

9) Working temperature: -10*C~+70”C

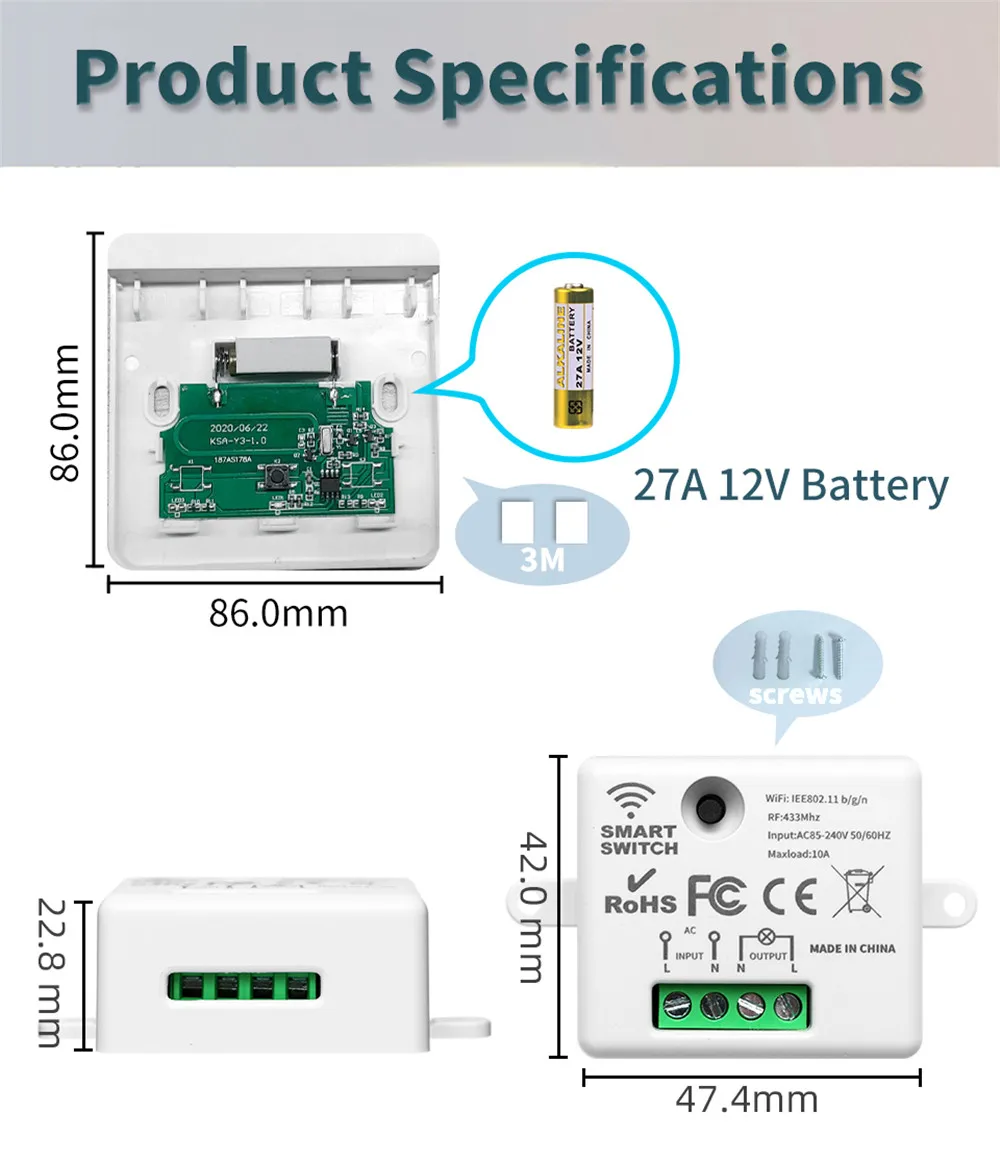

10) Size: 47.4*42*22.8 (mm)

(2) Wireless Wall Switch

1) Working voltage: DC3.0V

2) working frequency:433MHZ

3) Power consumption in standby mode:<1uA

4) Transmitter power: <10mW

5) Working way: wireless control

6) Coding way: EV1527 learning code

7) Modulation: ASK

8) Working temperature:-10”C~+70*C

9) Size: 86*86* 15mm

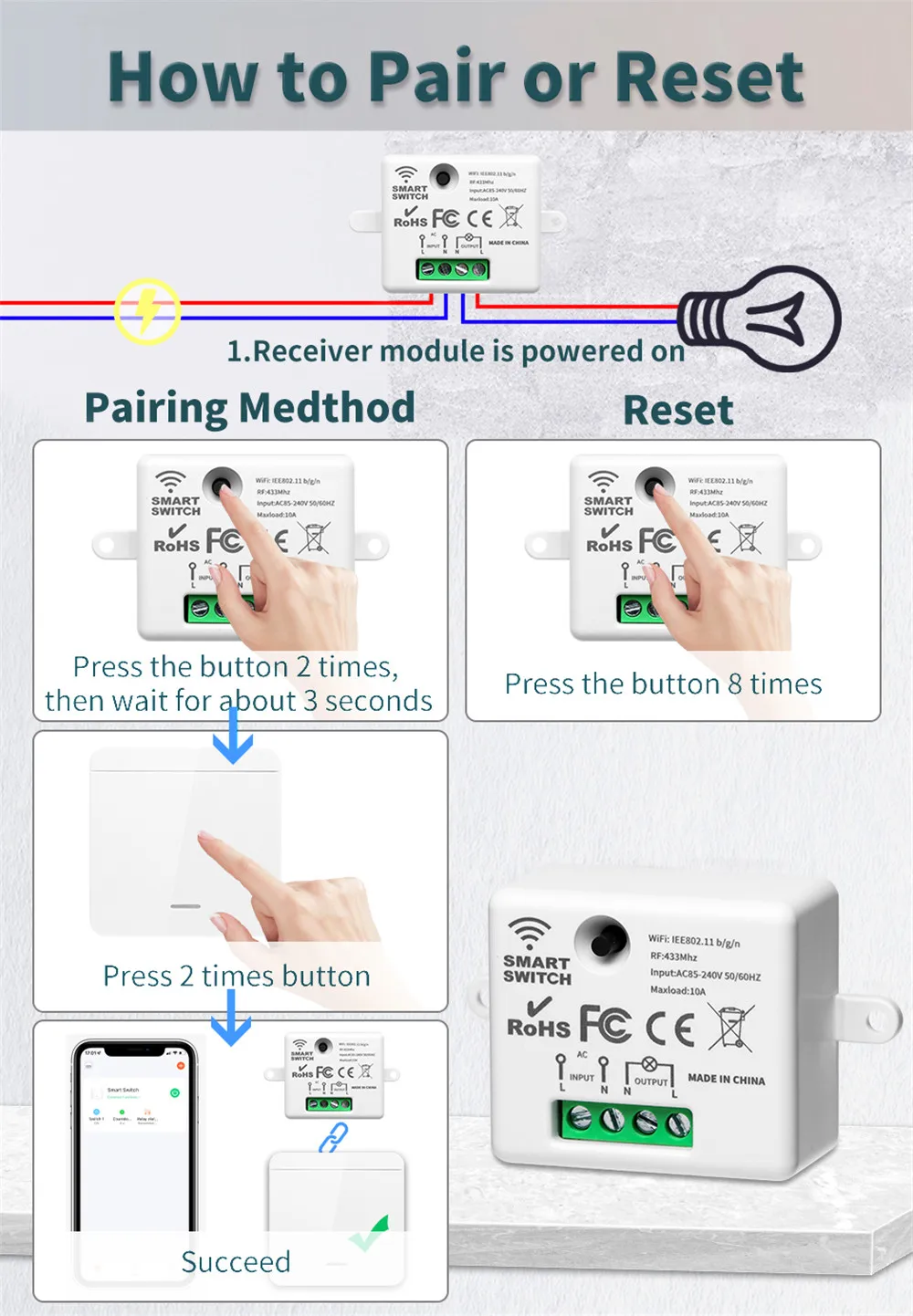

How to get the signal

Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signal

Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
