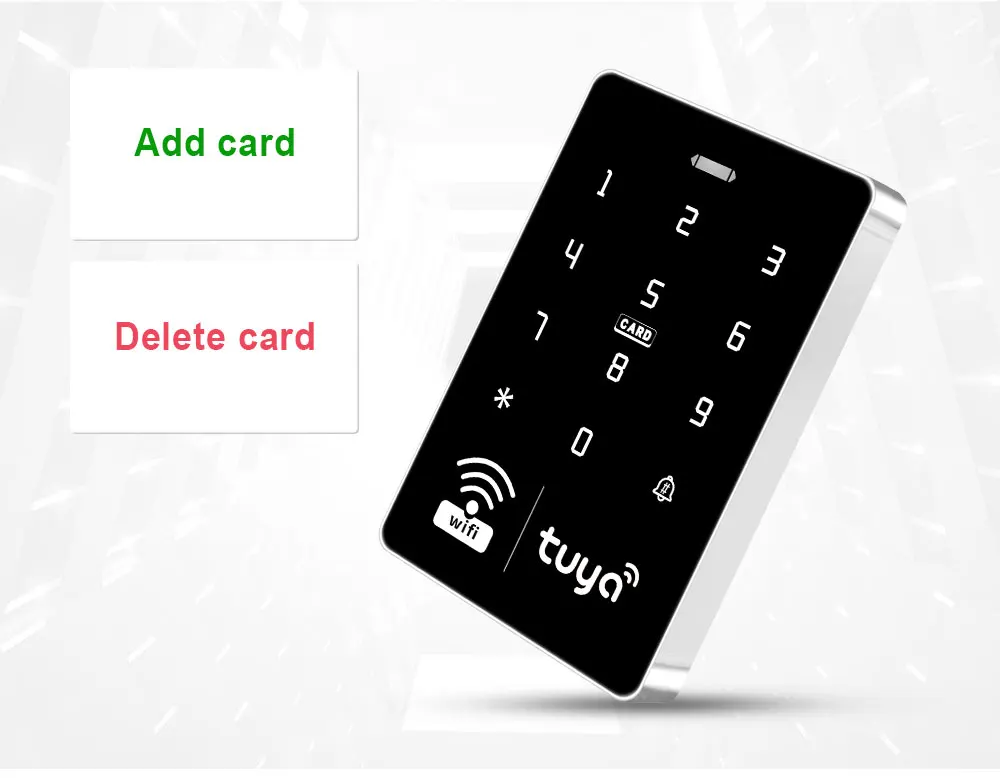

WiFi Tuya Door Access Control Keypad IP68 Waterproof RFID Keyboard Controller Reader Touch Door Opener APP Remote Unlock WG26/34

IP68 Waterproof Wifi Tuya APP RFID Access Controller

Wifi Tuya APP / RFID Card / Password / RFID Card + Password unlock methodsProduct Specification:

  • User capacity: 10,000 user
  • Material: ABS high quality material
  • Panel: touch screen panel
  • Working frequency: 125KHz and 13.56MHz
  • Card reading type: support EM ID and MF IC compatible card
  • Card reading distance: 0-5CM
  • ldentification method: RFID card, Password, RFID Card plus Password, Tuya APP remote unlock.
  • Record capacity: Tuya APP remotely view the latest lock opening information
  • Backlight: has blue backlight
  • Waterproof function: IP68 waterproof, can be installed outdoor
  • Doorbell button: support wired doorbell
  • Wiegand signal: WG26/34 output
  • Working voltage: DC 12V
  • Working current: ≤3A
  • Door opening time: 0~99 seconds
  • Can set Management card: Yes
  • Working temperature: -20 ~ 70 Degrees Celsius
  • Working Humidity: 10% ~ 90%

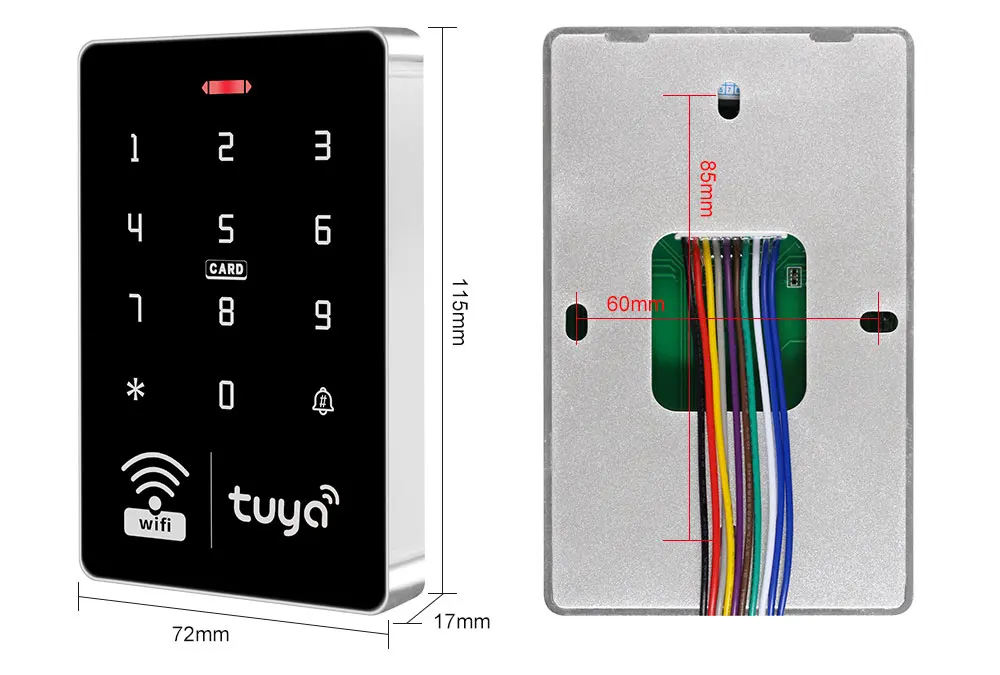

  • Product size: 115*72*17mm
Product Details:
About Tuya APP
  • You can add Password, RFID cards on the APP, it’s very convenient.
  • You can open the door with Tuya APP unlocking button, or Tuya password.
  • A periodic password can be set, and the password is valid for a certain period of time.
  • You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
  • Supports sharing password via WeChat, Email and SMS.
  • Can view unlock records. Click reminder information to view logs.

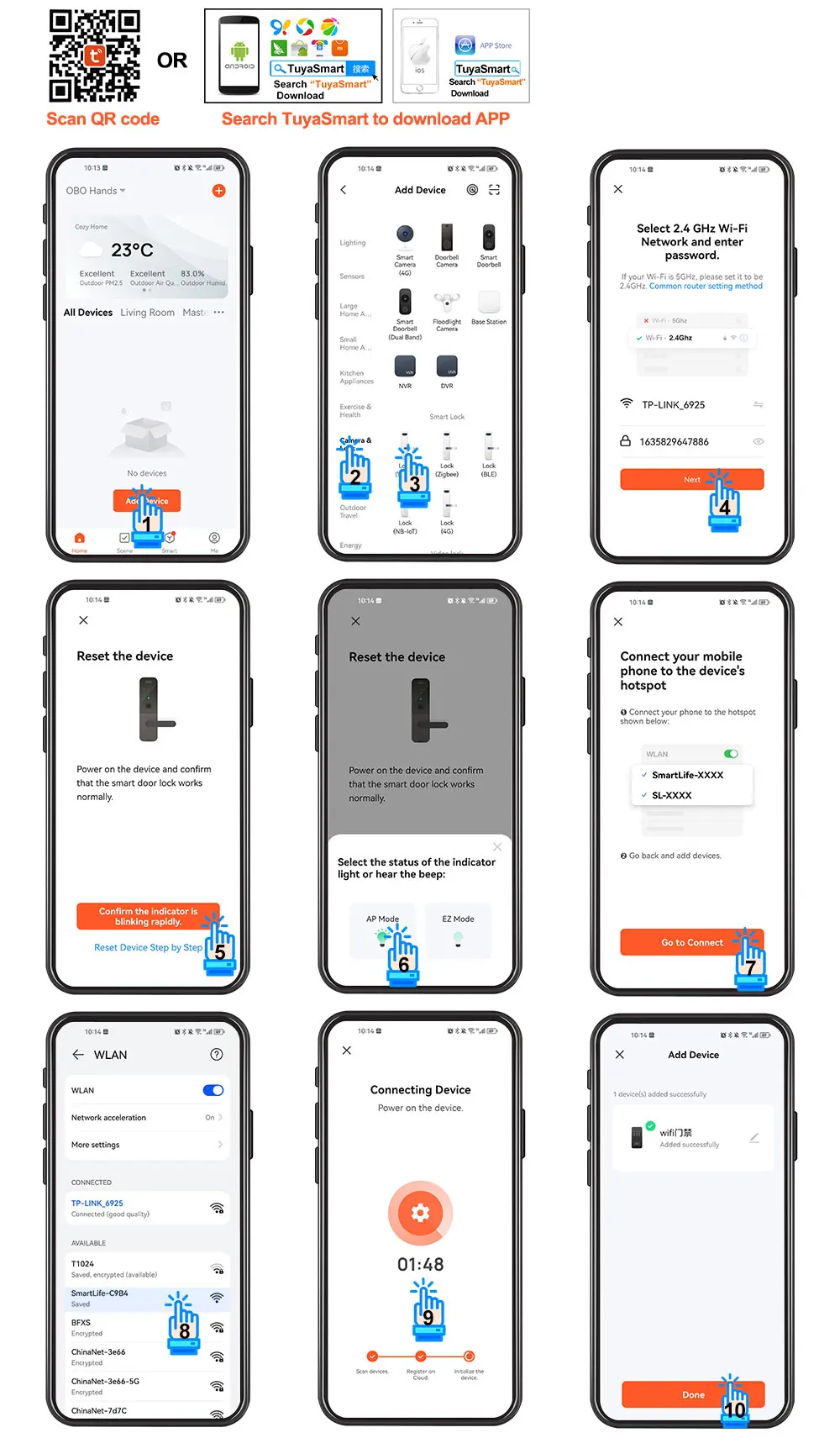

Tuya APP Setting Instruction
1) Scan QR code to download Tuya APP or Search Tuya on App store to download it.
2) Enter *123456 # 041# on the access control machine, wait for 5 seconds for the indicator light to flash and start pairing, pair with the mobile phone via WiFi.
3) Open Tuya APP to add new equipment.
4) Select “Camera & Lock”, click “Lock(Wi-Fi)”.
5) Connect with available devices. Choose Wi-Fi and enter password.
6) Confirm that the device indicator flashes and click “Done”.
7) Select “AP Mode”.
8) Connect mobile WiFi to device hotspot.
9) Connecting, Added successfully, click “Done”

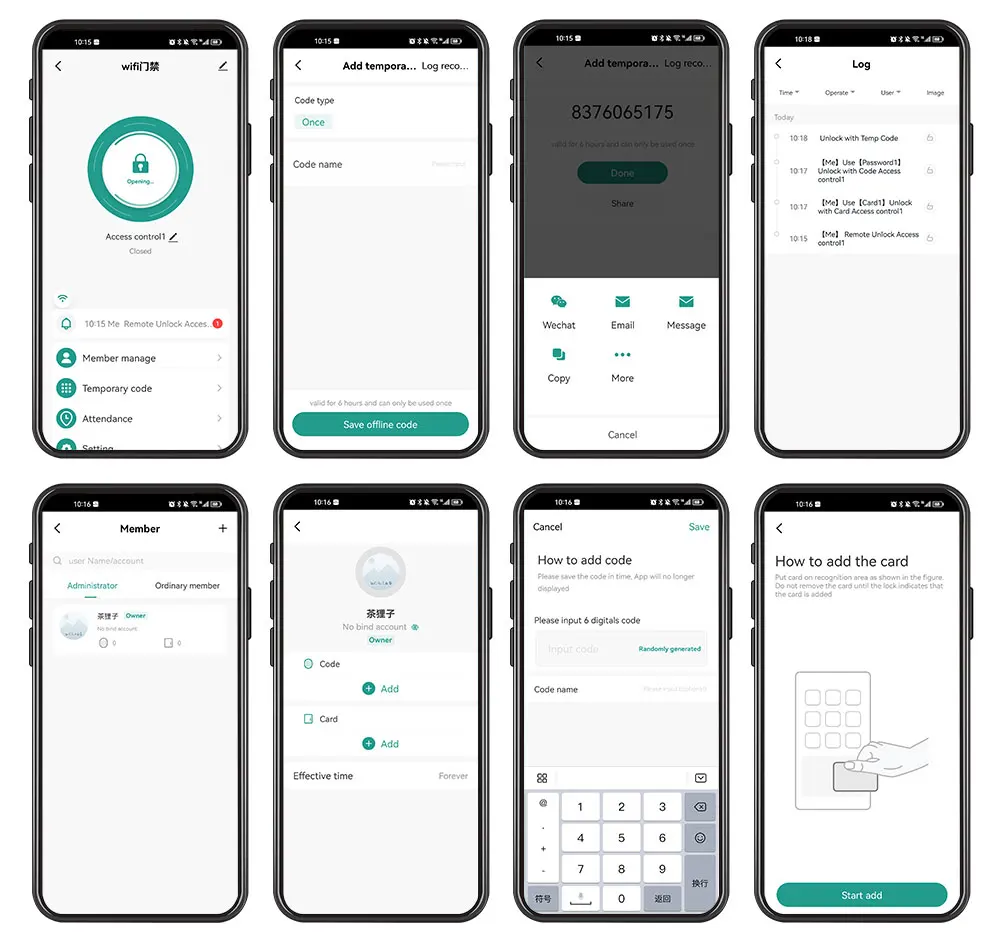

10) Click setting, open remote unlock setting.
11) Select user, click “+” to add user, fill in name, click next step, then click “Add” to input 6 digits code or generated code randomly, fill in code name or card name, click “Save”.
12) Swiping one card within 60 seconds, add card successfully, then fill card name and click “Done”.
13) Then input the related information and click “Next step”.
14) Add temporary code, click “Once” , input code name, click “Save offline code” , Done.
Notice: The code valid time for 6 hours and only can be used once.
15) Add ordinary user by clicking ordinary member “+”.

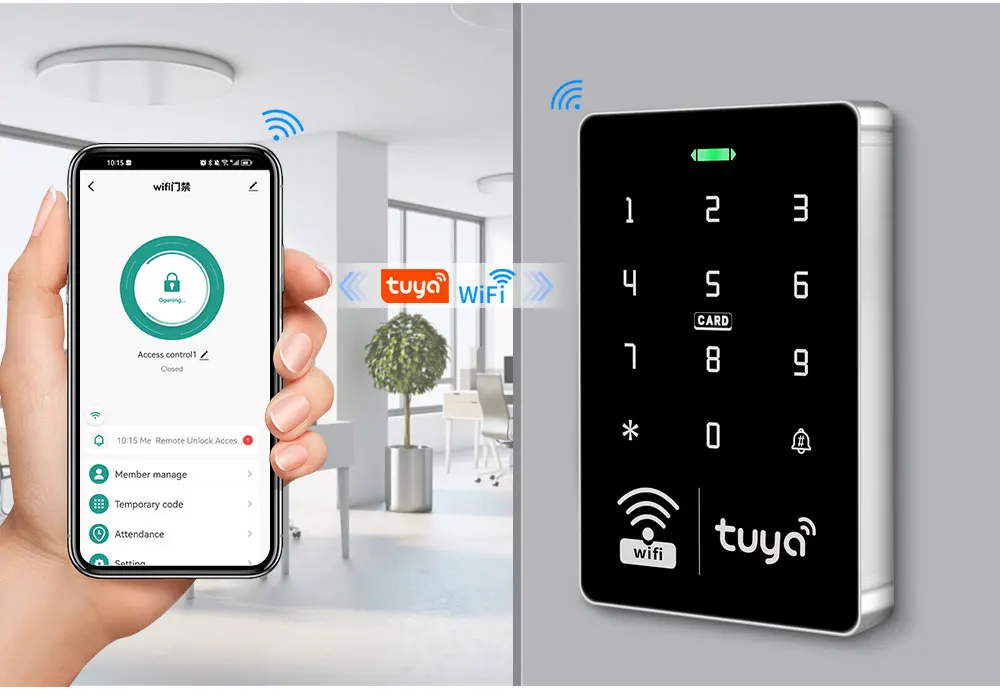

Support Tuya APP remote unlock
You can hold and press the unlock icon to open the door
Support Temporary password unlock
You can set Tuya APP temporary password. Supports sharing password via WeChat, Email and SMS.
Support RFID Card, Password, RFID Card plus Password, Tuya APP to open the door
Support 10,000 RFID card and password user capacity.
Can set Management card, very easy to program.
Don’t need to connect on computer.
Management cards was not included in the package, need to set them by yourself.

ABS fire retardant material shell

Touch keyboard, very beautiful design. Has a door bell button, can install a wired door bell

Can set normally open mode.
Frequent entry and exit can be set to normally open model

IP68 Waterproof. Can be installed outdoor

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

Blue Backlight keypad

The digits number can be seen clearly even at dark

Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity.

Suitable for most major access control solution.

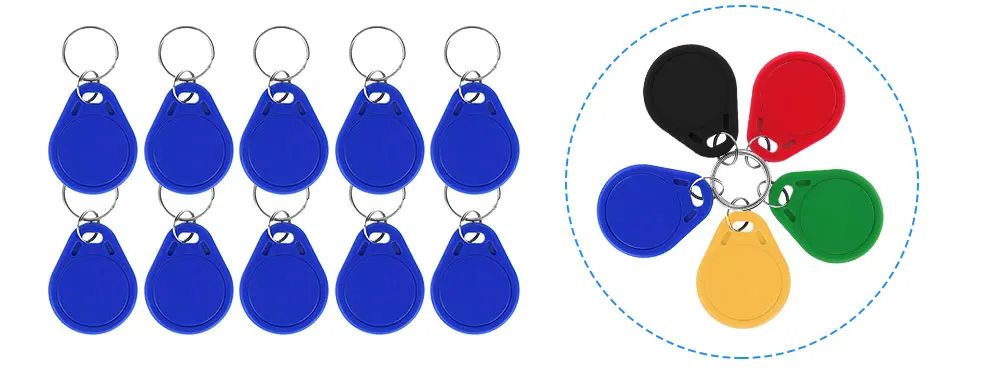

RFID Keyfobs

1. Material: ABS
2. Working Frequency: 13.56MHz

3. Chip: MF 1K
4. Support: read only, not support write.
5. Reading distance: 0-5cm
6. Each one has a metal keyring.

7. Color: As picture show

Wiring Diagram:

(Note: Both of the power supply, lock, exit button are  Not  included in the package, need to buy extra)
